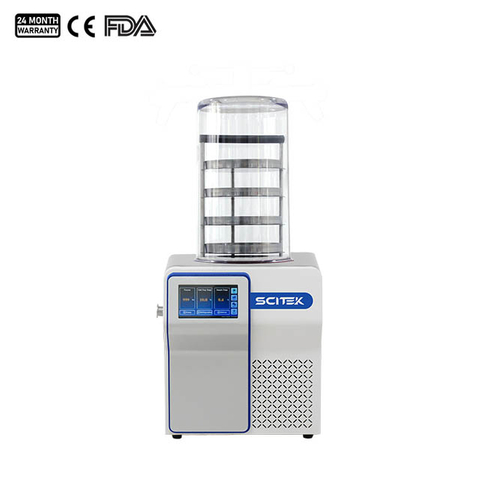

Model : FD-10S; FD-10P; FD-10T; FD-10PT

Freeze Drying Area (m2) : 0.12 / 0.12 / 0.09 / 0.09
Tray Size (ΦxH)(mm) : Φ200x20
Condenser Size (DiameterxH)(mm) : Φ215x190
Vacuum Degree (no-loading) (Pa) : ≤5
This benchtop freeze dryer is designed for lyophilising light to medium sample volumes. The compact design is ideal for laboratories with limited floor space.

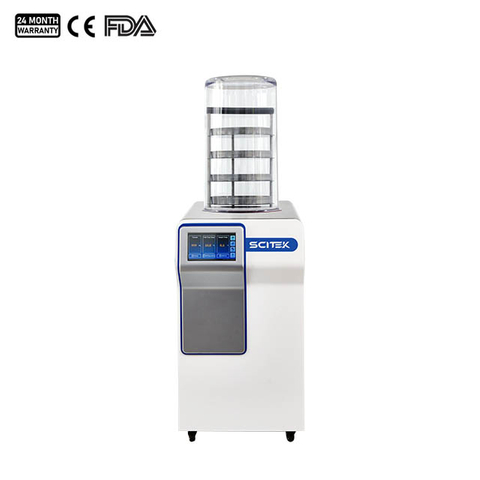

Model : FD-12S; FD-12P; FD-12T; FD-12PT

Freeze Drying Area (m2) : 0.12~0.18 / 0.12~0.18 / 0.09 / 0.09
Tray Size (ΦxH)(mm) : Φ200x20
Condenser Size (DiameterxH)(mm) : Φ217x250
Vacuum Degree (No-loading) (Pa) : ≤5
Refrigerant : CFC-free
Provides high quality freeze drying and a high level of automation.

Model : FD-18AS; FD-18BS; FD-18AP; FD-18BP
               FD-18AT; FD-18BT; FD-18APT; FD-18BPT

Freeze Drying Area (m2) : 0.18~0.27 / 0.18~0.27 / 0.18~0.27 / 0.18~0.27 / 0.09 / 0.09 / 0.09 / 0.09
Tray Size (ΦxH)(mm) : Φ240x20
Condenser Temperature (℃) :  A: -60 / B: -80
Condenser Size (DiameterxH)(mm) : Φ300x420
Vacuum Degree (no-loading) (Pa) : ≤5
A: No heating, cold trap temperature -60 ℃
B: Optional heating, cold trap temperature -80 ℃

Model : FD-20S; FD-20T; FD-30S; FD-30T; FD-50S; FD-50T; FD-100S; FD-100T

Freeze Drying Area (m2) : 0.24 / 0.24 / 0.36 / 0.36 / 0.5 / 0.5 / 1 / 1
Tray Size (LxWxD)(mm) : 300x400x13
Condenser Temperature (no-loading) (℃) : ≤-80
Vacuum Degree (no-loading) (Pa) : ≤5
The compact pilot freeze dryer's touch screen display offers flexibility and convenience, as well as high quality freeze drying and a high level of automation.

Model : FD-200S; FD-200T

Freeze Drying Area (m2) : 2 / 2
Tray Size (LxWxD)(mm) : 500x700x13
Condenser Temperature (no-loading) (℃) : ≤-80
Vacuum Degree (no-loading) (Pa) : ≤5
Pilot freeze dryer is designed for freeze drying medium to large quantities of samples.

Model : FD-P4F; FD-P6F; FD-P10F

Freeze Drying Area (m2) : 0.36/0.56/1
Tray Size(mm) : 360x500/350x400/600x450
Tray Quantity : 2/4/4
Vacuum Degree(Pa) : ≤1Pa
The pilot freeze dryer is designed for freeze drying light to medium sample volumes. The compact design is ideal for laboratories with limited floor space.

Model : FD-P3S; FD-P4S; FD-P5S

Freeze Drying Area (m2) : 0.24; 0.36; 0.48
Tray Size(mm) : 300x400
Minimum Cold Trap Temperature(℃) : -65℃
Shelf Temperature(℃) : -50~60℃
Size(W×D×H)(mm) : 980x790x1280; 980x890x1380; 1480x1080x1580
The Freeze Dryer's operating system offers flexibility and convenience through an easy-to-use touch screen display.

Model : FD-P2F;

Freeze Drying Area (m2) : 0.12
Tray Size(mm) : 300x400
Tray Quantity : 1
Vacuum Degree(Pa) : ≤1Pa
The pilot freeze dryer is designed for freeze drying light to medium sample volumes. The compact design is ideal for laboratories with limited floor space.

Model : FD-B4

Freeze Drying Area (m2) : 0.36
Tray Size(mm) : 320x400
Tray Quantity : 3
Tray Spacing : 60mm
Freeze Drying Chamber(W×D×H)(mm) : 450x359x364
The pre-freezing and drying of benchtop freeze dryer are completed in situ for better drying effect. It adopts PID temperature control technology to realise the temperature control of the partition, which makes the temperature control more accurate.

Model : FD-B4I; FD-B5

Freeze Drying Area (m2) : 0.36; 0.48
Tray Size(mm) : 300x400
Tray Quantity : 3/4
Tray Spacing : 95mm; 70mm
Freeze Drying Chamber(W×D×H)(mm) : 496x434x441
The benchtop freeze dryer enables in-situ pre-freezing, drying and sample encapsulation for better drying results. The structure adopts bin trap separation, effectively preventing frost and sealing effect.
