You are here: Home » Products » Lab Mills and Vibrating Sieve

Product Category

  • Lab Hammer Mill
    Model : LHM-A110; LHM-S110

    Workroom Diameter : 110mm
    Crusher Hammers Rotating Speed : 16800r/min

  • Lab Whirlwind Mill
    Model : LWM-II

    Impeller Speed : 10,000 turn / min
    Feed Rate : 1-2g/s
    Impeller Diameter : 127mm
    Grinding Out Rate : >98%

  • Vertical Laboratory Planetary Ball Mill, Square Model
    Model : PBM-V2S, PBM-V4S and other PBM-VS Series

    Drive Mode : Gear drive
    Operation Mode : Two or four grinding tanks can be used for grinding for each batch
    Output Granule : Smallest granularity can be achieved to 0.1μm
    This laboratory square planetary ball mill is suitable for high quality comminution needs for hard and brittle samples.
  • Light Horizontal Planetary Ball Mill
    Model : PBM-H Series

    Drive Mode : Gear drive and belt drive
    Operation Mode : Two or four mill jars can be used for each grinding
    Output Granule : Smallest granule reaches to 0.1 μm
  • Vertical Laboratory Planetary Ball Mill, Semi-circle Model
    Model : PBM-V2SC, PBM-V4SC and other PBM-VSC Series

    Drive Mode : Gear drive or belt drive
    Operation Mode : Two or four mill jars can be used for each grinding
    Output Granule : Smallest granularity can be achieved to 0.1μm
    This laboratory planetary ball mill is suitable for high quality comminution needs for hard and brittle samples.
  • Laboratory Vibrating Sieve
    Model : VS-200; VS-300

    Sieve Mesh Size : 1~400,450,500,550,600,635
    Time Range : 0~99min59s
    Diameter : 200mm; 300mm
    Layer : Maximum 8 layers
    Material : 304 stainless steel
    Simple and effective design. This vibrating sieve removes all oversize contamination.

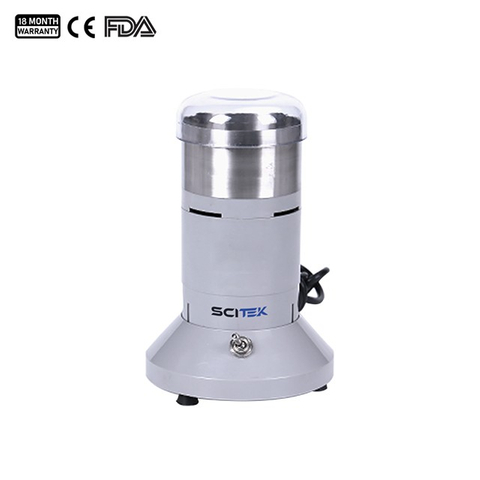

  • High-speed Universal Sample Mill
    Model : DSU-80; DSU-100; DSU-200; DSU-400

    Speed (r/min) : 10000; 26000; 26000; 26000
    Size of Grinding Room(DxH)(mm) : φ80x40; φ100x40; φ125x56; φ150x80
    Fineness of Grinding (mesh) : 40~200
    Output Quantity Per Time(≤g) : 50; 100; 200; 400
    Size(W×D×H)(mm) : φ110x210; φ160x320; φ160x360; 230x190x420(W×D×H)
    Whether it's for laboratory research, production process control or quality testing, this High-speed Universal Disintegrator will meet your needs.
  • Plant Sample Mill
    Model : DP-100

    Speed (r/min) : 1400
    Diameter of Grinding Room (mm) : 102
    Diameter of Screen Mesh Hole(mm) : 0.5,1.0,1.5
    Fineness of Grinding (mesh) : 60~120
    Size(W×D×H)(mm) : 270x180x280
    Suitable for shredding and sampling a wide range of plants, minerals, furs and meats, this plant mill is a popular choice for many educational institutions and agriculture.
