Benchtop Freeze Dryer Feature:
Refrigeration System
Secop compressor (international brand) with hybrid refrigeration technology, ensuring low-temperature stability and environmental compliance.
Control Interface
7-inch color LCD touchscreen with user-friendly HMI, lock screen function, and optional remote control via PC/mobile.
Operating System
Industrial-grade embedded OS with isolated power supply design (strong/weak current separation) for enhanced safety.
Data Management
Auto-save function for freeze-drying parameters, supporting data review, export (USB), deletion, and anti-loss protection.
Drying Chamber
Transparent high-pressure corrosion-resistant PE chamber (460mm height, one-piece injection molding) for real-time material observation.
Vacuum System
Stainless steel vacuum line with KF25 quick-connect clamp; corrosion and low-temperature resistant.
Vacuum pump delay start (activates below set temperature) to extend lifespan.
Monitoring & Recording
Real-time display of vacuum level, cold trap/material temperatures, and freeze-drying curves; supports multi-curve storage and USB data extraction.
Safety & Protection
Vacuum alarm, power-off auto-inflation (prevents moisture ingress), and inert gas filling port.
One-click auxiliary heating/defrost for rapid recovery.
Mechanical Design
Axial cooling fan with dual-ball imported bearings for ultra-stable operation and extended durability.
Magnetic maintenance panel for easy cleaning and dust management.
Smart Maintenance
Automated reminders for pump oil replacement and system upkeep based on operational hours.
Benchtop Freeze Dryer Specifications:
| Model | FD-10A | FD-10B | FD-10C | FD-10D | FD-10BM |

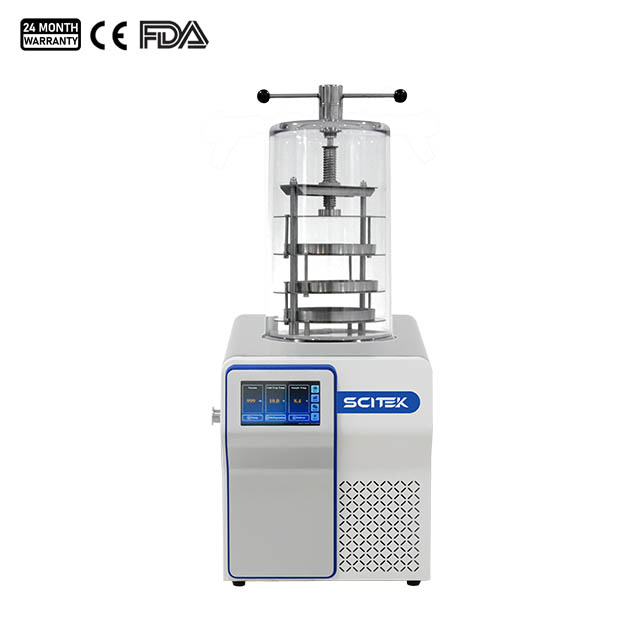

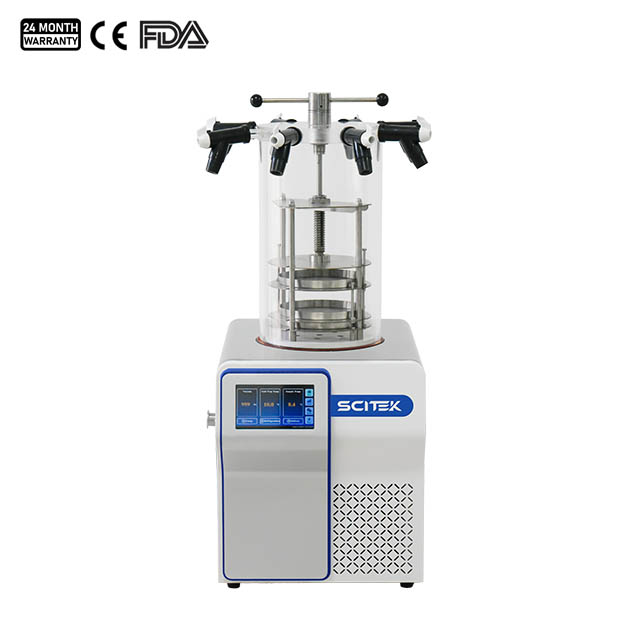

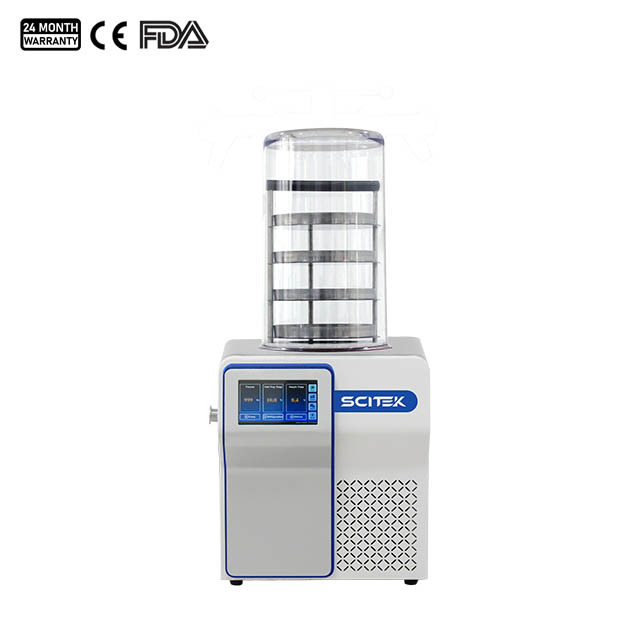

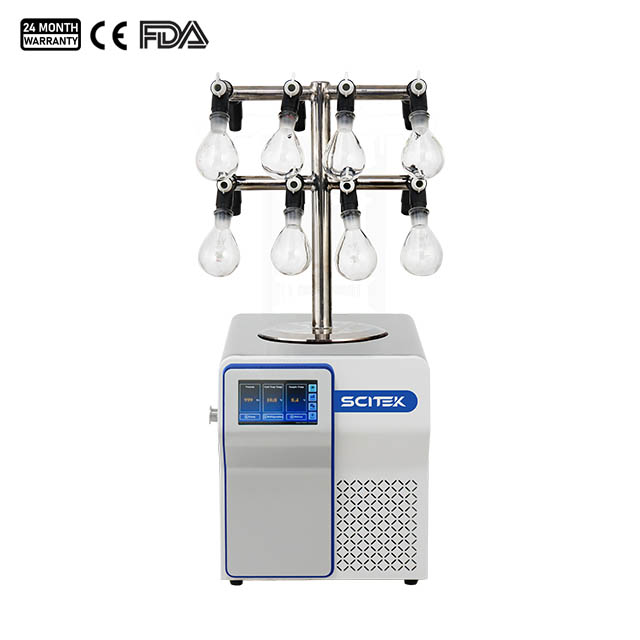

| Type | Standard Chamber | Manual Capping | Multi-manifold | Multi-manifold Capping | T-frame |
| Freeze-dried Area | 0.12㎡ | 0.08㎡ | 0.12㎡ | 0.08㎡ | / |
| Amount of vials of cillin | Φ12mm | 920 | 560 | 920 | 560 | / |
| Φ16mm | 480 | 285 | 480 | 285 | / |
| Φ22mm | 260 | 165 | 260 | 165 | / |
| Cold Trap Temperature | -60℃ |
| Water Capture KG/batch | 4 |
| Standard Vacuum Degree | ≦5Pa (no load) |
| Ultimate Vacuum Degree | 2PA |
| Material Tray | 200mm 4 layers | 180mm 3 layers | 200mm 4 layers | 180mm 3 layers | / |
| Consumption | 680W |
| Main Unit Weight | 50KG |
| External Size | 600x440x480mm |
| Power Supply | AC220V50HZ |
| Applicable Environment | Ambient temperature ≦30℃ |
| Noise | ≦55dB |
| Accessories | Vacuum pump, 2 KF25 clamps, 1 KF vacuum hose |

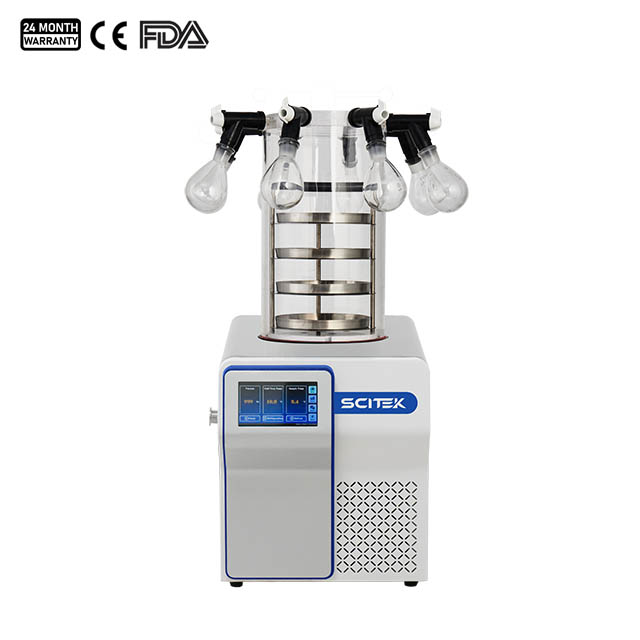

Details of Benchtop Freeze Dryer(FD-10C):
The FD-10C benchtop freeze dryer features a modular design, compact structure, and small footprint, making it ideal for freeze drying laboratory samples.
The main unit and all accessories are carefully packaged. The main unit is double-wrapped with pearl cotton and thick plastic film to effectively prevent scratches and collisions during transportation. Components such as the glass freeze-drying chamber, sample trays, and vacuum pump connectors are individually packaged and placed in shock-absorbing foam to ensure safe delivery.
The entire unit is loaded into a reinforced wooden crate, compliant with export transportation requirements. The packaging includes an operating manual, packing list, and certificate of conformity, enabling users to quickly identify and use the equipment upon unpacking.
