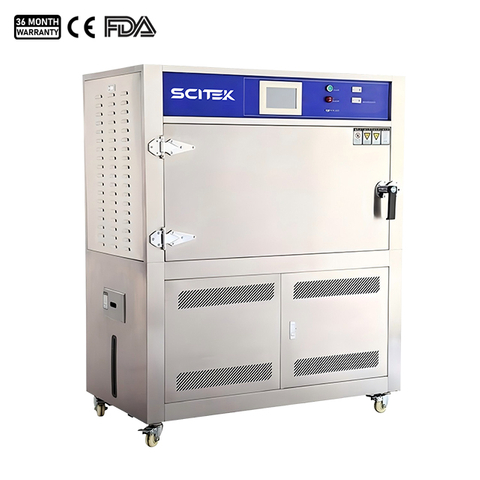

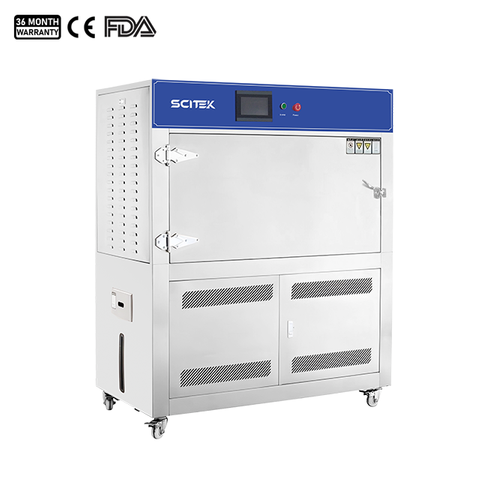

Model : UATC-UV3

Number of Lamps : 8
Temperature Range : RT + 10℃ ~70℃
Humidity Range : 75% RH
Temperature Uniformity : ± 3℃
Chamber Size (WxDxH)(mm) : 1140x650x400

Model : OATC-01; OATC-02; OATC-03; OATC-04; OATC-05; OATC-06; OATC-07; OATC-08

Temperature Range : 0℃～70℃
Humidity Range : 30～65%R.H
Ozone Concentration : 20~1000pphm
Tester : Dynamic and static (optional)
Sample Frame Speed : 360 ° rotation of sample rack (1 rpm)

Model : SCTC-01; SCTC-02; SCTC-03; SCTC-04; SCTC-05

Capacity(L) : 108/270/510/800/1200
Salt Water Tank Capacity(L) : 15/25/40/40/60
Temperature Fluctuation : ≤±0.5°C
Salt Spray Deposition : 1~2ml/h.80cm²

Model : PSTC-34

Double Outer Size(W×D×H)(mm) : 1550×1480×1950
Dipping Tube Radius(mm) : 400
Turntable Diameter(mm) : 500
Maximum Sample Size : 440×440×440
Adjustable Turntable Height (mm) : 200

Model : PSTC-O34

Flow Rate of Each Spouting Hole : 0.07L / M (adjustable)
Jet Diameter (mm) : φ 0.4
Material : Stainless steel or powder
Package Size (W×D×H)(mm) : 3350×1650×2040

Model : DTC-O12

Dripping Area(mm) : 800×800
Adjustable Range of Drip Chamber(mm) : 200-2000
Diameter of Raindrops(mm) : 0.5~4.5
Dripping Aperture(mm) : ø0.4
Hole Spacing(mm) : 20x20

Model : DTC-12

Diameter of the Drip Hole(mm) : φ0.4
Water Hole Spacing(mm) : 20
Rainfall(mm) : 1or 3 adjustable per minute
Inner Chamber Size (W×D×H)(mm) : 1000×1000×1000
Double Outer Size (W×D×H)(mm) : 1550×1480×1950
