Cold Trap Temperature: -88 ℃ Shelf Temperature: -60 ℃ to +70 ℃ Ultimate Vacuum Degree: ≤0.1 Pa Freeze-Drying Area (m²): 0.1; 0.2 Maximum Ice Trapping Capacity: 4 kg Water Trapping Efficiency: 3 kg / 24 h

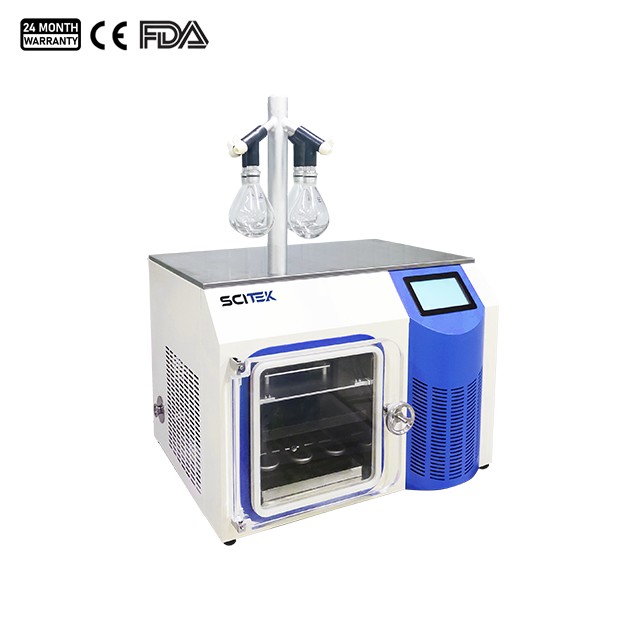

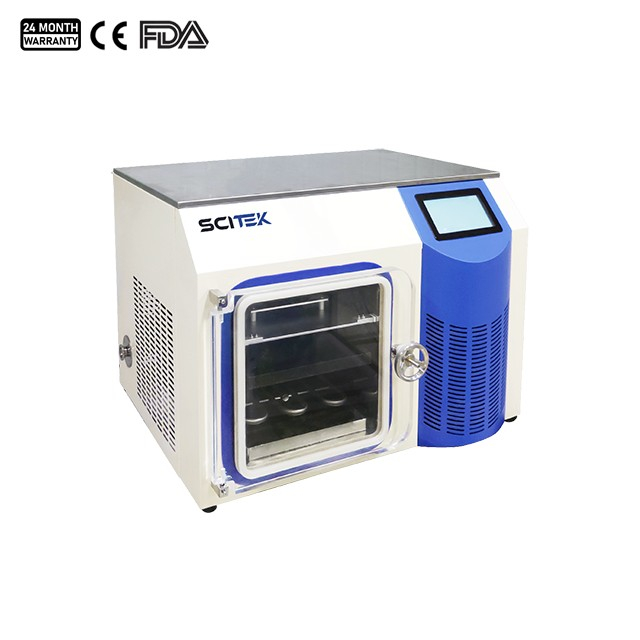

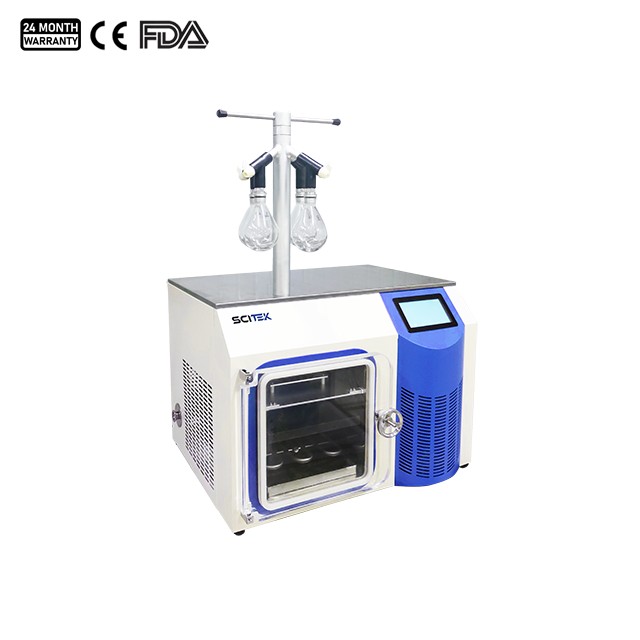

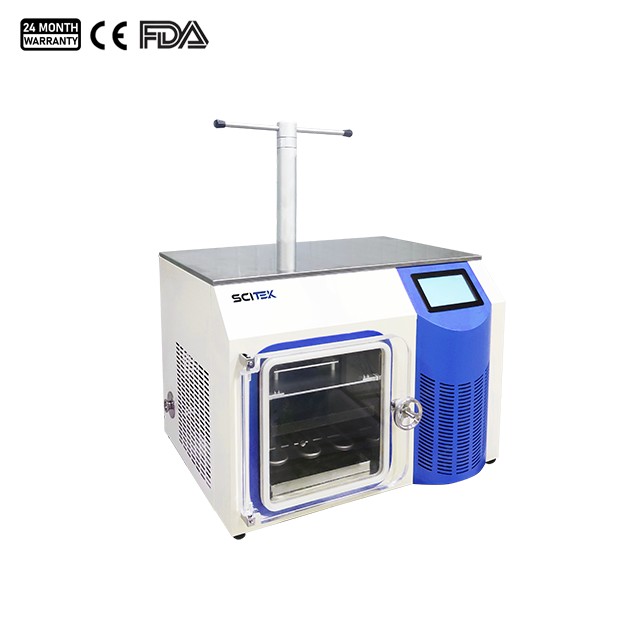

Freeze dryers are used to preserve materials by removing water content under low temperature and vacuum conditions. The desktop pilot freeze dryer equipped with a 7-inch LCD touch screen supporting intuitive parameter setting, real-time visualization of vacuum pressure, shelf and chamber temperature.
1. Enables in-situ freeze-drying within the chamber, eliminating the need to transfer samples prior to or during lyophilization.
2. Features a drying chamber with a colorless, optically transparent door made of aerospace-grade material, ensuring unobstructed visual monitoring of sample condition.
3. Incorporates an electrically actuated cold trap defrosting system.
4. Employs a parallel shelf–cold trap configuration to maximize thermal uniformity across the drying surface. Advanced shelf temperature control—integrating high-performance refrigeration and heating—achieves shelf cooling and heating rates of up to 3.5 °C/min.
5. Equipped with a 7-inch LCD touch screen supporting intuitive parameter setting, real-time visualization of vacuum pressure, shelf temperature, chamber temperature, and elapsed process time; includes built-in date/time calibration function.
6. Supports up to 40 customizable lyophilization programs, each comprising up to 40 programmable process segments. Controlled by a robust PLC-based system engineered for industrial environments—with waterproofing and anti-electromagnetic interference design. Software can be upgraded. Offers dual operational modes: fully manual parameter setting and pre-validated one-touch startup.
7. Utilizes a Pirani vacuum gauge coupled with a high-performance vacuum pump. Automatic runtime logging enables predictive maintenance scheduling; maintenance intervals are user-definable and editable. Integrated anti-backstream device prevents vacuum pump oil ingress into the chamber during power interruption.
8. Provides comprehensive data management: full access to historical lyophilization logs and graphical process curves; stores ≥10,000 complete records—including curves, alarms. Standard USB port facilitates secure data export. Implements a three-tier role-based access control system—with password authentication to ensure audit-compliant user accountability.
9. Integrates intelligent system diagnostics: real-time self-check of critical subsystems (refrigeration, vacuum, etc.), component-level status monitoring, and independent remote activation/deactivation capability. Features proactive alerts—including scheduled vacuum pump service reminders and vacuum deviation warnings—delivered simultaneously via audible tone and on-screen textual notification with event timestamping.
Desktop Pilot Freeze Dryer Specification:
Model
FD-10ES
FD-10EP
FD-10ET
FD-10EPT
FD-20ES
FD-20EP
Cold Trap Temperature
-88 ℃
Shelf Temperature
-60 ℃ to +70 ℃
Shelf Temperature Accuracy
< ±2 ℃
Ultimate Vacuum Degree
≤0.1 Pa (No-load, slightly varies with different vacuum pumps)
Vacuum Display Accuracy
0.01 Pa
Pumping Speed
≤ 15 min (Atmospheric pressure to 10 Pa)
Freeze-Drying Area (m²)
0.1
0.2
Maximum Ice Trapping Capacity
4 kg
Water Trapping Efficiency
3 kg / 24 h
Capacity
40 L
Cold Trap Capacity
11 L
Vial Qty.
Ø22 mm
216
432
Ø16 mm
400
800
Ø12 mm
726
1452
Shelf Dimension (mm)
270×400 (1 layer)
270×400 (2 layers)
Layer Spacing (mm)
150
120
60
External Freeze-Drying Bottles
/
4
/
4
/
4
Overall Dimensions (W×D×H)(mm)
820×695×600
820×695×995
820×695×875
820×695×1075
820×695×600
820×695×995
Shipping Size (W×D×H)(mm) (Freeze Dryer and Pump)
940×850×990 610×230×310
940×840×1230 610×230×310
940×850×990 610×230×310
940×840×1230 610×230×310
G.W. (kg)
180
210
180
210
Desktop Pilot Freeze Dryer Feature:
1. Enables in-situ freeze-drying within the chamber, eliminating the need to transfer samples prior to or during lyophilization.
2. Features a drying chamber with a colorless, optically transparent door made of aerospace-grade material, ensuring unobstructed visual monitoring of sample condition.
3. Incorporates an electrically actuated cold trap defrosting system.
4. Employs a parallel shelf–cold trap configuration to maximize thermal uniformity across the drying surface. Advanced shelf temperature control—integrating high-performance refrigeration and heating—achieves shelf cooling and heating rates of up to 3.5 °C/min.
5. Equipped with a 7-inch LCD touch screen supporting intuitive parameter setting, real-time visualization of vacuum pressure, shelf temperature, chamber temperature, and elapsed process time; includes built-in date/time calibration function.
6. Supports up to 40 customizable lyophilization programs, each comprising up to 40 programmable process segments. Controlled by a robust PLC-based system engineered for industrial environments—with waterproofing and anti-electromagnetic interference design. Software can be upgraded. Offers dual operational modes: fully manual parameter setting and pre-validated one-touch startup.
7. Utilizes a Pirani vacuum gauge coupled with a high-performance vacuum pump. Automatic runtime logging enables predictive maintenance scheduling; maintenance intervals are user-definable and editable. Integrated anti-backstream device prevents vacuum pump oil ingress into the chamber during power interruption.
8. Provides comprehensive data management: full access to historical lyophilization logs and graphical process curves; stores ≥10,000 complete records—including curves, alarms. Standard USB port facilitates secure data export. Implements a three-tier role-based access control system—with password authentication to ensure audit-compliant user accountability.
9. Integrates intelligent system diagnostics: real-time self-check of critical subsystems (refrigeration, vacuum, etc.), component-level status monitoring, and independent remote activation/deactivation capability. Features proactive alerts—including scheduled vacuum pump service reminders and vacuum deviation warnings—delivered simultaneously via audible tone and on-screen textual notification with event timestamping.
Desktop Pilot Freeze Dryer Specification:
Model
FD-10ES
FD-10EP
FD-10ET
FD-10EPT
FD-20ES
FD-20EP
Cold Trap Temperature
-88 ℃
Shelf Temperature
-60 ℃ to +70 ℃
Shelf Temperature Accuracy
< ±2 ℃
Ultimate Vacuum Degree
≤0.1 Pa (No-load, slightly varies with different vacuum pumps)
