Scitek Liquid Nitrogen Tank is specialized designed to store and transport liquid nitrogen at extremely low temperatures. It consists of a double-walled container with an insulating vacuum between the walls to minimize heat transfer. Liquid nitrogen is stored at temperatures around -196°C (-321°F), making the tank essential for various applications in laboratory, medicine also industry. Its primary uses include cryogenic preservation of biological samples, cooling of electronic components, and as a coolant in certain industrial processes.


Scitek liquid nitrogen tank efficient insulation and durable construction ensure safe handling and prolonged storage of this vital cryogenic substance.


  • Liquid Nitrogen Filling Tank
    Model : LNC-5-40; LNC-15-40; LNC-30-40; LNC-50-40; LNC-100-40; LNC-150-40; LNC-200-40; LNC-240-40; LNC-300-40; LNC-500-40
    LN₂ Capacity (L) : 5 / 15 / 30 / 50 / 100 / 150 / 200 / 240 / 300 / 500
    Neck Opening (mm) : 40
    Daily Evaporation Rate Of Static Liquid Nitrogen (%) : 3 / 2.5 / 2.5 / 2 / 1.3 / 1.3 / 1.2 / 1.2 / 1.1 / 1.1
    Pressure Gauge Indication Range (mPa) : 0~0.25
  • Liquid Nitrogen Filling Tank BF Series
    Model : LNC-30-50BF; LNC-50-50BF; LNC-100-50BF; LNC-150-50BF; LNC-200-50BF; LNC-230-50BF; LNC-300-50BF; LNC-500-50BF

    Geometric volume (L) : 33; 55; 110; 165; 220; 250; 330; 550
    Effective volume (L) : 30; 50; 100; 150; 200; 230; 300; 500
    Tank external diameter (mm) : 404; 455; 556; 656; 656; 656; 806; 958
  • Special Transport Liquid Nitrogen Tank BS Series
    Model : LNC-3-50BS; LNC-6-50BS; LNC-10-50BS; LNC-15-50BS; LNC-20-50BS; LNC-30-50BS; LNC-35-50BS; LNC-50-50BS

    Liquid nitrogen capacity (L) : 3; 6; 10; 16; 20; 30; 35; 50
    Static evaporation rate (L/d) : 0.12; 0.12; 0.12; 0.12; 0.12; 0.124; 0.124; 0.24

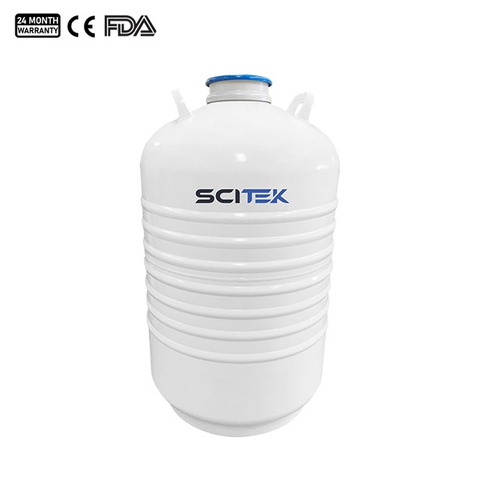

  • Special Transport Liquid Nitrogen Tank
    Model : LNC-20-50T; LNC-30-50T; LNC-35-50T; LNC-35-80T; LNC-35-125T; LNC-50-50T; LNC-50-125T

    LN₂ Capacity (L) : 20 / 31.5 / 35.5 / 35.5 / 35.5 / 50 / 50
    Neck Opening (mm) : 50 / 50 / 50 / 80 / 125 / 50 / 125
    Static Holding Time (day) : 101 / 159 / 179 / 119 / 86 / 213 / 110
    Canister Diameter (mm) : 38 / 38 / 38 / 63 / 97 / 38 / 97
    The Special Transport Liquid Nitrogen Tank ensures the safety and stability of liquid nitrogen during transport.

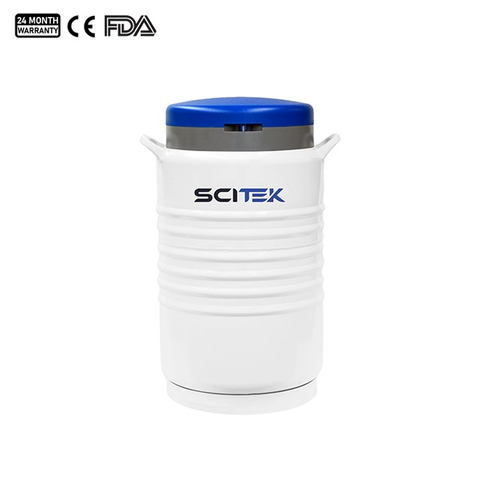

  • Dry Shipper Liquid Nitrogen Tank
    Model : LNC-1-50D; LNC-3-80D; LNC-4-125D; LNC-9-216D

    Effective Capacity (L) : 1.3 / 2.9 / 3.4 / 9
    Neck Opening (mm) : 50 / 80 / 125 / 216
    Static Evaporation Rate (L/day) : 0.16 / 0.2 / 0.43 / 0.89
    Static Holding Time (day) : 20 / 37 / 23 / 29
    Ensure optimal safety with the Dry Shipper Liquid Nitrogen Tank - ideal for transporting infectious materials or biological samples at low temperatures.
  • Dry Shipper Liquid Nitrogen Tank BD Series
    Model : LNC-015-30BD; LNC-3-30BD; LNC-4-70BD; LNC-6-50BD; LNC-6-80BD; LNC-6-190BD; LNC-10-80BD; LNC-10-125BD; LNC-15-216BD; LNC-25-216BD;

    Capacity L : 1.5; 3; 4; 6; 10; 15; 25
    Liquid nitrogen adsorption L : 0.6; 1.3; 1.8; 2.6; 2.4; 1.8; 5.8; 6; 6; 10

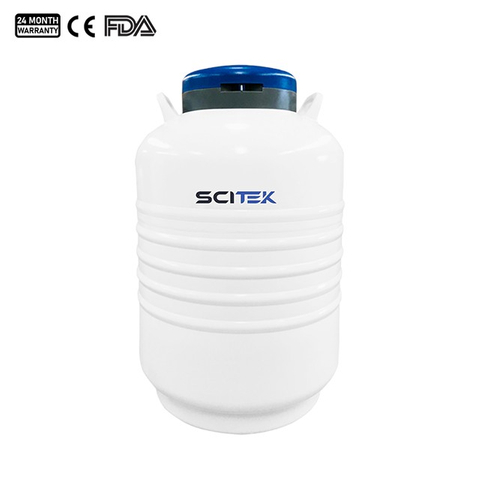

  • Laboratory Liquid Nitrogen Tank
    Model : LNC-10-125L; LNC-30-125L; LNC-35-125L; LNC-47-127L; LNC-50-125L; LNC-65-216L; LNC-95-216L; LNC-115-216L; LNC-145-216L; LNC-175-216L

    LN₂ Capacity (L) : 10 / 31.5 / 35.5 / 47 / 50
    Neck Opening (mm) : 125 / 125 / 125 / 127 / 125
    Static Evaporation Rate (L/day) : 0.42 / 0.35 / 0.36 / 0.36 / 0.45
    Static Holding Time (day) : 24 / 90 / 97 / 130 / 110
    These benchtop liquid nitrogen containers contain an internal vessel made of borosilicate for maximum coolant retention.
  • Laboratory Liquid Nitrogen Tank B Series
    Model : LNC-015-30B; LNC-2-30B; LNC-2-35B; LNC-3-50B; LNC-6-50B; LNC-6-80B; LNC-10-50B; LNC-10-80B; LNC-13-50B; LNC-15-50B; LNC-20-50B; LNC-20-80B; LNC-30-50B; LNC-30-80B; LNC-30-125B; LNC-35-50B; LNC-35-80B; LNC-35-125B; LNC-47-127/6B; LNC-47-127/10B; LNC-50-50B; LNC-50-80B; LNC-50-125B

    Capacity (L) : 1.5; 2; 3.15; 6; 10; 13; 15; 20; 31.5; 35.5; 47; 50
    Number of handle buckets : 3; 6; 10
  • Laboratory Liquid Nitrogen Tank BL Series
    Model : LNC-10-125BL; LNC-30-125BL; LNC-35-125BL; LNC-47-127BL; LNC-50-125BL; LNC-65-216BL/4; LNC-65-216BL/6; LNC-95-216BL; LNC-115-216BL; LNC-120-216BL; LNC-145-216BL; LNC-175-216BL

    Number of rectangular handle buckets : 1; 4; 6
    Layer numbers of cryo rack : 2; 3; 5

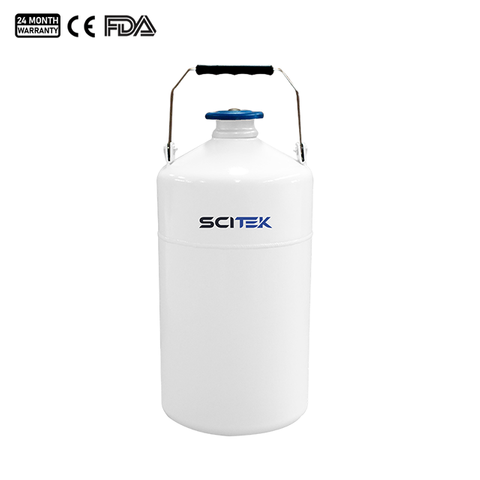

  • Portable Storage Liquid Nitrogen Tank
    Model : LNC-2-30P; LNC-2-35P; LNC-3-50P; LNC-6-50P; LNC-10-50P

    LN₂ Capacity (L) : 2 / 2 / 3 / 6 / 10
    Neck Opening (mm) : 30 / 35 / 50 / 50 / 50
    Static Evaporation Rate (L/day) : 0.07 / 0.08 / 0.12 / 0.12 / 0.12
    Static Holding Time (day) : 28 / 24 / 26 / 52 / 86
    Canister Diameter (mm) : 19 / 25 / 38 / 38 / 38
    Cost-effective storage and transport of liquid nitrogen.
