Model : UCD-P100; UCD-P200; UCD-P300

Sample Amount: 100µl
Testing Duration: ≤3min
Pre-cooling Time: ≤3min
Measurement Error: ≤1%
Size(W×D×H)(mm): 275x225x345; 340x300x400
This ultrasonic cell disruptor has advanced controls for more precise control of all key elements of the experiment.

Model : UCD-P200I

Operating Frequency Range: 20-25KHz, frequency automatic tracking.
Generator Output Power: 250W (max)
The end of the Horn Diameter: Φ3
Operating Voltage: 220V ± 5%

Model : UCD-I200; UCD-I300I; UCD-I500; UCD-I600I; UCD-I1000

Operating Frequency Range: 19-25KHz
Generator Output Power: 150/250/650/950/1200W
Duty Cycle : 0.1-99%
Storage Capacity : 18 groups of program data

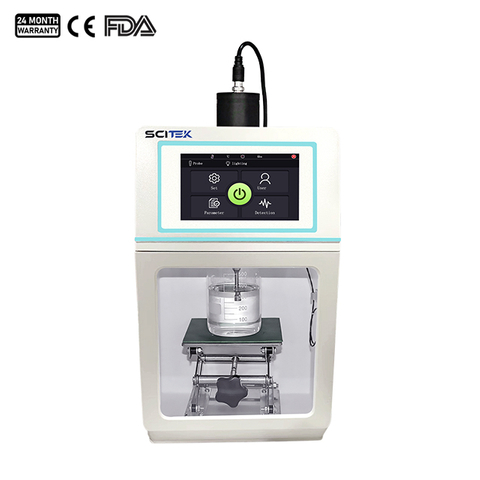

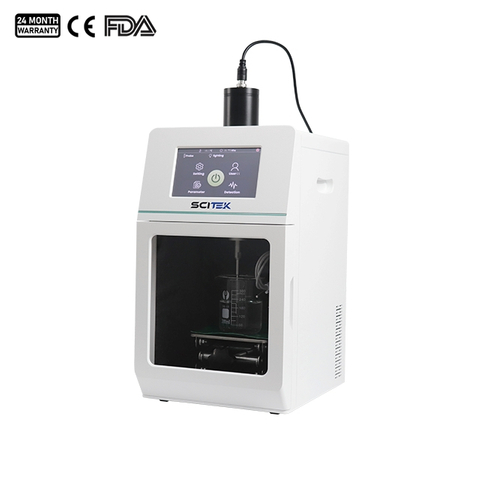

Model : UCD-I300; UCD-I600; UCD-I1200; UCD-I1800; UCD-I2200; UCD-I3000

Operating Frequency Range : 19-26KHz
Generator Output Power : 300/500/1000/1800/2000W
Capacity : 0.1~300ml; 0.1~600ml; 0.1~1200ml; 0.1~1800ml; 0.1~2200ml; 0.1~3000ml
The ultrasonic cell disruptor's one-piece design incorporates all the necessary components for easy operation in space-constrained laboratory environments.

Model : UCD-S100; UCD-S200I; UCD-S500; UCD-S1000; UCD-S1500I; UCD-S1800

Operating Frequency Range: 20-25/19.5-20.5KHz
Generator Output Power: 150/250/1200/1800/2000W
Crusher Capacity : 0.1-150ml; 0.1-250ml; 0.1-400ml; 5-1000ml; 50-1500ml; 50-1800ml
Sample Temperature Monitor : Yes
The ultrasonic cell disruptor features easy-to-use touch screen controls and overload protection. Ultra-high power and advanced programming for all liquid handling applications.

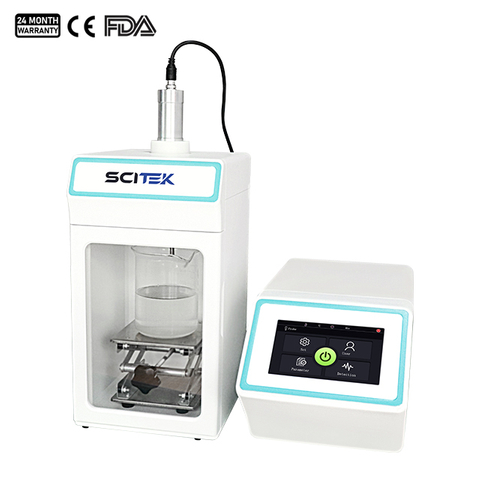

Model : UCD-S200; UCD-S600; UCD-S800; UCD-S1200; UCD-S1500; UCD-S3000

Operating Frequency Range: 19-25KHz
Generator Output Power: 300/550/650/950/1200/2000W
Crusher Capacity : 0.1-200ml; 0.1-600ml; 0.1-800ml; 0.1-1200ml; 0.1-1500ml; 0.1-3000ml
Standard Probe : Φ3mm; Φ6mm; Φ8mm; Φ13mm; Φ16mm; Φ20mm
This ultrasonic cell disruptor has advanced controls for more precise control of all key elements of the experiment. The split design is suitable for experimental needs that require a high degree of flexibility and customisation.

Model : UCD-NT1200; UCD-NT2200

Consumption : 12~1200W Manual Adjustable; 2200W Automatic Adjustable
Single Sample Processing Capacity : 1.5/2mlx4 holes; 1.5/2mlx16 holes
Frequency Range : 19.5~20.5KHz
Ultrasonic Horn : Φ20mmx1 Φ60mm
Machine External Size(WxDxH)(mm) : 225x410x290


Model : UCD-CF1200; UCD-CF2000

Ultrasonic Mode : Continuous
Ultrasonic Frequency Range(KHZ) : 19.5-20.5
Injection Method : Suction Filtration Pump
Consumption : 0-1200W; 0-2000W
Crushing Capacity(ml) : 50-10000
Temp. Protection : YES
