Model : FD-B4I; FD-B5

Freeze Drying Area (m2) : 0.36; 0.48
Tray Size(mm) : 300x400
Tray Quantity : 3/4
Tray Spacing : 95mm; 70mm
Freeze Drying Chamber(W×D×H)(mm) : 496x434x441
The benchtop freeze dryer enables in-situ pre-freezing, drying and sample encapsulation for better drying results. The structure adopts bin trap separation, effectively preventing frost and sealing effect.

Model : FD-3H; FD-6H

Freeze Drying Area (m2) : 0.3; 0.56
Tray Size(mm) : 205x385; 220x510
Maximum Capacity : 3~5kg; 6~8kg
Condenser Temperature : ≤-50℃
Main Machine Size(W×D×H)(mm) : 570x780x1000; 890x750x1370
This is a freeze dryer that can be used for home use and is designed to lyophilise light to medium sample volumes.

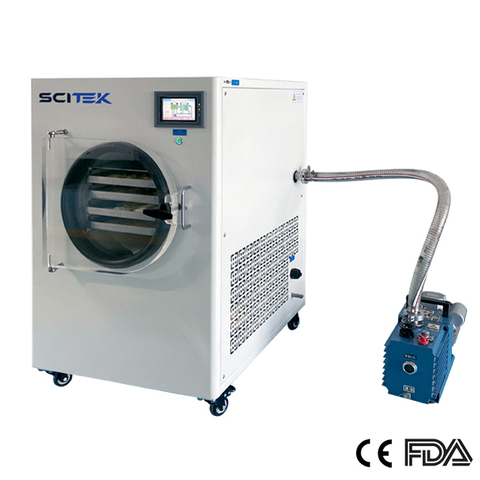

Model : FD-1; FD-4; FD-6; FD-1A; FD-4A; FD-6A

Freeze Drying Area (m2) : 0.1 / 0.4 / 0.6 / 0.1 / 0.4 / 0.6
Tray Size (LxW)(mm) : 145x275
Vacuum Degree (no-loading) (Pa) : 10
Easy-to-use touchscreen displays provide flexibility and convenience

Model : FD-10S; FD-10P; FD-10T; FD-10PT

Freeze Drying Area (m2) : 0.12 / 0.12 / 0.09 / 0.09
Tray Size (ΦxH)(mm) : Φ200x20
Condenser Size (DiameterxH)(mm) : Φ215x190
Vacuum Degree (no-loading) (Pa) : ≤5
This benchtop freeze dryer is designed for lyophilising light to medium sample volumes. The compact design is ideal for laboratories with limited floor space.

Model : FD-12S; FD-12P; FD-12T; FD-12PT

Freeze Drying Area (m2) : 0.12~0.18 / 0.12~0.18 / 0.09 / 0.09
Tray Size (ΦxH)(mm) : Φ200x20
Condenser Size (DiameterxH)(mm) : Φ217x250
Vacuum Degree (No-loading) (Pa) : ≤5
Refrigerant : CFC-free
Provides high quality freeze drying and a high level of automation.

Model : FD-18AS; FD-18BS; FD-18AP; FD-18BP
               FD-18AT; FD-18BT; FD-18APT; FD-18BPT

Freeze Drying Area (m2) : 0.18~0.27 / 0.18~0.27 / 0.18~0.27 / 0.18~0.27 / 0.09 / 0.09 / 0.09 / 0.09
Tray Size (ΦxH)(mm) : Φ240x20
Condenser Temperature (℃) :  A: -60 / B: -80
Condenser Size (DiameterxH)(mm) : Φ300x420
Vacuum Degree (no-loading) (Pa) : ≤5
A: No heating, cold trap temperature -60 ℃
B: Optional heating, cold trap temperature -80 ℃
