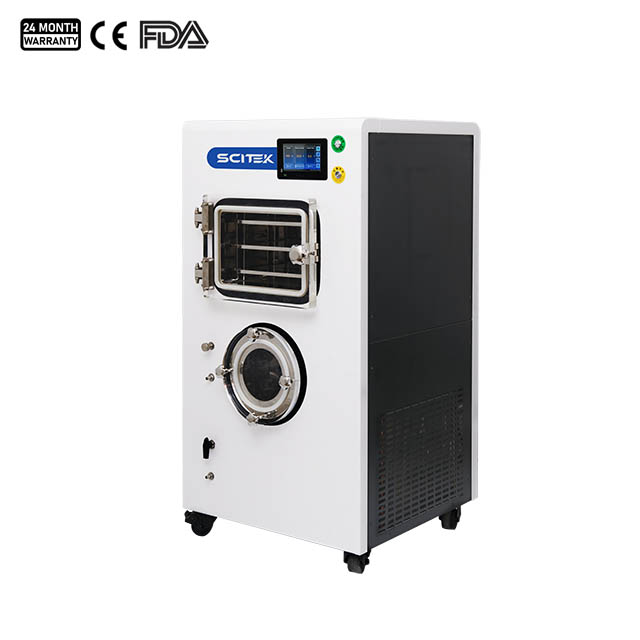

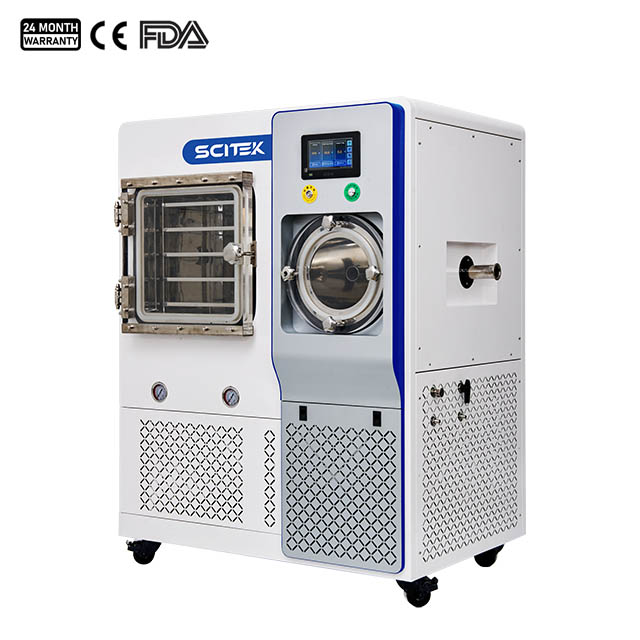

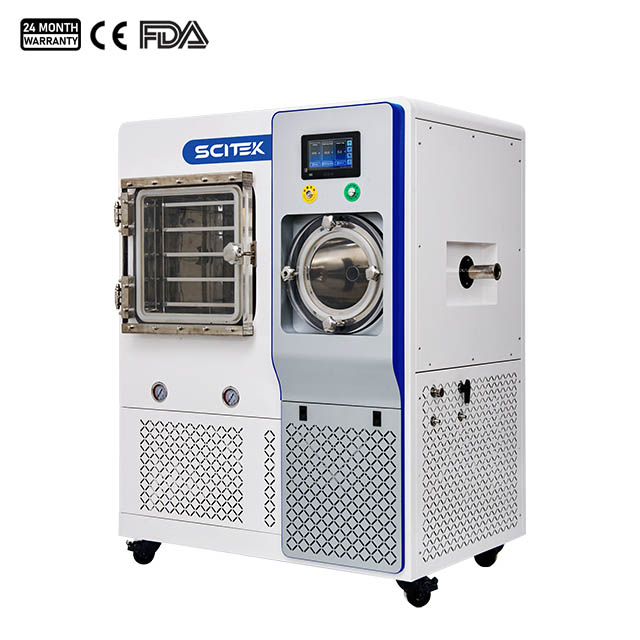

Pilot Freeze Dryer 20 Series

Model : FD-20D; FD-20F; FD-20FT; FD-50F; FD-50FT; FD-100F; FD-100FT;

Freeze-dried Area : 0.2㎡; 0.5㎡; 1㎡
Water capture capacity (kg/batch) : 4kg; 8kg; 15kg
Solution (L) : 3L; 6L; 15L

Tray Spacing(mm) : 85mm; 70mm; 60mm

Availability:

Quantity:



Inquiry Add to Inquiry List

Product Description

Pilot Freeze Dryer Feature:

Compliance & Security
GMP/cGMP-compliant with multi-tiered password protection.
User Interface
Intuitive HMI with menu-guided programming and direct command input.
Process Control & Monitoring
Real-Time Monitoring
Displays operational status of critical components, partition/sample temperatures, and vacuum levels.
Closed-loop PID control for precision thermal regulation.
Curve Management
Real-time overlay of dynamic freeze-drying curves (background reference pattern).
Multi-profile storage and management; manual curve intervention during cycles.
Stage-specific process navigation (jump-to-stage capability).
Advanced Functions
Low-temperature chamber pre-cooling, secondary refreezing, and pressure rise test (PAT-enabled endpoint determination).
Adjustable vacuum control: manual gas injection or optional automated regulation.
Safety & Automation
Interlock safeguards, auto-emergency protocols, and power-loss recovery.
In-process formula adjustments and real-time parameter queries.
Data Integrity & Reporting
Full audit trail with timestamped data logging and report generation (printable operation parameters/curves).
System Logic
Multi-layered logical interlocks to prevent operational errors.

Pilot Freeze Dryer Specifications:

Model		FD-20D	FD-20F	FD-20FT	FD-50F	FD-50FT	FD-100F	FD-100FT
Type		Electrical Heating	Silicone Oil Heating	Gland type silicone oil heating	Silicone Oil Heating	Gland type silicone oil heating	Silicone Oil Heating	Gland type silicone oil heating
Freeze drying area (㎡)		0.2㎡	0.2㎡	0.2㎡	0.5㎡	0.5㎡	1㎡	1㎡
Water capture capacity (kg/batch)		4kg	4kg	4kg	8kg	8kg	15kg	15kg
Amount of vials of cillin	Φ12mm	1300	1300	1300	3690	3690	7380	7380
	Φ16mm	810	810	810	1940	1940	3880	3880
	Φ22mm	430	430	430	1020	1020	2040	2040
Solution (L)		3L	3L	3L	6L	6L	15L	15L
Tray Size	Long(mm)	400	400	300	400	480	480	480
Tray Size	Width(mm)	270	270	345	320	360	360	550
Tray Spacing(mm)		85mm	70mm	70mm	70mm	70mm	60mm	70mm
Number of Tray Layers		2	2+1	2+1	4+1	3+1	6+1	4+1
Tray Temperature Range (°C)		-55℃~60℃	-50℃~60℃	-50℃~60℃	-55℃~60℃	-55℃~60℃	-55℃~60℃	-55℃~60℃
Cold trap minimum temperature (℃)		-70℃	-70℃	-70℃	-80℃	-80℃	-80℃	-80℃
Ultimate vacuum degree (Pa)		1pa	1pa	1pa	1pa	1pa	1pa	1pa
Consumption Kw		2.0Kw (220V)	2.5Kw (220V)	3Kw (220V)	5.0Kw (380V)	5.0Kw (380V)	6.8Kw(380V)	6.8Kw(380V)
Ambient temperature (°C)		≤25℃	≤25℃	≤25℃	≤25℃	≤25℃	≤25℃	≤25℃
External Size (mm)		594×718×1400	800×800×1480	800×800×1480	1200×880×1510	1320x880x1515	1320×880×1580	1400×880×1725
Vacuum Pump		4L/S	4L/S	4L/S	8L/S	8L/S	16L/S	16L/S
Main unit weight		200kg	260kg	260kg	450kg	570kg	560kg	650kg
Package Size		720x840x1650	950x950x1700	950x950x1700	1350x1050x1750	1450x1050x1750	1450x1050x1800	1550x1050x2000

Model	FD-20D	FD-20F	FD-20FT	FD-50F	FD-50FT	FD-100F	FD-100FT
Type	Electrical Heating	Silicone Oil Heating	Gland type silicone oil heating	Silicone Oil Heating	Gland type silicone oil heating	Silicone Oil Heating	Gland type silicone oil heating
Freeze drying area (㎡)	0.2㎡	0.2㎡	0.2㎡	0.5㎡	0.5㎡	1㎡	1㎡
Water capture capacity (kg/batch)	4kg	4kg	4kg	8kg	8kg	15kg	15kg
Amount of vials of cillin	Φ12mm	1300	1300	1300	3690	3690	7380	7380
Φ16mm	810	810	810	1940	1940	3880	3880
Φ22mm	430	430	430	1020	1020	2040	2040
Solution (L)	3L	3L	3L	6L	6L	15L	15L
Tray Size	Long(mm)	400	400	300	400	480	480	480
Width(mm)	270	270	345	320	360	360	550
Tray Spacing(mm)	85mm	70mm	70mm	70mm	70mm	60mm	70mm
Number of Tray Layers	2	2+1	2+1	4+1	3+1	6+1	4+1
Tray Temperature Range (°C)	-55℃~60℃	-50℃~60℃	-50℃~60℃	-55℃~60℃	-55℃~60℃	-55℃~60℃	-55℃~60℃
Cold trap minimum temperature (℃)	-70℃	-70℃	-70℃	-80℃	-80℃	-80℃	-80℃
Ultimate vacuum degree (Pa)	1pa	1pa	1pa	1pa	1pa	1pa	1pa
Consumption Kw	2.0Kw (220V)	2.5Kw (220V)	3Kw (220V)	5.0Kw (380V)	5.0Kw (380V)	6.8Kw(380V)	6.8Kw(380V)
Ambient temperature (°C)	≤25℃	≤25℃	≤25℃	≤25℃	≤25℃	≤25℃	≤25℃
External Size (mm)	594×718×1400	800×800×1480	800×800×1480	1200×880×1510	1320x880x1515	1320×880×1580	1400×880×1725
Vacuum Pump	4L/S	4L/S	4L/S	8L/S	8L/S	16L/S	16L/S
Main unit weight	200kg	260kg	260kg	450kg	570kg	560kg	650kg
Package Size	720x840x1650	950x950x1700	950x950x1700	1350x1050x1750	1450x1050x1750	1450x1050x1800	1550x1050x2000
