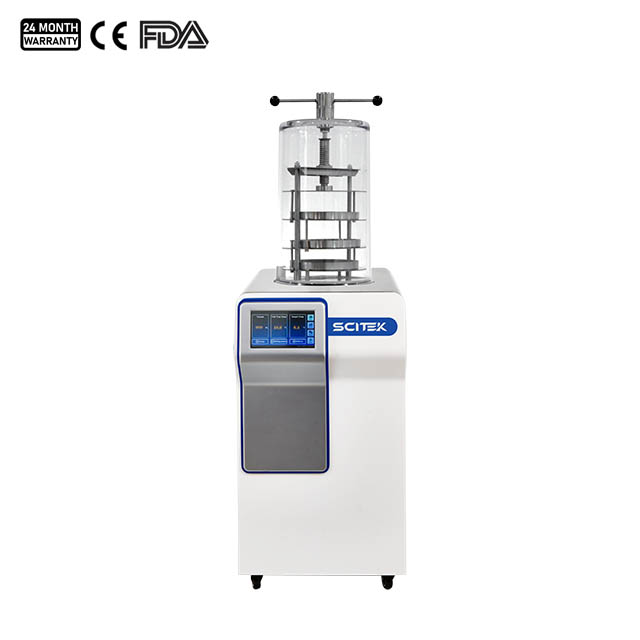

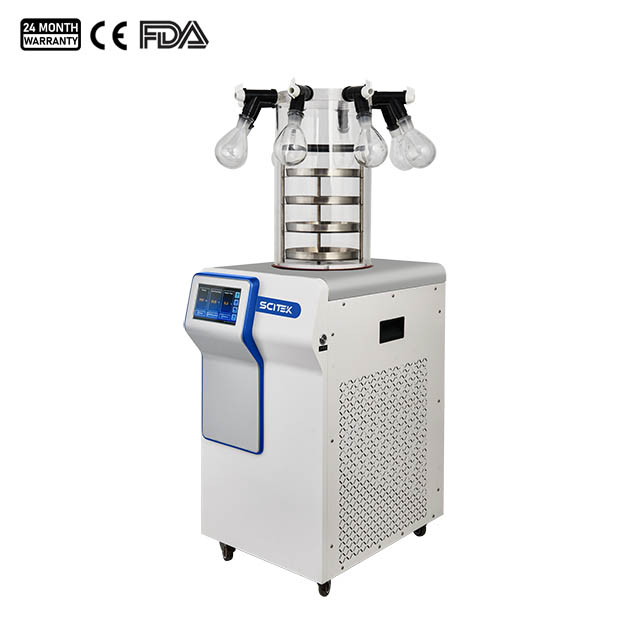

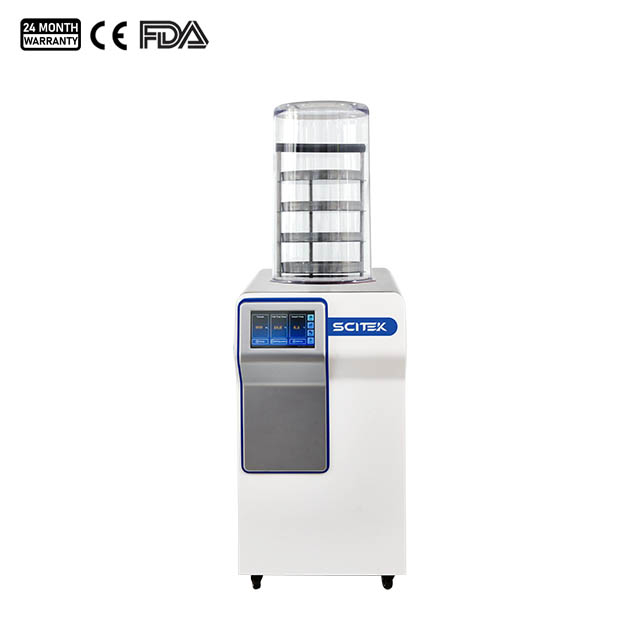

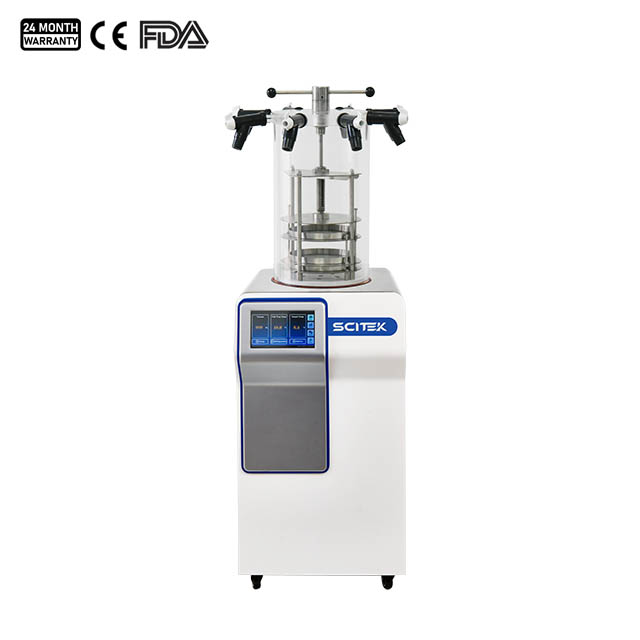

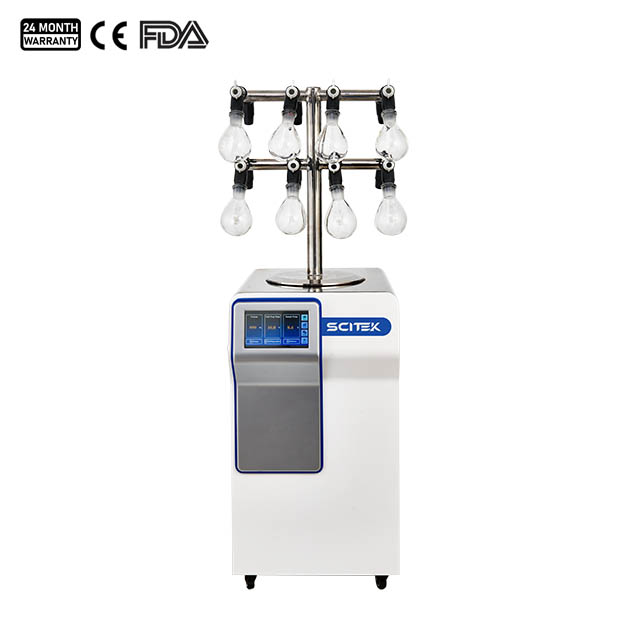

Floor Freeze Dryer

Floor Freeze Dryer Feature:

1. Refrigeration System

   Secop compressor (international brand) with hybrid refrigeration technology, ensuring low-temperature stability and environmental compliance.

2. Control Interface

   7-inch color LCD touchscreen with user-friendly HMI, lock screen function, and optional remote control via PC/mobile.

3. Operating System

   Industrial-grade embedded OS with isolated power supply design (strong/weak current separation) for enhanced safety.

4. Data Management

   Auto-save function for freeze-drying parameters, supporting data review, export (USB), deletion, and anti-loss protection.

5. Drying Chamber

   Transparent high-pressure corrosion-resistant PE chamber (460mm height, one-piece injection molding) for real-time material observation.

6. Vacuum System

   Stainless steel vacuum line with KF25 quick-connect clamp; corrosion and low-temperature resistant.

   Vacuum pump delay start (activates below set temperature) to extend lifespan.

7. Monitoring & Recording

   Real-time display of vacuum level, cold trap/material temperatures, and freeze-drying curves; supports multi-curve storage and USB data extraction.

8. Safety & Protection

   Vacuum alarm, power-off auto-inflation (prevents moisture ingress), and inert gas filling port.

   One-click auxiliary heating/defrost for rapid recovery.

9. Mechanical Design

   Axial cooling fan with dual-ball imported bearings for ultra-stable operation and extended durability.

   Magnetic maintenance panel for easy cleaning and dust management.

10. Smart Maintenance

    Automated reminders for pump oil replacement and system upkeep based on operational hours.

Floor Freeze Dryer Specifications:

Can my pharmaceutical product be freeze-dried?

Whether a pharmaceutical product is suitable for freeze-drying depends on its heat sensitivity and stability requirements. The following pharmaceutical products are generally well-suited for freeze-drying:

1. Biologics: Vaccines, antibodies, proteins, peptides, enzymes, hormones, and other highly temperature-sensitive active substances—freeze-drying is the gold standard process for maintaining their long-term activity.

2. Antibiotics: Such as penicillins and cephalosporins, which can address the issue of potency decline in humid and hot environments.

3. Diagnostic reagents: Products that require the preservation of activity, such as enzyme-linked immunosorbent assay (ELISA) kits and nucleic acid detection kits.

How does freeze-drying technology improve drug stability?

Freeze-drying stabilizes drugs at the molecular level through a dual mechanism of water removal and low-temperature processing:

1. Inhibiting hydrolysis reactions: Water serves as both a medium and a reactant in many degradation reactions. Freeze-drying reduces water content to 1%–3%, physically blocking chemical degradation pathways such as hydrolysis and oxidation, thereby preserving the drug’s chemical integrity.

2. Inhibits microbial growth: Extremely low water activity creates an environment where microorganisms cannot survive, preventing biological spoilage.

3. Protects heat-sensitive molecular structures: Processing at low temperatures throughout (typically below -40°C) prevents structural damage—such as protein denaturation and antibody inactivation—caused by high temperatures.

4. Forms a stable physical form: Freeze-drying produces a loose, porous, sponge-like “cake” with a large specific surface area and stable physicochemical properties, capable of maintaining efficacy for several years at room temperature.

5. Rapid Rehydration: The porous structure allows for complete rehydration within seconds upon contact with a solvent, restoring the original therapeutic efficacy.

How to Select a Freeze Dryer

When selecting a freeze-drying service provider, a comprehensive evaluation should be conducted across the following seven key dimensions:

1. Technical Capabilities and Experience: Does the provider have experience in developing freeze-drying processes tailored to your specific material type (e.g., proteins, vaccines, diagnostic reagents)? Can they provide technical support such as eutectic point testing and freeze-drying curve optimization?

2. Equipment Performance and Compliance: Do core parameters—such as cold trap temperature, shelf uniformity (temperature difference ≤ ±1°C), and vacuum level—meet standards? In the pharmaceutical sector, confirm that IQ/OQ/PQ validation documents are provided and comply with GMP/FDA requirements.

3. Production Capacity and Scalability: Does the single-batch processing capacity meet your needs? Do they have the capability for seamless scale-up from laboratory pilot testing to pilot production and then to industrial-scale production?

4. Quality Management System: Are they certified to ISO 9001, ISO 13485, or similar standards? Do they have a comprehensive system for batch records and data traceability?

5. Customized Services: Can they customize freeze-drying solutions and equipment configurations based on material characteristics and production capacity requirements? Do they offer custom design capabilities?

6. After-Sales Service: Coverage of the after-sales service network, response time to malfunctions (recommended within 24 hours), spare parts lead time, and the continuity of process support.

7. Long-Term Costs: Consider the total cost of equipment acquisition, operating energy consumption, maintenance frequency, and service life comprehensively, rather than focusing solely on the initial quote.
