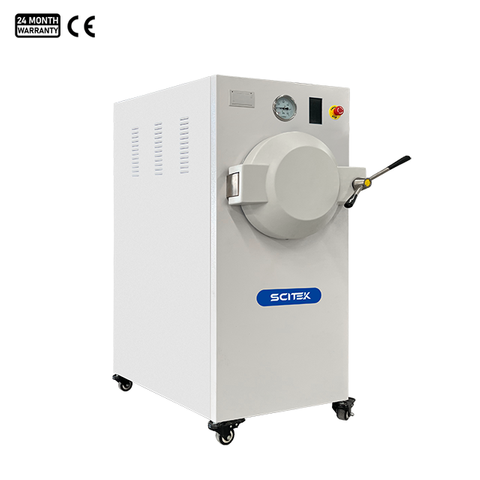

Model : ST-H60; ST-H80; ST-H100; ST-H135; ST-H150; ST-H185; ST-H200; ST-H300; ST-H450

Capacity (L) : 60 / 80 / 100 / 135 / 150 / 185 / 200 / 300 / 450
Chamber Size(mm) : Ø386x500 / Ø386x700 / Ø386x950 / Ø500x700 / Ø500x780 / Ø500x950 / Ø500x1000 / Ø650x950 / Ø650x1360
Sterilization Temperature (℃) : 105~136
Max. Sterilization Pressure (Mpa) : 0.23
Drying Function : YES
Designed for rapid heating and complete drying, this horizontal pressure steam autoclave meets the ever-changing demands of laboratory sterilisation.

Model : ST-V35PVM; ST-V50PVM; ST-V75PVM; ST-V100PVM

Volume : 35L/50L/75L/100L
Design Pressure : 0.25Mpa
Design Temperature : 139℃
Sterilization Temperature : 116℃~134℃
Sterilization Time Setting Range : 4~120 min
Drying Time Setting Range : 0~240min
The vertical pulse vacuum steam autoclave features more efficient vacuum degassing, steam sterilisation, etc., and is suitable for use in sterilisation applications where higher requirements for sterilisation results are required.

Model : ST-V50PV; ST-V80PV; ST-V100PV; ST-V120PV; ST-V150PV

Sterilization Temperature (℃) : 105~136
Max. Sterilization Pressure (Mpa) : 0.23
Drying Function : YES
Water Injection Method : Built-in water tank
Drying Time : 15min
The vertical pulse vacuum autoclave offers high capacity and easy-to-use controls in a compact unit.

Model : ST-V50E; ST-V80E; ST-V100E;

Capacity (L) : 50 / 80 / 100
Sterilization Temperature (℃) : 105~136
Max. Sterilization Pressure (Mpa) : 0.23
Drying Function : YES
Water Injection Method : Manual
Drying Time : 15min
The economical vertical pressure steam sterilizer is suitable for routine sterilisation in the laboratory.

Model : ST-V50A; ST-V80A; ST-V100A; ST-V120A; ST-V150A

Sterilization Temperature (℃) : 105~136
Max. Sterilization Pressure (Mpa) : 0.23
Drying Function : YES
Water Injection Method : Built-in water tank
Drying Time : 15min
The automatic vertical autoclave with LCD touch screen and water tank has the advantage of a continuous water supply and improved sterilisation results, making it an efficient sterilisation option for laboratories.

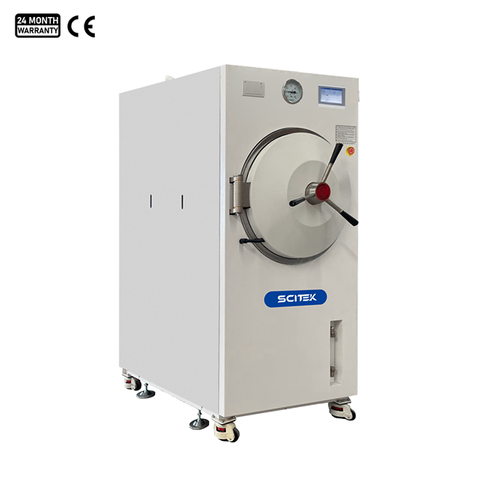

Model : ST-H60PV; ST-H80PV; ST-H100PV; ST-H135PV; ST-H150PV; ST-H185PV; ST-H200PV; ST-H300PV; ST-H450PV

Capacity (L) : 60 / 80 / 100 / 135 / 150 / 185 / 200 / 300 / 450
Chamber Size(mm) : Ø386x500 / Ø386x700 / Ø386x950 / Ø500x700 / Ø500x780 / Ø500x950 / Ø500x1000 / Ø650x950 / Ø650x1360
Sterilization Temperature (℃) : 105~136
Max. Sterilization Pressure (Mpa) : 0.23
Drying Function : YES
The horizontal pulse vacuum autoclave provides more efficient vacuum degassing with precise control of temperature, pressure and time to ensure safe and effective sterilisation.

Model : ST-BA650PV; ST-BA800PV; ST-BA1000PV; ST-BA1200PV; ST-BA1500PV

Volume(L) : 650 / 800 / 1000 / 1200 / 1500
Chamber Design Pressure : 0.3MPa
Generator Design Pressure : 1.0MPa
Design Temperaure : 150℃
Maximum Operating Temperature : 139℃
This Autoclave needs to be used with an air compressor

Model : ST-BV150PV; ST-BV180PV; ST-BV250PV; ST-BV300PV; ST-BV360PV; ST-BV450PV; ST-BV600PV; ST-BV800PV
Volume(L) : 150 / 180 / 250 / 300 / 360 / 450 / 600 / 800
Chamber Design Pressure : -0.1/0.3MPa
Generator Design Pressure : 1MPa
Design Temperaure : 150℃
Maximum Operating Temperature : 139℃
This Autoclave needs to be used with an air compressor
This horizontal pulse vacuum autoclave autoclaves all items in the laboratory, including liquids.

Model : ST-BH1200PV; ST-BH1500PV

Chamber Design Pressure : -0.1/0.3MPa
Jecket Design Pressure : 0.3MPa
Generator Design Pressure : 1.0MPa
Design Temperaure : 150℃
Maximum Operating Temperature : 139℃
The horizontal pulse vacuum autoclave features more efficient vacuum degassing, steam sterilisation, fast response, encapsulation, steam sealing.

Model : ST-BVB150PV/ 250PV/300PV/360PV/450PV/600PV/800PV

Interior Design Pressure : -0.1~03MPa
Jacket Design Pressure : 0.3MPa
Design Temperature 150℃
Sterilization Temperature Control Precision : 0-2℃
Number of Positive Pressure Pulsations : 1~3
Air Filter : Filtration accuracy is <0.22 microns, bactericidal rate of 99.97%.
This Autoclave needs to be used with an air compressor
Horizontal pulse vacuum autoclave is designed to meet today’s changing lab sterilization needs.
