Scitek's laboratory horizontal pulse vacuum sterilizer cover a wide range of applications in research institutes, medical, pharmaceutical, universities, food and biotechnological industries.
The ST-BV series of benchtop autoclaves has many advanced features, such as waste disposal, optional drying and fast cooling. The advanced ST-BV line provides a single solution for the full spectrum of sterilization needs including liquids, glassware, contaminated media, pipette tips, plastics, culture media, instruments, biological waste and other laboratory items.
The horizontal pulse vacuum sterilizer is designed for a wide range of applications. You can add the features you need based on the intended use of the medical autoclave. The advanced laboratory sterilizers offer unmatched volume options with chamber volumes from 150 - 800L.

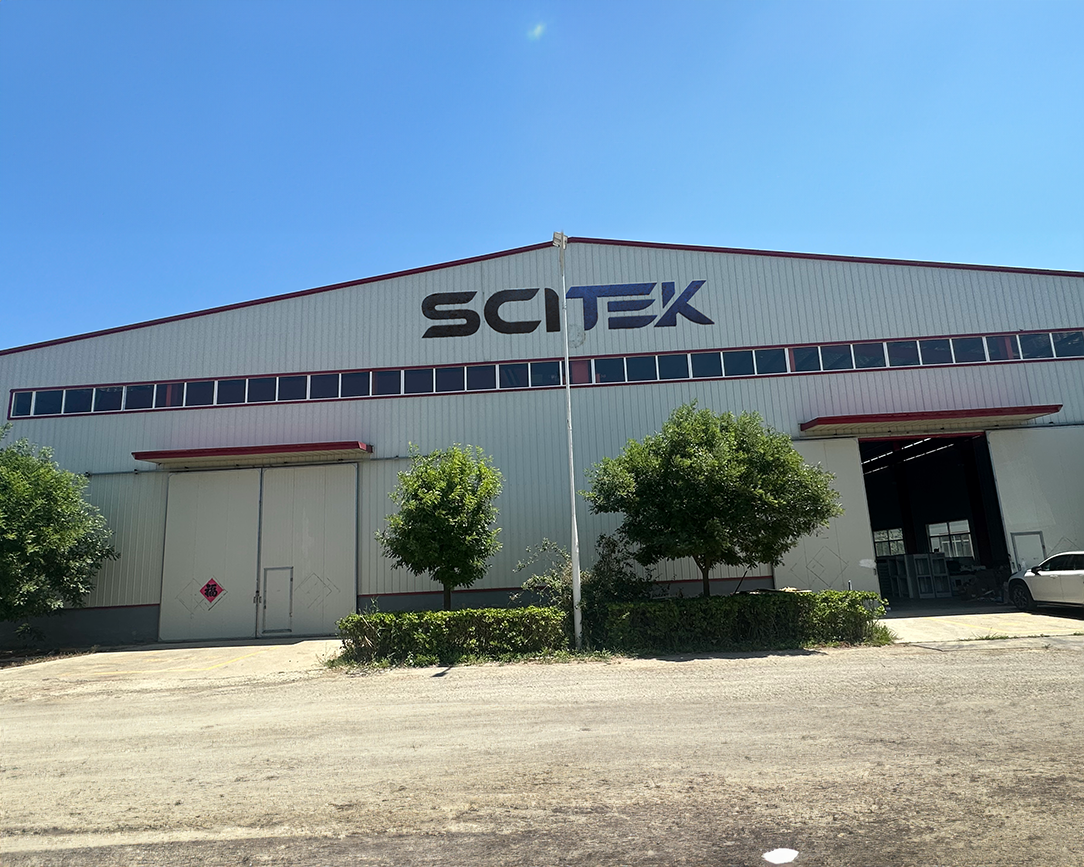

Adhere to quality control at every production step, ensuring dual quality testing before leaving the factory and shipping.

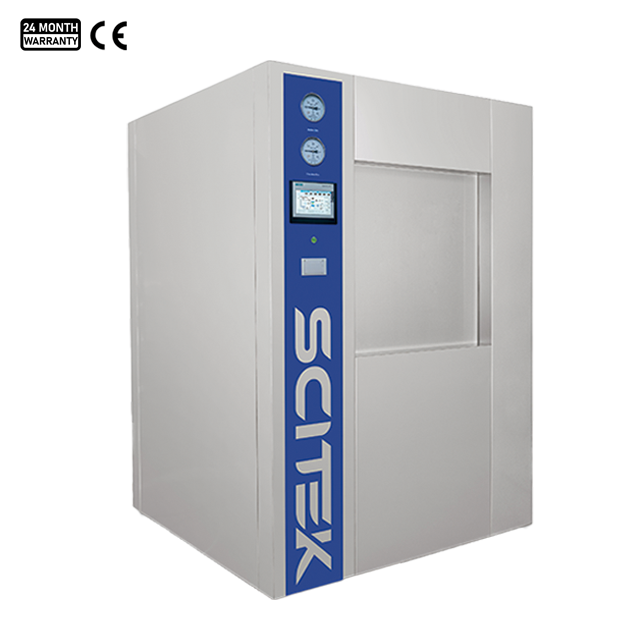

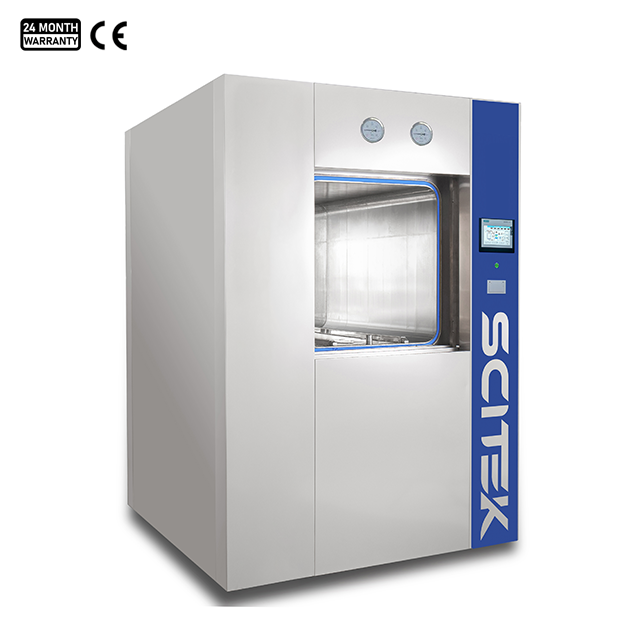

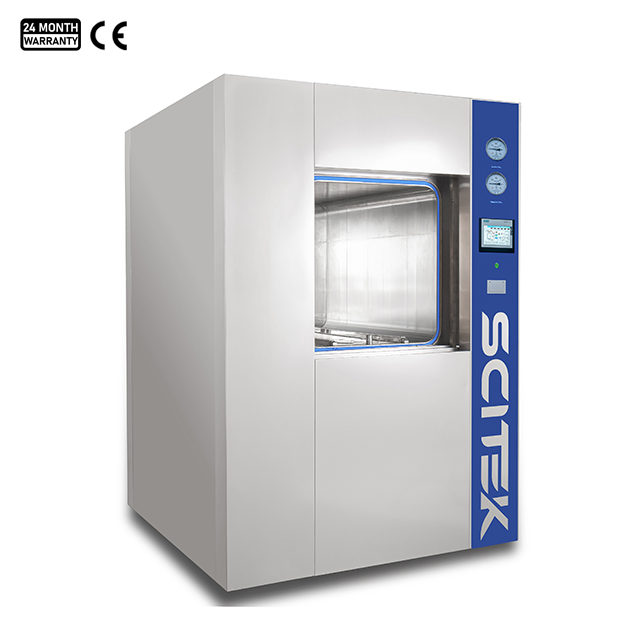

Horizontal Pulse Vacuum Autoclave Specifications:
| Model | ST-BV150PV | ST-BV180PV | ST-BV250PV | ST-BV300PV | ST-BV360PV | ST-BV450PV | ST-BV600PV | ST-BV800PV |
|---|
| Chamber Size (WxHxD)(mm) | 450×450×750 | 450×450 ×900 | 550×550 ×845 | 550×550 ×1000 | 610×610 ×1000 | 652×69 0×1000 | 652×690 ×1350 | 652×69 0×1800 |
| Volume (L) | 150 | 180 | 250 | 300 | 360 | 450 | 600 | 800 |
| Overall Sizes (LxWxH)(mm) | 1045×112 0×1800 | 1185×112 0×1800 | 1200×129 0×1850 | 1350×129 0×1850 | 1350×135 0×1850 | 1350×140 0×1950 | 1700×140 0×1950 | 2150×140 0×1950 |
| Steam Consumption (KG/C) | 12 | 12 | 16 | 18 | 20 | 22 | 35 | 52 |
| Water Consumption (KG) | 80 | 90 | 120 | 140 | 160 | 180 | 320 | 400 |
| Power | 380V, 50HZ, 2KW+(12KW) | 380V, 50HZ, 2KW+(15KW) | 380V, 50HZ, 2KW+(20KW) | 380V, 50HZ, 2KW+(20KW) | 380V, 50HZ, 2KW+(20KW) | 380V, 50HZ, 2KW+(30KW) | 380V, 50HZ, 3KW+(36KW) | 380V, 50HZ, 3.5KW+(48KW) |
| Shipping Size (Main Machine) (WxDxH)(mm) | 1210×128 0×2110 | 1350×127 0×2100 | 1350×145 0×2100 | 1500×140 0×2100 | 1470×150 0×2150 | 1500×155 0×2200 | 1850×155 0×2250 | 2150×143 0×2250 |
| Shipping Size (Sterilizer Loading Cart)(WxDxH)(mm) | - | - | 1420×80 0×1050(S) | - | 1600×75 0×1100(S) | - | - | -
|
- | - | 1420×120 0×1050(D) | 1500×115 0×960(D) | - | 1450×115 0×1050(D) | 1900×115 0×1050(D) | 2350×135 0×1100(S) |
| Total shipping sizes = Main machine + Sterilizer Loading Carts; |
| N.W./G.W. (kg) | 520/670 | 560/710 | 745/895 | 820/920 | 870/1020 | 965/1115 | 1150/1300 | 1350/1500 |
| Chamber Design Pressure | -0.1/0.3MPa |
| Jacket Design Pressure | 0.3MPa |
| Generator Design Pressure | 1MPa |
| Design Temperaure | 150℃ |
| Maximum Operating Temperature | 139℃ |
| Maximum Operating Pressure | 0.25MPa |
| Chamber Relief Valve | 0.28MPa |
| Jacket Relief Valve | 0.28MPa |
| Accuracy of Temperature | 0.1℃ |
| Accuracy of Pressure | 0.1KPa |
| Sterilization Temperature Control Accuracy | ±1℃ |
| Temperature Uniformity | ±1℃ |
| Negative Pressure Pulsating Vacuum | -80~0KPa |
| Across the Pressure Pulsation | -80~80KPa |
| Positive Pressure Pulse | 0~9 times |
| Maximum Vacuum | -96KPa |
Horizontal Pulse Vacuum Autoclave Features:

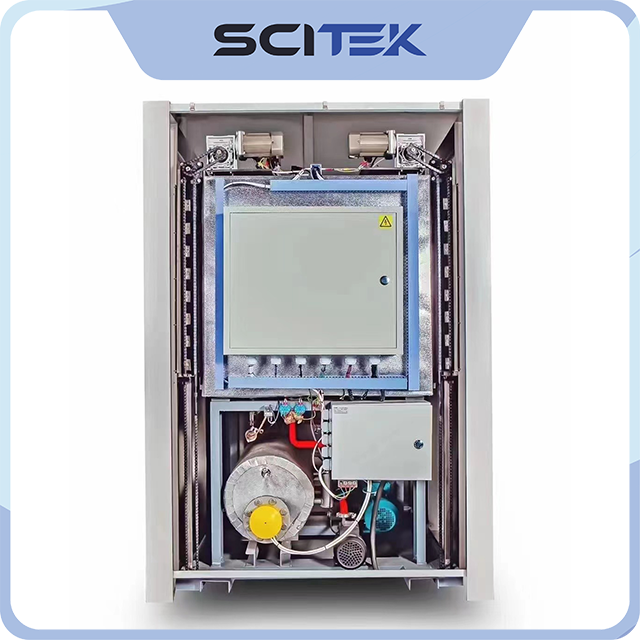

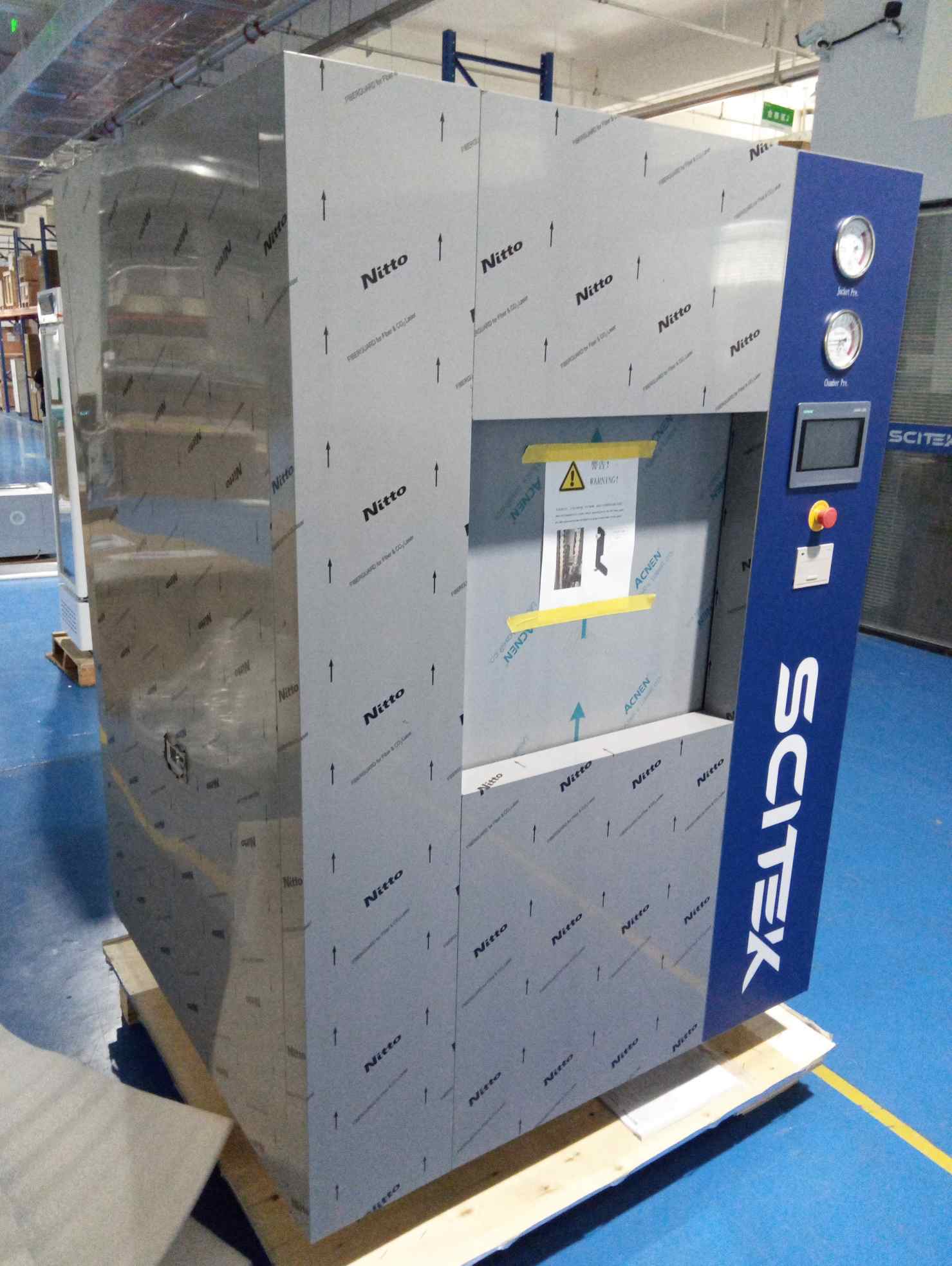

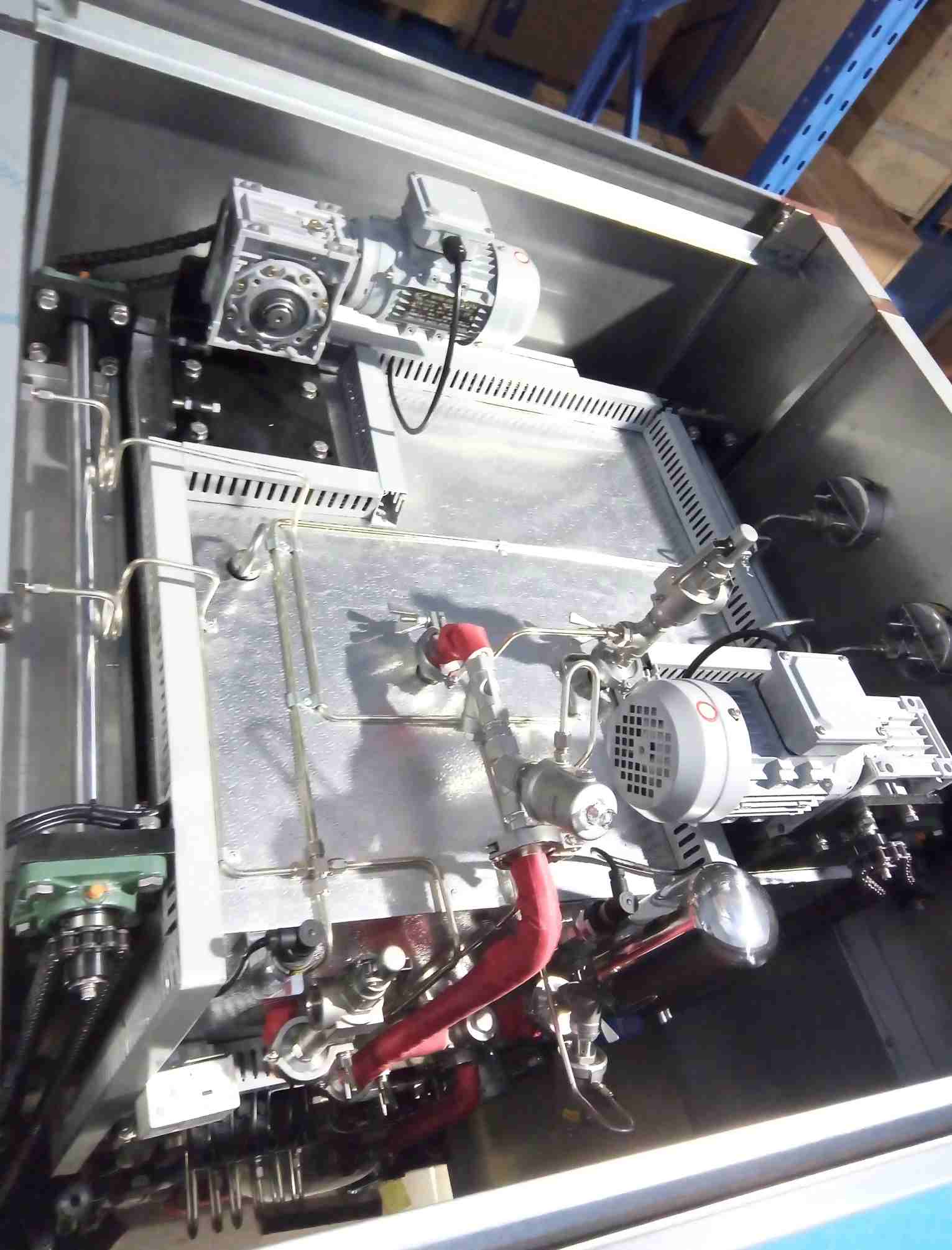

The structure of the lift door switch is a motor-driven chain that vertically lifts and slides the door, eliminating the need for manual operation and saving space. It is a double-door channel type with interlocking doors. It is equipped with pressure safety interlock and temperature safety interlock for liquid programs.
The inflatable pressure-driven sealing ring achieves automatic sealing. The new high-quality tear-resistant silicone rubber material circular hollow door sealing ring is treated with a special surface coating, which is wear-resistant and smooth, providing better sealing effect and longer service life. The lifespan can reach up to 1500 cycles.

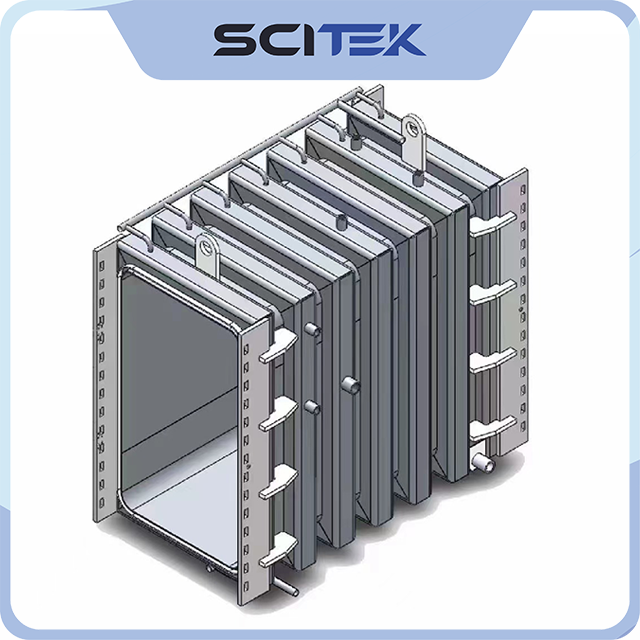

The main structure is rectangular in section, with a European-style circular reinforcement rib clamp-on flange structure. The sealing groove is directly welded to the two end circular clamps.
Control system: Siemens programmable logic controller (PLC) and color touch screen. The entire process is automatically controlled by the program, displaying the running process status, running curve, and parameters such as temperature, pressure, and time.
Intelligent maintenance system: The horizontal pulse vacuum autoclave is equipped with the MNcold Internet of Things remote monitoring and maintenance module, it can connect to the device's information in real-time and remotely from anywhere using a computer, tablet, or smartphone. This includes real-time and historical operating data, fault troubleshooting notifications, and remote software upgrades.
Horizontal pulse vacuum autoclave has sterilization programs for fabrics, instruments, luminal instruments, rubber, liquids, and custom items, as well as testing programs such as BD testing and vacuum leak testing.
Pulsation modes: It uses negative pressure pulsation, cross-pressure pulsation, and positive pressure pulsation modes, with an air exclusion rate of over 99.99%. This saves steam consumption and improves steam sterilization and drying efficiency.
Flash steam vacuum drying technology, fabric drying degree less than 0.6%, instrument drying degree less than 0.1%.
Real-time printing of process data through built-in printer, equipped with paperless recorder for pharmaceutical customers.
Pipeline system: Stainless steel sanitary grade pipeline, clamp connection, all welds are welded with automatic pipe welding machine; main control valves are imported German angle seat valves and solenoid valves, German SPECK direct-coupled water ring vacuum pump.
