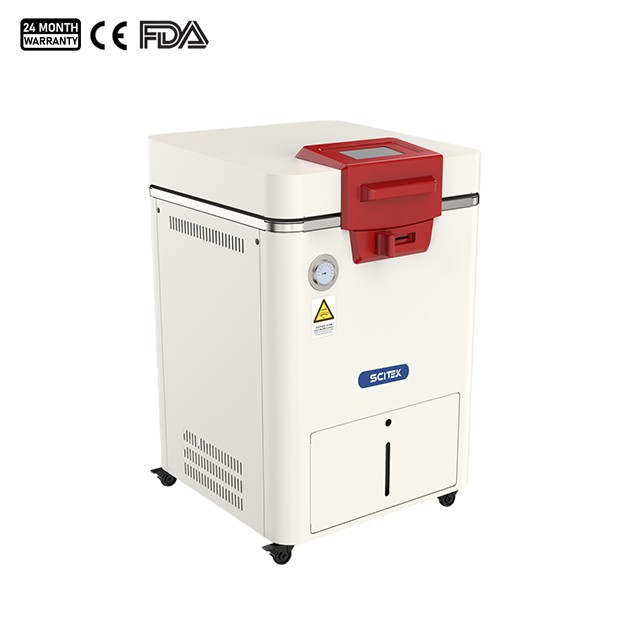

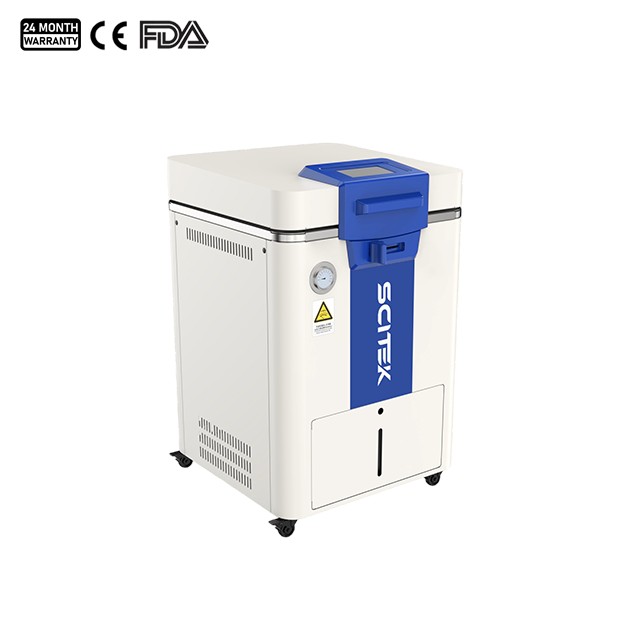

Vertical flip-top steam sterilizer with a flip-top structure can save more space. Moreover, this product is equipped with a 7-inch true-color touchscreen, which can display multiple important parameters simultaneously.
This sterilizer uses saturated steam as the sterilization medium. By venting cold air under gravity, the saturated steam completely penetrates the surface of the items, killing all microorganisms and their spores under high pressure. The sterilization effect is reliable and is the most effective method among physical sterilization methods. It is widely used in the medical industry, medicine, biochemistry, agricultural science, laboratories, and universities for sterilizing rubber, dressings, liquids, instruments, and other items. It is suitable for medical and health institutions, scientific research institutions, university laboratories, hospitals at all levels, disease control centers, and inspection and quarantine agencies.
Vertical Flip-top Steam Sterilizer Feature:

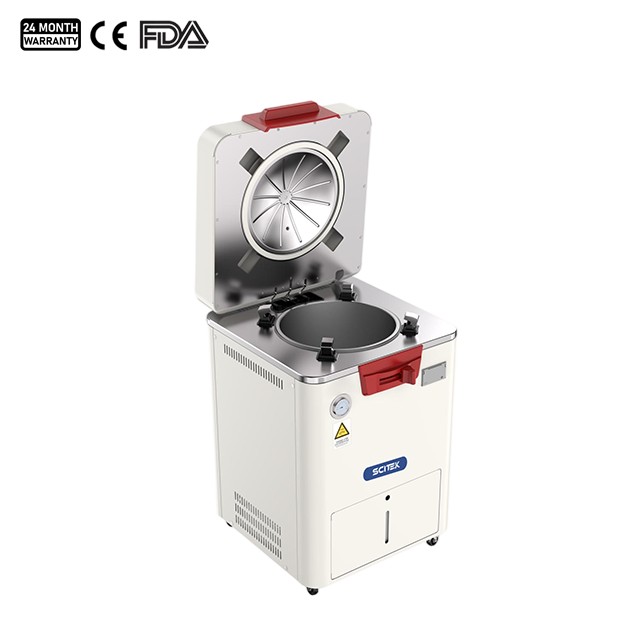

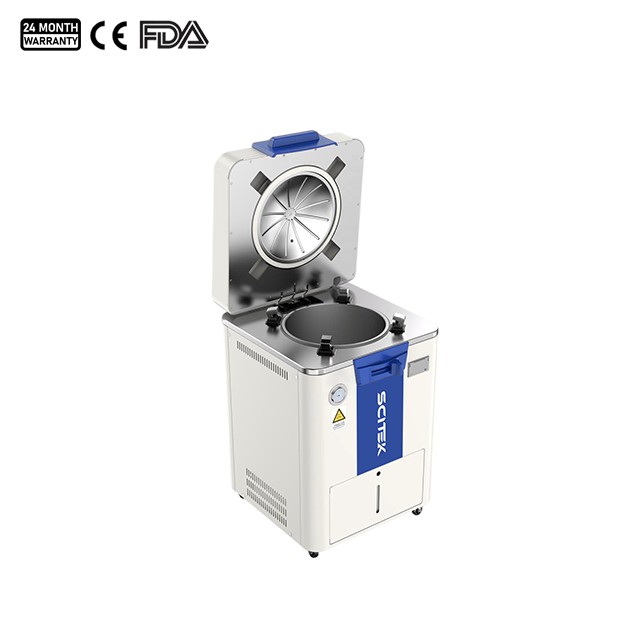

1. Top flip-top door structure.
2. The use of multi-point evenly distributed synchronous linkage pressing technology makes the door seal more reliable.
3. The 7-inch true-color touchscreen can simultaneously display: sterilization temperature, time, mode, door status, running progress status, graphs, and alarm status.
4. 10 standard programs and 2 custom programs with a total of 200 storable programs (Program names and parameters can be set according to the user's sterilization needs). The instrument can be managed in three levels: operator, administrator, and senior management.
5. Each sterilization program can be scheduled to run automatically at a preset time.
6. It can store 20,000 sterilization records, view historical data, and export data to a USB drive.
7. Built-in F0 value calculation function.
8. Equipped with a high-powered cooling fan to accelerate chamber temperature decrease during the cooling phase.
Vertical Flip-top Steam Sterilizer Specification:
Model
ST-V60F
ST-V85F
ST-V100F
Capacity(L)
60
85
100
Design Pressure
0.35 MPa
Maximum Operating Pressure
0.27 MPa
Temperature Display Resolution
0.1 ℃
Design Temperature
150 ℃
Sterilization Temperature Setting Range
105–138 ℃
Dissolution Temperature Setting Range
60–100 ℃
Unlocking Temperature
40–99 ℃
Sterilization and Melting Time Setting Range
1–6000 min
Verification Interface
Temperature Verification Port (G1A) and Pressure Verification Port (G1/2A)
Exhaust Method
Built-in condenser and water collection tank, fully automatic internal drainage
Power supply
110/220 V, 50/60 Hz
Power (W)
3200
Chamber Size (Dia×H)(mm)
Ø405×506
Ø405×706
Ø405×831
External Size (W×D×H)(mm)
590×695×865
590×695×1030
590×695×1155
Shipping Size (W×D×H)(mm)
770×830×1035
770×830×1200
770×830×1310
N.W/G.W. (kg)
100/130
110/140
120/150
Safety Device
Sensor anomaly alarm, heater burnout alarm, mechanical safety valve, electronic pressure protection, pressure lock protection, door safety interlock protection, electromagnetic lock protection, over-temperature and temperature raise protection, earth leakage protection, overcurrent and short-circuit protection, dry heating protection, anti-scalding safety protection, water level sensor monitoring, lid closure check, cooling lock, automatic fault detection system
Optional
Printer, pressure display, preheat function, automatic water fill, automatic drying, one-touch automatic drain, mobile temperature probe
Vertical Flip-top Steam Sterilizer Application:
This sterilizer uses saturated steam as the sterilization medium. By venting cold air under gravity, the saturated steam completely penetrates the surface of the items, killing all microorganisms and their spores under high pressure. The sterilization effect is reliable and is the most effective method among physical sterilization methods. It is widely used in the medical industry, medicine, biochemistry, agricultural science, laboratories, and universities for sterilizing rubber, dressings, liquids, instruments, and other items. It is suitable for medical and health institutions, scientific research institutions, university laboratories, hospitals at all levels, disease control centers, and inspection and quarantine agencies.
Vertical Flip-top Steam Sterilizer Feature:
1. Top flip-top door structure.
2. The use of multi-point evenly distributed synchronous linkage pressing technology makes the door seal more reliable.
3. The 7-inch true-color touchscreen can simultaneously display: sterilization temperature, time, mode, door status, running progress status, graphs, and alarm status.
4. 10 standard programs and 2 custom programs with a total of 200 storable programs (Program names and parameters can be set according to the user's sterilization needs). The instrument can be managed in three levels: operator, administrator, and senior management.
5. Each sterilization program can be scheduled to run automatically at a preset time.
6. It can store 20,000 sterilization records, view historical data, and export data to a USB drive.
7. Built-in F0 value calculation function.
8. Equipped with a high-powered cooling fan to accelerate chamber temperature decrease during the cooling phase.
Vertical Flip-top Steam Sterilizer Specification:
Model
ST-V60F
ST-V85F
ST-V100F
Capacity(L)
60
85
100
Design Pressure
0.35 MPa
Maximum Operating Pressure
0.27 MPa
Temperature Display Resolution
0.1 ℃
Design Temperature
150 ℃
Sterilization Temperature Setting Range
105–138 ℃
Dissolution Temperature Setting Range
60–100 ℃
Unlocking Temperature
40–99 ℃
Sterilization and Melting Time Setting Range
1–6000 min
Verification Interface
Temperature Verification Port (G1A) and Pressure Verification Port (G1/2A)
Exhaust Method
Built-in condenser and water collection tank, fully automatic internal drainage
Power supply
110/220 V, 50/60 Hz
Power (W)
3200
Chamber Size (Dia×H)(mm)
Ø405×506
Ø405×706
Ø405×831
External Size (W×D×H)(mm)
590×695×865
590×695×1030
590×695×1155
Shipping Size (W×D×H)(mm)
770×830×1035
770×830×1200
770×830×1310
N.W/G.W. (kg)
100/130
110/140
120/150
Safety Device
Sensor anomaly alarm, heater burnout alarm, mechanical safety valve, electronic pressure protection, pressure lock protection, door safety interlock protection, electromagnetic lock protection, over-temperature and temperature raise protection, earth leakage protection, overcurrent and short-circuit protection, dry heating protection, anti-scalding safety protection, water level sensor monitoring, lid closure check, cooling lock, automatic fault detection system
Optional
Printer, pressure display, preheat function, automatic water fill, automatic drying, one-touch automatic drain, mobile temperature probe
