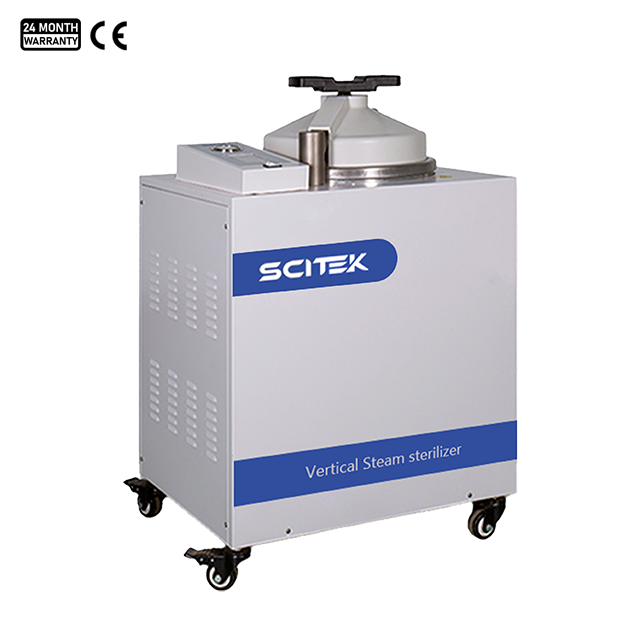

Automatic Vertical Autoclave 50/80/100/120/150L

Model : ST-V50A; ST-V80A; ST-V100A; ST-V120A; ST-V150A

Sterilization Temperature (℃) : 105~136
Max. Sterilization Pressure (Mpa) : 0.23
Drying Function : YES
Water Injection Method : Built-in water tank
Drying Time : 15min
The automatic vertical autoclave with LCD touch screen and water tank has the advantage of a continuous water supply and improved sterilisation results, making it an efficient sterilisation option for laboratories.
Availability:
Quantity:

Automatic Vertical Autoclave Features:

  1. Overheat protection: Automatically cutting off heating with audible and visual indication when the autoclave is overheated.

  2. Anti-burning protection: Automatically cutting off heating with audible and visual indication when the autoclave is lack of water.

  3. Interlock safety: Preventing from starting a cycle if door is not properly closed or from door opening if there is pressure inside chamber.

  4. Steam pressure safety valve: Automatically works when the chamber pressure exceeds the limit.

  5. Automatic operation of sterilization with PID microprocessor control and LCD display.

  6. Positive pulsing function removes the air efficiently.

  7. Liquid program with automatic pressure control prevents boil over of liquids and explosions of bottles or bags.

  8. With Power-off memory function.

  9. Internal water tank with steam-water internal circulation.

  10. Standard printer, real-time record sterilization process,error and alarm information.

Automatic Vertical Autoclave Specifications:

Model ST-V50A ST-V80A ST-V100A ST-V120A ST-V150A
Capacity (L) 50 80 100 120 150
External Size (W×D×H)(mm) 476×616×990 546×688×1030 566×708×1295 620×760×1190 680×820×1180
Chamber Size (Ø×H)(mm) Ø316×667 Ø386×695 Ø400×800 Ø450×760 Ø500×780
Chamber Material SUS304
Sterilization Temperature 105~136 ℃
Designed Temperature 150℃
Max.Working Temperature 136 ℃
Dissolution Temperature 40~100℃
Warming Temperature 40~60℃
Temp.Accuracy 0.1℃
Designed Pressure 0.3Mpa
Ma×.Sterilization Pressure 0.23Mpa
Sterilization Time Range 0~99min
Display LCD touch screen
Drying Function YES
Drying Time 15min
Sterilization Program ●Dressings/Fabric program
●Tools program
●Rubber program
●Culture medium sterilization warming program
●Culture medium dissolution warming program
●Liquids in closed containers (glass bottle, plastic bottle and bag) program
●Waste program
Water Injection Method Built-in water tank Automatic Water Feeding
Power Consumption 3KW 4.5KW 5.4KW 5.4KW 9.3KW
Power Supply 220V 50Hz 220V 50Hz 220V 50Hz 380V 50Hz 380V 50Hz
Standard SS Basket 2pcs 2pcs 2pcs 2pcs 2pcs
Net Weight 68kg 92kg 100kg 175kg 195kg
Gross Weight 103kg 127kg 140kg 215kg 235kg
Shipping Size (W×D×H)(mm) 730×820×1250 800×880×1300 800×880×1480 950×1050×1280 950×1050×1440

Details of Automatic Vertical Autoclave:

ST-V50A

Automatic Vertical Autoclave

Automatic Vertical Autoclave

ST-V50A (3)

ST-V50A (2)

ST-V100A

Vertical Autoclave

Vertical Autoclave

ST-V120A

Vertical Autoclave

Automatic Vertical Autoclave

ST-V120A (4)

Automatic Vertical Autoclave
