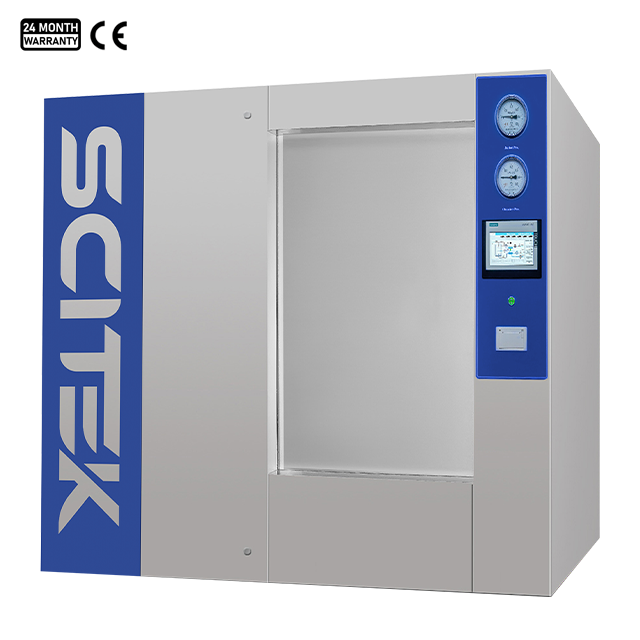

Horizontal Pulse Vacuum Autoclave Features:
Sliding door switch structure, the door slides horizontally to open and close, driven by a motor chain, no manual operation required.
Double-door passage type, equipped with pressure safety interlock and temperature safety interlock for liquid programs, with mutual interlocking of the two doors.

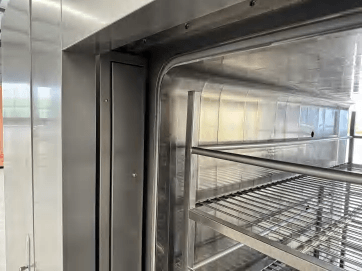

The inflatable pressure drives the sealing ring to achieve automatic sealing. The new high-quality tear-resistant silicone rubber material circular hollow door sealing ring has a special surface coating treatment, which is wear-resistant, smooth, and has better sealing effect and longer service life, with a lifespan of up to 1500 cycles.
The main structure is a rectangular section with a European-style circular reinforcement clamp-on flange structure, and the sealing groove is directly welded to the two end circular clamps.
Flash steam vacuum drying technology, fabric drying rate is less than 0.6%, instrument drying rate is less than 0.1%.
Real-time printing of process data through the built-in printer, pharmaceutical customers equipped with paperless recorders.
Horizontal Pulse Vacuum Autoclave Specifications:
| Model | ST-BH1200PV | ST-BH1500PV |
|---|
| Chamber Size (ØxL)(mm) | 680×1180×1500 | 680×1180×1800 |
| Volume (L) | 1200 | 1500 |
| Overall Sizes (WxDxH)(mm) | 2007×2110×2113 | 2357×2110×2113 |
| Weight (kg) | 2300 | 2450 |
| Steam Consumption (KG/C) | 600 | 750 |
| Water Consumption (KG) | 65 | 80 |
| Power | 380V, 50Hz, 3.5KW(72KW) | 380V, 50Hz, 4KW(90KW) |
| N.W.(kg) | 2300 | 2450 |
| Chamber Design Pressure | -0.1/0.3MPa |
| Jecket Design Pressure | 0.3MPa |
| Generator Design Pressure | 1.0MPa |
| Design Temperaure | 150℃ |
| Maximum Operating Temperature | 139℃ |
| Maximum Operating Pressure | 0.25MPa |
| Chamber Relief Valve | 0.28MPa |
| Jacket Relief Valve | 0.28MPa |
| Accuracy of Temperature | 0.1℃ |
| Accuracy of Pressure | 0.1KPa |
| Sterilization Temperature Control Accuracy | ±1℃ |
| Temperature Uniformity | ±1℃ |
| Negative Pressure Pulsating Vacuum | -80~0KPa |
| Across the Pressure Pulsation | -80~80KPa |
| Positive Pressure Pulse | 0~9 times |
| Maximum Vacuum | -96KPa |

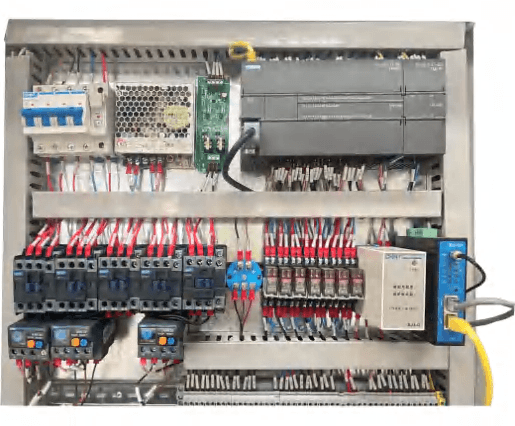

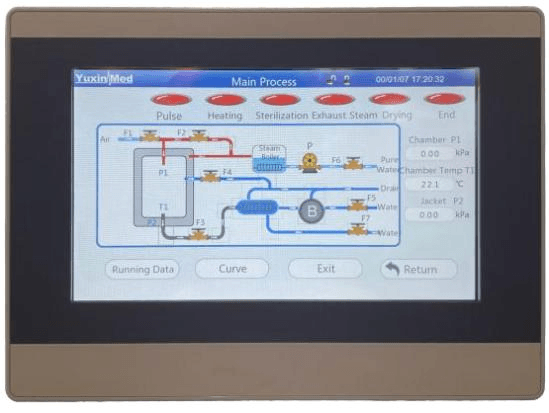

Control system: Siemens programmable logic controller (PLC) and color touch screen, the entire process is automatically controlled by the program, automatically displaying the operating status, operating curve, and parameters such as temperature, pressure, and time.
Smart Maintenance System: Equipped with MNcold IoT remote monitoring and maintenance module, it can access device information in real time from anywhere through computers, tablets, or smartphones. This includes real-time and historical operational data, troubleshooting notifications, and remote software upgrades.
It has sterilization programs for fabrics, instruments, luminal instruments, rubber, liquids, waste, customization, as well as testing programs such as BD testing and vacuum leak testing.
Pulsation modes: Negative pressure pulsation, cross-pressure pulsation, and positive pressure pulsation modes are used, with an air exclusion rate of over 99.99%, saving steam consumption and improving steam sterilization and drying effects.
Piping system: Stainless steel sanitary grade piping with clamp connections, all welds are done using automatic pipe welding machines. The main control valves are imported German angle seat valves and solenoid valves, and the German SPECK direct-coupled water ring vacuum pump is used.
Horizontal pulse vacuum sterilizer is equipped with a high-efficiency filter for exhaust gas, with a filtration accuracy of 0.22 microns and a sterilization rate of 99.99%. It has online SIP function to ensure that the discharged gas is sterilized by the high-efficiency filter.
The supply system is equipped with a detection and alarm system: equipped with steam, water source, and power phase sequence detection and alarm devices. Once the supply system does not meet the equipment operating conditions, it will automatically alarm, prohibit program startup, and terminate program operation.
It has an automatic drainage temperature regulation system, with a drainage temperature <60℃.
