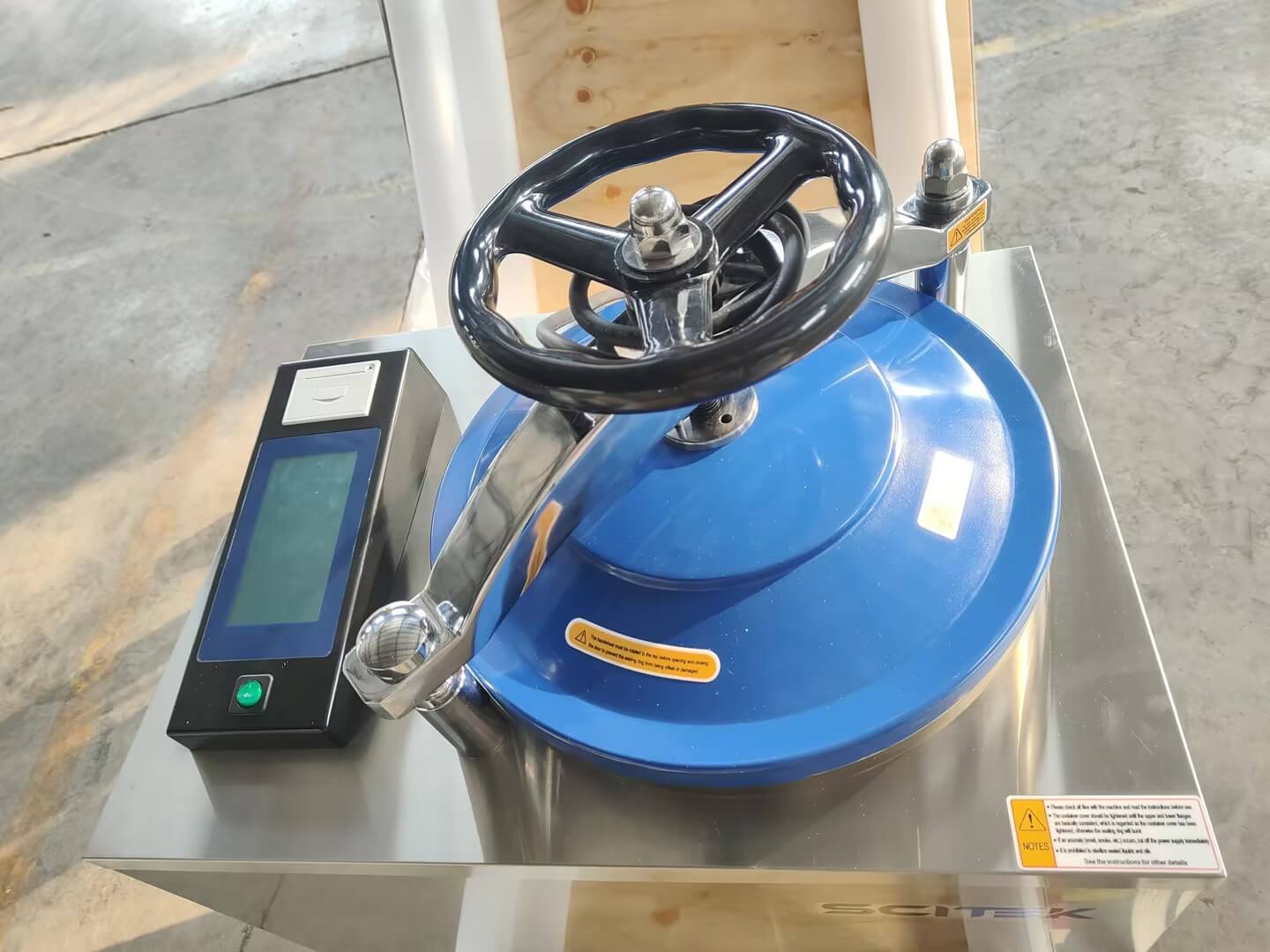

The handwheel panning and quick-open structure allow you to operate the machine quickly, and the microcomputer automatic control allows you to set any parameters. The operation is very flexible.
Three times pre-evacuation

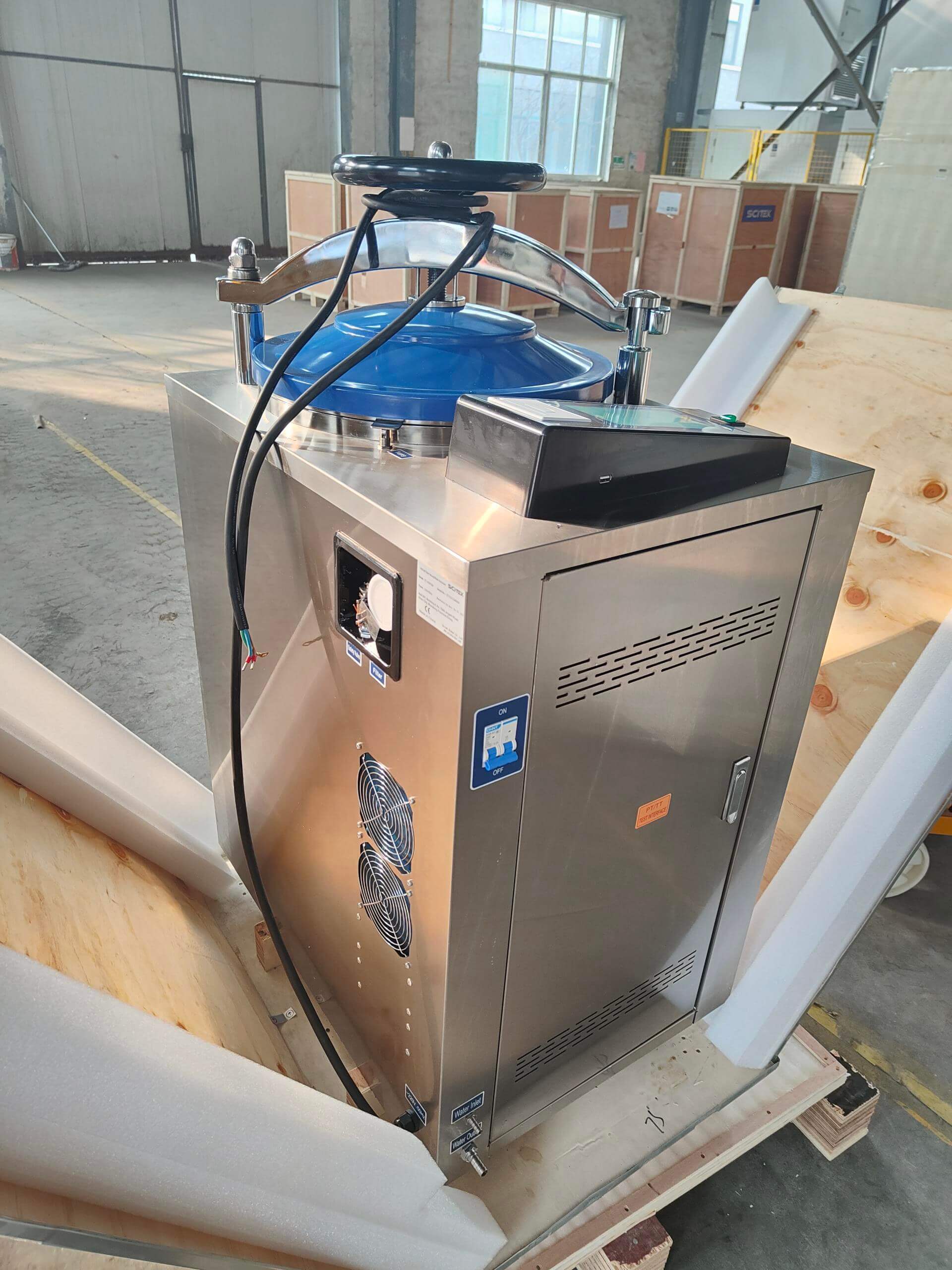

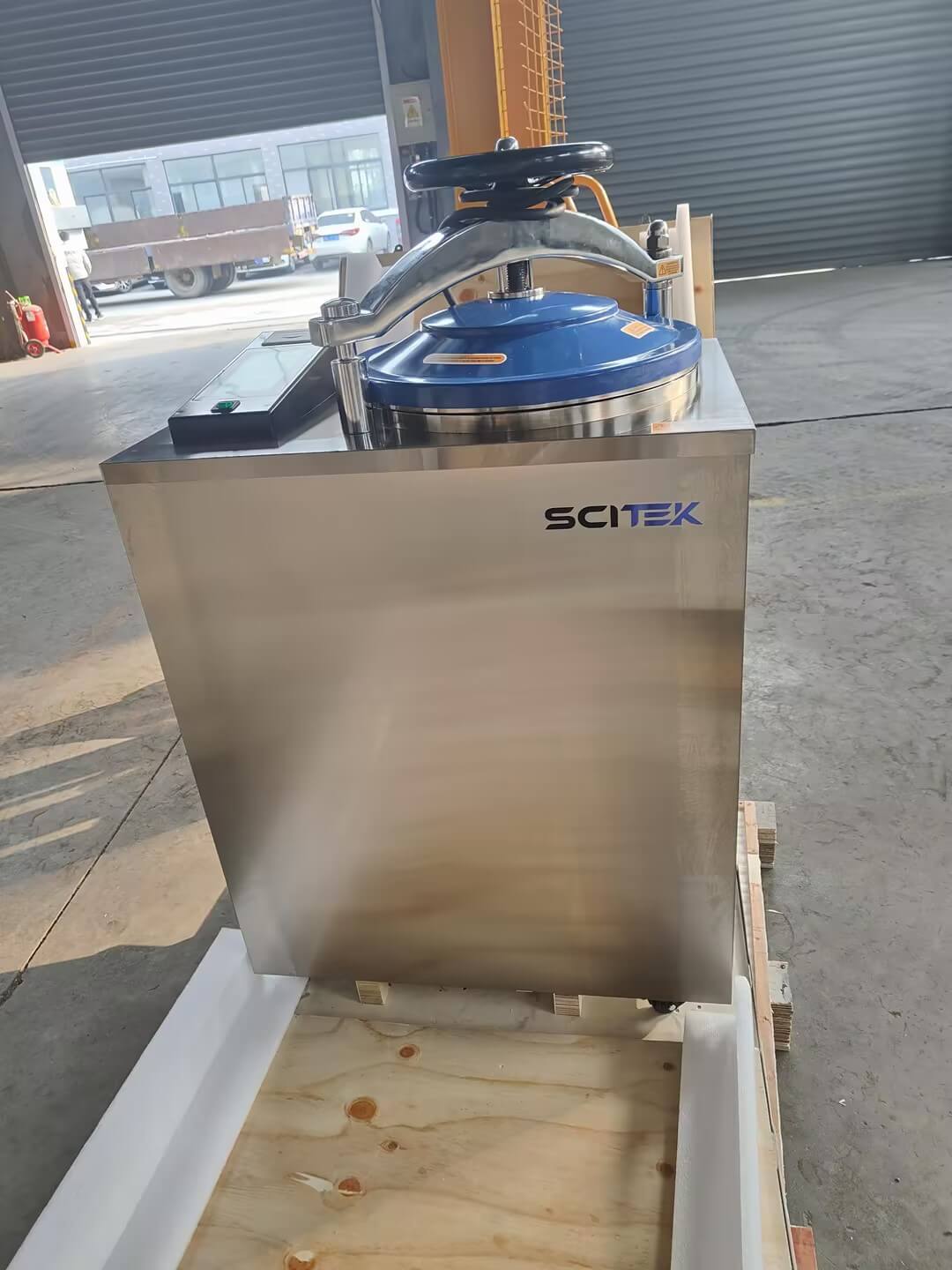

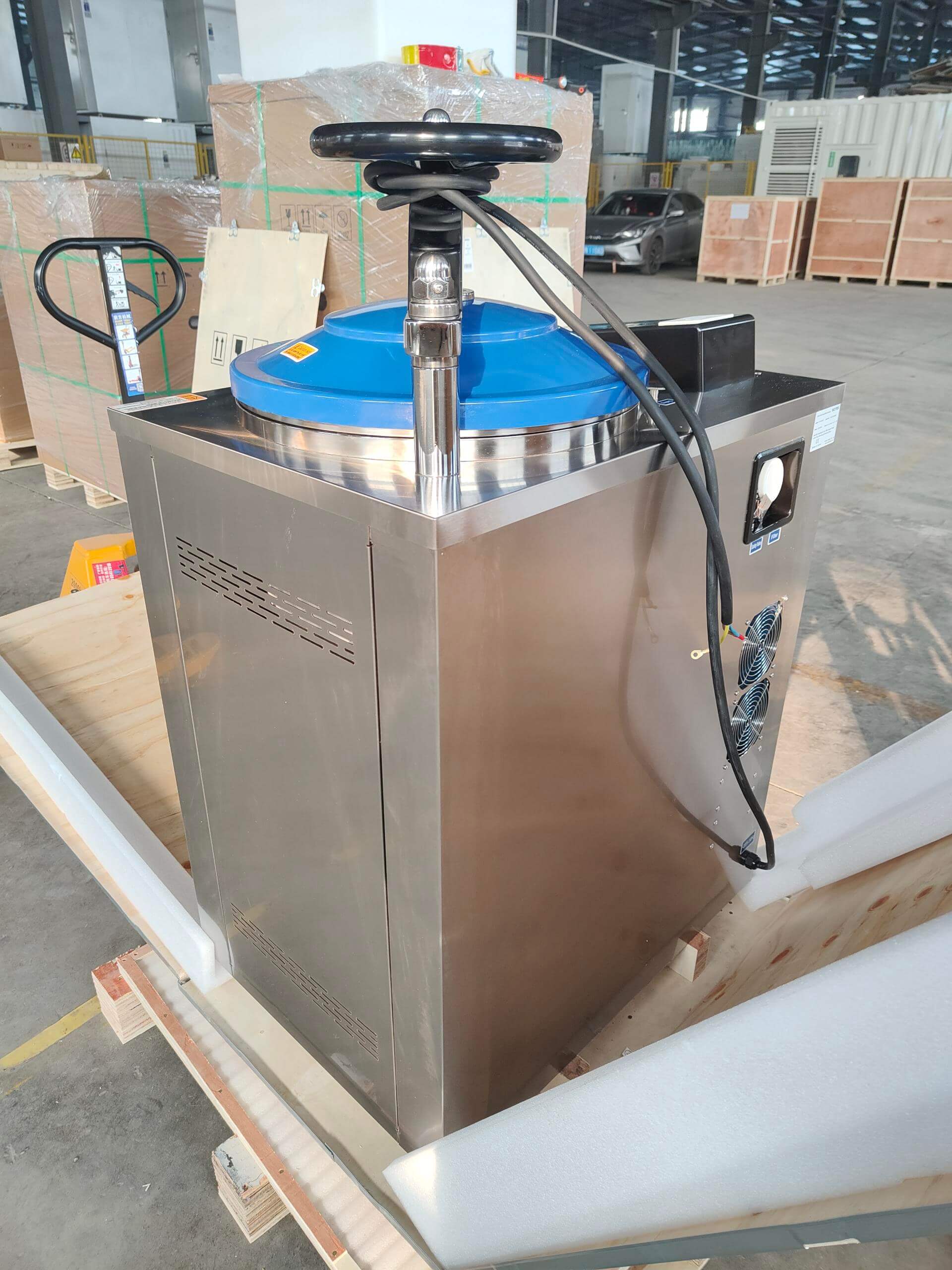

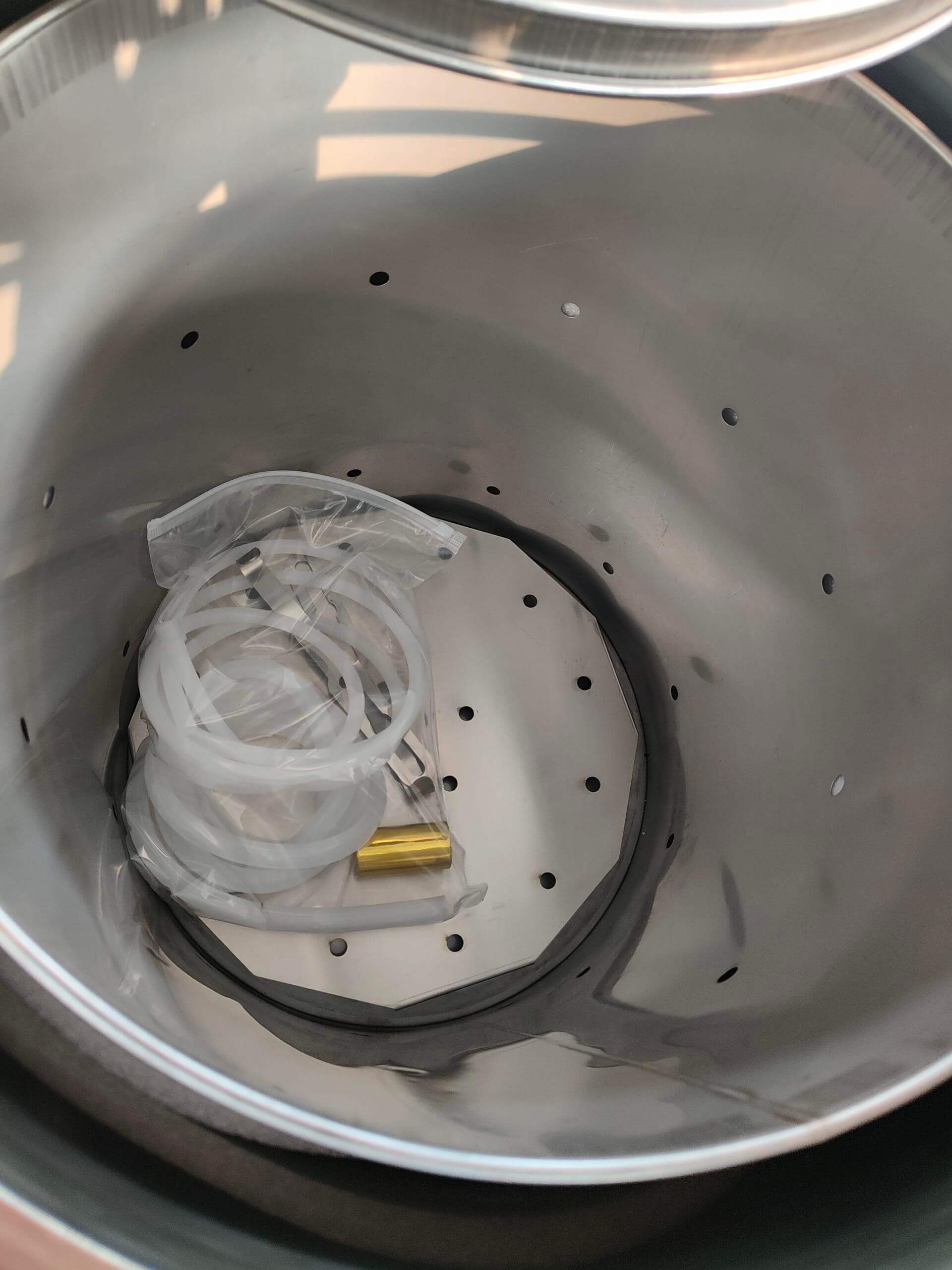

The vertical pulse vacuum steam autoclave is equipped with stainless steel drum or basket, high-quality stainless steel matrial, good corrosion resistance
LED touchscreen display and standard test interface, easy and fast to set and view the sterilization parameters.
Self-expanding seal
With a drying function and external steam generator, cold air is automatically vented and steam is automatically discharged after sterilization.
Safety interlocks for safe operation with automatic protection functions:
Over-temperature protection.
Over-pressure self-discharge protection.
Low water level protection.
Automatic water to prevent dry burning.
Buzzer reminder after sterilization and automatic shutdown.
Model | ST-V35PVM | ST-V50PVM | ST-V75PVM | ST-V100PVM |
Volume | 35L | 50L | 75L | 100L |
Power | 3.5kW | 3.5kW | 4.5kW | 4.5kW |
Voltage | AC 220V, 50HZ | |||
Design Pressure | 0.25Mpa | |||
Design Temperature | 139℃ | |||
Rated Working Pressure | 0.22Mpa | |||
Rated Working Temperature | 134℃ | |||
Sterilization Temperature | 116℃~134℃ | |||
Sterilization Time Setting Range | 4~120 min | |||
Temp Accuracy | ±1℃ | |||
Drying Time Setting Range | 0~240min | |||
Chamber Size (mm) | Ø350×400 | Ø400×505 | Ø400×655 | Ø450×650 |
Bucket Size | Ø330×320 | Ø380×430 | Ø380×560 | Ø420×540 |
Basket Size (optional) | Ø320×350 | Ø360×280×1 | Ø360×280×2 | Ø410×300×2 |
Sizes(W×D×H)(mm) | 698×498×940 | 630×500×1180 | 725×525×1180 | 760×560×1260 |
Shipping Size (W×D×H)(mm) | 790x610x1130 | 800x600x1230 | 840x610x1310 | 870x650x1380 |
N.W./G.W. (kg) | 115/130 | 118/138 | 124/150 | 132/160 |
