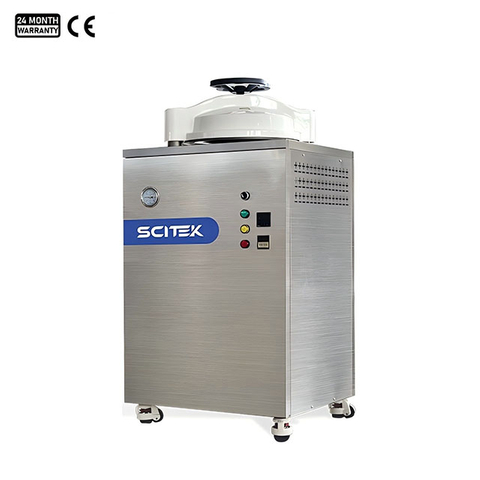

Model : ST-VLA50; ST-VLA80; ST-VLA100; ST-VL50; ST-VL80I; ST-VL100; ST-VL120

Temperature (℃) : 121℃-134℃
Highest Working Pressure : 0.25Mpa
Temp.Accuracy : 0.5℃
Design Pressure : 0.28~0.3Mpa
ST-VLA series with drying function
Designed to meet today's ever-changing laboratory sterilisation needs, this autoclave is designed to sterilise solids and liquids quickly, safely and easily.

Model : ST-VGA50; ST-VGA80; ST-VGA100; ST-VG50; ST-VG80; ST-VG100; ST-VG120

Ambient Temperature: 5℃~40℃
Relative Humidity : ≤85%
Highest Working Pressure : 0.25Mpa
Atmospheric Pressure: 70kpa~106kpa
Power Supply : AC 220V ± 22V, 50Hz ± 1Hz
Note: Manufacturers and users should consider the impact of local atmospheric  pressure on sterilizer parameter settings when using sterilizers.

Model : ST-VPA50; ST-VPA80; ST-VPA100; ST-VP50; ST-VP80; ST-VP100; ST-VP120

Highest Working Pressure : 0.25Mpa
Temperature(℃) : 121℃~134℃
Temp.Accuracy : 0.5℃
Design Pressure : 0.28~0.3Mpa


Model : ST-V50; ST-V80; ST-V100;

Sterilization Temperature (℃) : 105~136
Max. Sterilization Pressure (Mpa) : 0.23
Drying Function : YES
Water Injection Method : Built-in water tank
Drying Time : 15 min
This vertical pressure steam sterillzer with a water tank provides a continuous supply of water vapour for the sterilisation process.

Model : ST-V150L

Capacity : 150L
Control : Automatic Control
The Main Material : Stainless steel
Sterilization Chamber Volume (DxH)(mm) : 500 x760
Large capacity vertical pressure steam autoclave with small footprint.

Model : ST-VL65; ST-VL80; ST-VL90; ST-VL110

Capacity : 62L; 80L; 88L ;110L
External Size(WxLxH)(mm) : 550×640×900; 550×640×1150
Consumption : 4000W
Standard Accessory : Mesh basket or tote bag, gloves, and drain hose.
Professional grade vertical pressure steam autoclave is perfect for all general medical and laboratory applications.

Model : ST-H150YDA; ST-H200YDA; ST-H280YDA; ST-H400YDA; ST-H500YDA;

Capacity : 150L; 200L; 280L; 400L; 500L;
Working Pressure : 0.22MPa
Max. Working Temperature : 134℃
Sterilization Temperature : 40~134℃
Professional grade horizontal pressure steam sterilizer is perfect for all general medical and laboratory applications.

Model : ST-H150I; ST-H200I; ST-H300I; ST-H400I

Capacity (L) : 150 / 200 / 300 / 400
Chamber Size (ØxH)(mm) : Ø472x880 / Ø472x1150 / Ø620x995 / Ø620x1320
Working Temperature (℃) : 105-136
Working Pressure (Mpa) : 0.225
This Autoclave needs to be used with an air compressor
The horizontal design of this pressure steam autoclave makes loading and removing items easier and reduces operational labour.

Model : ST-H100YDB

Chamber Size(ΦxH)(mm) : Φ390x670
Working Pressure : 0.22MPa
Max. Working Temperature : 134℃
External Size(WxDxH)(mm) : 930x690x1330
Professional grade horizontal pressure steam sterilizer is perfect for all general medical and laboratory applications.

Model : ST-H150YDB; ST-H200YDB; ST-H280YDB

Chamber Size(ΦxH)(mm) : Φ440x1000; Φ515x1000; Φ600x1000
Working Pressure : 0.22MPa
Max. Working Temperature : 134℃
External Size(WxDxH)(mm) : 1400x650x1820; 1400x750x1700; 1520x910x1900
This horizontal pressure steam sterilizer automates microprocessor-controlled sterilisation safely and economically.
