Model : ST-V35BS; ST-V50BS; ST-V75BS; ST-V100BS; ST-V120BS; ST-V150BS
Capacity (L) : 35; 50; 75; 100; 120; 150 Design Temperature : 139 °C Rated Working Pressure : 0.22 MPa Sterilization Temperature Setting Range : 116~134 °C Sterilization Time Setting Range : 4-120 min
Note: Manufacturers and users should consider the impact of local atmospheric pressure on sterilizer parameter settings when using sterilizers.
Vertical pressure steam sterilizer is suitable for sterilizing glassware, biological materials, culture media, and other items in hospitals, clinical laboratories, research institutions, and similar settings. Vertical pressure steam sterilizer serve diverse applications across multiple industries, helping maintain sterile environments, ensure product quality, and safeguard public health.
5. With automatic protection function: over temperature protection, over pressure self discharge protection; low water level protection; Prevent dry burning.
6. Buzzer reminder after sterilization, automatic stop.
7. Automatic discharge of cold air, automatic steam exhaust after sterilization, Internal steam cycle.
Vertical Pressure Steam Sterilizer Specification:
Model
ST-V35BS
ST-V50BS
ST-V75BS
ST-V100BS
ST-V120BS
ST-V150BS
Capacity (L)
35
50
75
100
120
150
Consumption (kW)
2.5
3.5
4.5
4.5
4.5
6
Power Supply
AC 220/110 V, 50/60 HZ
Design Pressure
0.25 MPa
Design Temperature
139 ℃
Rated Working Pressure
0.22 MPa
Rated Working Temperature
134 ℃
Sterilization Temperature Setting Range
116~134 ℃
Sterilization Time Setting Range
4-120 min
Chamber Size (mm)
φ300x450
φ350x515
φ400x585
φ450x620
φ450x720
φ500x747
Bucket Size (mm)
φ275x395
φ325x235x2
φ375x265x2
φ425x275x2
φ425x315x2
φ475x365x2
External Size (mm)
436x473x850
544x536x985
586x576x1072
617x627x1135
617x627x1205
660x676x1255
Shipping Size (WxDxH) (mm)
550x500x900
580x630x1100
630x680x119
690x650x1230
690x650x1330
750x700x1370
Gross Weight (kg)
58
75
84
104
105
122
Net Weight (kg)
41
53
61
78
79
90
Details of Vertical Pressure Steam Sterilizer:

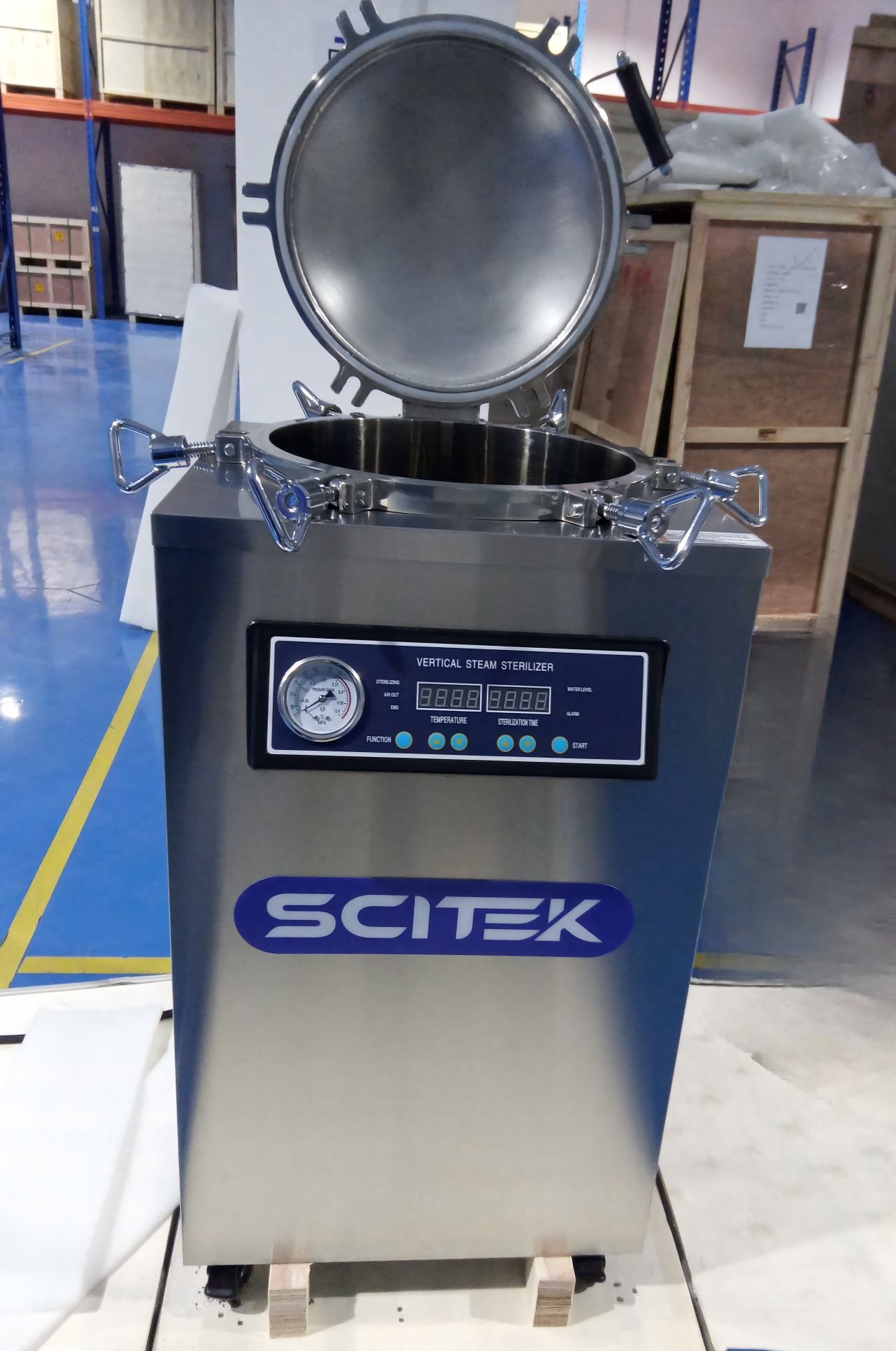

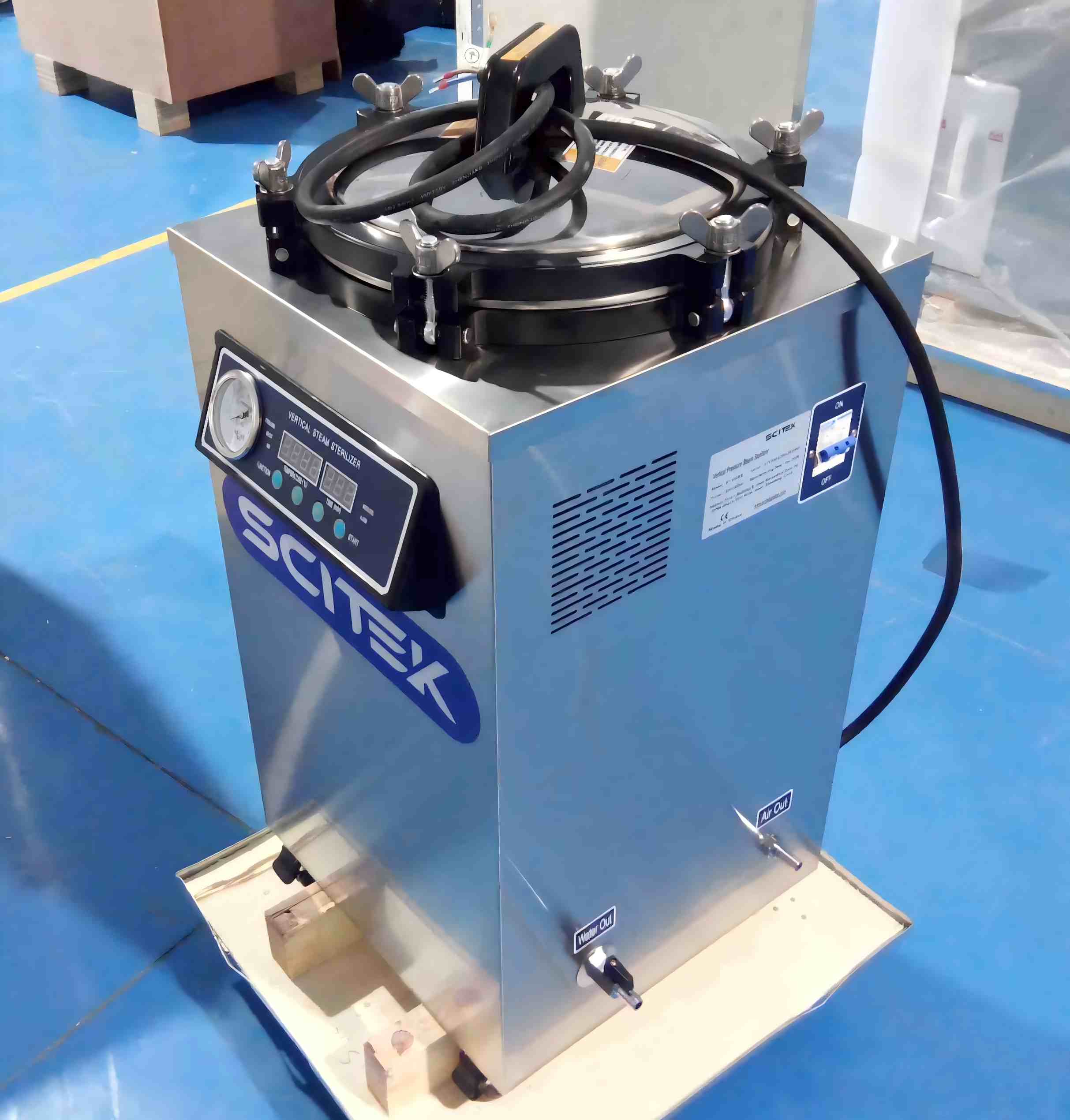

The vertical steam sterilizer features a stainless-steel chamber, secure locking clamps, an integrated pressure gauge, and an intuitive control panel for convenient operation and reliable sterilization.

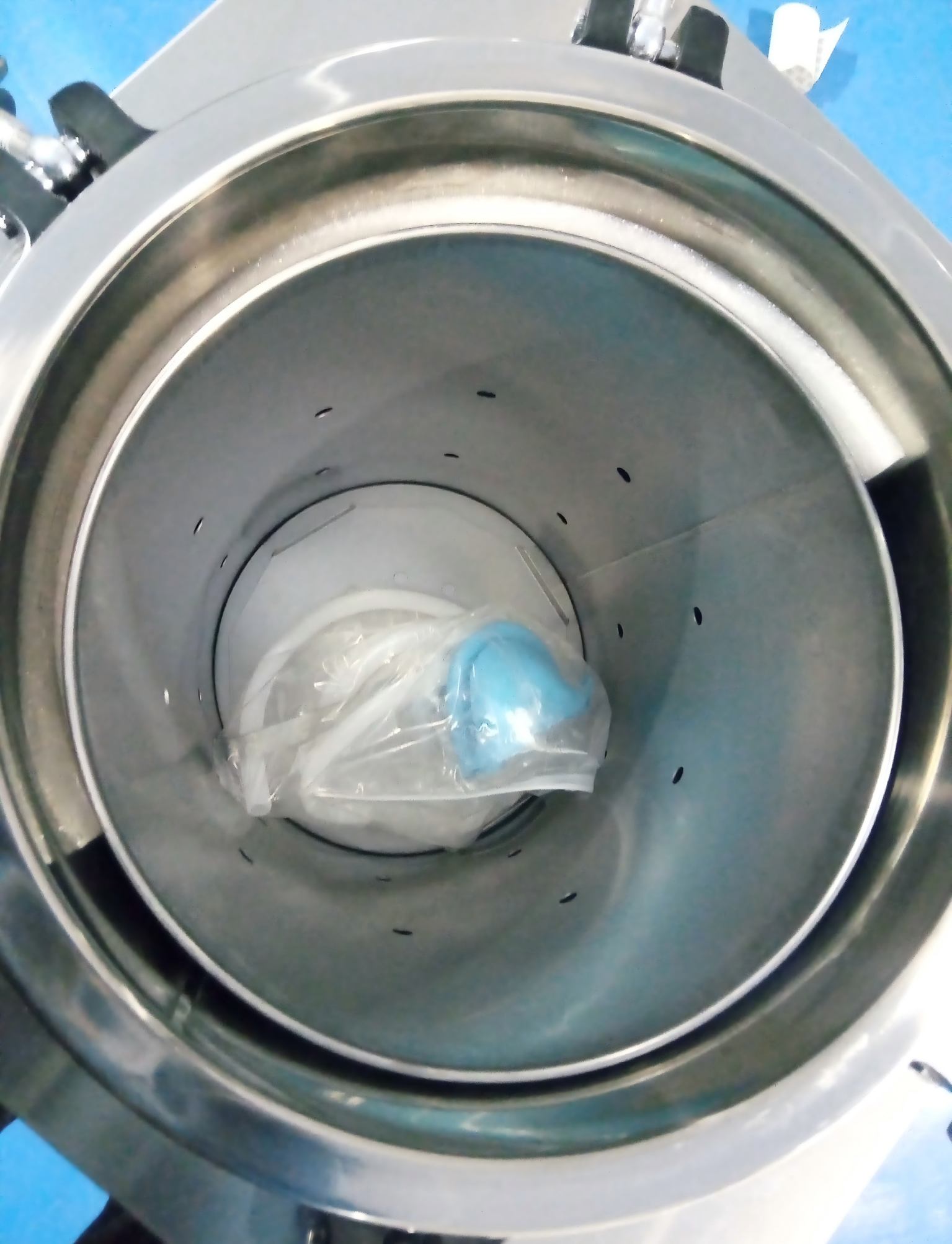

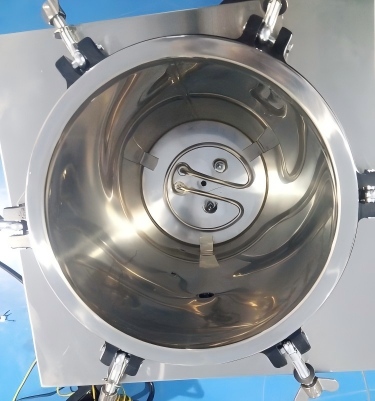

The sterilizer features a spacious stainless-steel inner chamber with a smooth, corrosion-resistant surface, designed for easy cleaning and reliable steam sterilization.

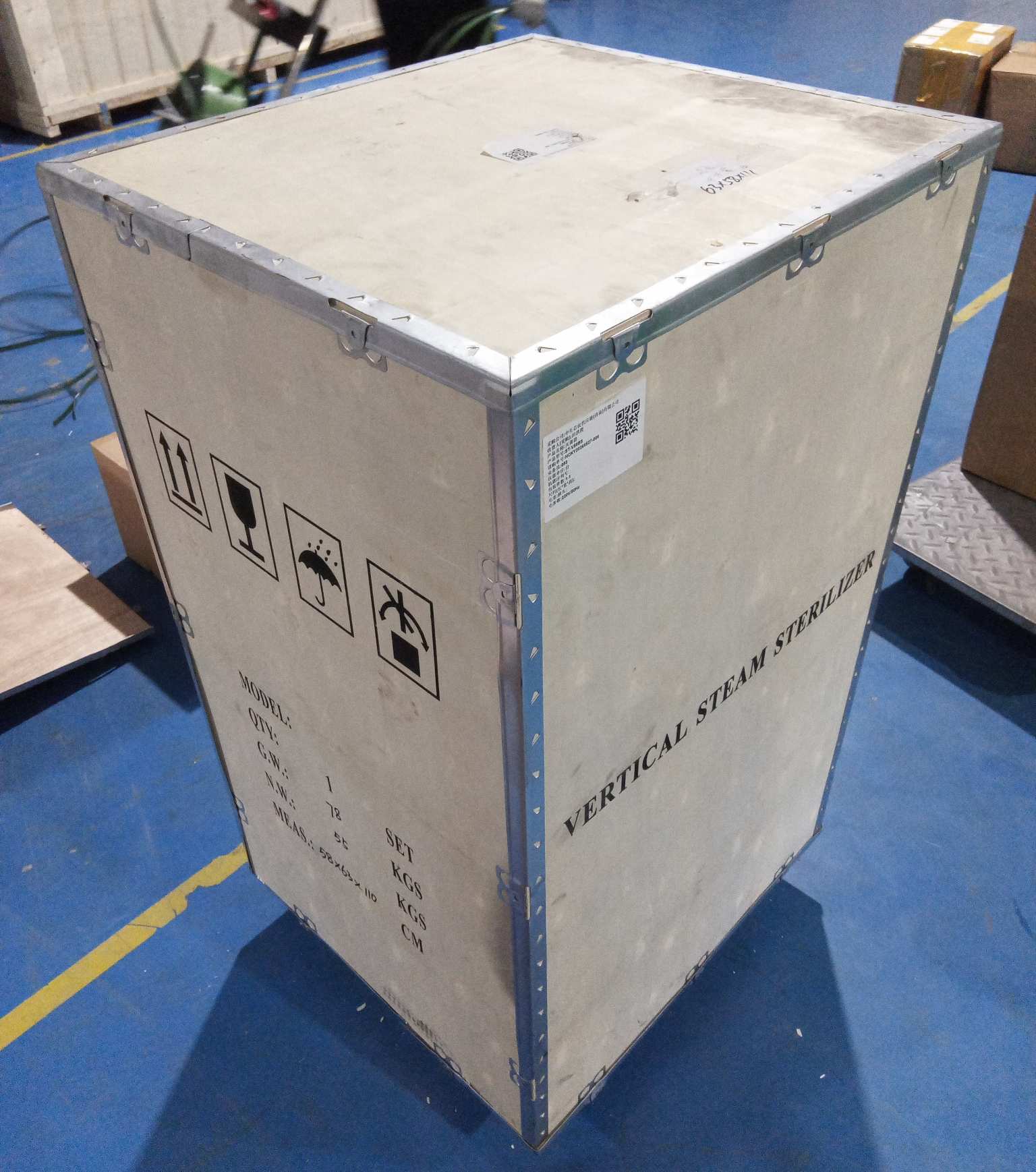

The vertical steam sterilizer is packed in a sturdy wooden crate with reinforced metal sealing along the edges, providing secure protection against impact, dust, and moisture during transportation.
As a professional lab and medical equipment manufacturer, Scitek Global is certified by ISO 9001, ISO 13485, ISO 45001 and ISO 14001. Almost all our products are certified by ETL, CE and FDA .
Scitek Global looks forward to establishing cooperation with more distributors all over the world, and working together to create greater customer value.
