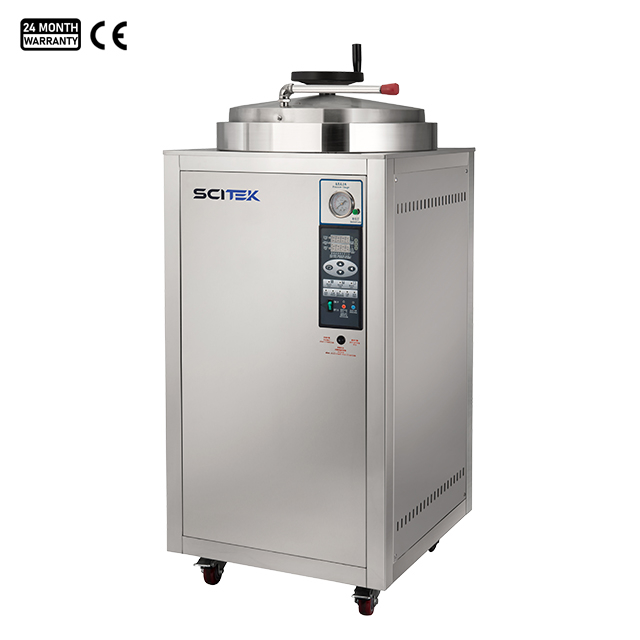

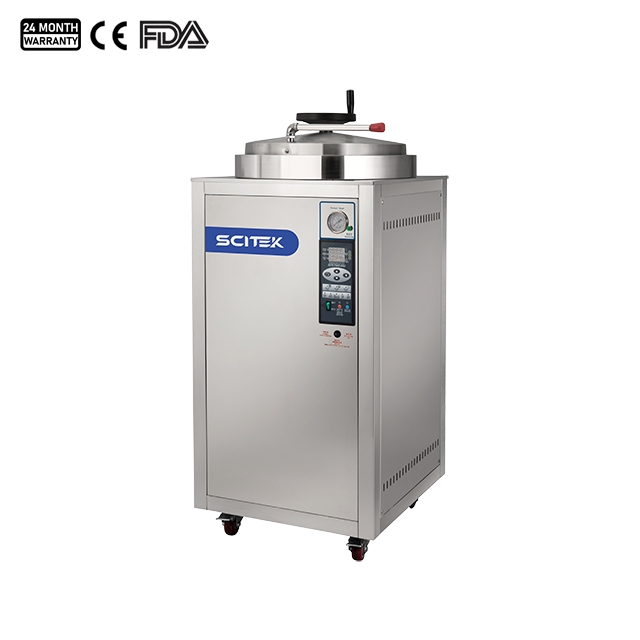

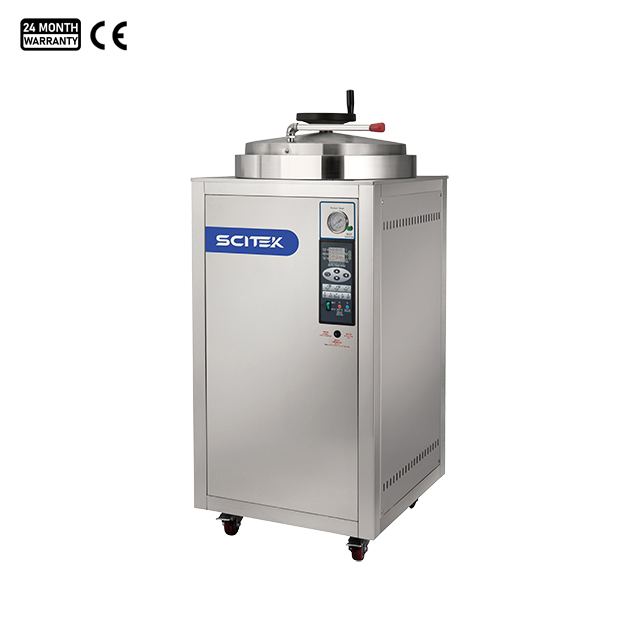

The vertical pressure steam autoclave is a safe, reliable, and automatically controlled sterilization equipment, consisting of a heating system, a microcomputer control system, and automatic overheating and overpressure protection systems.
Model | ST-V200L |
---|---|
Capacity | 200L |
Control | Automatic Control |
The Main Material | 304 Stainless steel |
Sterilization Chamber Size | φ500x1000 (mm) |
Time Setting Range | 0-99h |
Rated Working Pressure | 0.217MPa |
Sterilization Temperature Setting Range | 50~134°C |
Power Supply | 6kW |
Shipping Size (WxDxH)(mm) | 760x800x1720 |
G.W. (kg) | 238 |
Handwheel quick-open door structure
Self-expanding sealing ring
With water cut-off protection device and water level detection alarm function
Automatic control of sterilization cycle program
Digital window LCD display working status
Pressure safety interlock device
Preset fixed program for sterilization selection mode for solids and liquids
Automatic discharge of cold air and automatic exhaust function at the end of sterilization
Automatic shutdown after buzzer reminder at the end of sterilization
Over-temperature and over-pressure alarm function, over-pressure self-discharge
Temperature deviation correction function
Three-level exhaust method, exhaust mode: full exhaust, micro exhaust, no exhaust
Bottom with casters for easy movement
Optional printing function
