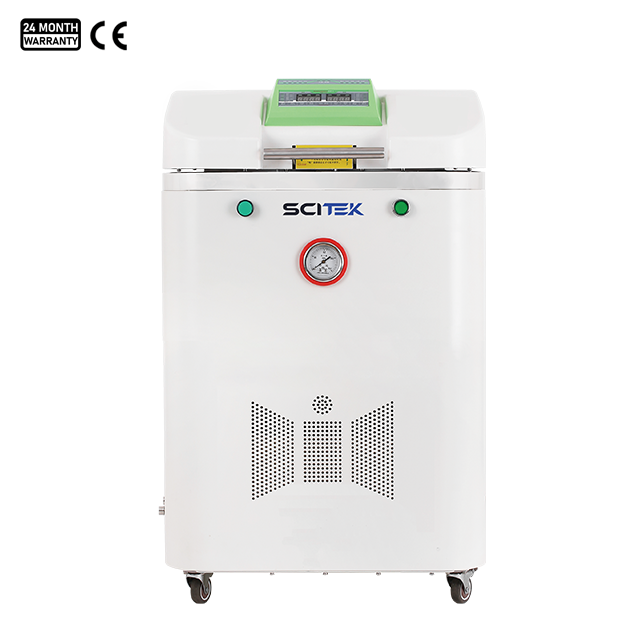

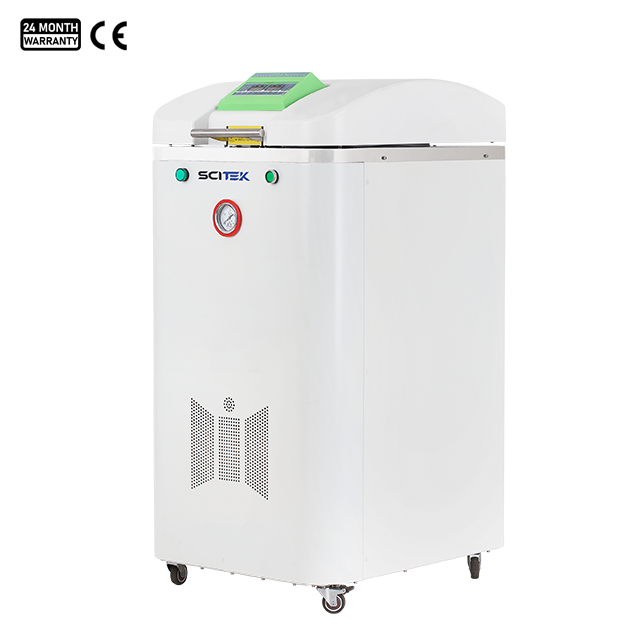

Vertical Pressure Steam Autoclave, ST-VL Series

Model : ST-VL65; ST-VL80; ST-VL90; ST-VL110

Capacity : 62L; 80L; 88L ;110L
External Size(WxLxH)(mm) : 550×640×900; 550×640×1150
Consumption : 4000W
Standard Accessory : Mesh basket or tote bag, gloves, and drain hose.
Professional grade vertical pressure steam autoclave is perfect for all general medical and laboratory applications.
Availability:
Quantity:

The vertical pressure steam autoclave is a safe, reliable, and automatically controlled sterilization equipment, consisting of a heating system, a microcomputer control system, and automatic overheating and overpressure protection systems. It offers reliable sterilization, easy operation, safety, energy efficiency, durability, and affordability.

Vertical Pressure Steam Autoclave Specifications:

Model ST-VL65 ST-VL80 ST-VL90 ST-VL110
Capacity 62L 80L 88L 110L
External Size(WxLxH)(mm) 550×640×900 550×640×1150
Internal Size φ365×484H φ414×484H φ365×734H φ414×734H
Chamber Material SUS304 Stainless steel
Power Supply AC 220V 50Hz 16A
Consumption 4000W
Sterilization Temperature/Time 115-138°C Continuously adjustable, 0-9999 minute countdown display
Dissolution Temperature/Time 60-100°C continuously adjustable/0-9999 minutes countdown display
Holding Temperature/Time Preset Range 45-80°C adjustable/300 minutes
Unlock Temperature 60-95°C can be set (default 80°C)
Verification Interface Reserved pressure and temperature pipe thread verification interface
Temp. Controller Using PT100AA^ temperature sensor, with a resolution of 0.1
Appointment Feature Advanced booking for any time within the next year
Pressure 0.26Mpa
Standard Accessory Mesh basket or tote bag, gloves, and drain hose.
N.W./G.W. (kg) 72/102 82/112 85/115 95/125
Package Size(WxLxH)(mm) 650×740×1050 650×740×1250


Optional Accessory:


  1. Large capacity water tank with automatic water replenishment, fully automatic internal circulation.

  2. Thermosensitive or needle-type miniature printer or recorder.

  3. USB data storage device for recording sterilization cycles and sterilization data.

  4. Threaded sealing interface for 3Q validation.

  5. JUMO mobile probe.

  6. High-efficiency filtration device.

Vertical Pressure Steam Autoclave Features:

Vertical Pressure Steam Autoclave

Control Feature:

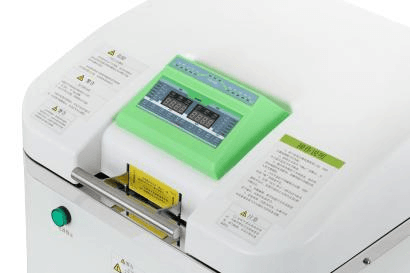

  1. Microcomputer fully automated control sterilization process

    The status flowchart displays the current sterilization process, allowing for easy visual access to the current running steps at any time

  2. Multiple Sterilization Modes

    With liquid, solid, agar, instruments, etc.More than five sterilization modes, expandable memory store 80 sterilization programs


Mechanical Feature:

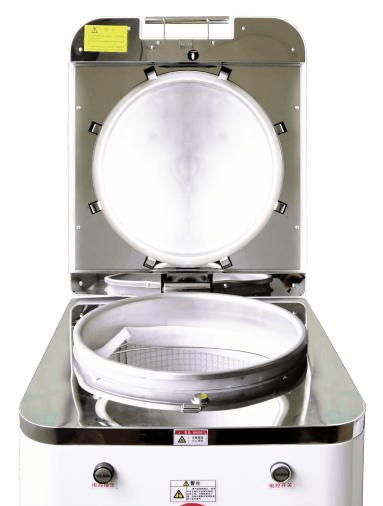

  1. Vertical Flip Cover Structure

    Easy to open, and automatic locking upon downward pressure, with lock status determined based on indicator light prompts.

  2. Electromagnetic suction type 6/8 claw mechanical interlock.

    Electromagnetic suction type 6/8 claw mechanical interlock, with 6/8 claws installed on the top cover. The sealing rubber strip is evenly stressed, ensuring a secure and reliable seal. The operating surface is clean, providing a smooth loading and unloading experience without any obstacles.

  3. Dovetail type sealing groove

    Dovetail type sealing groove, self-expanding medical grade silicone molded sealing ring, corrosion-resistant and high-temperature resistant, can prevent accidents caused by high-temperature opening operations, providing a safer and more secure seal.

  4. Dual air convection rapid cooling fan

    Dual air convection rapid cooling fan, automatically activates after default sterilization for temperature reduction, adjustable cooling lid opening temperature, lid cannot be opened if temperature is not reached.

  5. Multi-stage exhaust

    Built-in steam collection box, utilizing multi-stage exhaust, without impacting the surrounding environment.


Safety Features:


  1. Safety interlocking device:Equipped with a high-temperature and high-pressure interlocking protection system, which automatically detects and ensures that the chamber cover is closed in place before the work procedure can be started.

  2. Anti-dry burning alarm:system automatically stops working when water level is lower than the minimum water level;system directly cuts off the power supply when the water level is lower than the heating tube

  3. Over temperature protection,Over pressure protection

  4. Electrical safety protection:Leakage, over current, and short circuit protection functions
