Vertical Pressure Steam Sterilizer Features:
Hand wheel translation and quick opening structure
High quality stainless steel material
Microcomputer automatic control, arbitrary setting sterilization parameters.
Safety interlocking device
Digital display and Touch buttons
Standard test interface
Self-expanding seal
With drying function
With automatic protection function: Over temperatureprotection; over pressure protection; low water level protection; anti dry burning.
With stainless steel bucket or basket
Buzzer reminder after sterilization, automatic stop 5s
Automatic discharge of cold air,automatic steam exhaust after sterilization.
Vertical Pressure Steam Sterilizer Specifications:
| Model | ST-VG35 | ST-VG50I | ST-VG75 | ST-VG100I |
| Volume | 35L | 50L | 75L | 100L |
| Power | 3.5kW | 3.5kW | 4.5kW | 4.5kW |
| Voltage | AC 220V, 50HZ |
| Design Pressure | 0.25MPa |
| Design Temperature | 139℃ |
| Rated Working Pressure | 0.22MPa |
| Rated Working Temperature | 134℃ |
| Sterilization Temperature Setting Range | 116℃~134℃ |
| Sterilization Time Setting Range | 4~120min |
| Drying Time Setting Range | 0~240min |
| Chamber Volume | Ø350x400 | Ø350x525 | Ø400x625 | Ø450x650 |
| Bucket Size | Ø330x320 | Ø330x460 | Ø380x560 | Ø420x540 |
| Basket Size | Ø320x350 | Ø320x240x2 | Ø360x280x2 | Ø410x300x2 |
| Outer Size | 480x480x1000 | 480x480x1120 | 525x525x1190 | 550x550x1250 |
| Packing Size(LxWxH） | 580x630x1130 | 580x630x1230 | 630x680x1290 | 690x650x1410 |
| Gross Weight | 79kg | 106kg | 120kg | 133kg |
| Net Weight | 58kg | 80kg | 90kg | 106kg |
*Optional external printer
*Optional automatic water
Details of Vertical Pressure Steam Sterilizer(ST-VG35):
Side view with SCITEK branding emphasizes the autoclave’s robust construction and professional-grade performance. The device meets international sterilization standards, making it suitable for export markets.

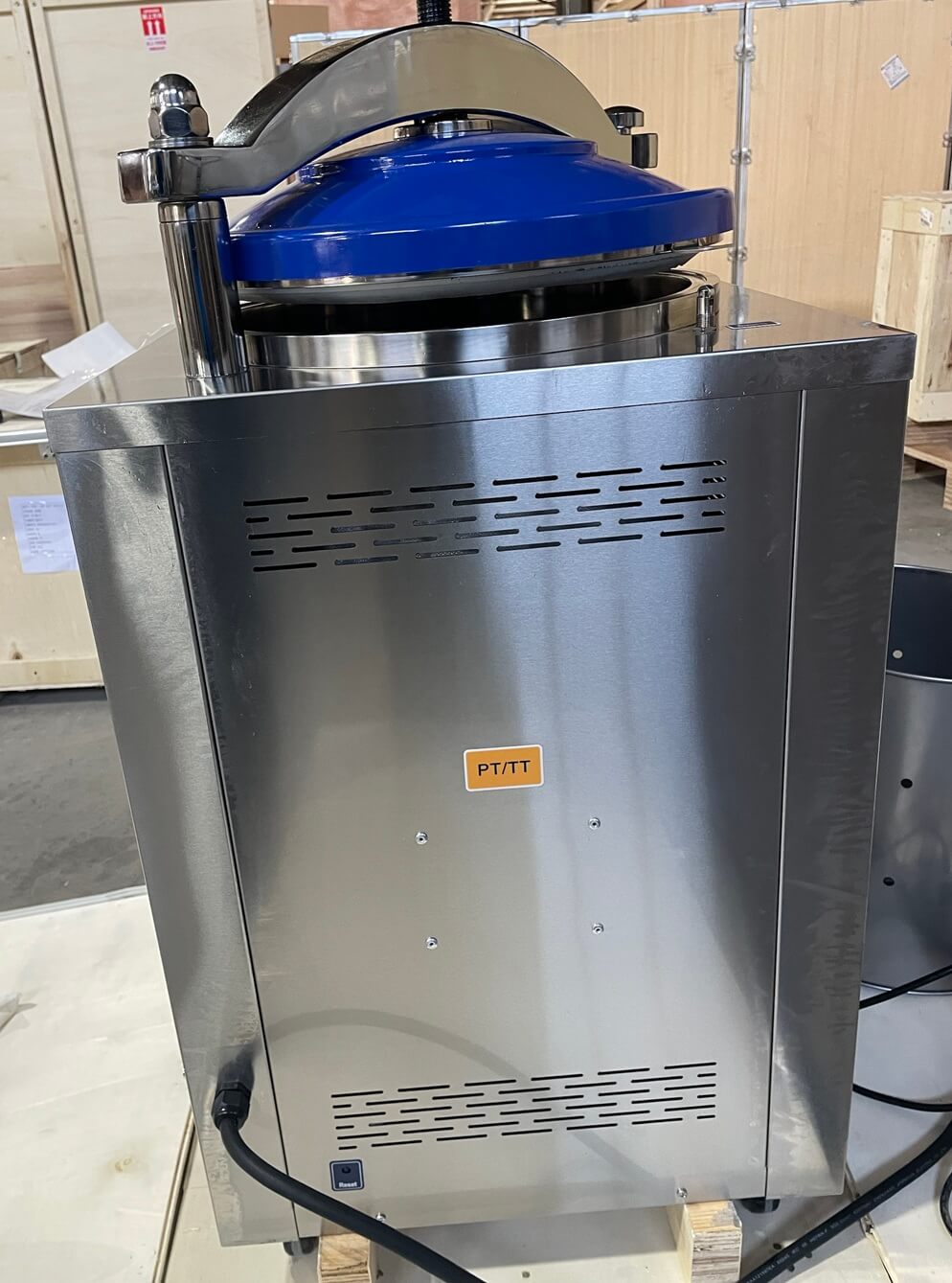

Rear ventilation and safety features are shown, designed to maintain optimal operating temperature and ensure device longevity. Efficient heat dissipation prevents overheating.

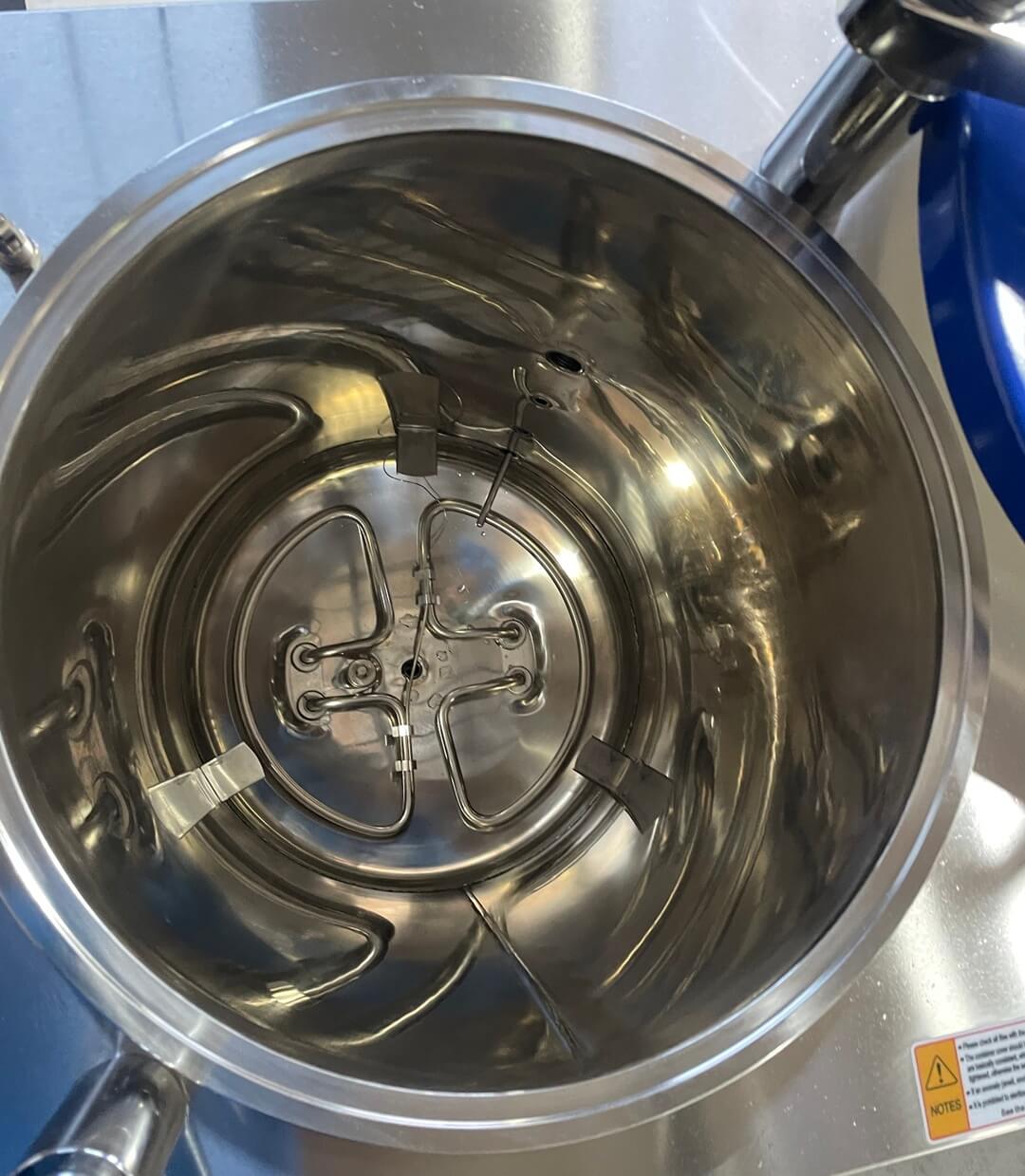

Internal chamber made of polished stainless steel, offering excellent corrosion resistance. The circular design ensures uniform steam distribution for consistent sterilization performance.

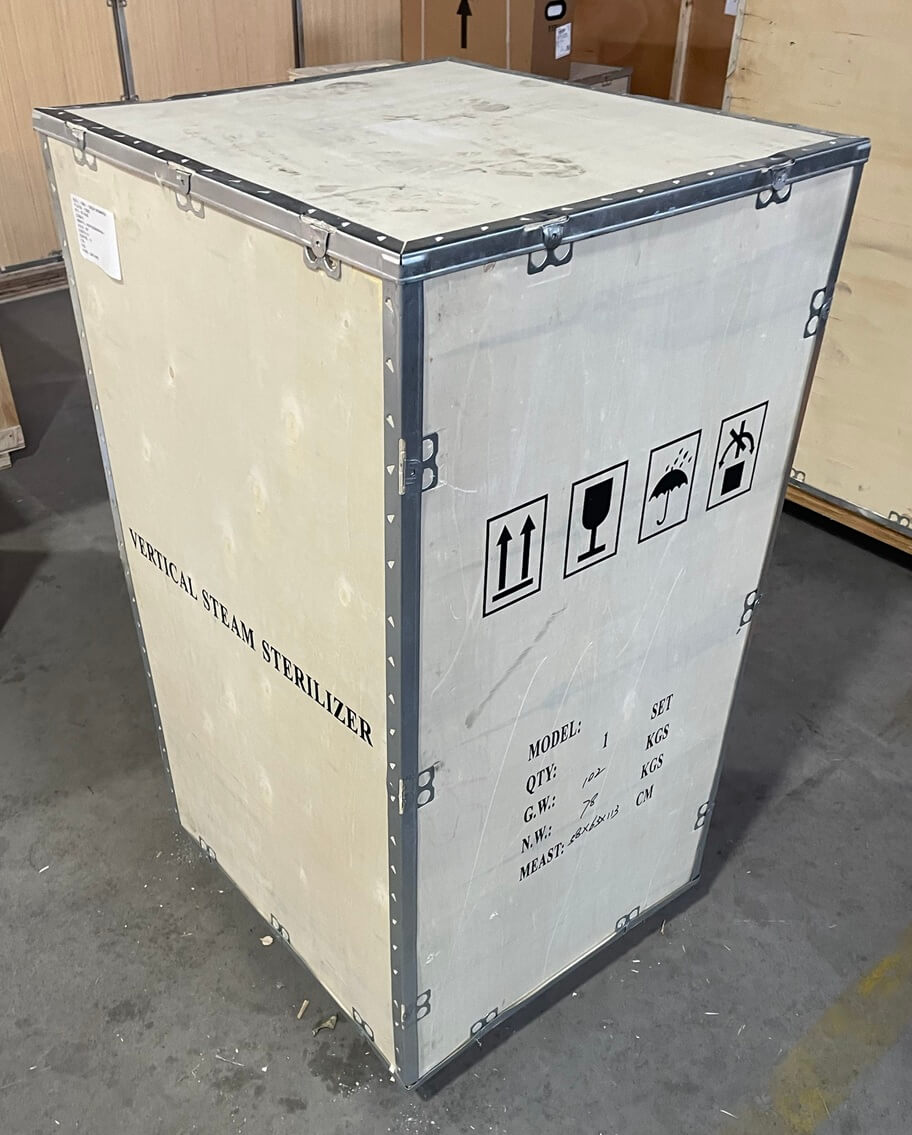

The autoclave is securely packaged in a reinforced, export-grade wooden crate that provides strong protection during transportation and ensures that the product arrives at its destination in perfect condition.
