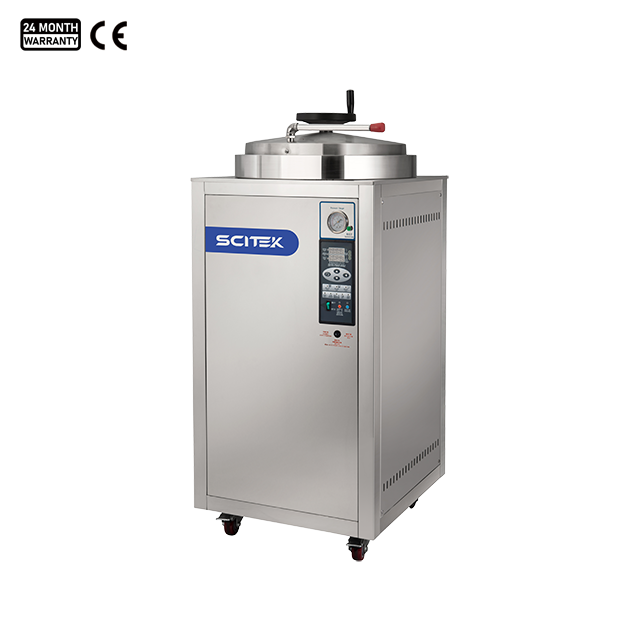

The vertical pressure steam autoclave is a safe, reliable, and automatically controlled sterilization equipment, consisting of a heating system, a microcomputer control system, and automatic overheating and overpressure protection systems.
Vertical Pressure Steam Autoclave Specifications:
| Model | ST-V150L |
|---|
| Capacity | 150L |
| Control | Automatic Control |
| The Main Material | Stainless steel |
| Sterilization Chamber Volume (DxH)(mm) | 500 x760 |
| Time Setting Range | 0-99h |
| Rated Working Pressure | 0.217MPa |
| Sterilization Temperature Setting Range | 50~134°C |
| Power Supply | 6kW |
| Shipping Size (WxDxH)(mm) | 760x710x1520 |
| G.W. (kg) | 180 |
Vertical Pressure Steam Autoclave Features:
Intelligent microcomputer control system: Using LEDdigital control system; After steriliztion finished, sterilizer willautomatic alarm and shut down.
Electric interlock device: The control system can realtime supervision the sterilizer chamber's temperature andpressure. Only under the safety temperature and pressurecan open the sterilizer's cover. Make sure the operator's safe-ty.
The structure of cover's opening: Using hand wheelrotary type cover to improve sealing and safety performance.
Preset program: Can preset fixed program that sterilize
Memory storage system: Store the last operation pro-gram so convenient next operation.
Interface check: provide temperature and pressure checkinterface; convenient to check mutiple position temperaturemeasurement.
Digital display screen: Digital display screen and work-ing indicator light display running state.
Safety devices: Interlock device, overtemperature andover pressure protecting system, burned protection, safetyrelief valve, current leakage protector and automatic faultdetection.
Print function (Optional): Print the currenttemperature and sterili-zation time.
