The horizontal pressure steam sterilizer, which adopte the way of gravity exchange to release the cold air from the chamber more completely to ensure the reliable sterilization. The control system automatically adjust the steam inlet and outlet according to chamber temperature during sterilizing. This unit is an ideal equipment for clinics, scientific research institutes and other organizations to sterilize surgical instruments, fabric glassed, and the culture media etc.
Horizontal Pressure Steam Sterilizer Features:
Automatially controlled the sterilizing process, easy to operate.
With drying function, suitable for the medical dressing drying.
With over-temperature, over-pressure auto-protect.
The door can not be open until the pressure in the chamber is reduced to 0.027MPa. And the unit can not be started on if the door doesn't close well.
The safety valve will be open automatically when the inner pressure over 0.24MPa and the steam would be exhausted the water tank.
Automatically cut off the power if the water-lack happened, and alarm at the meanwhile.
The chamber of the sterilizer is made of stainless steel.
Horizontal Pressure Steam Sterilizer Specifications:

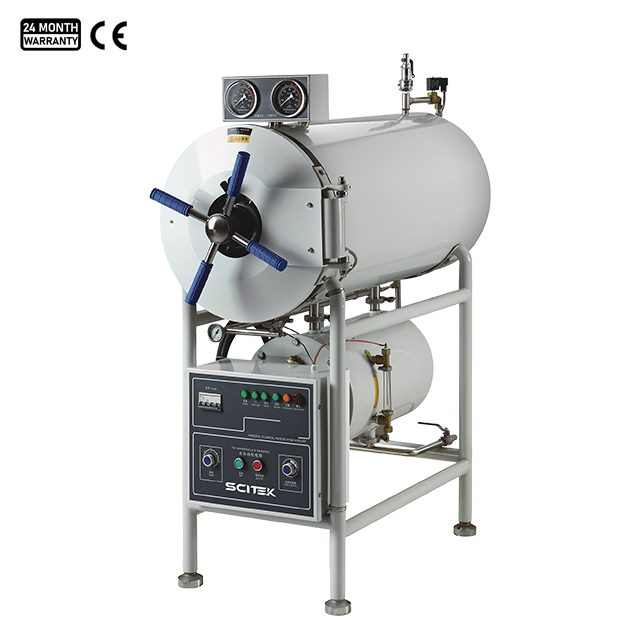

| Model | ST-H150YDA | ST-H200YDA | ST-H280YDA | ST-H400YDA | ST-H500YDA |
| Capacity | 150L | 200L | 280L | 400L | 500L |
Chamber Size (ΦxH)(mm)
| Φ440x1000 | Φ515x1000 | Φ600x1000 | Φ700x1100 | Φ700x1300 |
| Working Pressure | 0.22MPa |
| Max. Working Temperature | 134℃ |
| Sterilization Temperature | 40~134℃ |
| Sterilization Time Range | 0~60min |
| Drying Time Range | 0~60min |
| Temp. Uniformity | ≤±2℃ |
| Consumption | 9KW | 9KW | 12KW | 18KW | 18KW |
| Power Supply | 380V, 50Hz |
| External Size (WxDxH)(mm) | 1400x600x1300 | 1400x670x1650 | 1400x770x1780 | 1430x880x1830 | 1800x900x1820 |
| Net Weight | 240kg | 260kg | 365kg | 420kg | 470kg |
| Gross Weight | 320kg | 350kg | 465kg | 530kg | 615kg |
| Shipping Size (WxDxH)(mm) | 1560x750x1850 | 1560x820x1850 | 1680x920x1950 | 1600x1050x2050 | 1850x1050x2010 |
Horizontal Pressure Steam Sterilizer Accessories:

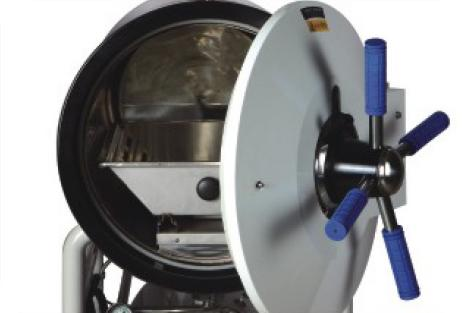

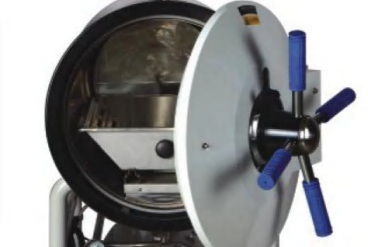

Chamber

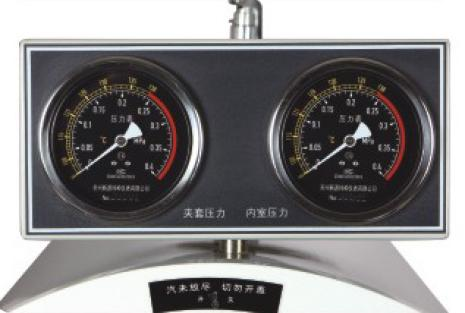

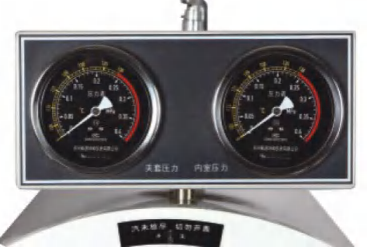

Pressure Gage

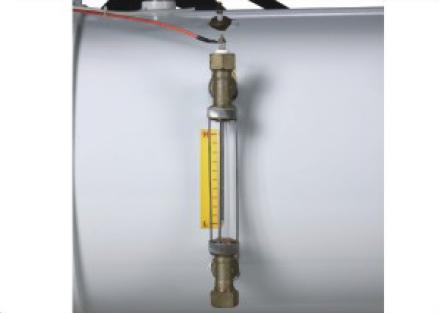

Water Level Meter
Details of Horizontal Pressure Steam Sterilizer(ST-H500YDA):

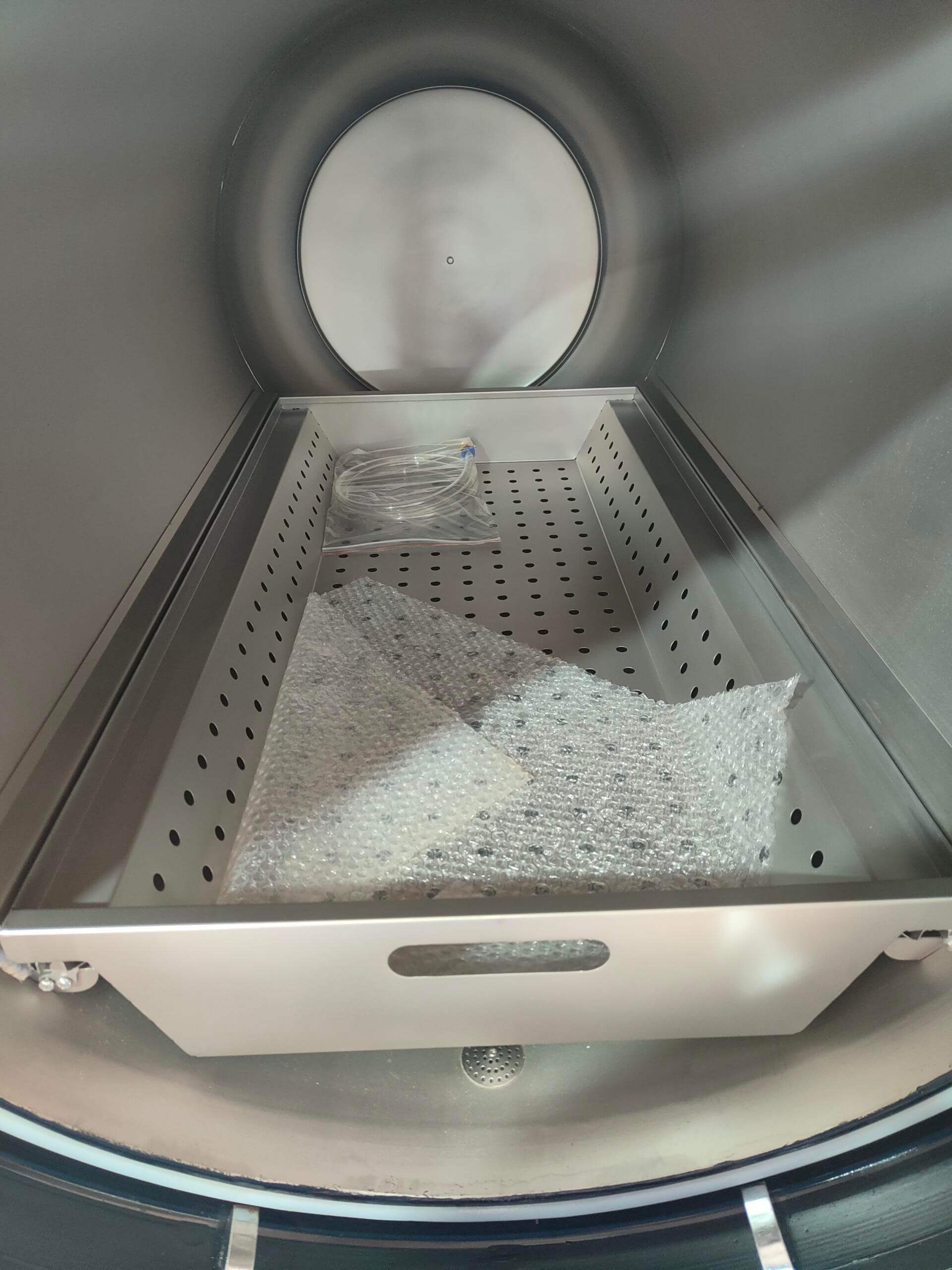

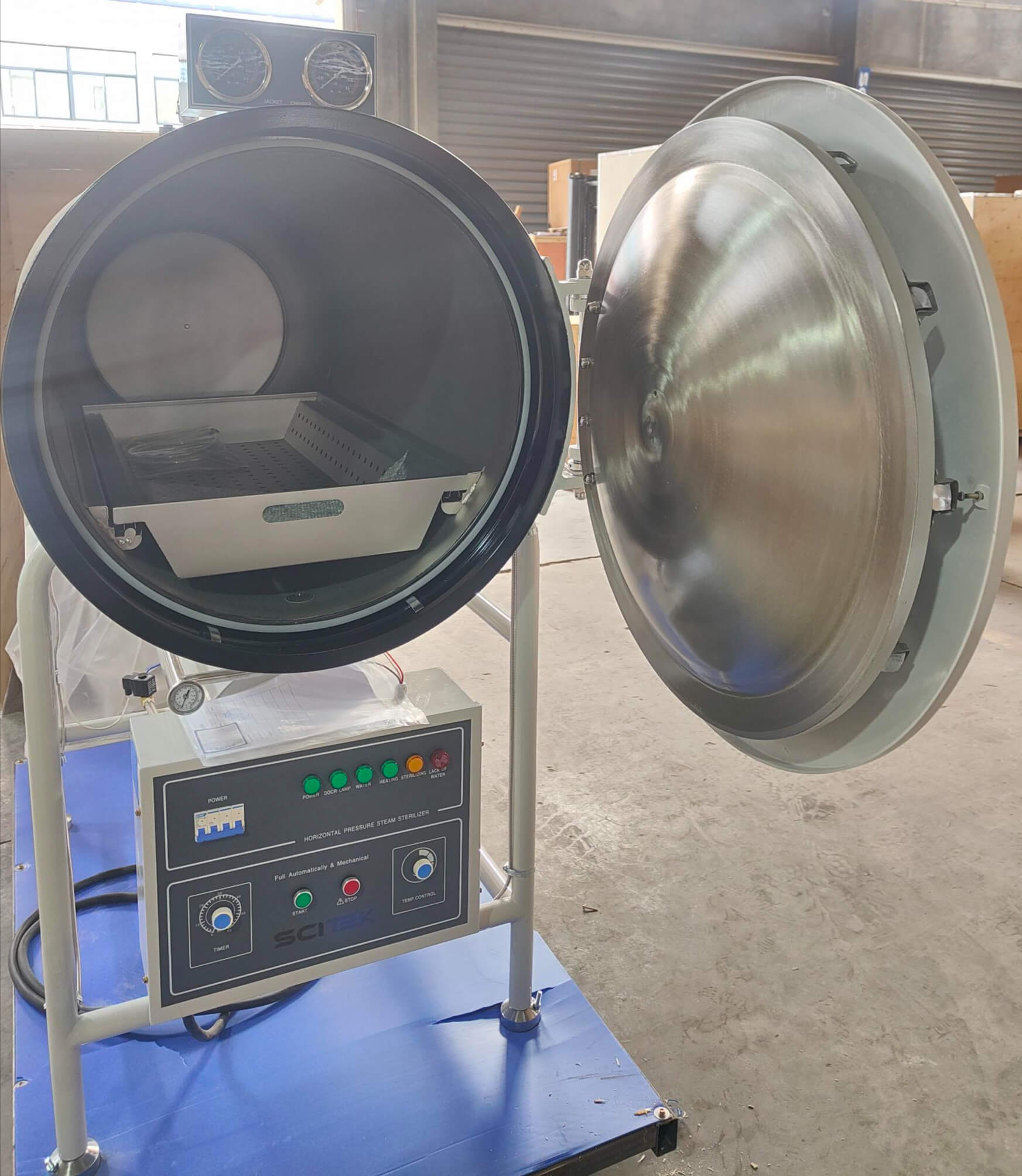

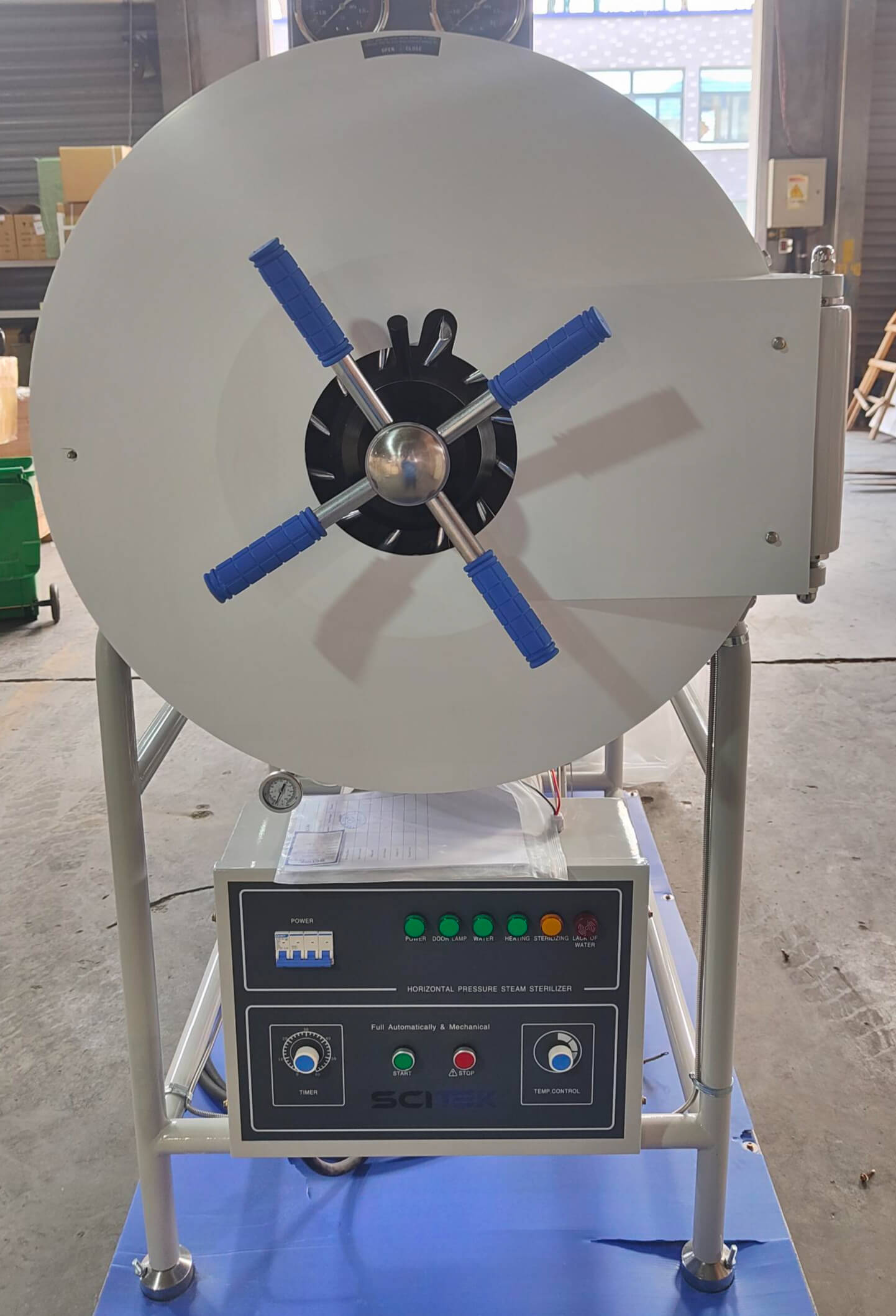

The internal stainless steel shelves are clearly visible for placing items to be sterilized. The inside of the door is made of metal, the control panel is located under the equipment, there are several indicator lights and control knobs, used to operate and monitor the sterilization process, intuitively presenting the internal structure of the equipment and the operation interface.

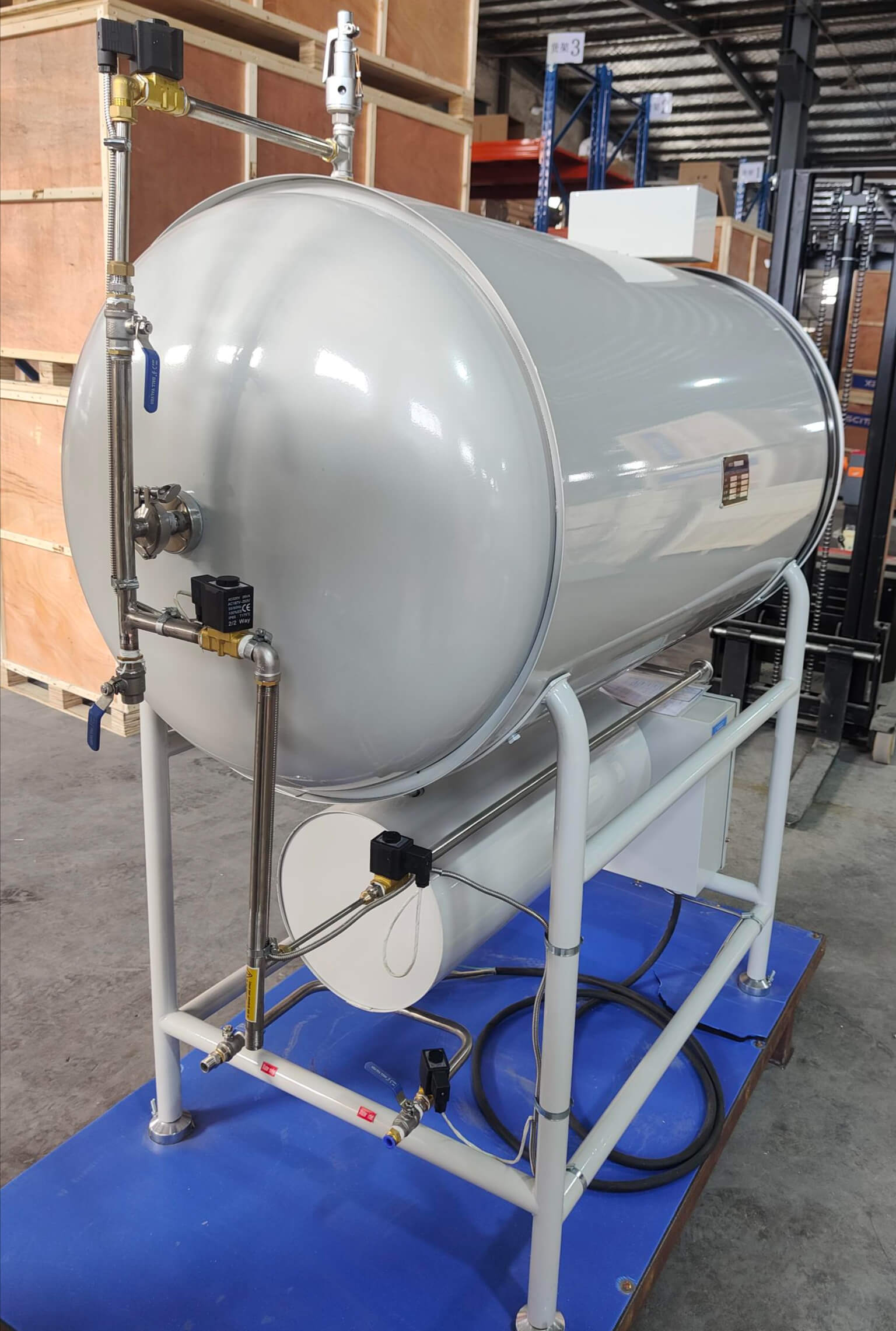

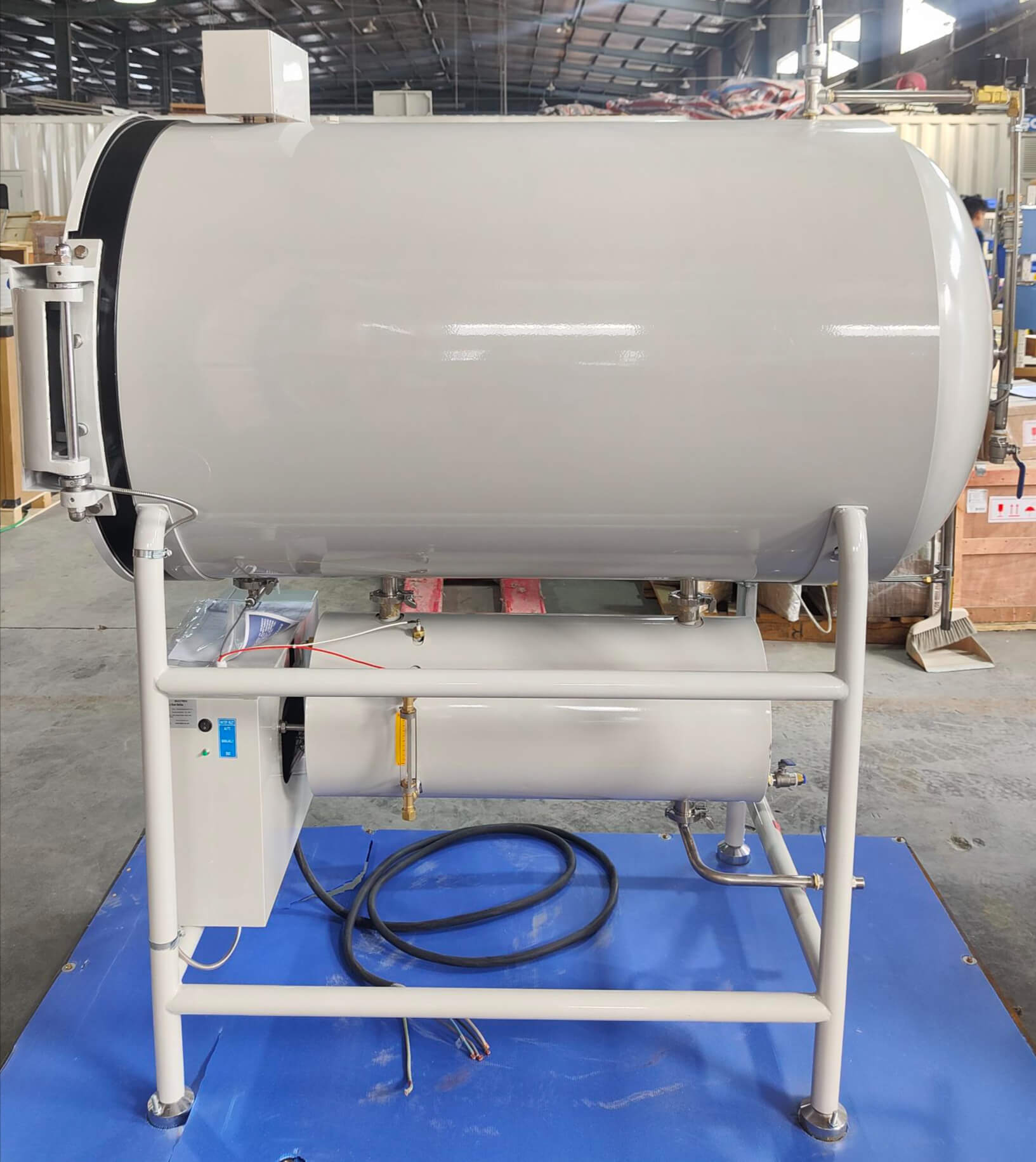

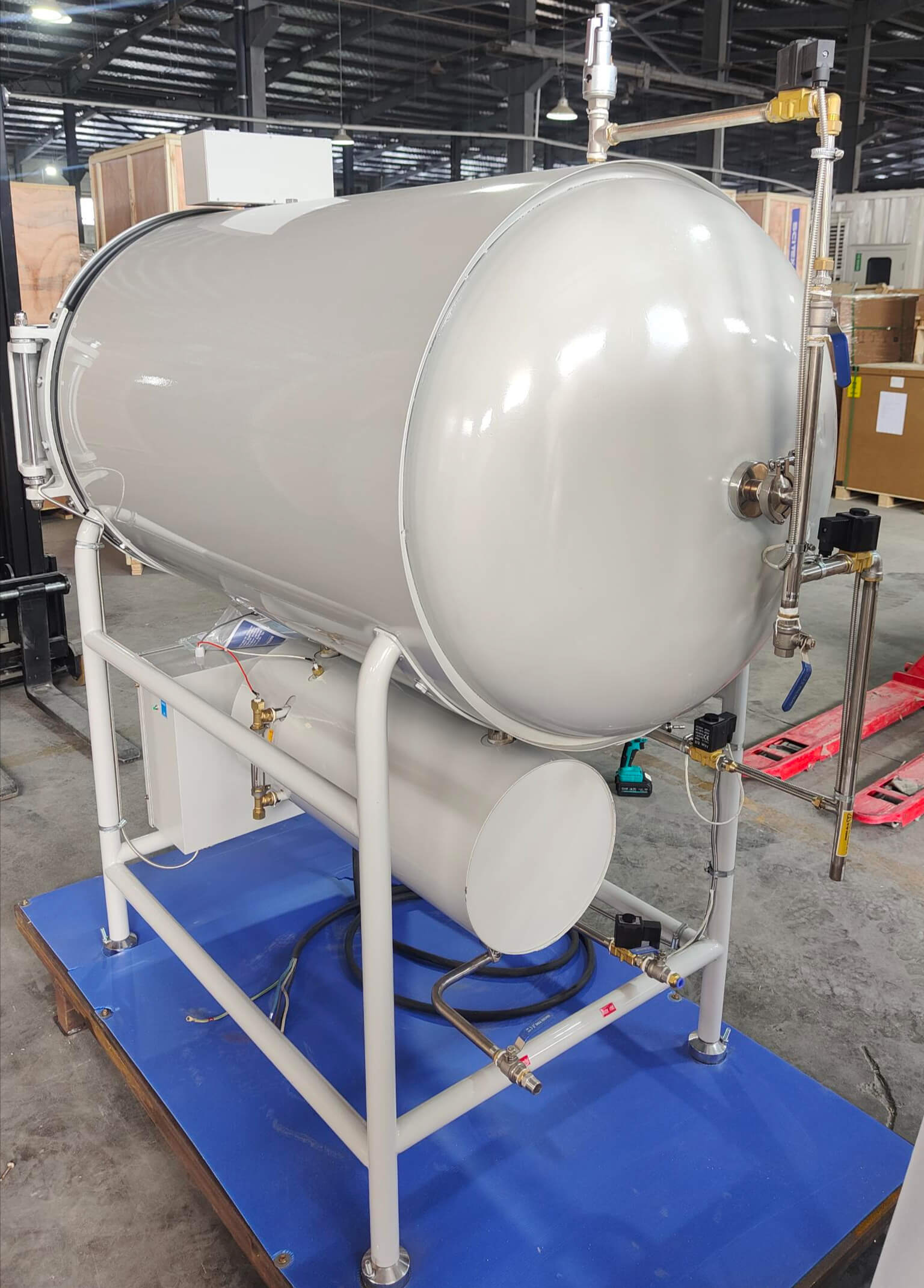

The horizontal pressure steam sterilizer body is silver-gray in color, with a cylindrical tank with a white metal stand, and metal piping and valves attached to the tank for steam transfer and pressure control. The unit is placed on a blue mat with a warehouse setting in the background with shelves and wooden crates showing the unit in a ready to ship condition.

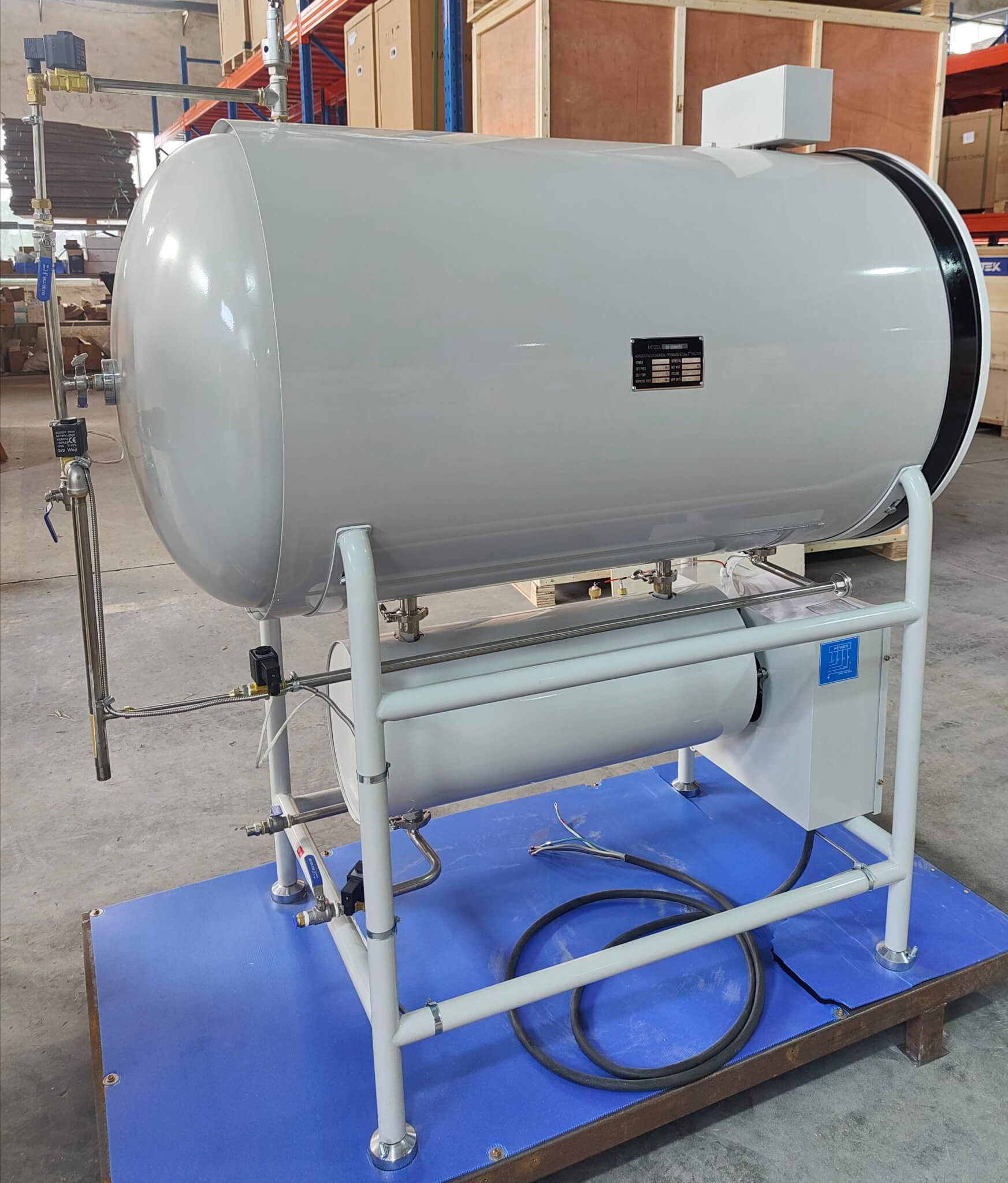

The signage on the side of the tank provides information about the equipment parameters. The metal pipes and valves are clearly laid out, the overall appearance of the equipment is smooth, and the white bracket paired with the silver-gray tank shows that it is compact, well-designed, and suitable for professional sterilization operation scenarios.
