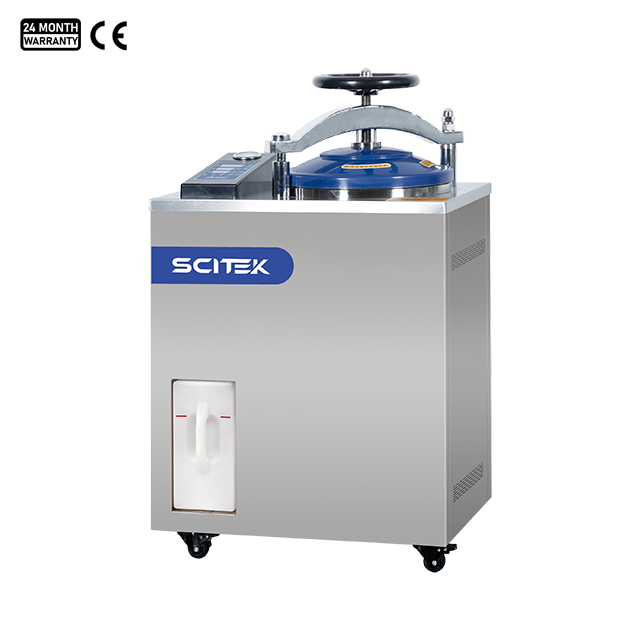

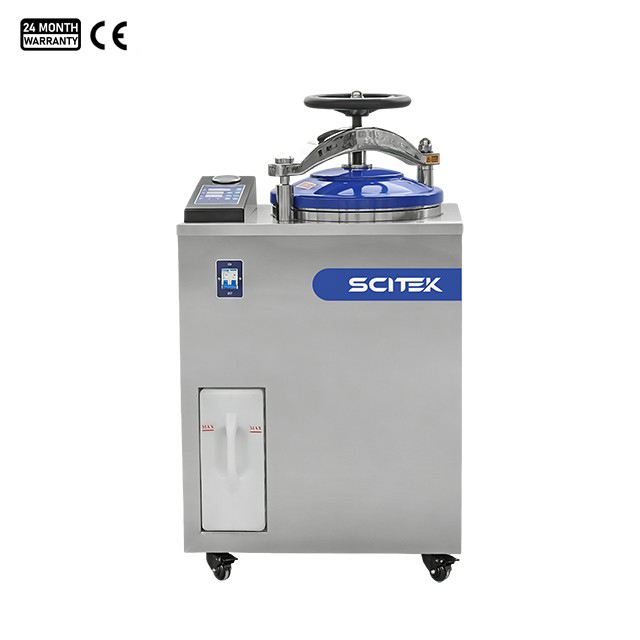

Vertical Pressure Steam Sterilizer, Internal Circulation Drying

Model : ST-VX35; ST-VX50; ST-VX75; ST-VX100

Volume : 35L; 50L; 75L; 100L
Design Temperature : 139℃
Rated Working Pressure : 0.22MPa
Rated Working Temperature : 134℃
Professional grade multifunctional self-control vertical pressure steam sterilizer ideal for all general medical and laboratory applications.
Availability:
Quantity:

Vertical Pressure Steam Sterilizer Features:

  1. Hand wheel translation and quick opening structure

  2. High quality stainless steel material

  3. With drying function

  4. Microcomputer automatic control, arbitrary setting sterilization parameters

  5. Safety interlocking device

  6. Digital display and Touch buttons

  7. Standard test interface

  8. Self-expanding seal

  9. With automatic protection function: Over temperatureprotection; over pressure self discharge protection; low water level protection; anti dry burning.

  10. With stainless steel bucket or basket

  11. Buzzer reminder after sterilization, automatic stop

  12. Automatic discharge of cold air, automatic steamexhaust after sterilization,Internal steam cycle.

Vertical Pressure Steam Sterilizer Specifications:

Model ST-VX35 ST-VX50 ST-VX75 ST-VX100
Volume 35L 50L 75L 100L
Power 3.5kW 3.5kW 4.5kW 4.5kW
Voltage AC 220V, 50Hz
Design Pressure 0.25MPa
Design Temperature 139℃
Rated Working Pressure 0.22MPa
Rated Working Temperature 134℃
Sterilization Temperature Setting Range 116℃~134℃
Sterilization Time Setting Range 4~120min
Drying Time Setting Range 0~240min
Chamber Volume Ø300x450 Ø350x515 Ø400x585 Ø450x615
Bucket Size Ø275x395 Ø325x235x2 Ø375x265x2 Ø425x275x2
Basket Size Ø270x380 Ø320x220x2 Ø370x250x2 Ø420x265x2
Outer Size 430x610x1030 500x675x1100 540x716x1165 575x748x1255
Packing Size(LxWxH)(mm) 790x610x1130 800x600x1230 840x610x1310 870x650x1380
Gross Weight 125kg 130kg 145kg 156kg
Net Weight 110kg 112kg 114kg 129kg

*Optional external printer

*Optional automatic water

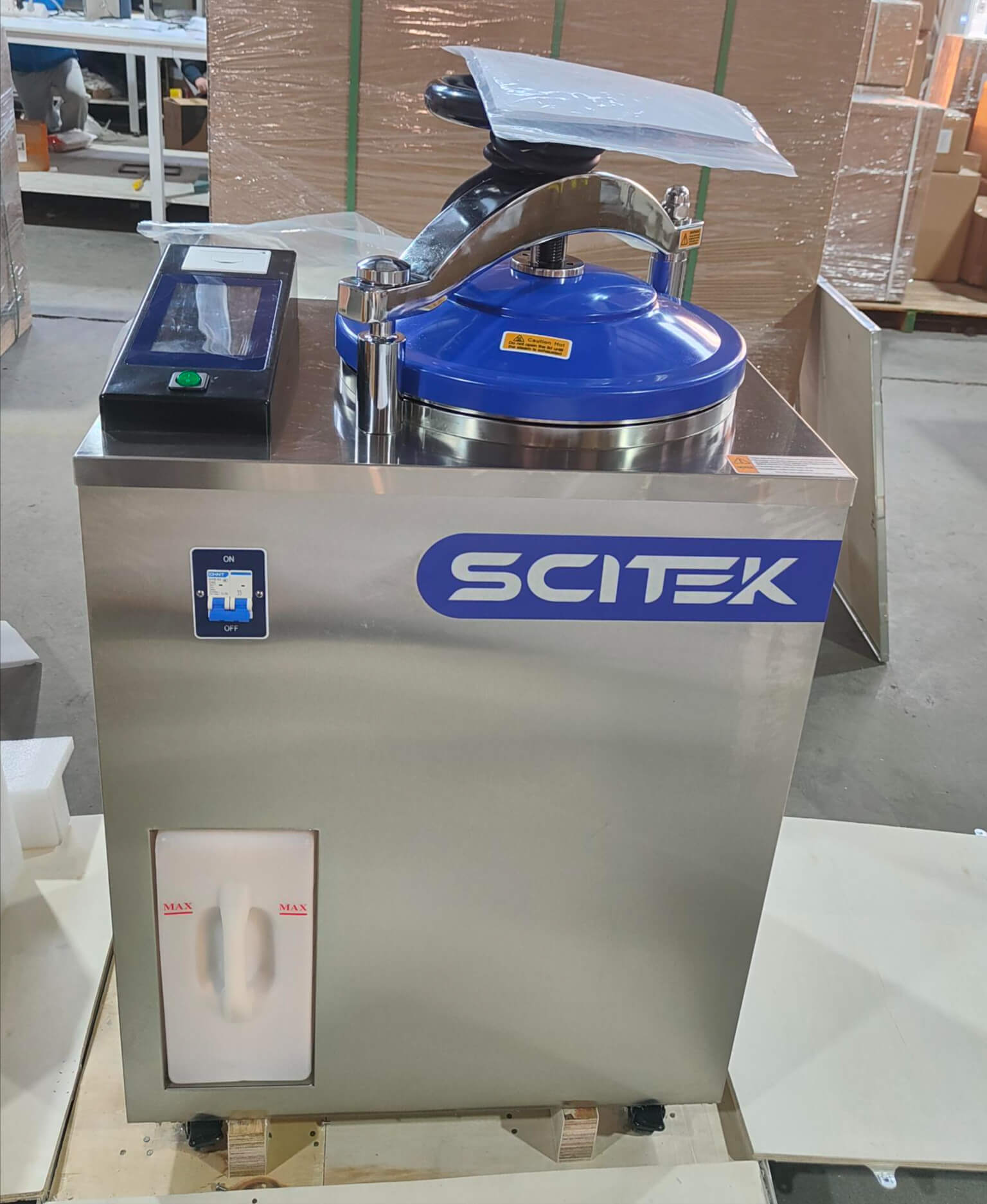

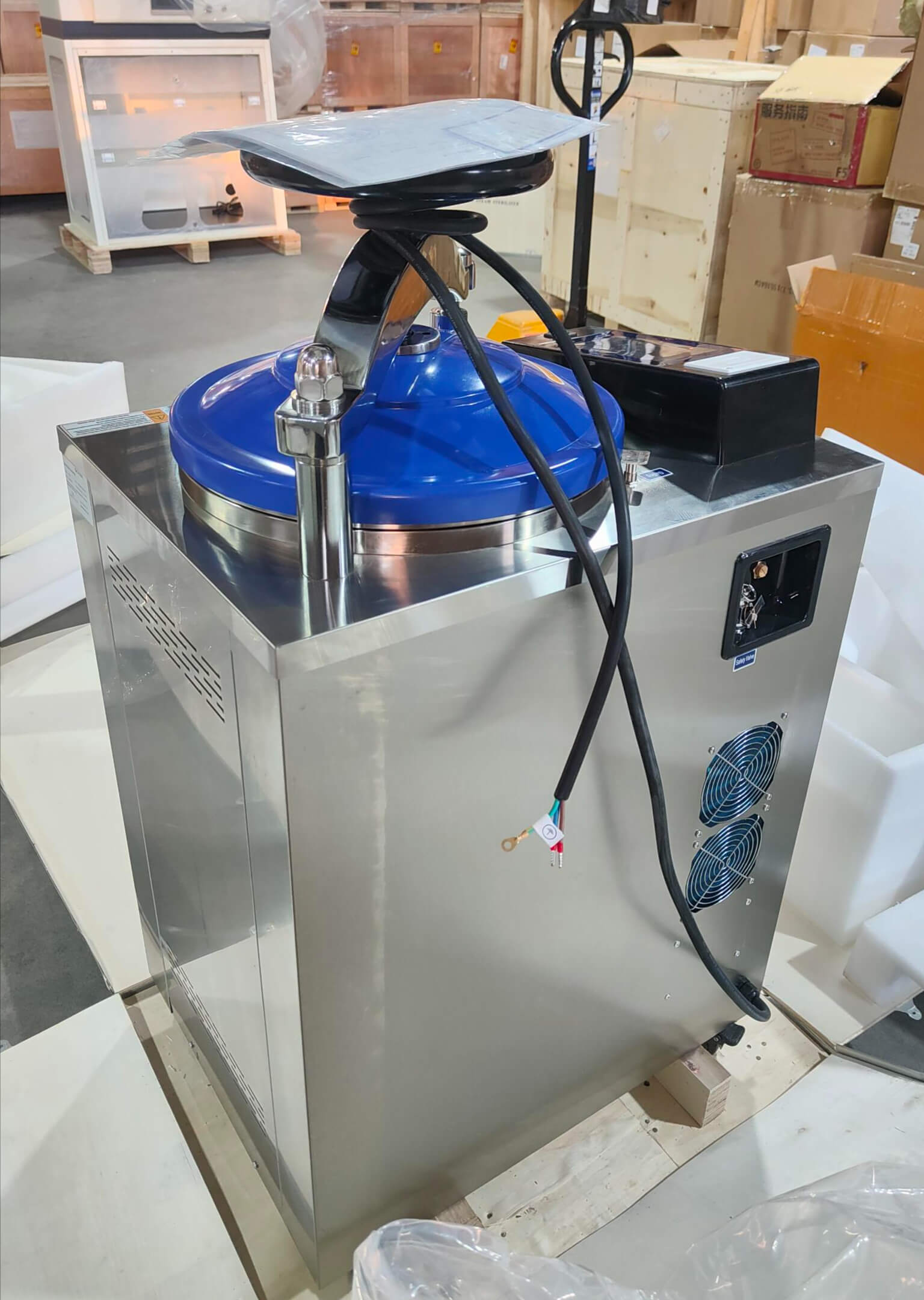

Details of Vertical Pressure Steam Sterilizer(ST-VX35):

Vertical Pressure Steam Sterilizer

Vertical Pressure Steam Sterilizer

Note: LCD screen shown is optional, not included as standard.
