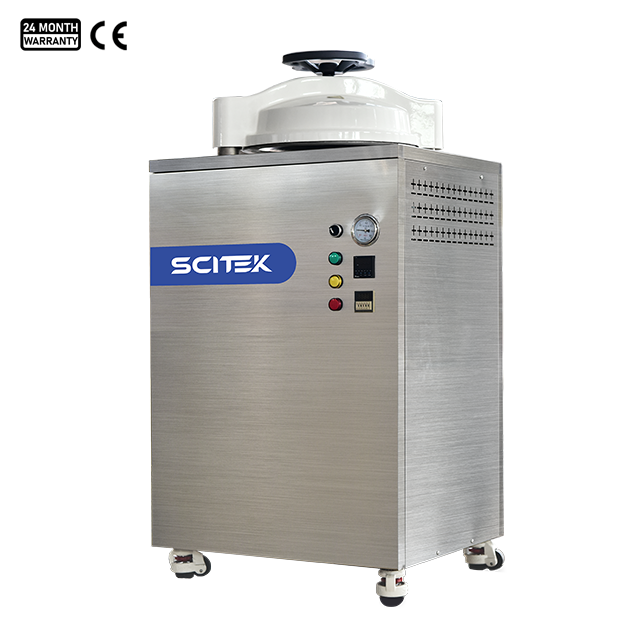

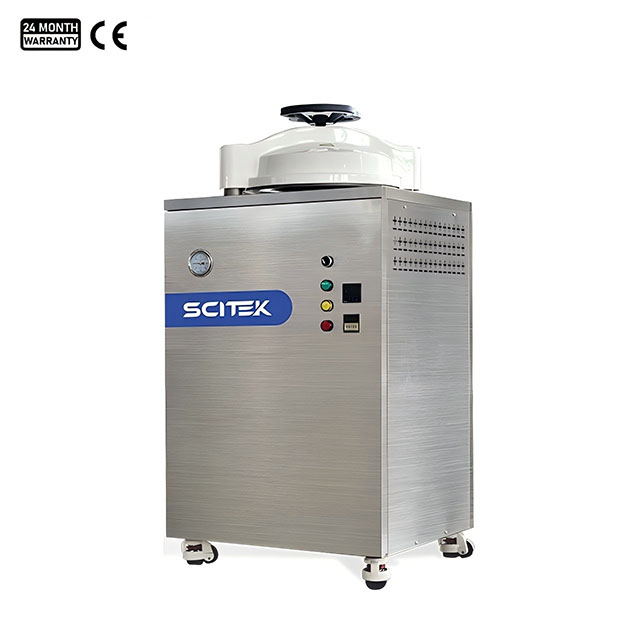

The vertical pressure steam sterilizer is a safe, reliable and automatically controlled sterilization equipment, consisting of a heating system, a microcomputer control system, an automatic overheating and an overheating and overpressure protection system. The container has the advantages of reliable sterilization effect, easy operation, safe use, energy saving, durability and low price. It is suitable for pharmaceutical, medical, scientific research and other industries to sterilize equipment, medical dressings, utensils, liquids, culture media, waste and other items.
Vertical Pressure Steam Sterilizer Features:
Inner tank made of high-quality stainless steel
Several safety protection functions include:
Water cutoff protection control
Safety interlocking device.
Over-temperature, over-pressure automatic protection function
Self-expanding seal
Hand wheel translation quick opening structure
Buzzer reminds automatic shutdown after sterilization is completed

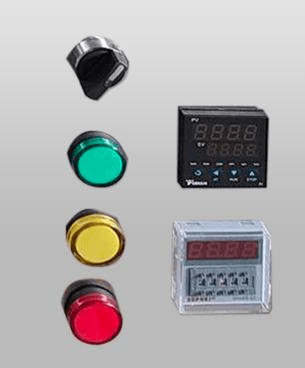

Knob control, time relay, temperature controller
Standard double-layer stainless steel mesh basket
Optional drying system, gas collecting bucket, etc.
Automatically discharges cold air and automatically discharges steam after sterilization is completed
Simple operation, safe and reliable, purely mechanical control, low failure rate
Vertical Pressure Steam Sterilizer Specifications:
| Model | ST-VLA50 | ST-VLA80 | ST-VLA100 | ST-VL50 | ST-VL80I | ST-VL100 | ST-VL120 |
| Chamber Size(ØxH) | Ø386x515 | Ø386x695 | Ø386x875 | Ø386x515 | Ø386x695 | Ø386x875 | Ø386x1054 |
| Capacity(L) | 60 | 80 | 100 | 60 | 80 | 100 | 120 |
| Consumption | 4.6VA | 6.1VA | 7.3VA | 3.6VA | 5.1VA | 6.1VA | 6.1VA |
| Temperature(℃） | 121℃-134℃ |
| Highest Working Pressure | 0.25Mpa |
| Temp.Accuracy | 0.5℃ |
| Design Pressure | 0.28~0.3Mpa |
Vertical Pressure Steam Sterilizer Applications:
Pressure steam sterilizer, commonly known as autoclave, is widely used for effective sterilization in various industries. Following is a brief description of their applications.
Autoclaves are vital in sterilizing medical devices, equipment, and supplies in hospitals, clinics, and healthcare facilities. They ensure the elimination of bacteria, viruses and other pathogens, reducing the risk of infection during medical procedures.
Autoclaves sterilize laboratory glassware, tools, and media in research and analytical laboratories. This is critical to maintaining sterile experiment conditions and ensuring accurate and reliable results.
The pharmaceutical industry uses autoclaves to sterilize equipment, containers, and raw materials to meet stringent quality and safety standards in manufacturing drugs and pharmaceutical products.
In biotechnology research and production, autoclaves are used to sterilize media, reagents, and equipment to ensure the integrity of experiments and the production of biotechnology products.
In short, pressure steam sterilizers have different applications in several industries, helping to maintain aseptic conditions, ensure product quality, and safeguard public health.

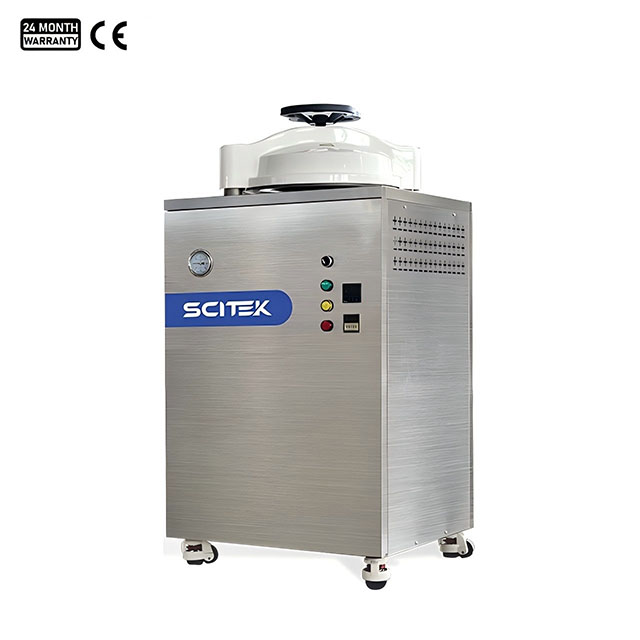

Details of Vertical Pressure Steam Sterilizer (ST-VL100):

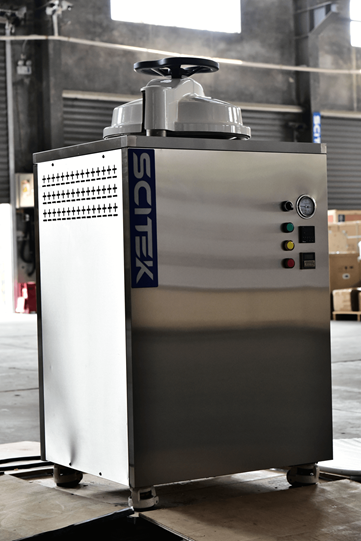

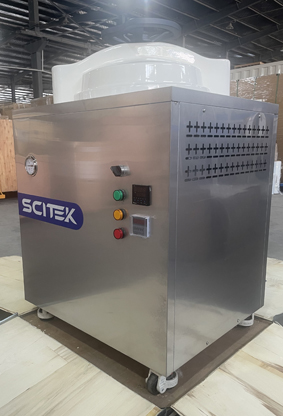

The compact upright design of the vertical pressure steam steriliser is suitable for laboratories or medical facilities where space-saving equipment is required.

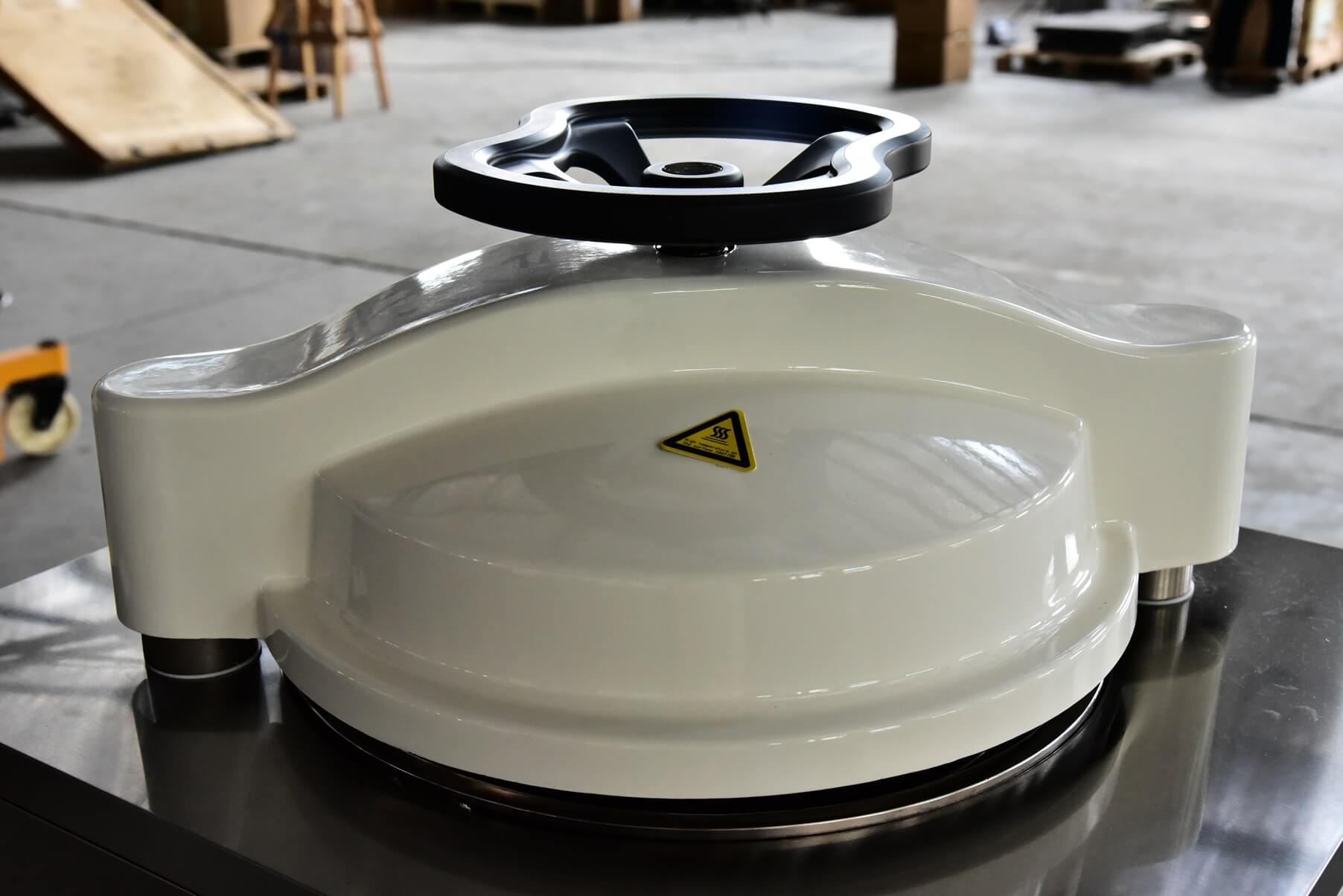

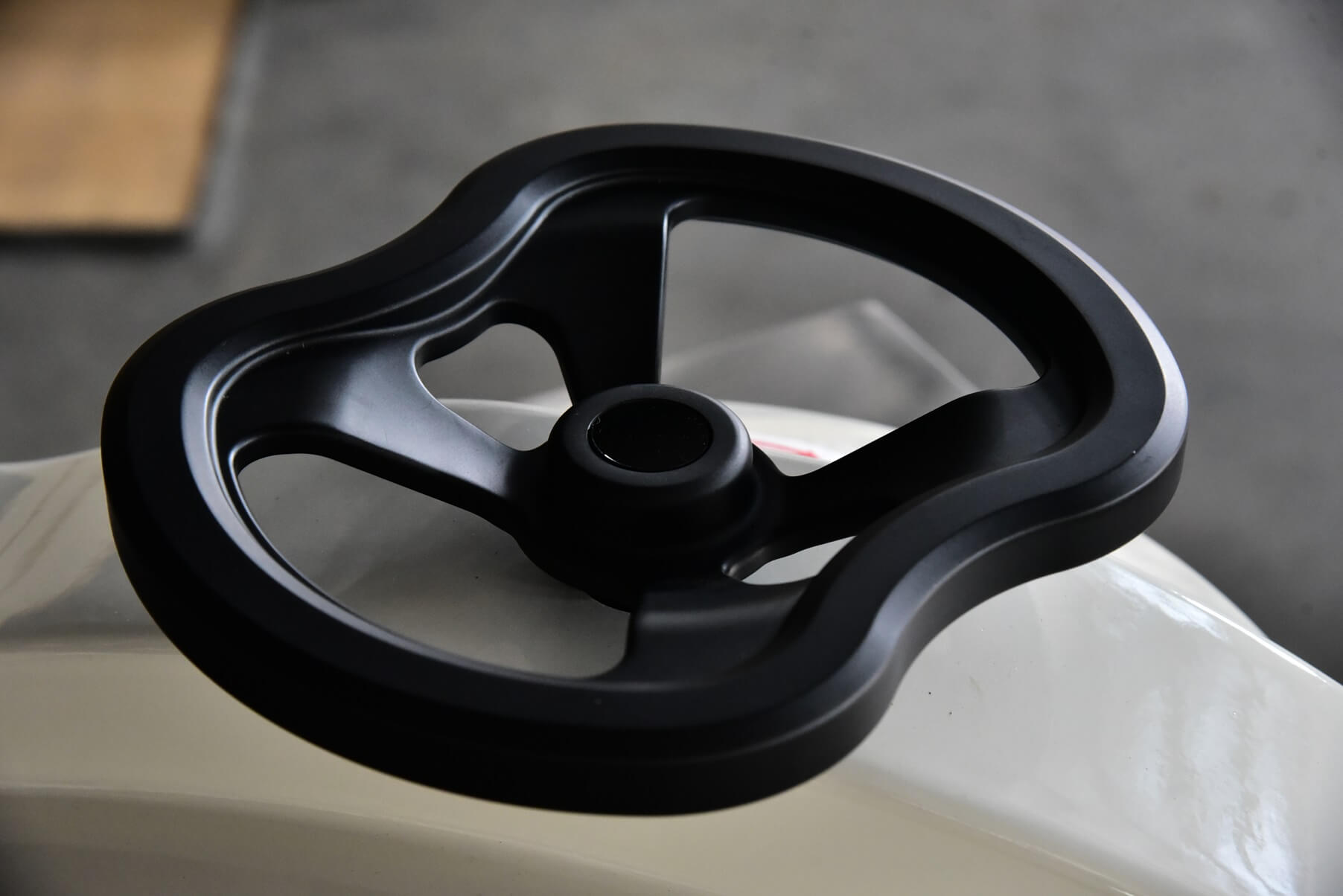

The handwheel opens the door structure. The handwheel facilitates secure tightening of the lid to ensure proper sealing of the sterilisation chamber before the start of the sterilisation cycle.

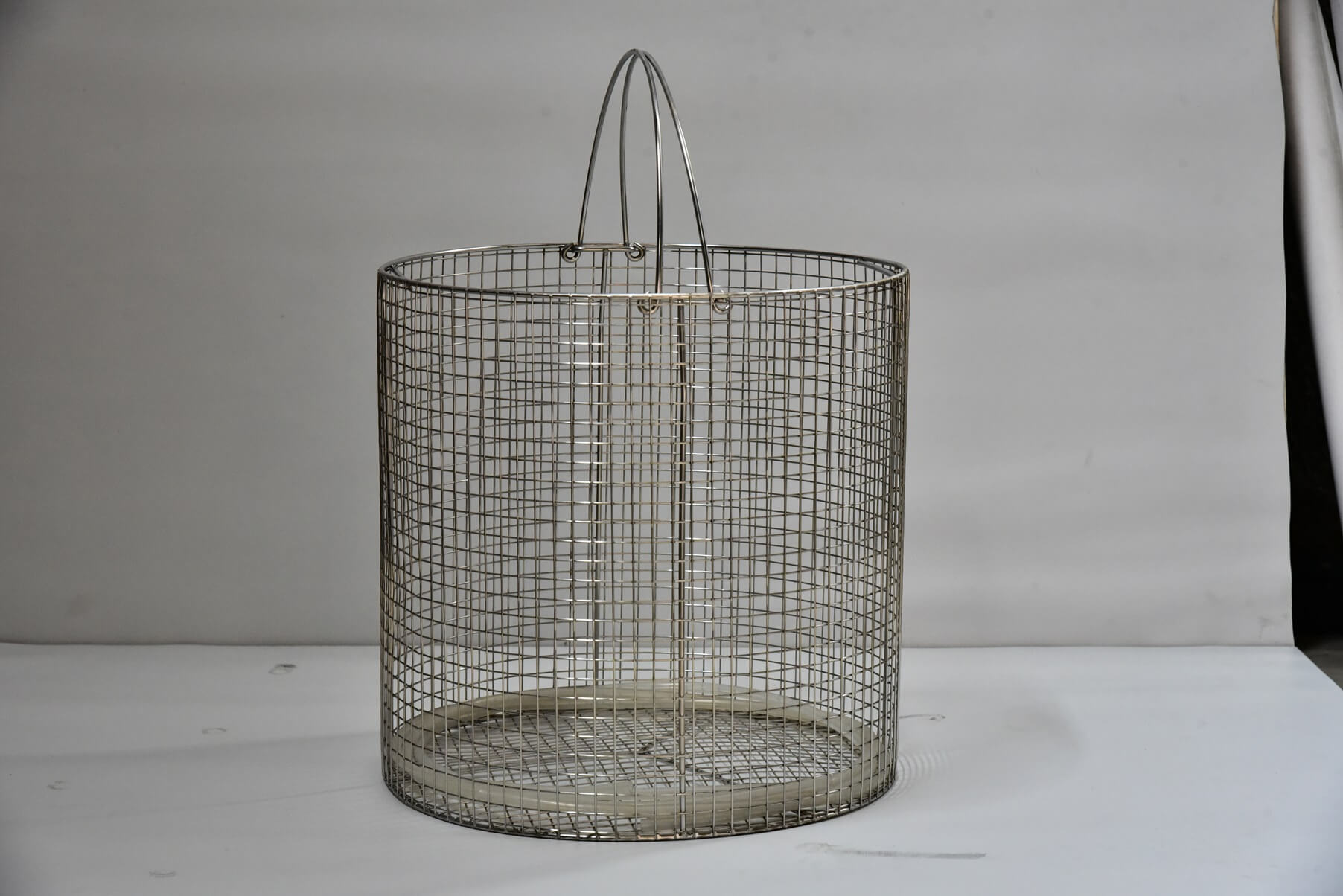

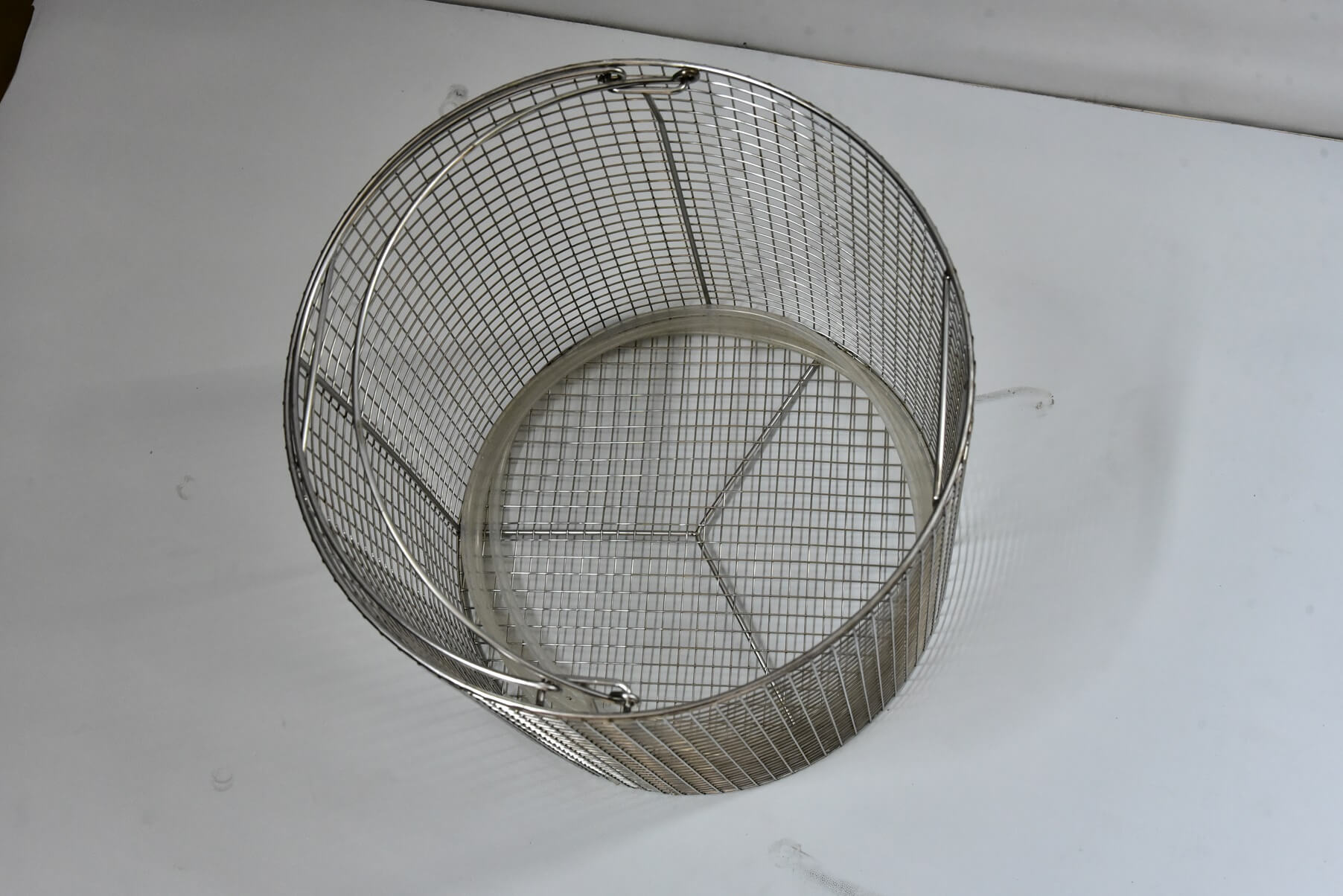

Stainless steel wire baskets hold items to be sterilised and allow steam to penetrate easily to ensure complete sterilisation.
