The horizontal pressure steam autoclave, which adopted the way of gravity exchange to release the cold air from the chamber more completely to ensure the reliable sterilization. The control system automatically adjust the steam inlet and outlet according to chamber temperature during sterilizing. This unit is an ideal equipment for clinics, scientific research institutes and other organizations to sterilize surgical instruments, fabric glassed, and the culture media etc.
Horizontal Pressure Steam Sterilizer Features:
Automatically controlled the sterilizing process, easy to operate.
With drying function, suitable for the medical dressing drying.
With over-temperature, over-pressure auto-protect.
The door can not be open until the pressure in the chamber is reduced to 0.027MPa. And the unit can not be started on if the door doesn't close well.
The safety valve will be open automatically when the inner pressure over 0.24MPa and the steam would be exhausted the water tank.
Automatically cut off the power if the water-lack happened, and alarm at the meanwhile.
The chamber of the sterilizer is made of stainless steel.
With printer.
Operation of Horizontal Pressure Steam Sterilizer:

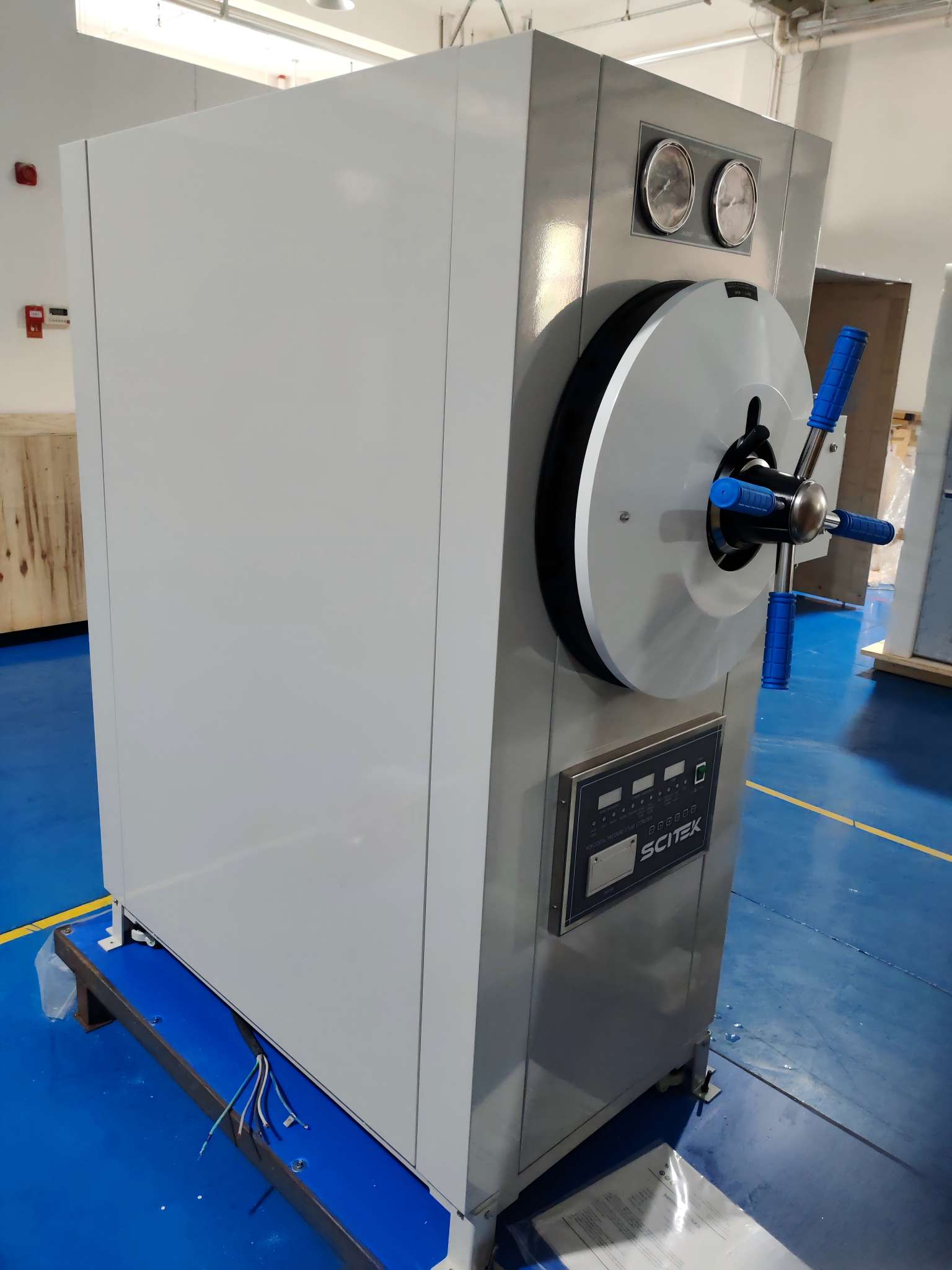

Details of Horizontal Pressure Steam Sterilizer (ST-H150YDB):

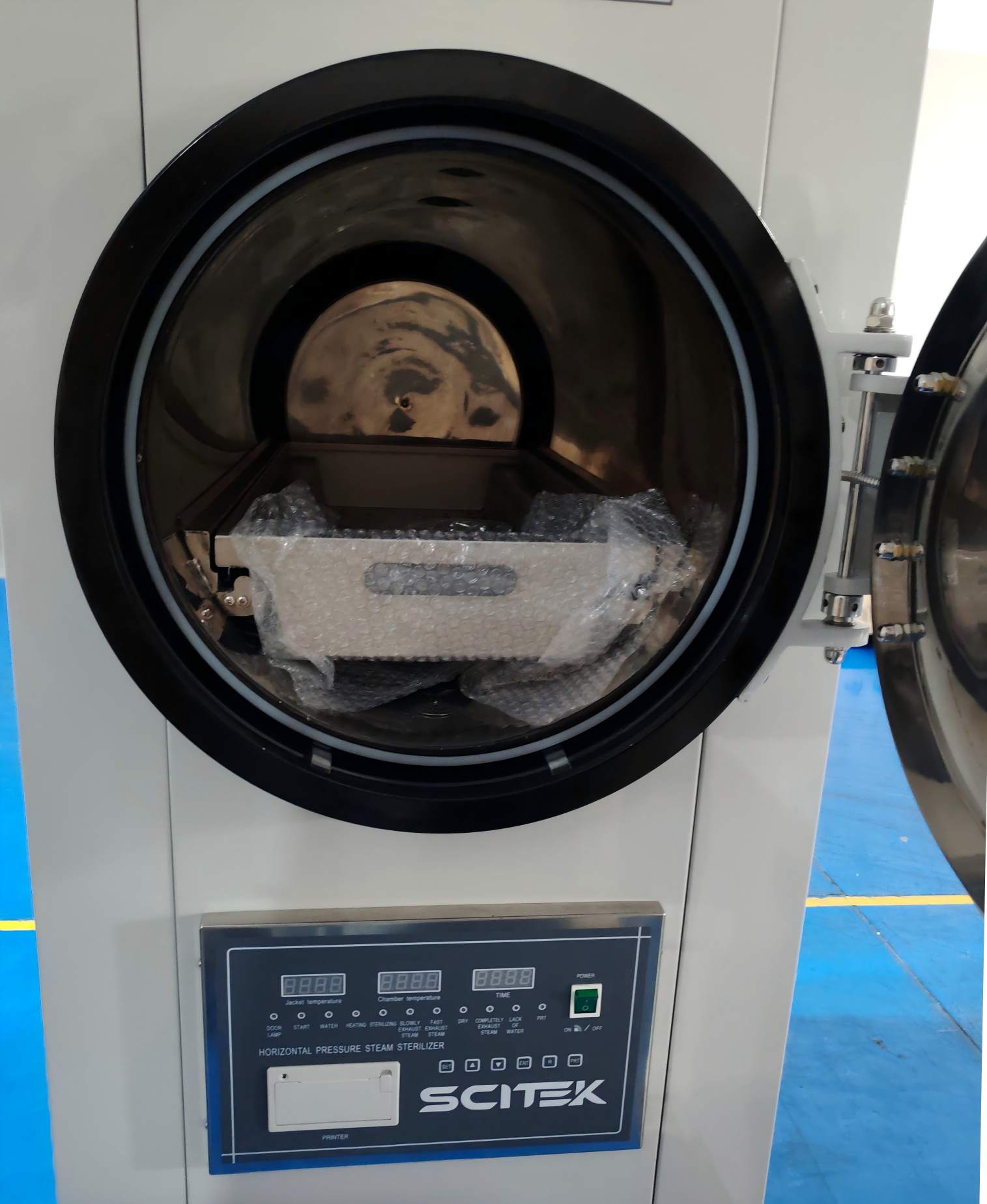

Robust horizontal design with a spacious sterilization chamber and intuitive control interface, providing efficient and reliable steam sterilization for demanding laboratory and healthcare applications.
FAQ
What volume of sterilization is this suitable for?
Standard models start at 100L capacity and can process large quantities of dressings, culture media, and medical devices in a single cycle, making them ideal for bulk sterilization in hospitals, large laboratories, food processing plants, and similar settings.
Does it provide better sterilization results than upright models?
Most models feature pulsed vacuum degassing, which enhances steam penetration. This ensures more thorough sterilization of porous and wrapped items, resulting in a pass rate significantly higher than that of standard vertical models.
What maintenance tasks should be prioritized during daily use?
Drain all condensate after each use, regularly clean the O-rings and the inner walls of the chamber, calibrate the pressure and temperature sensors monthly, and replace the safety valve on schedule to prevent safety hazards.
As a professional lab and medical equipment manufacturer, Scitek Global is certified by ISO 9001, ISO 13485, ISO 45001 and ISO 14001. Almost all our products are certified by ETL, CE and FDA .
Scitek Global looks forward to establishing cooperation with more distributors all over the world, and working together to create greater customer value.
