Product Category

  • Rotary Evaporator, with Tiltable Host
    Model: RE-50R; RE-50RC

    Rotating Flask Capacity: 500 mL
    Receiving Flask Capacity: 500 mL
    Condensation Area (㎡): About 0.17 ㎡
    Maximum Evaporation Capacity (Water): About 0.9 L/h
    Rotational Speed: 0–120 rpm
    Lifting Travel Range: 0–120 mm
    RE-50R and RE-50RC adopt loose phillips screw, allowing the host to be tilted for enhanced operational flexibility.
  • Rotary Evaporator, RE-201R
    Model: RE-201R

    Rotating Flask Capacity: 1 L
    Receiving Flask Capacity: 1 L
    Condensation Area (㎡): About 0.12 ㎡
    Maximum Evaporation Capacity (Water): About 0.9 L/h
    Rotational Speed: 0–120 rpm
    Lifting Travel Range: 0–140 mm
    Equipped with a vacuum gauge, the rotary evaporator can intuitively display the current vacuum level.
  • Rotary Evaporator with Vacuum Gauge
    Model: RE-301R; RE-501R

    Rotating Flask Capacity: 3 L; 5 L
    Receiving Flask Capacity: 2 L; 3 L
    Condensation Area (㎡): About 0.2; 0.27
    Maximum Evaporation Capacity (Water)(L/h): About 1.5; 2
    Rotational Speed: 0–120 rpm; 0–90 rpm
    Lifting Travel Range: 0–140 mm; 0–120 mm
    Adopting multi-layer serpentine glass condenser tubes to ensure high recovery rate.
  • Rotary Evaporator, with A Piston on The Receiving Flask
    Model: RE-1000R; RE-2002R; RE-3003R; RE-5005R

    Rotating Flask Capacity: 10 L; 20 L; 30 L; 50 L
    Receiving Flask Capacity: 5 L; 10 L; 20 L
    Condensation Area (㎡): About 0.57; 1.2; 1.28; 1.5
    Evaporation Rate (Water) (L/h): 3.2; 5; 9
    Rotational Speed: 0–120 rpm; 0–90 rpm
    Lifting Travel Range: 0–180 mm
    The bottom of the receiving flask is equipped with a piston, allowing quickly recovery of solvents.
  • Rotary Evaporator, Dual Condensation
    Model: RE-5200R; RE-5220R; RE-5250R

    Rotating Flask Capacity: 10 L; 20 L; 50 L
    Receiving Flask Capacity: 5 L; 10 L; 20 L
    Condensation Area (㎡): About 0.57; 1.2; 1.5
    Evaporation Rate (Water) (L/h): 3.2; 5; 12
    Rotational Speed: 0–120 rpm; 0–90 rpm
    Lifting Travel Range: 0–180 mm
    Dual-stage condensation system for enhanced cooling efficiency and improved vapor recovery.
  • Rotary Evaporator, RE-5000R
    Model: RE-5000R

    Rotating Flask Capacity: 5 L
    Receiving Flask Capacity: 3 L
    Condensation Area (㎡): About 0.27 ㎡
    Maximum Evaporation Capacity (Water): About 2 L/h
    Rotational Speed: 20–200 rpm
    Lifting Travel Range: 0–150 mm
    The electric lifting device enables the host to be lifted and lowered within the range of 0–150 mm.

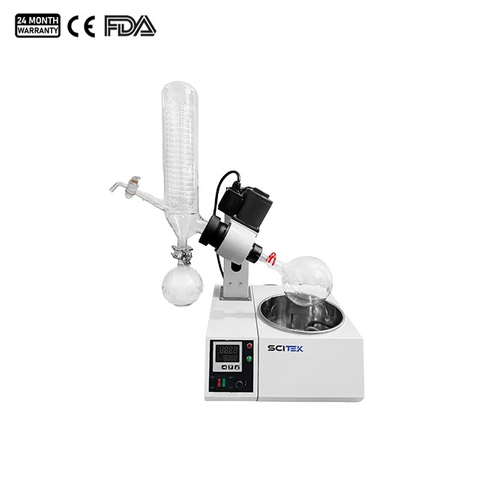

  • Rotary Evaporator, RE-5300R
    Model: RE-5300R

    Rotating Flask Capacity: 500 mL
    Receiving Flask Capacity: 500 mL
    Condensation Area (㎡): About 0.17 ㎡
    Maximum Evaporation Capacity (Water): About 0.9 L/h
    Rotational Speed: 0–120 rpm
    Lifting Travel Range: 0–120 mm
    Loose Phillips screw tilt the Rotary Evaporator RE-5300R freely within the range of 0–15 degree.
  • Rotary Evaporator, RE-6000R
    Model: RE-6000R

    Rotating Flask Capacity: 6 L
    Receiving Flask Capacity: 3 L
    Condensation Area (㎡): About 0.5 ㎡
    Rotational Speed: Start–120 rpm
    Lifting Travel Range: 0–150 mm
    An integrated LCD screen is utilized to display temperature and rotational speed.
  • Fusion Furnace
    Model : FF-12; FF-25

    Rated Temperature : 1200 ℃
    Furnace Body : High-insulation refractory bricks
    Temperature Sensor : "K" type thermocouple
    Electrical Requirement : 18 /40 kW Three-phase
    Taking Cupel Quantity : 12×50/65 g; 25×50/65 g; 16×30/40/55 g; 42×30/40/55 g
    It is mainly applied to heating and melting samples in pyrometallurgical assays.

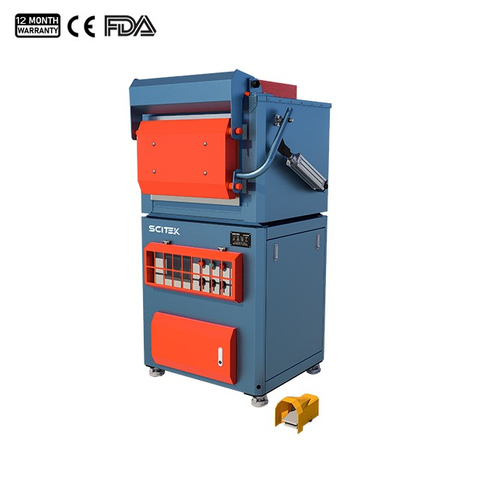

  • Cupellation Furnace
    Model : CF-50; CF-100

    Electrical load: 5 AMPS
    Rated Temperature : 1200 ℃
    Temperature Control : K-Type Thermocouple
    Electrical Requirement : 10.5/35 kW Three-phase
    Taking Cupel Quantity : 50×6a/ 7a/ 7as, 100×6a/ 7a/ 7as
    It is primarily used for refining ash in pyrometallurgical assays.
