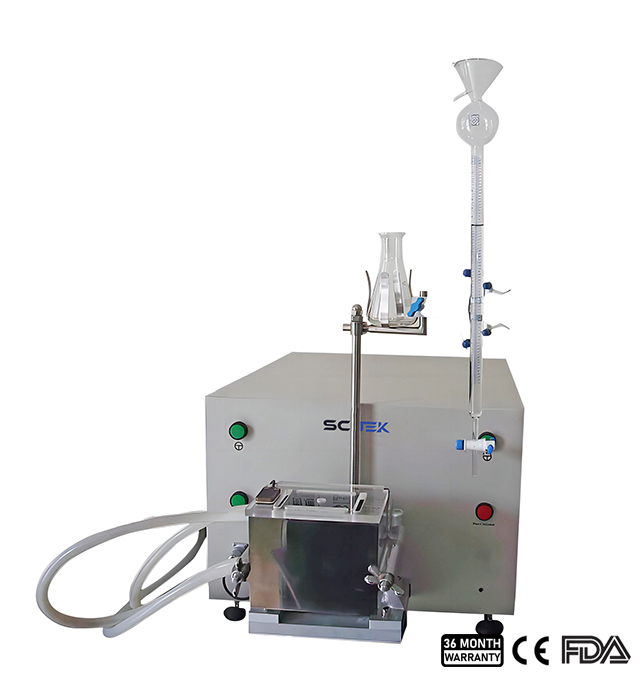

Digital Flour Quality Analyzer

Model : FQA-150
Torque Testing Mode : Electronic torque sensor
Accuracy : ≤ 0.5% measuring range
Main Douching Cutter Rotating Speed : 63r/min ± 2r/m
Size(W×D×H)(mm) : 950x530x620


Digital Flour Quality Analyzer Specifications:

Motor Power200W
Computer Connector ModeUSB
Torque Testing ModeElectronic torque sensor
AccuracyNo more than 0.5% measuring range
Main Douching Cutter Rotating Speed63r/min ± 2r/m
Sub-douching Cutter Rotating SpeedSub-douching cutter rotating speed: 94.5r/min ± 3r/m
Coordinate Scale RangesHorizontal axis: 0-20min, Vertical axis: 0-1000FU
Horizontal Axis Speed10mm/min
Power SupplyAC380/220V, 50/60Hz
Machine Shipping Size(W×D×H)(mm)1150x730x850
Accessory N.W.(kg)0.3kg (300g bowl)/0.05kg (50g bowl)
Machine N.W.(kg)75kg (With 300g bowl)/70kg (With 50g bowl)
Machine G.W. (kg)/Accessory G.W. (kg)160 (Machine)/20 (Accessory)

Digital Flour Quality Analyzer Features:

Digital flour quality analyzer is innovatively designed to provide an efficient and convenient solution for flour preparation with several intelligent features and safety guarantees.

  1. Flour-rubbing bowl can be changed automatically without the operator's choice, improving the operation's flexibility and convenience.

  2. The program can automatically identify the Flour-rubbing bowl type and adjust to the corresponding programme.

  3. When the mixing torque is too large, the system will alarm and shut down automatically, protecting the instrument and the operator's safety.

  4. One-key automatic water filling, through the control of the drip tube, to achieve automatic water that is more energy-saving and efficient.

  5. Up to 10 charts of flour quality are displayed at the same time, which is convenient for users to compare the differences and provide a more comprehensive assessment of flour quality.

  6. The test results will be saved in the access database, which is convenient for users to access at any time and improves the convenience of data management.

  7. The flour quality analyzer is equipped with a two-key start function, and the machine will stop automatically when the lid is opened, increasing the safety of operation.

  8. FQA-150 is equipped with an intelligent program response function, which can start drawing automatically and improve the intelligent level of operation.
