UV test data can help evaluate formula changes of new materials and confirm the durability of new materials. It is widely used in paints, inks, coatings, resins, plastics, rubber, printing and packaging, aluminum profiles, adhesives, automobiles, motorcycle industries, cosmetics, metal, electronics, electroplating, medicine, etc.

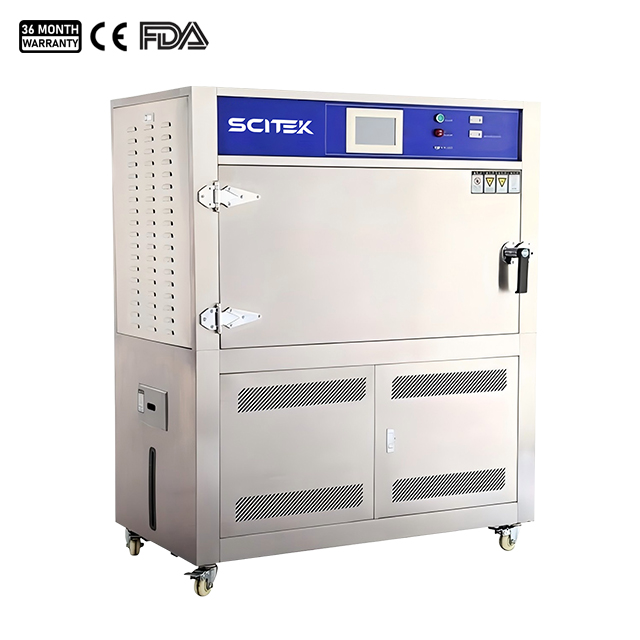

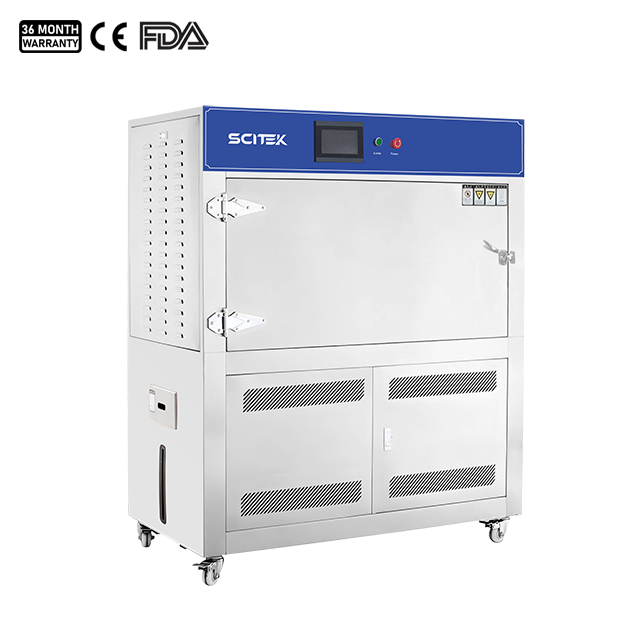

UV Aging Test Chamber Specifications:
| Model | UATC-UV3 |
|---|
| Chamber Size (WxDxH)(mm) | 1140x650x400 |
| External Size (WxDxH)(mm) | 1300x800x1550 |
| Lamp Wavelength (Optional) | Band 315-400nm | Irradiance 0.35-1.2W/m |
| Band 280-315nm | Irradiance 0.35-1.2W/m |
| Band 351-400nm | Irradiance 0.35-1.2W/m2 |
| Number of Lamps | 8 |
| Lamp Power | 40W |
| Lamp Life | More than 1600 hours |
| Temperature Range | RT + 10℃ ~70℃ |
| Humidity Range | 75% RH |
| Temperature Uniformity | ± 3℃ |
| Temperature Fluctuation | ± 0.5℃ |
| Blackboard Temperature | 50℃ ~63℃ |
| Distance Between Sample and Lamp | 50mm |
| Center Distance within the Lamp Tube | 70mm |
| Standard Test Piece Size | 75×150mm/42 pcs |
| Irradiation Intensity | 0.35-1.2W/m2 adjustable |
| Test Time | 1～9999 H, M, S adjustable |
| Safety Protection System | Line sequence protection, leakage protection, over-temperature protection, abnormality protection. |
| Power Supply | 220V; 50Hz |
| Power | 4500W |
| Environmental Condition | Temperature | 5℃～30℃ |
| Relative Temperature | ≤85%RH |
| Material | Inner material | SUS304 stainless steel plate |
| External material | SUS304 stainless steel shell or paint |
| Control System | Touch screen and PLC controller |
| Water Source & Consumption | Distilled water 8L/day |
| Shipping Size (W×D×H)(mm) | 1360x860x1670 |
| Gross Weight（kg） | 575 |
UV Aging Test Chamber Feature:
UV aging test chamber can simulate the harm caused by sunlight, rain, and dew.
Fluorescent UV lamp to simulate the effect of sunlight, and condensing moisture to simulate rain and dew.
The test samples are tested in a cycle program of alternating light and moisture at a set temperature.
