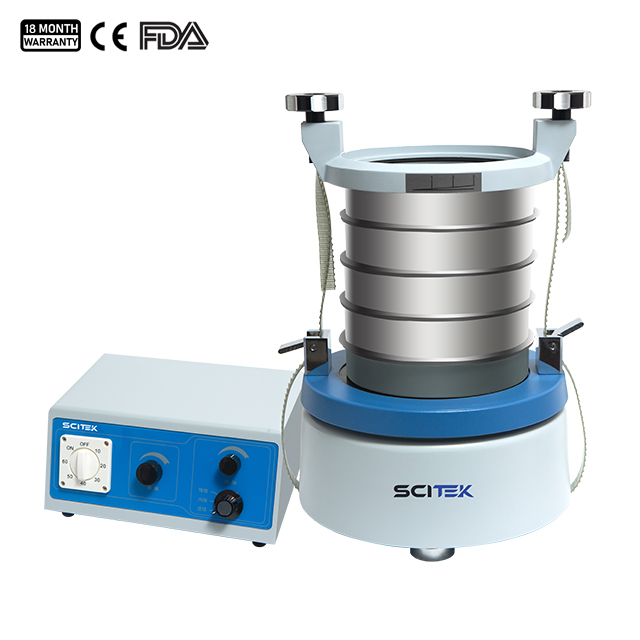

The vibration sieve is widely applicable for particle analysis in industries such as sugar production, pharmaceuticals, food, cosmetics, and grain processing. Featuring advanced integrated circuit control, it offers user-friendly operation, no rotating parts, and adjustable amplitude and frequency via electronic controls. Its technical specifications meet international standards for comparable equipment. Compared to traditional manual sieving, it significantly reduces operator workload and enhances efficiency, making it an essential laboratory screening device for particle analysis applications.
Laboratory Vibrating Sieve Specifications:
| Model | VS-QS |
|---|
| Vibration direction | Vertical vibration |
| Sieve Mesh Size | 1~325 mesh |
| Sieve dimensions | Diameter 200mm, height 50mm |
| Layer | Maximum 6 layers |
| Vibration Frequency | 3000 times/min, 6000 times/min |
| Amplitude selection | 10-3mm, continuous adjustment |
| Vibration mode | Fine vibration; intermittent vibra-tion; continuous vibration |
| Standard Accessory | Vibration Unit, Control Unit, Lid |
| Optional Accessory | Sieve mesh |
| Timed selection | 0-60min |
| Power supply | AC 220V±22V, 50Hz±1Hz, 150w |
| Overall Size(WxDxH)(mm) | 610×390×400 |
| Weight (Gross) | 26kg |
Applications of Laboratory Vibrating Sieve:
The laboratory vibrating sieve is a device specifically designed for use in laboratory environments to screen and separate materials. It is typically compact and easy to move, suitable for small-scale experiments and research. The working principle of the vibrating sieve involves the separation of materials based on different intensities of vibration through the sieve mesh. This laboratory vibrating sieve finds wide application in scientific research, laboratory testing, and quality control, and can be used in materials research, food and pharmaceutical production, mineral analysis, and scientific experiments.
