The robust design of the tissue embedding machine minimizes moving parts, reduces wear and service requirements, and ensures years of reliable performance. The large, easy-to-read touch screen display provides quick access to temperature controls and other parameters.
Model | TE-II |
---|---|
Main Body | |
Temperature | RT~99°C; Increment 1°C |
Capacity | Paraffin Reservoir: 3.2 L |
Cassetes/Molds Tray: 1.4L | |
Power Supply | 220V/50Hz, 110V/60Hz |
Sizes(W×D×H)(mm) | 560x530x350 |
Shipping Size(W×D×H)(mm) | 670x620x590 |
N.W./G.W. (kg) | 35/45 |
Cooling Center | |
Temperature | RT ~ -20 °C |
Ambient Temperature | 0c~45°C |
Power Supply | 220V/50Hz, 110V/60Hz |
Operating Mode | Automatic |
Sizes(W×D×H)(mm) | 340x540x410 |
Shipping Size(W×D×H)(mm) | 670x450x590 |
N.W./G.W. (kg) | 30/39 |

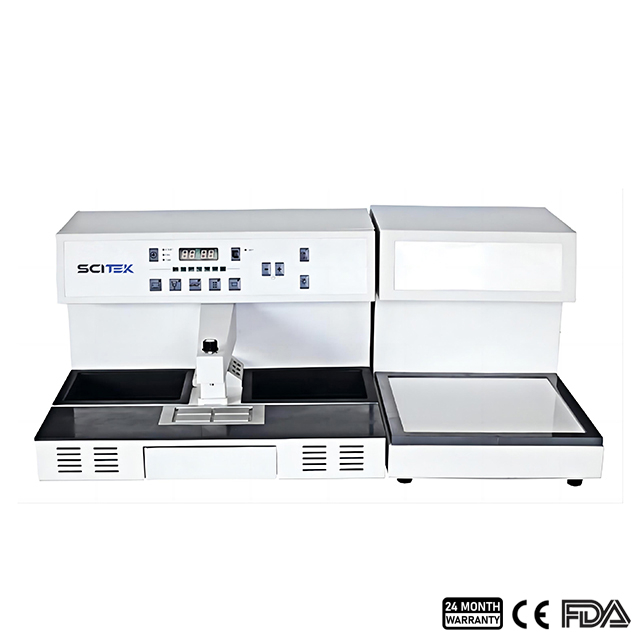

The tissue embedding center consists of two modules, independently designed to meet different customer usage habits for left-to-right or right-to-left placement positions. The large working surface allows the user to process multiple samples at the same time. You can set the temperature and work start time via the control panel.
Main Control Panel:
Large ergonomic work surface allows multiple samples to be processed simultaneously.
Large cold point peltier designed to orientate small and large samples (jumbo cassettes).
Work start time and date can be programmed automatically.
Tissue embedding cassettes and bottom mold trays are removable and can be set to different temperatures.

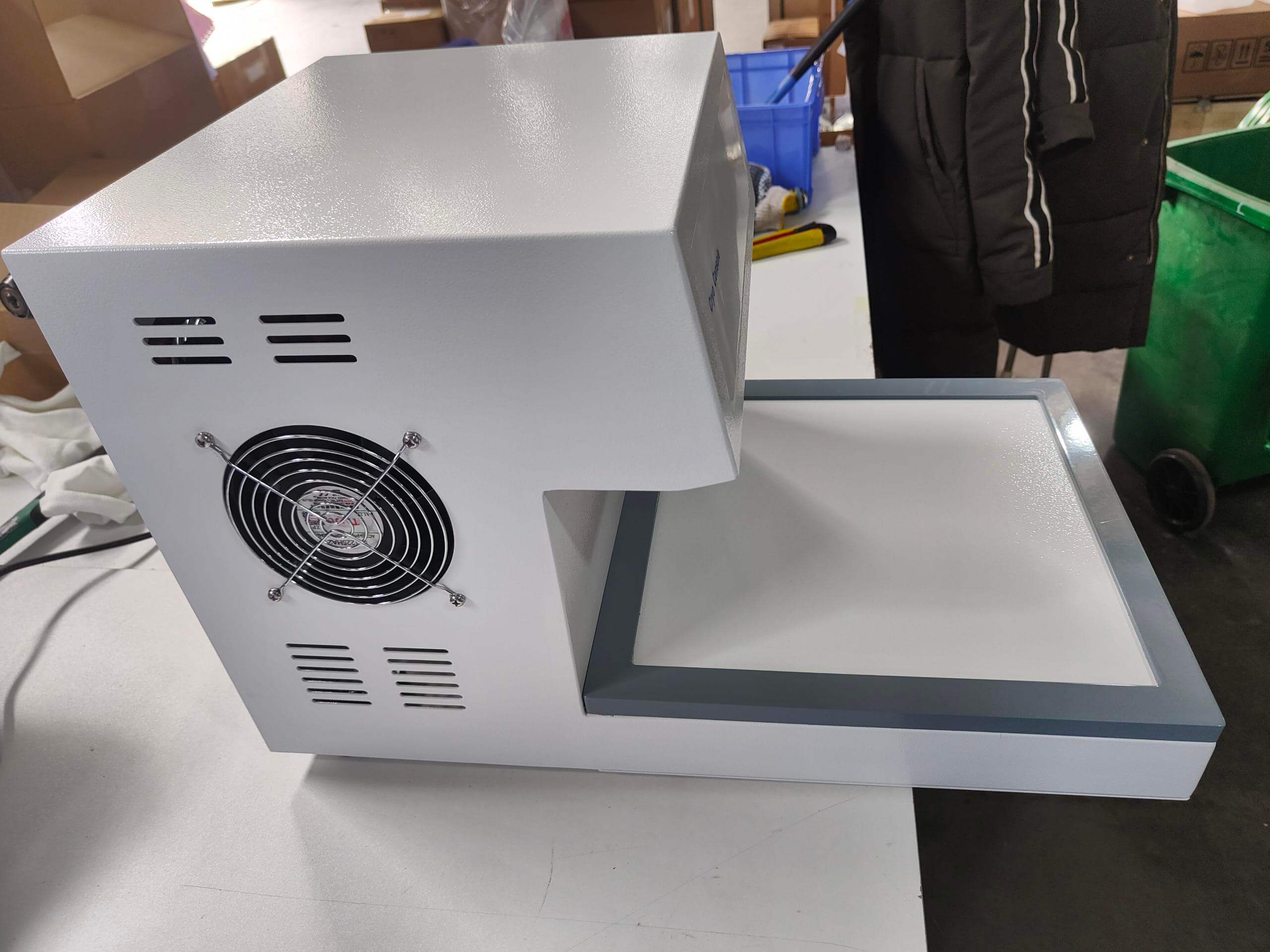

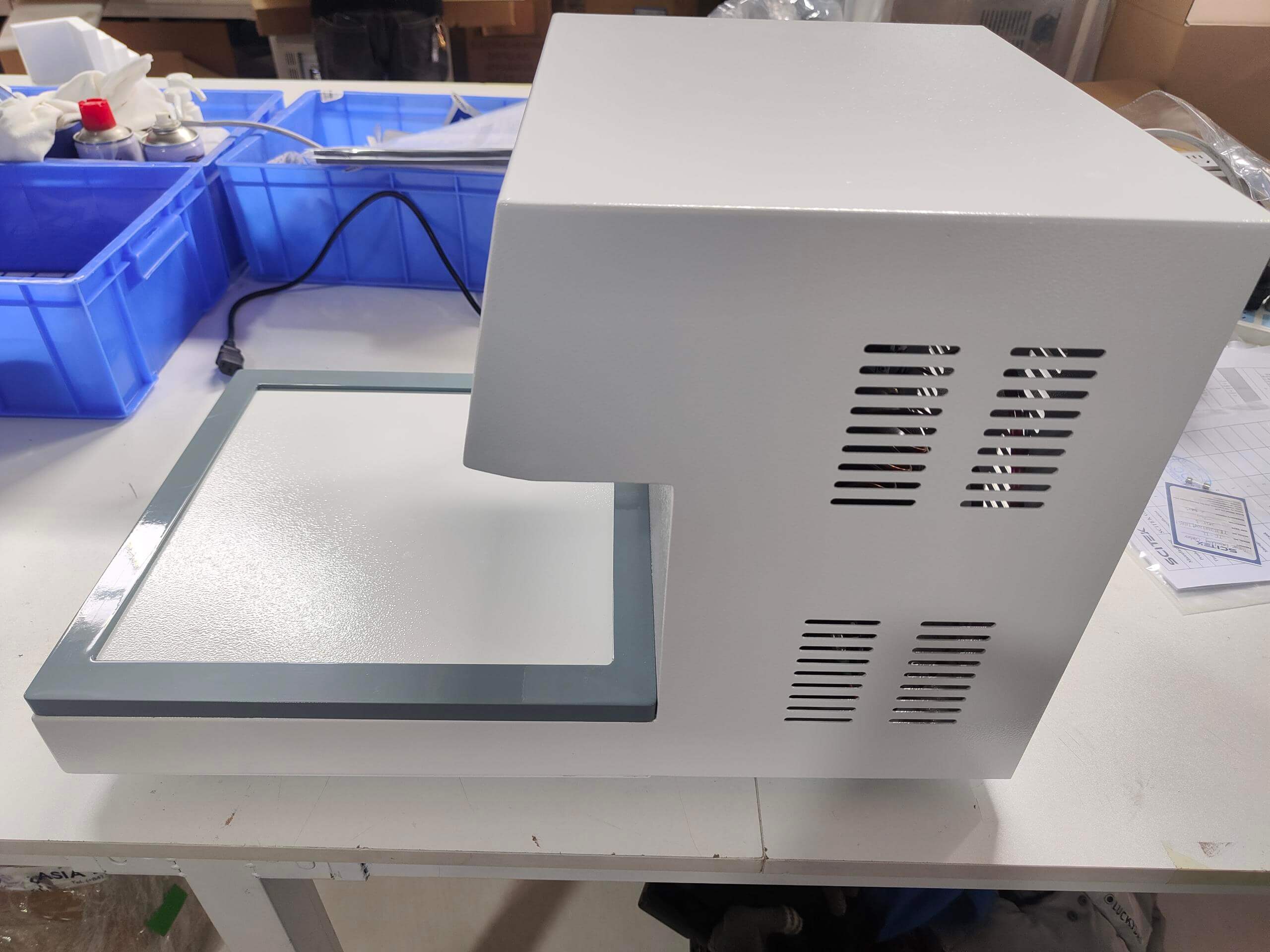

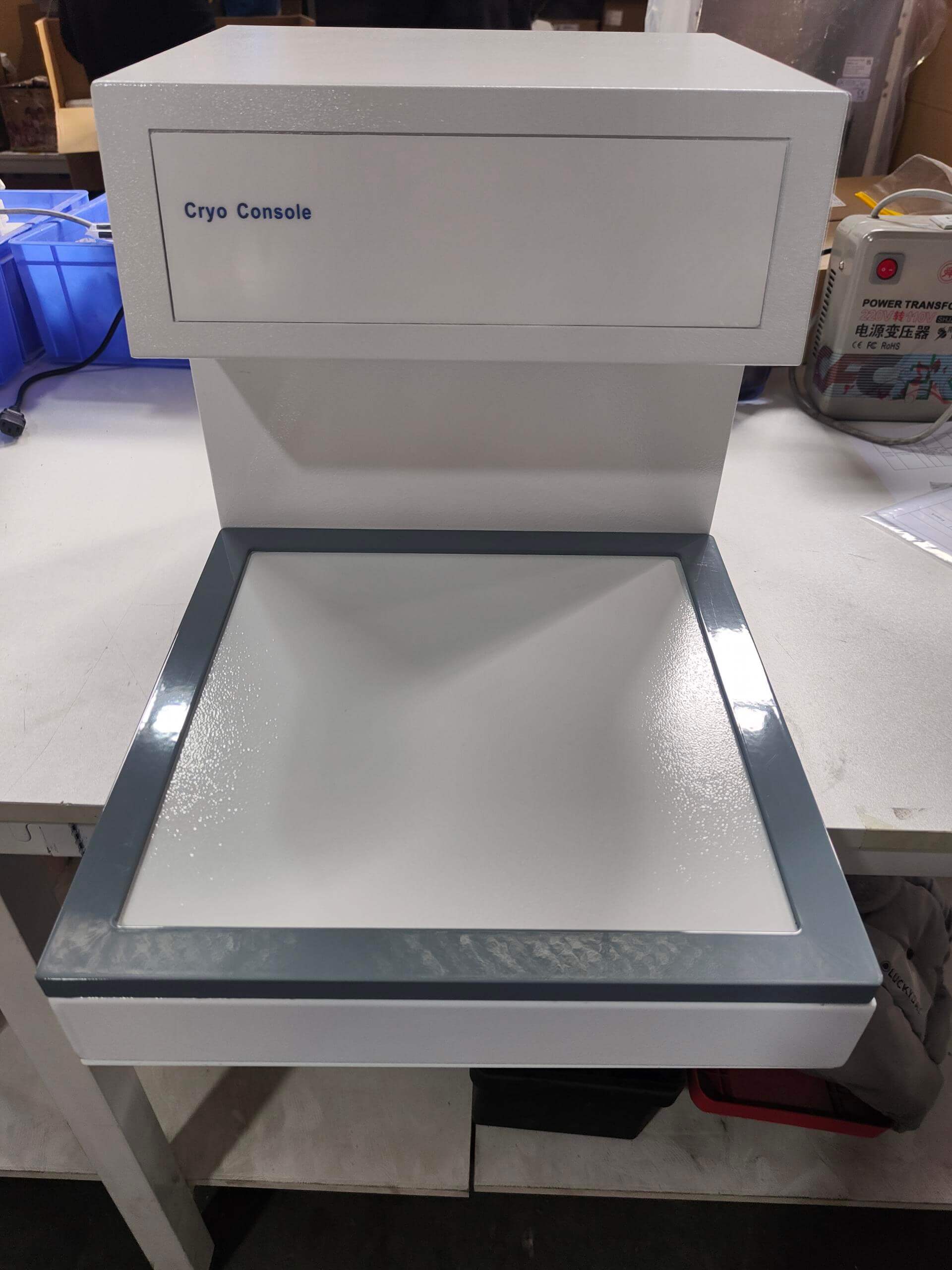

Freezing console:
It consists of a compressor-cooled work surface for rapidly cooling paraffin blocks.
The teflon-coated surface minimizes icing and is easy to clean.
You can adjust the temperature from ambient to -13 degrees celsius.
It can be used as a stand-alone unit near the slicer workstation.
The tissue embedding machine ensuring long-lasting performance in high-throughput labs.

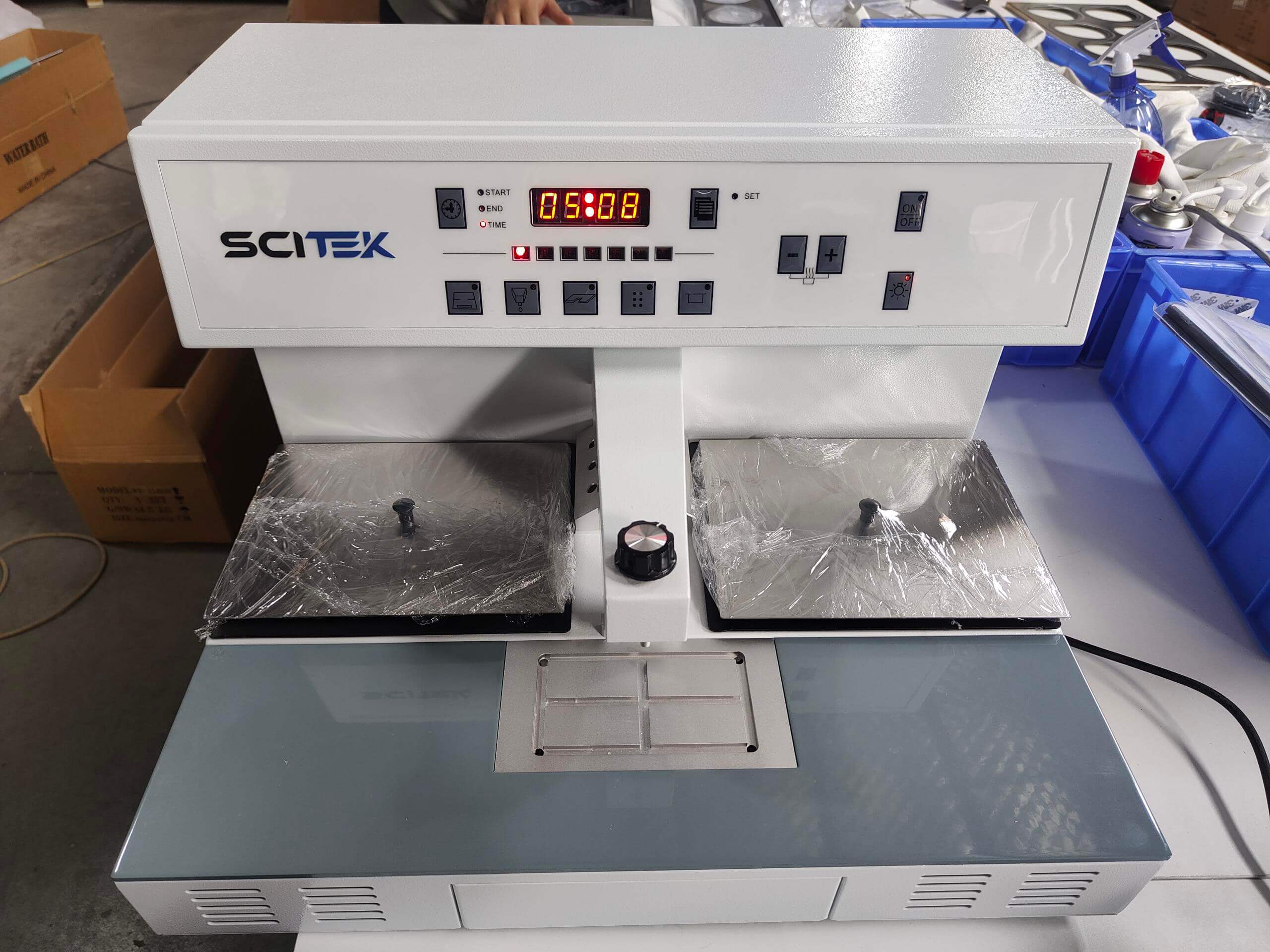

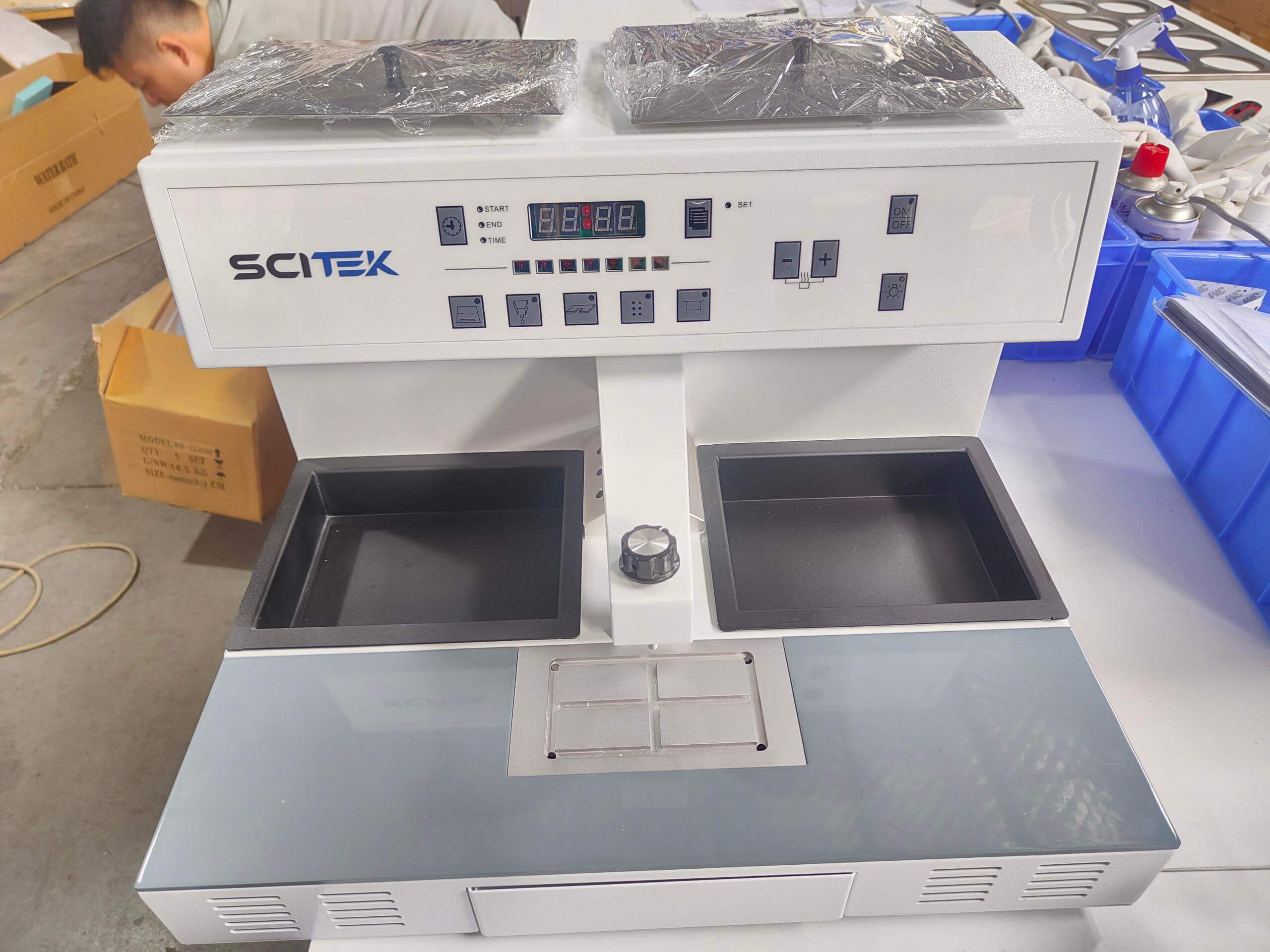

An overhead angle showing the machine’s sleek design, with clear visibility of the control panel and compartment for paraffin or embedding medium. Detailed shot of the interface and control buttons, indicating the machine’s digital display for easy temperature and timing adjustments.

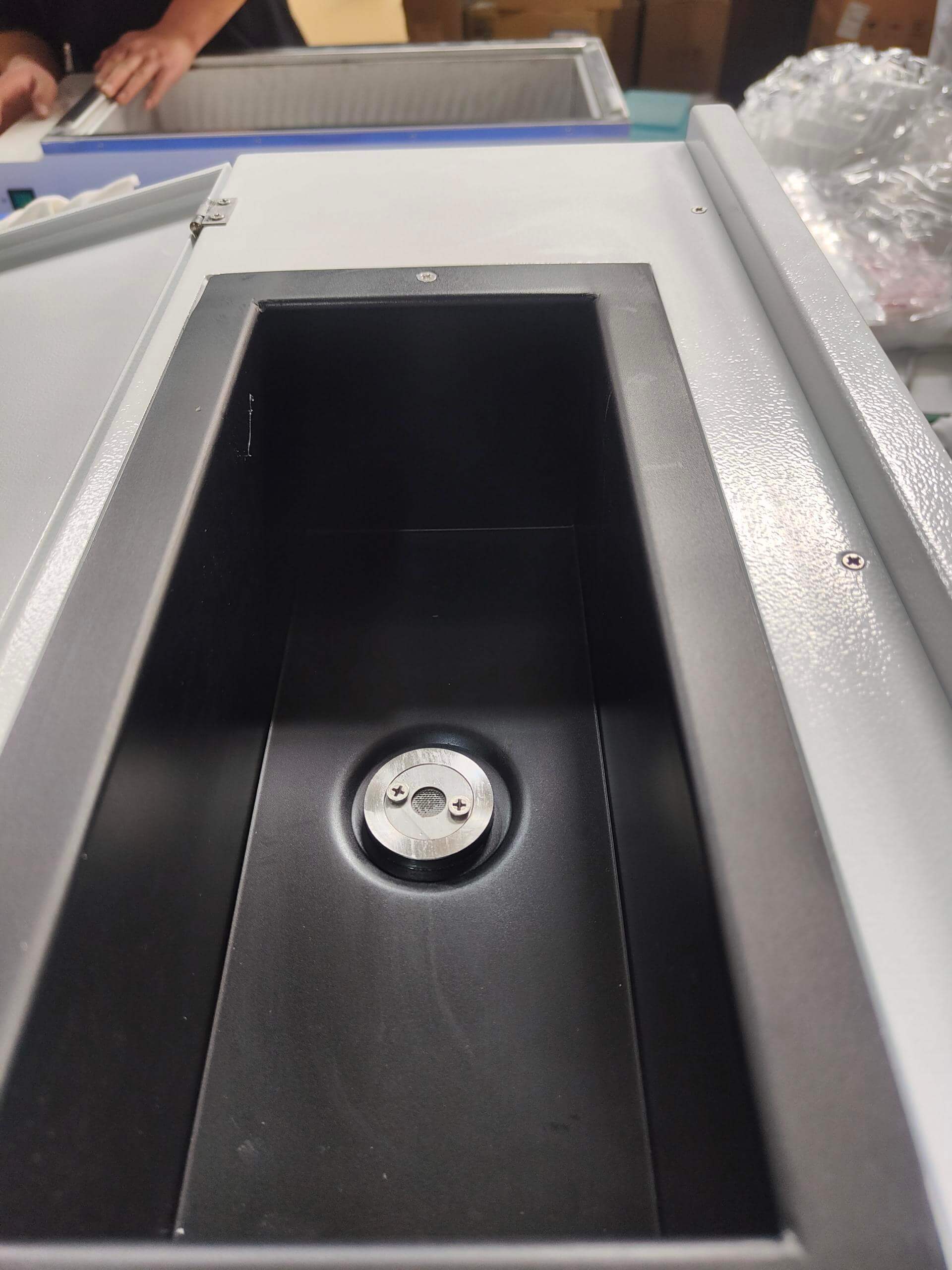

Detailed view of the tissue embedding platform, with a clear view of the holder where tissue blocks are positioned for processing. A close-up of the central chamber, illustrating the controlled environment where tissue samples are embedded with paraffin or other mediums.
Close-up of the internal components, highlighting the precise alignment mechanism used for tissue placement during embedding.
