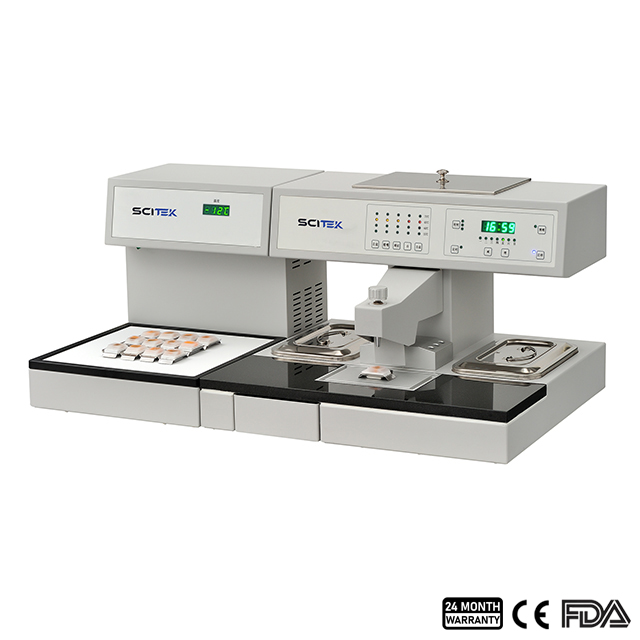

Automatic Tissue Embedding Center & Cooling System, TE-I&CS-I
Model: TE-I&CS-I
Paraffin Chamber Capacity: 3 L Temperature Range (Forceps Holder, Left & Right Thermal Chamber, Paraffin Chamber & Distributor, Working Table): 55-75 ℃ Temperature Range (Cold Plate): -20 to -30 ℃ Working Area Sizes (Working Table): 180×120 mm Working Area Sizes (Cold Plate): 320×300 mm This automatic tissue embedding center & cooling system features precise temperature control technology which ensures the consistent and reliable progression of tissue embedding procedures. It provides clear and real-time visual feedback on operational status by equipped with LED indicators.
1. Fully computerized automatic program control with the capability to preset weekly start times.
2. Temperature control utilizes an advanced American microprocessor controller with five independent PID temperature control channels, ensuring independent control.
3. A simple panel design features blue LED indicators for function and color-changing LED indicators for temperature, ensuring clear operating status.
4. The internationally advanced flexible heating concept overcomes the limitations of traditional heating systems characterized by significant temperature gradients, enabling rapid heating and high-precision temperature control.
5. Dual overheat protection for safety and reliability.
6. Memory and auto-reset functions automatically save preset temperatures after each operation.
7. A split design allows for flexible combinations of the embedding center and cooling system.
8. Dual front and rear switches on the cooling system provide increased convenience and safety.
9. An inlet valve adjusts the paraffin nozzle flow rate, accommodating a variety of tissue embedding procedures.
10. Dual paraffin flow control features, including an automatic soft-touch switch and a foot-operated switch, ensure convenient embedding operations.
11. A large granite work surface offers an elegant aesthetic and facilitates paraffin removal.
12. A cold light source, low-voltage lighting system ensures safety and reliability.
Specification:
Model
TE-I&CS-I
Paraffin Chamber Capacity
3 L
Temperature Range
Forceps Holder
55-75 ℃
Paraffin Chamber
Left Thermal Chamber
Right Thermal Chamber
Working Table
Paraffin Distributor
Cold Plate
-20 to -30 ℃
Small Cooling Plate
/
Temperature Control Precision
± 1 ℃
Paraffin Flow Control
Automatic soft-touch switch, foot-operated switch
Fully Programmable ON/OFF Control
Allows automatic system start and stop anytime weekly
Safety Protection
Double overheat protection device
Automatic Memory Recovery Function
Yes
Working Area Size
Thermal Chamber
225×145×55 mm
Working Table
180×120 mm
Cold Plate
320×300 mm
Small Cooling Plate
/
Power Supply
AC 220 V±10% 50 Hz (standard model);
AC 110 V±10% 60 Hz
Power
650 W（TE-I）
300 W（CS-I）
Dimensions Size (W×D×H)
550×525×385 mm (TE-I)
345×590×385 mm (CS-I)
Shipping Size (W×D×H)
670×630×520 mm (TE-I)
700×450×530 mm (CS-I)
N.W./G.W.
30/41 kg (TE-I)
29/37 kg (CS-I)
Advantage:
1. Fully computerized automatic program control with the capability to preset weekly start times.
2. Temperature control utilizes an advanced American microprocessor controller with five independent PID temperature control channels, ensuring independent control.
3. A simple panel design features blue LED indicators for function and color-changing LED indicators for temperature, ensuring clear operating status.
4. The internationally advanced flexible heating concept overcomes the limitations of traditional heating systems characterized by significant temperature gradients, enabling rapid heating and high-precision temperature control.
5. Dual overheat protection for safety and reliability.
6. Memory and auto-reset functions automatically save preset temperatures after each operation.
7. A split design allows for flexible combinations of the embedding center and cooling system.
8. Dual front and rear switches on the cooling system provide increased convenience and safety.
9. An inlet valve adjusts the paraffin nozzle flow rate, accommodating a variety of tissue embedding procedures.
10. Dual paraffin flow control features, including an automatic soft-touch switch and a foot-operated switch, ensure convenient embedding operations.
11. A large granite work surface offers an elegant aesthetic and facilitates paraffin removal.
12. A cold light source, low-voltage lighting system ensures safety and reliability.
Specification:
Model
TE-I&CS-I
Paraffin Chamber Capacity
3 L
Temperature Range
Forceps Holder
55-75 ℃
Paraffin Chamber
Left Thermal Chamber
Right Thermal Chamber
Working Table
Paraffin Distributor
Cold Plate
-20 to -30 ℃
Small Cooling Plate
/
Temperature Control Precision
± 1 ℃
Paraffin Flow Control
Automatic soft-touch switch, foot-operated switch
Fully Programmable ON/OFF Control
Allows automatic system start and stop anytime weekly
