Paraffin Chamber Capacity: 3.2 L Temperature Range (Forceps Holder, Left & Right Thermal Chamber, Paraffin Chamber & Distributor, Working Table): 0-99 ℃ Temperature Range (Cold Plate): RT to -20 ℃ Working Area Sizes (Working Table): 10×180 mm Working Area Sizes (Cold Plate): 300×300 mm

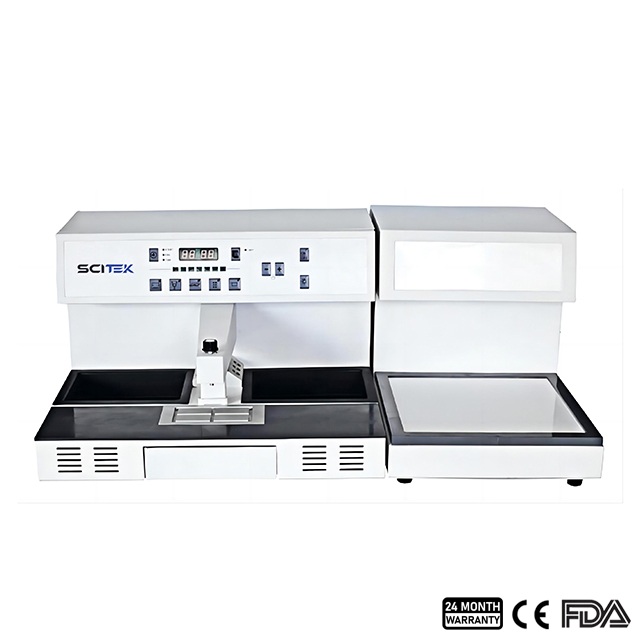

This fully automatic cryo-embedding center features precise temperature control technology, as well as a memory function, which can help you complete tissue embedding efficiently and conveniently.
1. The machine is controlled by fully automatic program, with presetting automatic on/off time for 7 days.
2. The paraffin beaker features overheat protection, ensuring safety and reliability, and a filter design effectively prevents paraffin clogging.
3. It features a microswitch and foot switch, providing the operator with flexible control options.
4. It features a unique embedding illumination system, providing sufficient brightness for determining the embedding position of small tissue pieces.
5. It utilizes an independent PID constant temperature control system, allowing the temperature of the paraffin beaker, paraffin nozzle, workbench, preservation beaker, and forceps holder to be adjusted within a range of 0 - 99°C.
6. It features an automatic power-on and power-off function, allowing for different daily programmable power-on and power-off time.
7. It features memory and auto-reset functions, automatically retaining the preset temperature after each operation.
8. It features a paraffin recovery system controlled by a high-performance solenoid valve.
9. Its split design allows for flexible combination of the embedding machine and cooling table.
Specification:
Model
TE-II
Paraffin Chamber Capacity
3.2 L
Temperature Range
Forceps Holder
0-99 ℃
Paraffin Chamber
Left Thermal Chamber
Right Thermal Chamber
Working Table
Paraffin Distributor
Cold Plate
RT to -20 ℃
Small Cooling Plate
/
Temperature Control Precision
± 0.1℃
Paraffin Flow Control
Manual and foot-operated dual control methods
Fully Programmable ON/OFF Control
Allows automatic system start and stop anytime weekly
Safety Protection
Double overheat protection device
Automatic Memory Recovery Function
Yes
Working Area Size
Thermal Chamber
160×200×50 mm
Working Table
10×180 mm
Cold Plate
300×300 mm
Small Cooling Plate
/
Power Supply
AC 220 V±10% 50 Hz (standard model);
AC 110 V±10% 60 Hz
Power
750 W（Tissue Embedding Center）
200 W (Cooling System)
Dimensions Size (W×D×H)
520×560×370 mm (Tissue Embedding Center)
580×350×370 mm (Cooling System)
Shipping Size (W×D×H)
650×600×570 mm (Tissue Embedding Center)
650×430×570 mm (Cooling System)
N.W. /G.W.
25/40 mm (Tissue Embedding Center)
22/34 kg (Cooling System)
Advantage:
1. The machine is controlled by fully automatic program, with presetting automatic on/off time for 7 days.
2. The paraffin beaker features overheat protection, ensuring safety and reliability, and a filter design effectively prevents paraffin clogging.
3. It features a microswitch and foot switch, providing the operator with flexible control options.
4. It features a unique embedding illumination system, providing sufficient brightness for determining the embedding position of small tissue pieces.
5. It utilizes an independent PID constant temperature control system, allowing the temperature of the paraffin beaker, paraffin nozzle, workbench, preservation beaker, and forceps holder to be adjusted within a range of 0 - 99°C.
6. It features an automatic power-on and power-off function, allowing for different daily programmable power-on and power-off time.
7. It features memory and auto-reset functions, automatically retaining the preset temperature after each operation.
8. It features a paraffin recovery system controlled by a high-performance solenoid valve.
9. Its split design allows for flexible combination of the embedding machine and cooling table.
Specification:
Model
TE-II
Paraffin Chamber Capacity
3.2 L
Temperature Range
Forceps Holder
0-99 ℃
Paraffin Chamber
Left Thermal Chamber
Right Thermal Chamber
Working Table
Paraffin Distributor
Cold Plate
RT to -20 ℃
Small Cooling Plate
/
Temperature Control Precision
± 0.1℃
Paraffin Flow Control
Manual and foot-operated dual control methods
Fully Programmable ON/OFF Control
Allows automatic system start and stop anytime weekly
As a professional lab and medical equipment manufacturer, Scitek Global is certified by ISO 9001, ISO 13485, ISO 45001 and ISO 14001. Almost all our products are certified by ETL, CE and FDA .
Scitek Global looks forward to establishing cooperation with more distributors all over the world, and working together to create greater customer value.
