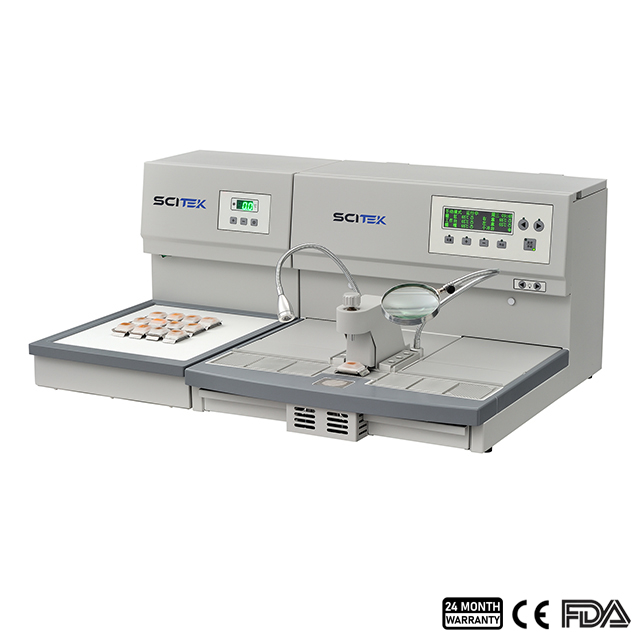

Automatic Tissue Embedding Center & Cooling System, TE-IV&CS-IV
Model: TE-IV&CS-IV
Paraffin Chamber Capacity: 6 L Temperature Range (Forceps Holder, Left & Right Thermal Chamber, Paraffin Chamber & Distributor, Working Table): RT-85 ℃ Temperature Range (Cold Plate): +5 to -20 ℃ (Ultra-refrigeration mode: Lowest -28℃) Working Area Sizes (Working Table): 540×93 mm Working Area Sizes (Cold Plate): 315×380 mm Small Cooling Plate: YES
This automatic tissue embedding center & cooling system features large capacity. And its precise temperature control technology ensures the consistent and reliable progression of tissue embedding procedures.
1. Imported OLED module display screen, energy-saving, clear handwriting, clear vision at any angle without blind spots.
2. Fully computerized automatic program control, can be preset to start and shut down at any time every week.
3. Adopt flexible heating mechanism and PID technology to achieve rapid heating and precise temperature control.
4. The seven working areas are controlled individually and work independently without interfering with each other.
5. With memory and automatic recovery function, the preset temperature is automatically retained after operation.
6. The lighting adopts a universal metal hose design, which can adjust the lighting angle and brightness at will, and is convenient for observing specimens.
7. The imported valve adjusts the flow of the paraffin nozzle, which is suitable for various tissue embedding processes, and it has the automatic soft-touch and foot-operated switch dual-control paraffin flow design.
8. Double overheat protection device, safe and reliable.
9. Two modes of operation, manual mode with instant start and stop, automatic mode with power-off memory and power-on self-start function.
Specification:
Model
TE-IV&CS-IV
Paraffin Chamber Capacity
6 L
Temperature Range
Forceps Holder
RT - 85°C
Paraffin Chamber
Left Thermal Chamber
Right Thermal Chamber
Working Table
Paraffin Distributor
Cold Plate (Temperature control mode)
+5 to -20 ℃
Cold Plate （Ultra-refrigeration mode）
Lowest -28℃
Small Cooling Plate
＜- 5 ℃
Temperature Control Precision
± 1℃
Paraffin Flow Control
Automatic soft-touch switch, foot-operated switch
Fully Programmable ON/OFF Control
Allows automatic system start and stop anytime weekly
Safety Protection
Double overheat protection device
Automatic Memory Recovery Function
Yes
Working Area Size
Thermal Chamber
240×160×55 mm
Working Table
540×93 mm
Small Cooling Plate
60×50 mm
Cold Plate
315×380 mm
Power Supply
AC 220 V ± 10%, 50 Hz (standard model);
AC 110 V ± 10%, 60 Hz
Power
1000 W (TE-IV)
300 W (CS-IV)
Dimensions Size (W×D×H)
680×580×400 mm (TE-IV)
710×350×400 mm (CS-IV)
Shipping Size (W×D×H)
780×700×500 mm (TE-IV)
790×480×560 mm (CS-IV)
N.W./G.W.
38/60 kg (TE-IV)
30/39 kg (CS-IV)
Advantage:
1. Imported OLED module display screen, energy-saving, clear handwriting, clear vision at any angle without blind spots.
2. Fully computerized automatic program control, can be preset to start and shut down at any time every week.
3. Adopt flexible heating mechanism and PID technology to achieve rapid heating and precise temperature control.
4. The seven working areas are controlled individually and work independently without interfering with each other.
5. With memory and automatic recovery function, the preset temperature is automatically retained after operation.
6. The lighting adopts a universal metal hose design, which can adjust the lighting angle and brightness at will, and is convenient for observing specimens.
7. The imported valve adjusts the flow of the paraffin nozzle, which is suitable for various tissue embedding processes, and it has the automatic soft-touch and foot-operated switch dual-control paraffin flow design.
8. Double overheat protection device, safe and reliable.
9. Two modes of operation, manual mode with instant start and stop, automatic mode with power-off memory and power-on self-start function.
Specification:
Model
TE-IV&CS-IV
Paraffin Chamber Capacity
6 L
Temperature Range
Forceps Holder
RT - 85°C
Paraffin Chamber
Left Thermal Chamber
Right Thermal Chamber
Working Table
Paraffin Distributor
Cold Plate (Temperature control mode)
+5 to -20 ℃
Cold Plate （Ultra-refrigeration mode）
Lowest -28℃
Small Cooling Plate
＜- 5 ℃
Temperature Control Precision
± 1℃
Paraffin Flow Control
Automatic soft-touch switch, foot-operated switch
Fully Programmable ON/OFF Control
Allows automatic system start and stop anytime weekly
As a professional lab and medical equipment manufacturer, Scitek Global is certified by ISO 9001, ISO 13485, ISO 45001 and ISO 14001. Almost all our products are certified by ETL, CE and FDA .
Scitek Global looks forward to establishing cooperation with more distributors all over the world, and working together to create greater customer value.
