Paraffin Chamber Capacity: 6 L Temperature Range (Forceps Holder, Left & Right Thermal Chamber, Paraffin Chamber & Distributor, Working Table): 0-99 ℃ Temperature Range (Cold Plate): RT to -30 ℃ Working Area Sizes (Working Table): 270×100 mm Working Area Sizes (Cold Plate): 410×410 mm Small Cooling Plate: YES

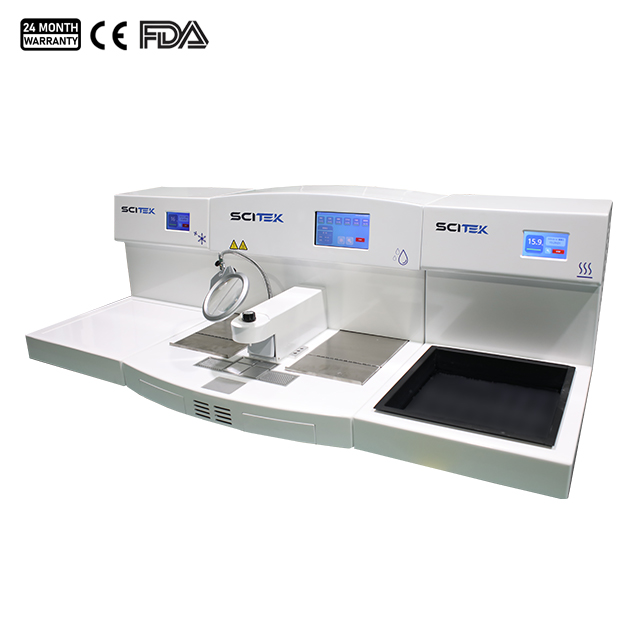

This fully automatic cryo-embedding center features large capacity and precise temperature control technology, as well as a memory function, which can help you complete tissue embedding efficiently and conveniently.
1. A 7-inch touchscreen display clearly displays the temperature of each functional module.
2. Utilizes a PID constant temperature algorithm for precise temperature control with an accuracy of 0.1 ℃.
3. Real-time temperature curve display makes temperature control more intuitive.
4. Fast heating, uniform heating, and superior performance. Independent temperature control for each branch, and dual overheat protection for the temperature control system, provide greater safety and reliability.
5. Intelligent paraffin melting mode for increased efficiency and intelligence.
6. Fully automatic program control with 24/7 automatic operation and time setting for greater convenience.
7. Memory and auto-restore functions automatically retain the preset temperature after operation.
8. Dual paraffin adding modes: manual and foot pedal.
9. Adjustable paraffin discharge time and flow rate.
10. Automatic shadowless lighting with adjustable brightness and duration.
11. Split design allows for flexible combination of the embedding unit and freezing table.
12. Separate left and right Thermal Chamber, and inner and outer boxes, for easy removal, paraffin changes, and maintenance.
13. The spacious workbench features left and right paraffin beaker repair devices and a guide channel to prevent paraffin overflow.
14. Equipped with a universal metal hose magnifier, it is suitable for working with extremely small specimens and tissues. A semiconductor cooling stage is included for instant cooling, facilitating rapid specimen positioning and embedding.
Specification:
Model
TE-V
Paraffin Chamber Capacity
6 L
Temperature Range
Forceps Holder
0-99 ℃
Paraffin Chamber
Left Thermal Chamber
Right Thermal Chamber
Working Table
paraffin Distributor
Thermal System
30-90 ℃
Cold Plate
RT to -30 ℃
Small Cooling Plate
About 5 ℃
Temperature Control Precision
± 0.1 ℃
Paraffin Flow Control
Manual and foot-operated dual control methods
Fully Programmable ON/OFF Control
Allows automatic system start and stop anytime weekly
Safety Protection
Double overheat protection device
Automatic Memory Recovery Function
Yes
Working Area Size
Thermal Chamber
240×160×50 mm
Working Table
270×100 mm
Small Cooling Plate
80×60 mm
Cold Plate
410×410 mm
Thermal System
310×316×55 mm
Power Supply
AC 220 V±10% 50 Hz (standard model); AC 110 V±10% 60 Hz
Power
800 W（Tissue Embedding Center）
200 W (Cooling System)
500 W (Thermal System)
Dimensions Size (W×D×H)
650×647×465 mm (Tissue Embedding Center)
632×410×446 mm (Cooling System)
410×660×450 mm (Thermal System)
Shipping Size (W×D×H)
790×730×700 mm (Tissue Embedding Center)
810×540×630 mm (Cooling System)
730×530×620 mm (Thermal System)
N.W. /G.W.
26/50 kg (Tissue Embedding Center)
20/45 kg (Cooling System)
12/36 kg (Thermal System)
Advantage:
1. A 7-inch touchscreen display clearly displays the temperature of each functional module.
2. Utilizes a PID constant temperature algorithm for precise temperature control with an accuracy of 0.1 ℃.
3. Real-time temperature curve display makes temperature control more intuitive.
4. Fast heating, uniform heating, and superior performance. Independent temperature control for each branch, and dual overheat protection for the temperature control system, provide greater safety and reliability.
5. Intelligent paraffin melting mode for increased efficiency and intelligence.
6. Fully automatic program control with 24/7 automatic operation and time setting for greater convenience.
7. Memory and auto-restore functions automatically retain the preset temperature after operation.
8. Dual paraffin adding modes: manual and foot pedal.
9. Adjustable paraffin discharge time and flow rate.
10. Automatic shadowless lighting with adjustable brightness and duration.
11. Split design allows for flexible combination of the embedding unit and freezing table.
12. Separate left and right Thermal Chamber, and inner and outer boxes, for easy removal, paraffin changes, and maintenance.
13. The spacious workbench features left and right paraffin beaker repair devices and a guide channel to prevent paraffin overflow.
14. Equipped with a universal metal hose magnifier, it is suitable for working with extremely small specimens and tissues. A semiconductor cooling stage is included for instant cooling, facilitating rapid specimen positioning and embedding.
Specification:
Model
TE-V
Paraffin Chamber Capacity
6 L
Temperature Range
Forceps Holder
0-99 ℃
Paraffin Chamber
Left Thermal Chamber
Right Thermal Chamber
Working Table
paraffin Distributor
Thermal System
30-90 ℃
Cold Plate
RT to -30 ℃
Small Cooling Plate
About 5 ℃
Temperature Control Precision
± 0.1 ℃
Paraffin Flow Control
Manual and foot-operated dual control methods
Fully Programmable ON/OFF Control
Allows automatic system start and stop anytime weekly
Safety Protection
Double overheat protection device
Automatic Memory Recovery Function
Yes
Working Area Size
Thermal Chamber
240×160×50 mm
Working Table
270×100 mm
Small Cooling Plate
80×60 mm
Cold Plate
410×410 mm
Thermal System
310×316×55 mm
Power Supply
AC 220 V±10% 50 Hz (standard model); AC 110 V±10% 60 Hz
