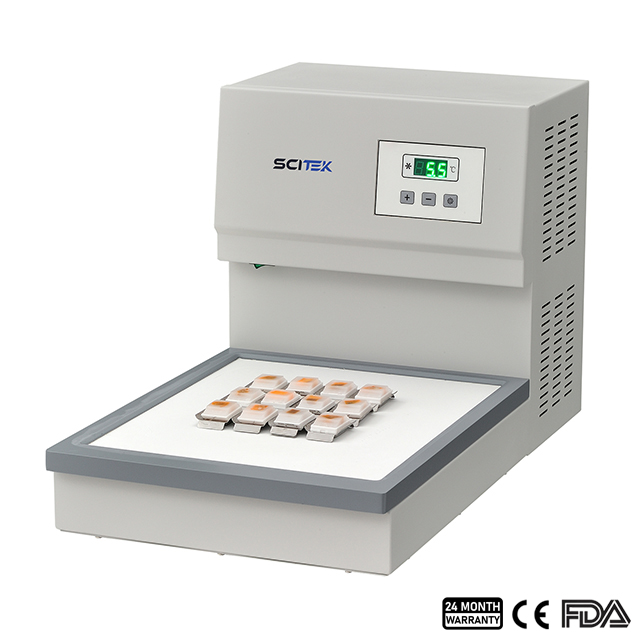

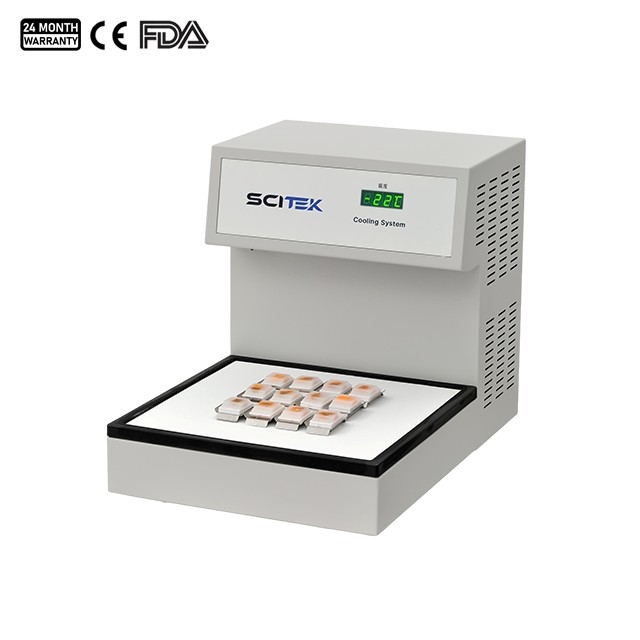

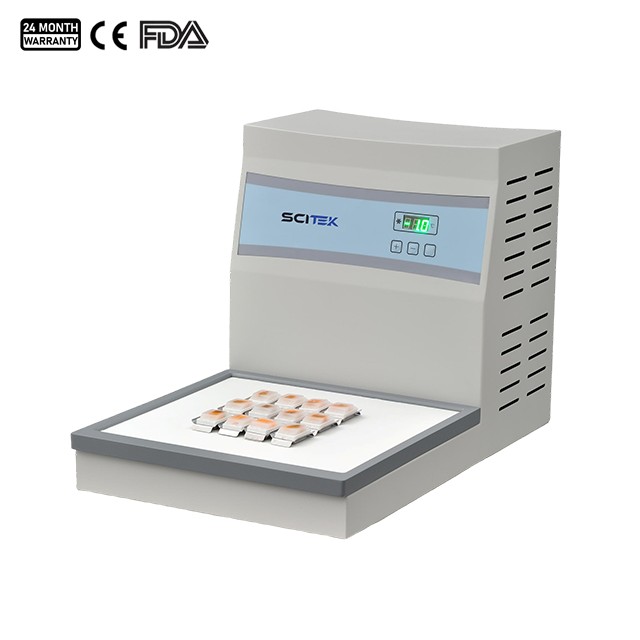

Cooling System

Model: CS-I; CS-III; CS-IV

Temperature Range (Temperature Control Mode): -20 ~ -30 ℃; +5 ~ -35 ℃; +5 ~ -20 ℃
Temperature Accuracy: ±1 ℃
Cold Plate Sizes: 320×300 mm; 330×322 mm; 315×380 mm
The cooling system has two temperature mode, and can be combined with Scitek's Tissue Embedding Center to complete embedding.
Availability:
Quantity:
Inquiry Add to Inquiry List

Advantage:

1. Temperature measuring integrated block imported from the United States, with high accuracy.

2. The front and rear double switch design of the freezing table is more convenient and safer to use.

3. Split design, the embedding machine and the Cooling System can be combined at will.

4. The Cooling System uses an original imported compressor and uses imported environmentally friendly fluorine-free agent, with excellent cooling effect (only for CS-IV).

5. The Cooling System has Ultra-refrigeration mode and temperature control mode, with high temperature control accuracy (only for CS-I & CS-IV).


Specification:

Model

CS-I

CS-III

CS-IV

Temperature Range

Cold Plate

(Temperature Control Mode)

-20 ~ -30 ℃

+5 ~ -35 ℃

+5 ~ -20 ℃

Cold Plate (Ultra-refrigeration Mode)

Lowest -30℃

/

Lowest -28℃

Temperature Accuracy

±1 ℃

Cold Plate Size

320×300 mm

330×322 mm

315×380 mm

Power Supply

AC 220 V ± 10% 50 Hz (standard model);

AC 110 V ± 10% 60 Hz

Power

300 W

Dimensions Sizes (W×D×H)

345×590×385 mm

650×380×450 mm

710×350×400 mm

Shipping Size (W×D×H)

700×450×530 mm

800×480×580 mm

790×480×560 mm

N.W. /G.W.

29/37 kg

29/36 kg

30/39 kg
