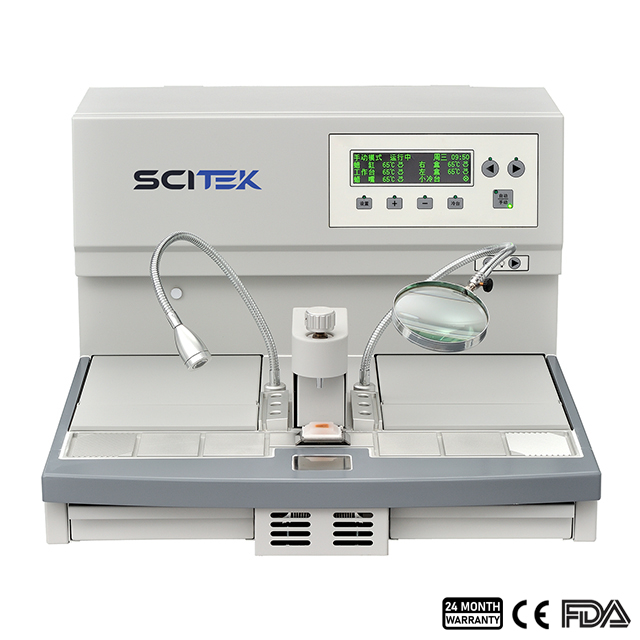

1. Imported OLED module display with clear text and excellent viewing from any angle.
2. Fully computerized automatic program control with preset start and shutdown times each week.
3. Imported temperature measurement module from the United States for high accuracy and reliable performance, with seven independent PID temperature controls that do not affect each other.
4. Dual overheat protection for safety and reliability.
5. Memory and auto-reset functions automatically retain the preset temperature after operation.
6. Two operating modes: manual mode with instant start and stop, and automatic mode with power-off memory and power-on restart.
7. Enlarged left and right boxes, an enlarged forceps storage platform, and a spacious work surface design for ease of use.
8. Equipped with a universal metal hose magnifier, user-adjustable and suitable for handling extremely small specimens and tissues.
9. Imported semiconductor random small cooling stage with instant cooling, facilitating rapid specimen positioning and embedding, improving work efficiency.
10. Extra-large paraffin beakers ensure the ability to embed large quantities of tissues in one go.
11. Cold light source, low-voltage lighting system with imported CPU. Independent constant current control and infinitely adjustable brightness ensure flicker-free operation. The universal metal hose design allows for flexible illumination angle adjustment, making tissue specimen observation more convenient.
12. Dual flow control options: automatic soft-touch switch or foot-operated switch.
Specification:
Model
TE-IV
Paraffin Chamber Capacity
6 L
Temperature Range
Forceps Holder
RT - 85 ℃
Paraffin Chamber
Left Thermal Chamber
Right Thermal Chamber
Working Table
Paraffin Distributor
Small Cooling Plate
＜-5 ℃
Temperature Control Precision
±1 ℃
Paraffin Flow Control
Automatic soft-touch switch, foot switch
Fully Programmable ON/OFF Control
Allows automatic system start and stop anytime weekly
Safety protection
Double overheat protection device
Automatic memory recovery function
Yes
Working area sizes
Thermal Chamber
240×160×55 mm
Working Table
540×93 mm
Small Cooling Plate
60×50 mm
Power Supply
AC 220 V±10% 50 Hz (standard model); AC 110 V±10% 60 Hz
Power
1000 W
Dimensions Sizes (W×D×H)
680×580×400 mm
Shipping Size (W×D×H)
780×700×500 mm
N.W. /G.W.
38/60 kg
Advantage:
1. Imported OLED module display with clear text and excellent viewing from any angle.
2. Fully computerized automatic program control with preset start and shutdown times each week.
3. Imported temperature measurement module from the United States for high accuracy and reliable performance, with seven independent PID temperature controls that do not affect each other.
4. Dual overheat protection for safety and reliability.
5. Memory and auto-reset functions automatically retain the preset temperature after operation.
6. Two operating modes: manual mode with instant start and stop, and automatic mode with power-off memory and power-on restart.
7. Enlarged left and right boxes, an enlarged forceps storage platform, and a spacious work surface design for ease of use.
8. Equipped with a universal metal hose magnifier, user-adjustable and suitable for handling extremely small specimens and tissues.
9. Imported semiconductor random small cooling stage with instant cooling, facilitating rapid specimen positioning and embedding, improving work efficiency.
10. Extra-large paraffin beakers ensure the ability to embed large quantities of tissues in one go.
11. Cold light source, low-voltage lighting system with imported CPU. Independent constant current control and infinitely adjustable brightness ensure flicker-free operation. The universal metal hose design allows for flexible illumination angle adjustment, making tissue specimen observation more convenient.
12. Dual flow control options: automatic soft-touch switch or foot-operated switch.
Specification:
Model
TE-IV
Paraffin Chamber Capacity
6 L
Temperature Range
Forceps Holder
RT - 85 ℃
Paraffin Chamber
Left Thermal Chamber
Right Thermal Chamber
Working Table
Paraffin Distributor
Small Cooling Plate
＜-5 ℃
Temperature Control Precision
±1 ℃
Paraffin Flow Control
Automatic soft-touch switch, foot switch
Fully Programmable ON/OFF Control
Allows automatic system start and stop anytime weekly
Safety protection
Double overheat protection device
Automatic memory recovery function
Yes
Working area sizes
Thermal Chamber
240×160×55 mm
Working Table
540×93 mm
Small Cooling Plate
60×50 mm
Power Supply
AC 220 V±10% 50 Hz (standard model); AC 110 V±10% 60 Hz
As a professional lab and medical equipment manufacturer, Scitek Global is certified by ISO 9001, ISO 13485, ISO 45001 and ISO 14001. Almost all our products are certified by ETL, CE and FDA .
Scitek Global looks forward to establishing cooperation with more distributors all over the world, and working together to create greater customer value.
