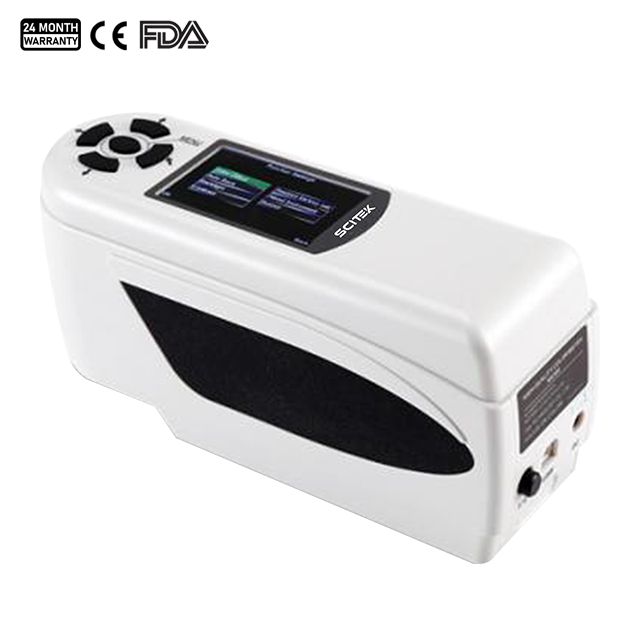

Portable colorimeter uses multi-channel color sensors, a more stable IC platform, and efficient and accurate algorithms to provide users with accurate and fast color management and applications.
The ergonomic design is portable and the user interface is easy to use.
Auto White and Black Calibration at Startup
The average fluctuation of △E is less than 0.06, actually more in 0.03~0.06. Measurement performance is stable.
Scitek's original light positioning not only minimizes the effect of external light on the test results and improves measurement accuracy but also makes positioning more convenient.
The lithium-ion batteries can be recharged repeatedly, saving costs. At the same time, a charge can be used 3000 times to ensure long-term measurement stability.
Model | CM-P300 |
---|---|
Illuminating/Viewing Geometry | 8/d |
Measuring Aperture | Φ8mm |
Detector | Silicon photoelectric diode |
Color Space | CIEL*a*b*C*h* CIEL*a*b* |
Color Difference Formula | △E*ab △L*a*b △E*C*h |
Light Source | D65 |
Light Source Device | LED blue light excitation |
Errors Between Each Equipment | ≤0.40ΔE*ab |
Storage | 100pcs standards 20000pcs samples |
Repeatability | Standard deviation within ΔE*ab 0.07 Average of 30 measurements of standard white plate |
Weight | 500g |
Size | 205×70×100 mm |
Power Source | Rechargeable lithium-ion battery 3.7V@3200mAh |
Lamp Life | 5 years, more than 1.6 million measurements |
Charging Time | 2 hours (first time 8 hours–100% electricity) |
Measuring Times Before Recharging | More than 3000 times |
Operating Temperature/Humidity Range | -10~40℃, relative humidity 0~85% with no condensation |
Data Interface | USB |
Extended Aperture (Optional) | – |
Printer (Optional) | Miniature thermal printer |
Portable colorimeter uses multi-channel color sensors, a more stable IC platform, and efficient and accurate algorithms to provide users with accurate and fast color management and applications.
The ergonomic design is portable and the user interface is easy to use.
Auto White and Black Calibration at Startup
The average fluctuation of △E is less than 0.06, actually more in 0.03~0.06. Measurement performance is stable.
Scitek's original light positioning not only minimizes the effect of external light on the test results and improves measurement accuracy but also makes positioning more convenient.
The lithium-ion batteries can be recharged repeatedly, saving costs. At the same time, a charge can be used 3000 times to ensure long-term measurement stability.
Model | CM-P300 |
---|---|
Illuminating/Viewing Geometry | 8/d |
Measuring Aperture | Φ8mm |
Detector | Silicon photoelectric diode |
Color Space | CIEL*a*b*C*h* CIEL*a*b* |
Color Difference Formula | △E*ab △L*a*b △E*C*h |
Light Source | D65 |
Light Source Device | LED blue light excitation |
Errors Between Each Equipment | ≤0.40ΔE*ab |
Storage | 100pcs standards 20000pcs samples |
Repeatability | Standard deviation within ΔE*ab 0.07 Average of 30 measurements of standard white plate |
Weight | 500g |
Size | 205×70×100 mm |
Power Source | Rechargeable lithium-ion battery 3.7V@3200mAh |
Lamp Life | 5 years, more than 1.6 million measurements |
Charging Time | 2 hours (first time 8 hours–100% electricity) |
Measuring Times Before Recharging | More than 3000 times |
Operating Temperature/Humidity Range | -10~40℃, relative humidity 0~85% with no condensation |
Data Interface | USB |
Extended Aperture (Optional) | – |
Printer (Optional) | Miniature thermal printer |
