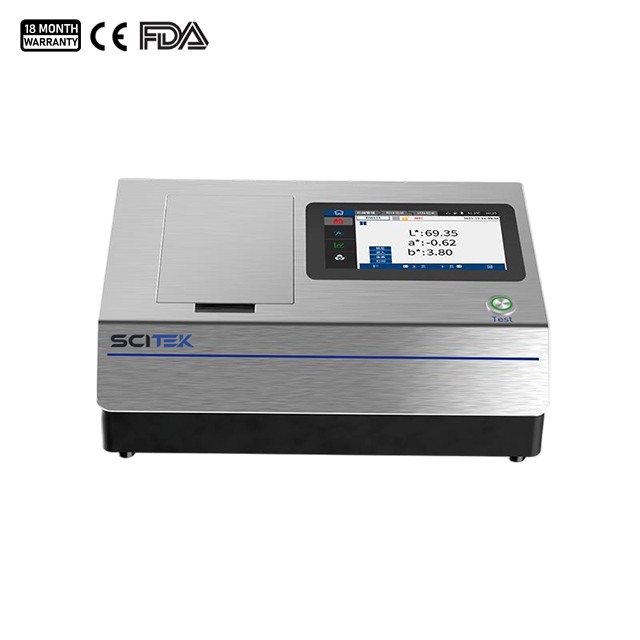

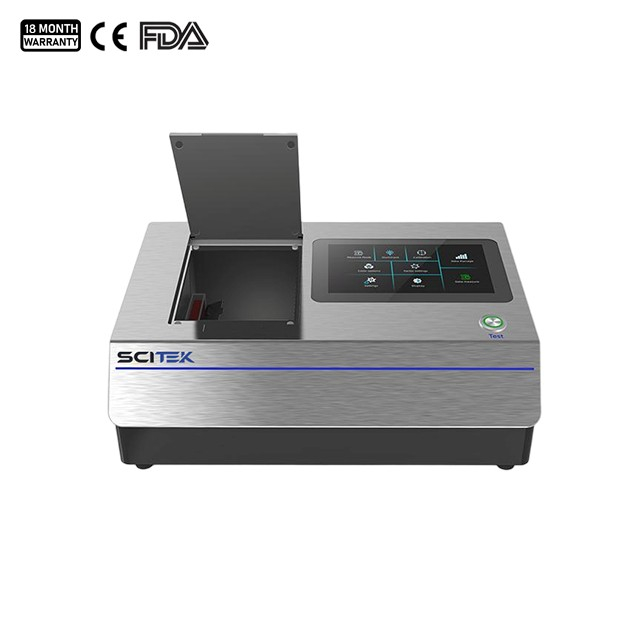

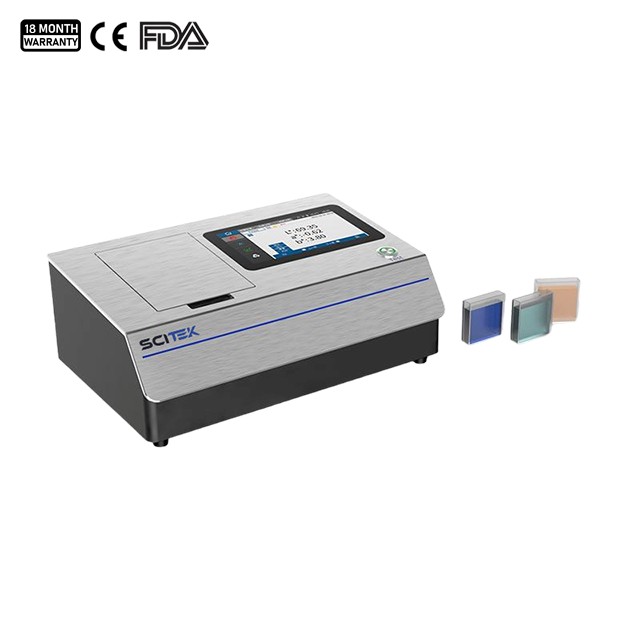

The liquid colorimeter is widely used for colorimetric analysis and transmittance testing in industries including pharmacopoeia colour measurement, glass processing, plastics processing, film manufacturing, display manufacturing, the packaging industry, and the analysis of liquid pharmaceuticals.
Liquid Colorimeter Feature:
Repeatability spectral transmittance ≤0.05%, Chroma value within 0.015, Inter-instrument error ΔE*ab≤ 0.25, ensuring data closure and high consistency.
Intelligent zero-point calibration algorithm, it dynamically isolates interference from ambient light and temperature drift, ensuring absolute data reliability.
7-inch touchscreen supports large-screen graphical navigation, real-time display of multiple composite indicators, and a minimalist human-machine interface.
With a vast array of colorimetric indicators and built-in proprietary scales for specific industries, meets the refined color measurement needs of multiple industries.
Multi-light source intelligent simulation simulates various commercial and industrial lighting environments, effectively avoiding the metachromatic phenomenon and ensuring seamless color matching in cross-border supply chains.
Long life span and low-power full-spectrum LED light sources provides high energy output and extreme stability for long-term measurements.
High-precision silicon photodiode dual 40 array sensor significantly improves the testing efficiency of production lines and laboratories while ensuring data accuracy.
Stop Worrying About Compliance:
Our liquid colorimeter complies with a number of national and international standards: ASTM D1003/1044, CIE No.15, ASTM E308, DIN5033 Teil7
Liquid Colorimeter Specification:
Model | LC-4010 |
|---|
Optical Geometry | Transmission: D/0 (diffuse illumination, reception at 0°) |
Approximate CIE No.15 stipulates 0/0 (parallel light illumination /receiving in 0° direction) |
Wavelength Range | 360–780 nm |
Spectral Bandwidth | 10 nm |
Wave Interval | 10 nm |
Lighting Source | Combined full spectrum LED light source |
Integrating Sphere Size | Φ40mm |
Spectroscopic Method | Planar grating spectroscopy |
Sensor | Silicon photodiode array (double row 40 groups) |
Inter-Instrument Error | ΔE*ab≤ 0.25 |
Observer Angle | 2 °/10 ° |
Measuring Time | Approx. 0.8 s (Fast mode) |
Transmittance Measurement Range | 0–200% |
Illuminant Life Span | 5 years (more than 3 million times measurements) |
Calibration | Intelligent zero calibration |
Language | Chinese, English |
Data Port | USB, print serial port |
Data Storage | 1000 standards, 10000 samples; Host computer mass storage |
Power Supply | AC 24V, 3A |
External Size (W×D×H) | 370×300×200 mm |
Shipping Size (W×D×H) | 460×340×260 mm |
N.W/G.W. | 8/10 kg |
Operating & Storage Environment | 0–40 ℃ & -20 to 50 ℃ |
