Portable Colorimeter, 60° Measuring Angle

Model : CM-P60S

Measuring Time : 0.5 seconds
Division Value : 1GU
Storage Temperature Range : -20-50℃ (-4-122° F)
Humidity Range : < 85% RH, without condensation
Size : 160x52x84 mm
The CM-P60S retains the tradition of reliability of a portable colorimeter while offering state-of-the-art data transfer capabilities. Reduce data collection hassles, eliminate transcription errors, and ensure greater compliance traceability.
Availability:
Quantity:
Inquiry Add to Inquiry List

Portable Colorimeter Features:

  1. Combining aesthetics and ergonomics, our product features an elegant design that exudes sophistication.

  2. Portable colorimeter is equipped with an auto-calibration function for seamless and accurate measurements.

  3. Meets the stringent second-grade requirements outlined in JJG696 for enhanced performance.

  4. Convenient auto-power-off feature, optionally set within a 30-120 seconds range for energy efficiency.

  5. Adheres to international standards, including ISO2813, ASTM523, GB/T9754, ensuring reliability and precision.

Portable Colorimeter Specifications:

Model CM-P60S 60°Economic Gloss Meter
Measuring Angle 60°
Measuring Area 60°: 0-200GU
Division Value 1GU
Measuring Modes Basic mode
Measuring Time 0.5S
Repeatability 0~100GU : ±0.5GU; 100~2000GU : ±0.5%GU
Accurate Conform with JJG696 second grade requirements of gloss meter
Auto Power-off Time 30s
Long-time Calibration /
Language Chinese & English
Storage /
Display 2.3 inch white and black screen
Size 160x52x84mm
Weight About 300g
Power Supply 1pc dry-cell battery (can measure 10000 times) or use USB Charge
Interface USB
PC Software /
Operation Temperature Range 0-40℃ (32-104° F)
Storage Temperature Range -20-50℃ (-4-122° F)
Humidity Range < 85% RH, without condensation
Standard Accessories User manual, calibration plate
Optional Accessories Miniature printer
Notification: The technical parameter is only for reference

Details of Portable Colorimeter:

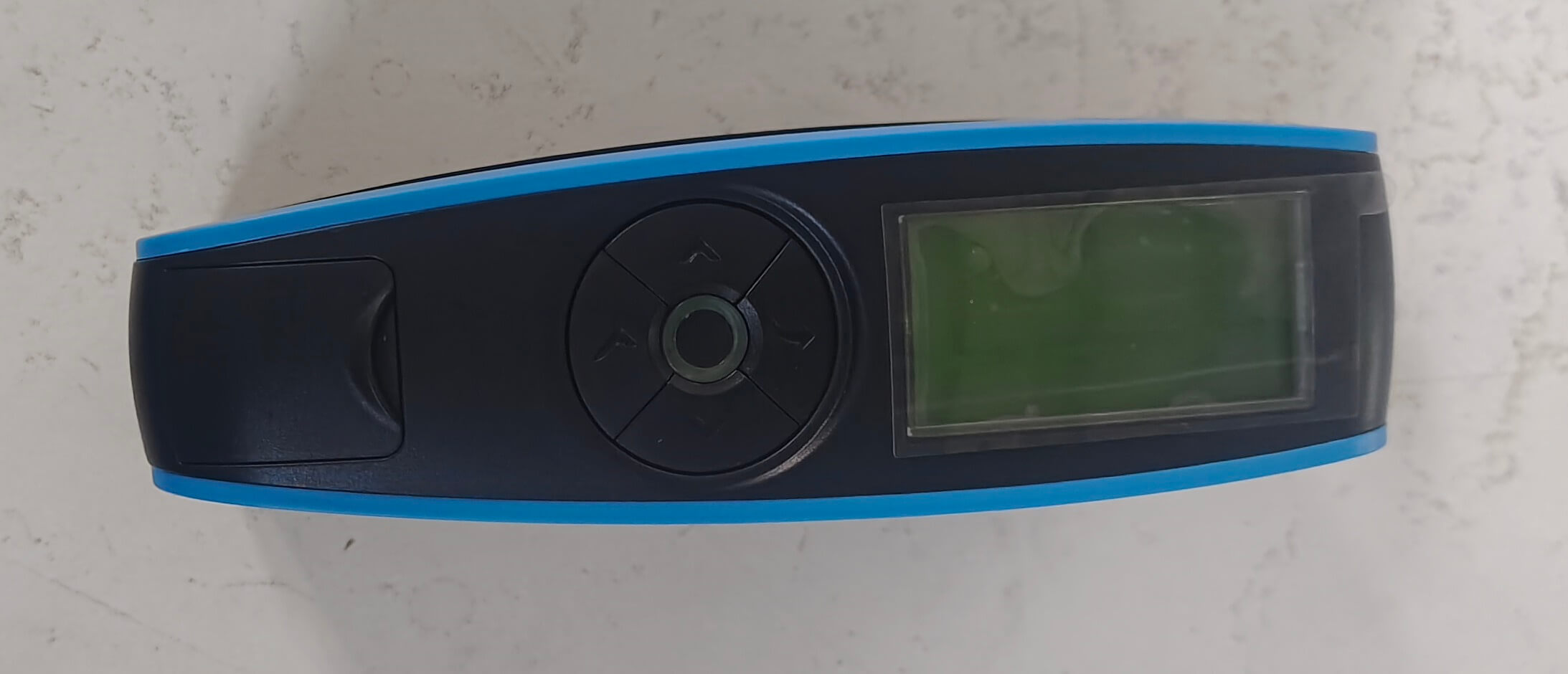

Portable Colorimeter
Advanced optical sensing technology accurately captures the color of an object and presents the color value in real time through a digital display.

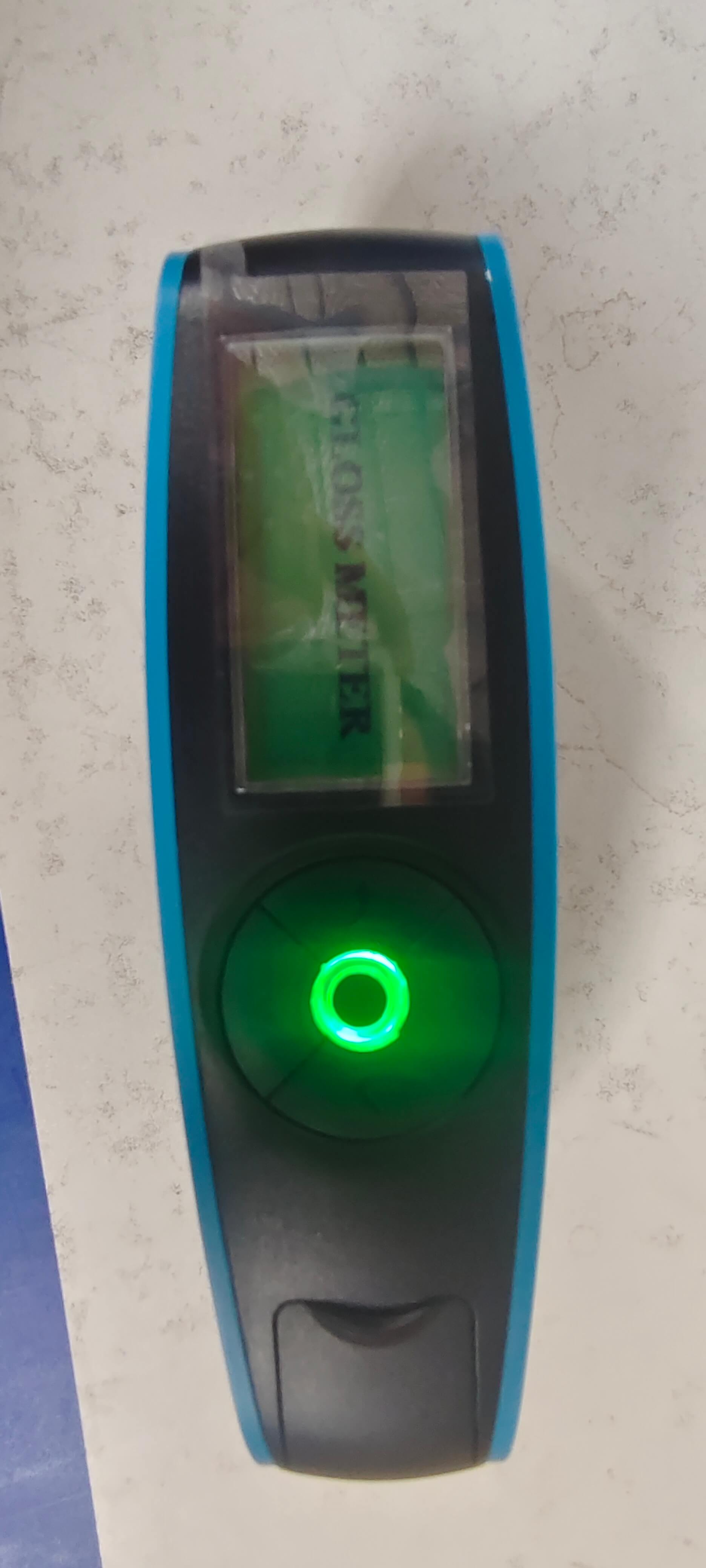

Portable Colorimeter

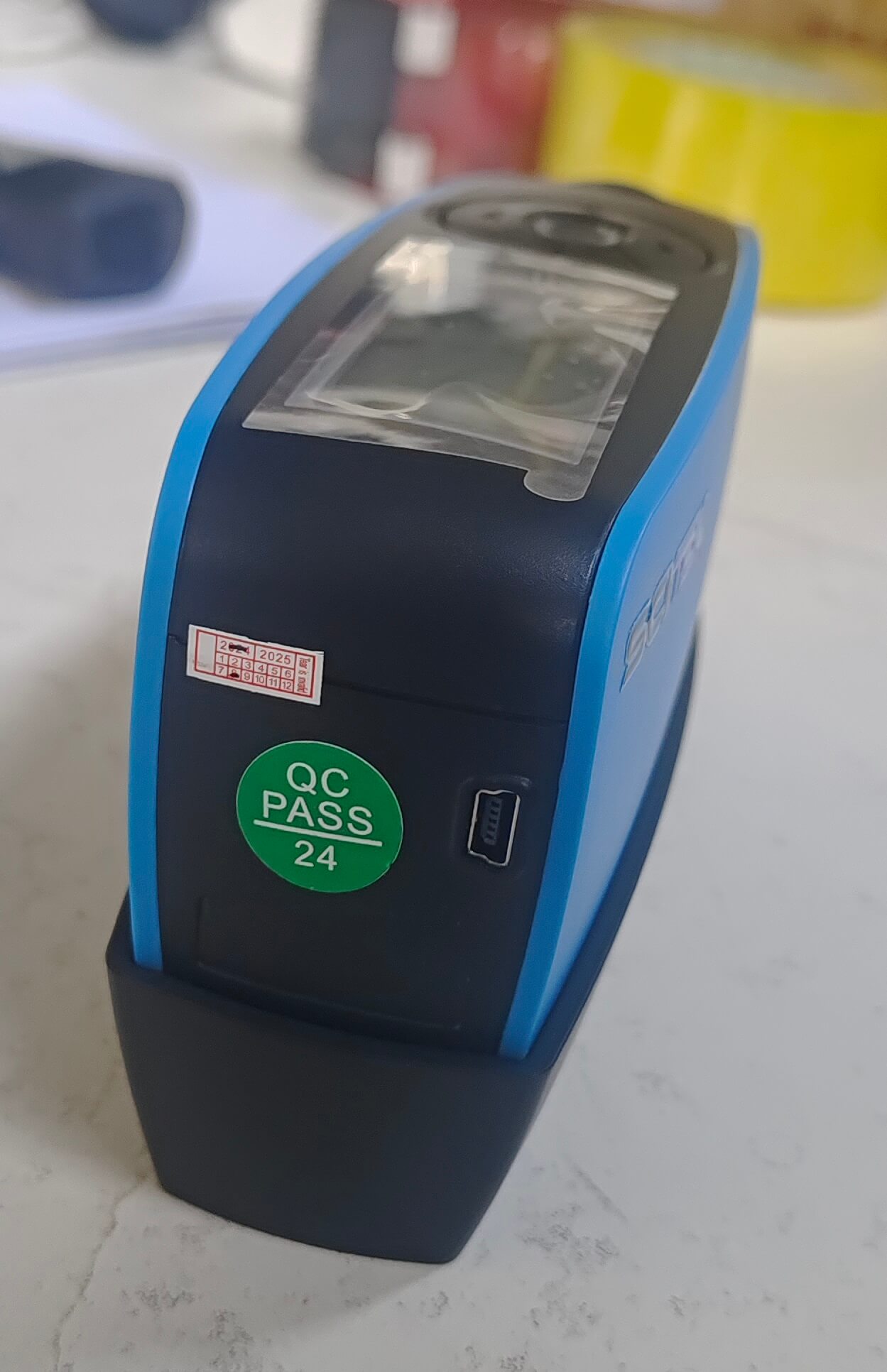

Portable Colorimeter

The portable colorimeter's compact design and easy-to-use interface make it an ideal tool for color inspection and analysis in a wide range of textile, paint, food, and printing industries.
