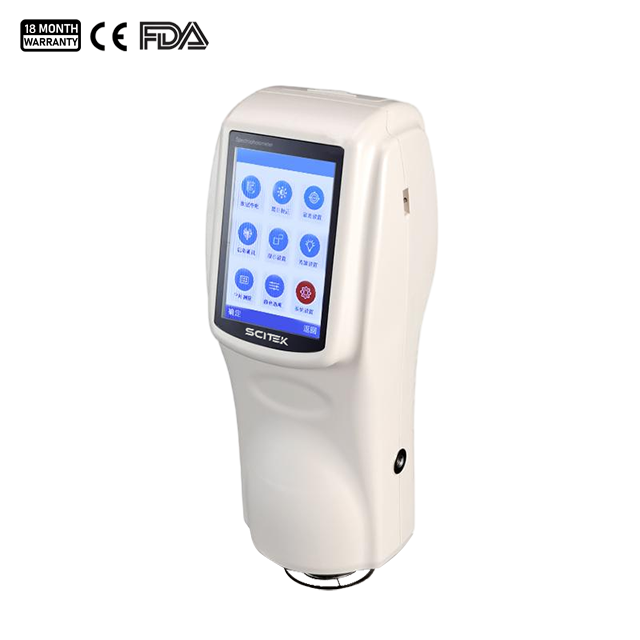

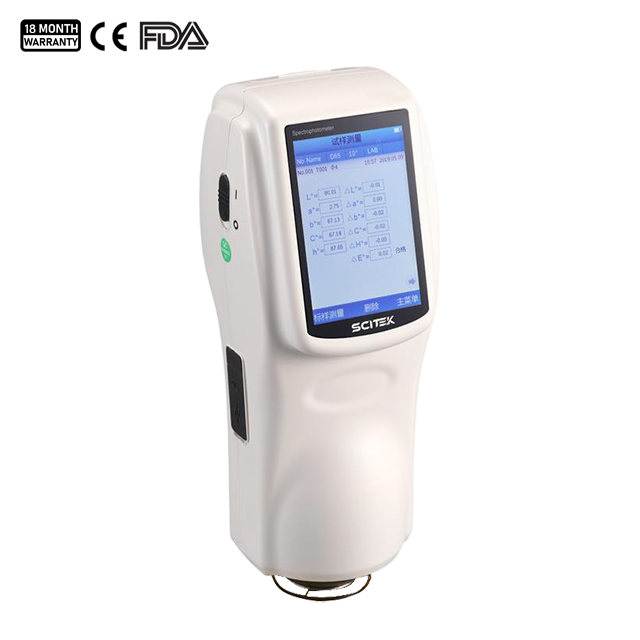

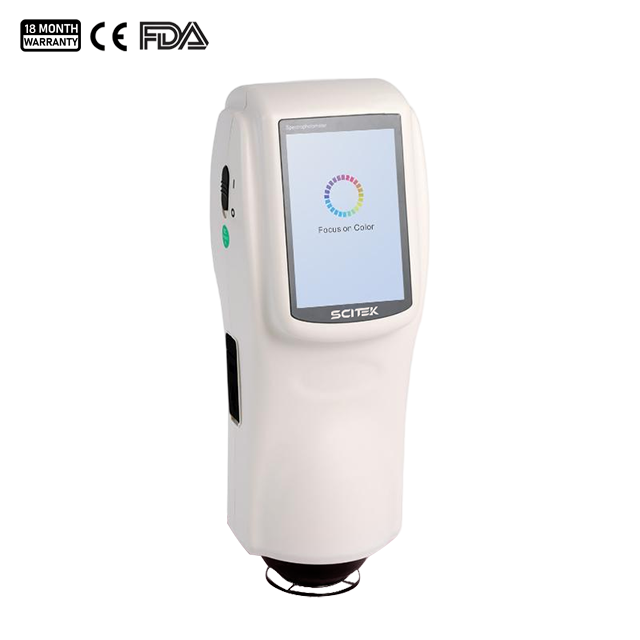

Portable Colorimeter CM-P800

Model : CM-P800

Illumination/observation system : 45°/0°
Integrating sphere Size : φ58mm
Light Source combined : LED sources
Wavelength range : 400~700nm
Wavelength interval : 10nm
Availability:
Quantity:
Inquiry Add to Inquiry List

Portable Colorimeter Feature:

  1. Aesthetic design perfectly combined with ergonomics structure.

  2. 45°/0° geometrical optics structure, comply with ClE, ISO, ASTM, DIN standard.

  3. 3.5 inch large capacitive touch screen.

  4. Two standard observer perspectives, multiple light sources modes, a varietyof color systems.

  5. The repeatability ΔE*ab is within 0.04, the errors between each instrumentis less than 0.2ΔE*ab.

  6. Large capacity storage, save more than 10000 data.

  7. PC software with powerful extension functions.

  8. High hardware configured with a number ofinnovative technologies.

  9. Oversized integrating sphere, more effective homogenization ray of lightsand precise measurement.

  10. 15°oblique angle screen, in line with the human eye observation.

Portable Colorimeter Specifications:

ModelCM-P800
Display ScreenTFT 3.5inch Capacitive Touch Screen
Illumination/observation system45°/0°
Integrating  sphere Sizeφ58mm
Light SourceCombined LED sources
SensorSilicon photodiode array
Wavelength range400~700nm
Wavelength interval10nm
Reflectance range0~100%
Color SpaceCIE LAB, XYZ, Yxy, LCh, CIE LUV
Color  difference  Formula△E*ab,△E*uv,△E*94,△E*cmc(2 1)
△E*cmc(1 1),△E*00
Other Chromaticity DataWhiteness-WI (ASTM  E313, CIE/ISO, AATCC, Hunter), Yellowness-YI(ASTMD1925, ASTM313), TI(ASTM E313, CIE/ISO), Metamerism Index(Mt) Colour Stain, Color Fastness, Color Strength, Opacity
IlluminantD65,A,C,D50,D55,D75,F2,F6,F7,F8,F10,F11,F12
Measuring  Apertureφ8mm
Observer2 /10°
Display  DataSpectral Value/Graph, Colorimetric Value, Color Difference Value/Graph, PASS/FAIL Result, Color Offset, Color Simulation
RepeatabilitySpectral Reflectance standard deviation within  0.1% (400~700nm within 0.2%), Colorimetric Value Standard deviation within Delta E*ab 0.04
Errors between each instrumentWithin Delta E*ab 0.2
BatteryLi-ion battery, 5000 tmes within 8 hours.
Lamp Life5 years, more than 1.6 million measurements
Storage1000 Standards,10000 Samples
Optional AccessoryUniversal test components for liquid, powder, particle, Micro Printer, Powder Test Box
External Size(WxDxH)(mm)90x77x230
Shipping Size(WxDxH)(mm)360x320x160
N.WG.W. (kg)0.5/4
