Scitek Liquid Nitrogen Tank is specialized designed to store and transport liquid nitrogen at extremely low temperatures. It consists of a double-walled container with an insulating vacuum between the walls to minimize heat transfer. Liquid nitrogen is stored at temperatures around -196°C (-321°F), making the tank essential for various applications in laboratory, medicine also industry. Its primary uses include cryogenic preservation of biological samples, cooling of electronic components, and as a coolant in certain industrial processes.


Scitek liquid nitrogen tank efficient insulation and durable construction ensure safe handling and prolonged storage of this vital cryogenic substance.


  • Static Storage Liquid Nitrogen Tank

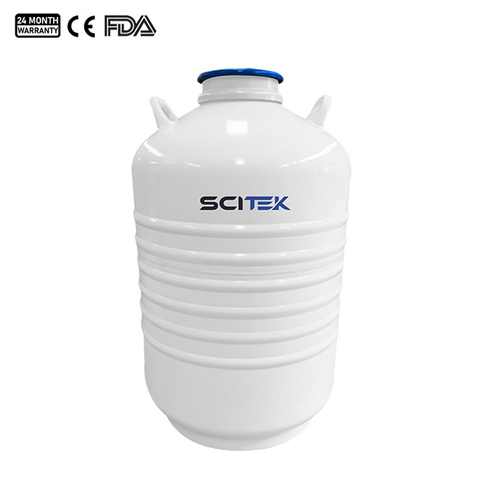

    Static Storage Liquid Nitrogen Tank
    Model : LNC-10-80S; LNC-10-125S; LNC-13-50S; LNC-15-50S; LNC-20-50S; LNC-25-50S; LNC-30-50S; LNC-30-80S; LNC-30-125S; LNC-35-50S; LNC-35-80S; LNC-35-125S; LNC-47-127S; LNC-50-125S
    LN₂ Capacity (L) : 10 / 10 / 13 / 15 / 20 / 25 / 31.5 / 31.5 / 31.5 / 35.5 / 35.5 / 35.5 / 47 / 50
    Neck Opening (mm) : 80 / 125 / 50 / 50 / 50 / 50 / 50 / 80 / 125 / 50 / 80 / 125 / 127 / 125
    Static Holding Time (day) : 48 / 24 / 109 / 134 / 168 / 180 / 254 / 147 / 90 / 286 / 159 / 97 / 130 / 110
    Canister Diameter (mm) : 63 / 97 / 38 / 63 / 97 / 104 / 97
    The static storage series is a cost-effective liquid nitrogen tank designed for long-term storage of biological samples in laboratories.
     Inquiry
  • Cryobiobank Liquid Nitrogen Tank

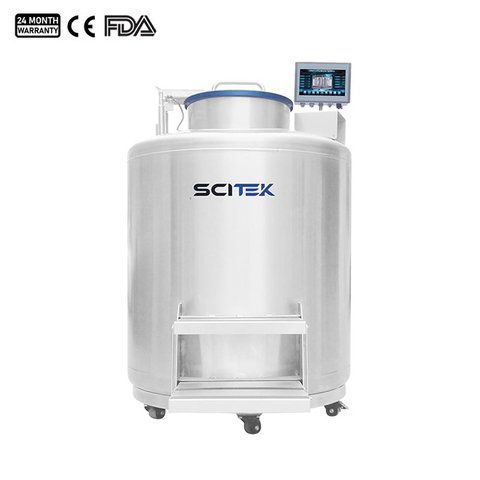

    Cryobiobank Liquid Nitrogen Tank
    Model : LNC-350-326C; LNC-450-326C; LNC-550-445C; LNC-750-445C; LNC-850-465C

    LN₂ Capacity Under Platform Vapor Storage(L) : 55 / 55 / 80 / 80 / 135
    LN₂ Capacity (L) : 350 / 460 / 587 / 783 / 890
    Neck Opening (mm) : 326 / 326 / 445 / 445 / 465
    Usable Internal Height (mm) : 600 / 828 / 600 / 828 / 773
    Cryobiobank Liquid Nitrogen Tank is suitable for biological samples that require long-term preservation, it provides a reliable storage solution for experiments in medical research, biomedical engineering and other fields.
     Inquiry
  • Cryobiobank Liquid Nitrogen Tank BC Series
    Cryobiobank Liquid Nitrogen Tank BC Series
    Model : LNC-370-320BC; LNC-460-320BC; LNC-550-445BC; LNC-800-445BC; LNC-850-465BC

    Liquid nitrogen capacity at the bottom of the tray(L) : 55; 55; 125; 133; 165
    Effective capacity of tank(L) : 370; 460; 588; 800; 890
    Tank caliber(mm) : 320; 320; 445; 445; 465
     Inquiry
  • Cryobiobank Liquid Nitrogen Tank 216BC Series
    Cryobiobank Liquid Nitrogen Tank 216BC Series
    Model : LNC-65-216BC; LNC-95-216BC; LNC-145-216BC; LNC-175-216BC

    Static evaporation rate L/day : 1.2; 1.5
    Static liquid nitrogen storage period(d) : 54; 95; 96; 116
    Bottom liquid nitrogen capacity (L) : 30
    Gas phase storage days (d) : 25; 20
     Inquiry
  • Liquid Nitrogen Tank Smart Cap

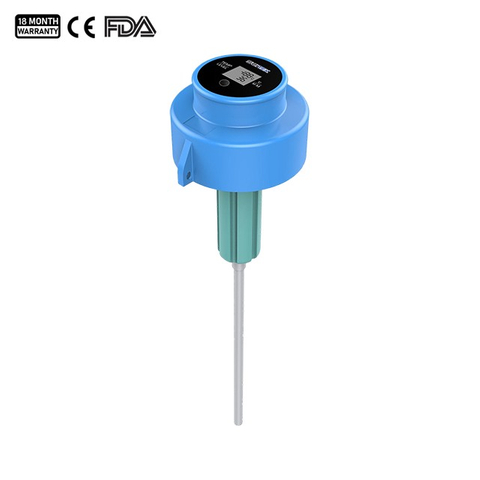

    Liquid Nitrogen Tank Smart Cap
    Model : LT-50; LT-80; LT-125; LT-216

    Working Temperature (℃) : -20~40
    Instrument Input Power Supply : 3.6V
    Level Measurement Range (mm) : 160~700
    Temperature Measurement Range (℃) : -200~200

     Inquiry
