Liquid Nitrogen Tank Specifications:
| Model | LNC-10-125L | LNC-30-125L | LNC-35-125L | LNC-47-127L | LNC-50-125L |
| Performance |
| LN₂ Capacity (L) | 10 | 31.5 | 35.5 | 47 | 50 |
| Weight Empty (kg) | 6.3 | 13 | 14.6 | 18.2 | 17.3 |
| Neck Opening (mm) | 125 | 125 | 125 | 127 | 125 |
| Outer Diameter (mm) | 300 | 462 | 462 | 508 | 462 |
| Overall Height (mm) | 554 | 704 | 748 | 718 | 818 |
| Static Evaporation Rate (L/day) | 0.42 | 0.35 | 0.36 | 0.36 | 0.45 |
| Static Holding Time (day) | 24 | 90 | 97 | 130 | 110 |
| Maximum Storage Capacity |
| Racks 2mL Freezing Tube | Number of Racks (ea) | 1 | 6/7 | 6/7 | 6/7 | 6/7 |
| Rack Size (mm) | 82x84 | 82x84 | 82x84 | 105x100 | 82x84 |
| Vial Boxes Size (mm) | 76x76 | 76x76 | 76x76 | 98 | 76x76 |
| Boxes Per Rack (ea) | 4 | 4 | 5 | 5 | 6 |
| 1.2; 1.8 & 2ml Vials (Internally Threaded) | 100 | 600/700 | 750/875 | 1100/1295 | 900/1050 |
| Racks 5mL Freezing Tube | Number of Racks (ea) | / | / | / | / | / |
| Rack Size (mm) | / | / | / | / | / |
| Vial Boxes Size (mm) | / | / | / | / | / |
| Boxes per Rack (ea) | / | / | / | / | / |
| 1.2; 1.8 & 2ml Vials (Internally Threaded) | / | / | / | / | / |
| Gross Weight (kg) | 7.6 | 17.3 | 19.9 | 28.7 | 28.2 |
| Shipping Size (WxDxH) (mm) | 340x340x615 | 480x480x900 | 480x480x915 | 540x540x890 | 480x480x985 |
| Optional Accessories |
| Lockable Lid | Standard | Standard | Standard | Standard | Standard |
| PU Bag (Protective Jacket) | / | Standard | Standard | / | Standard |
| Smart Cap | Standard | Standard | Standard | Standard | Standard |
| Roller Base | / | Standard | Standard | Standard | Standard |
| Model | LNC-65-216L | LNC-95-216L | LNC-115-216L | LNC-145-216L | LNC-175-216L |
| Performance |
|
| LN₂ Capacity (L) | 65 | 95 | 115 | 145 | 175 |
| Weight Empty (kg) | 38.3 | 41.3 | 42.3 | 48.9 | 53.8 |
| Neck Opening (mm) | 216 | 216 | 216 | 216 | 216 |
| Outer Diameter (mm) | 681 | 681 | 681 | 681 | 681 |
| Overall Height (mm) | 712 | 774 | 846 | 946 | 1060 |
| Static Evaporation Rate (L/day) | 0.78 | 0.97 | 0.94 | 0.96 | 0.95 |
| Static Holding Time (day) | 83 | 98 | 122 | 151 | 184 |
| Maximum Storage Capacity |
|
| Racks 2mL Freezing Tube | Number of Racks (ea) | 6/7 | 6/7 | 6/7 | 6/7 | 6/7 |
| Rack Size (mm) | 142x144 | 142x144 | 142x144 | 142x144 | 142x44 |
| Vial Boxes Size (mm) | 134x134 | 134x134 | 134x134 | 134x134 | 134x134 |
| Boxes Per Rack (ea) | 4 | 5 | 6 | 8 | 10 |
| 1.2; 1.8 & 2ml Vials (Internally Threaded) | 2400/2800 | 3000/3500 | 3600/4200 | 4800/5600 | 6000/7000 |
| Racks 5mL Freezing Tube | Number of Racks (ea) | 6/7 | 6/7 | 6/7 | 6/7 | 6/7 |
| Rack Size (mm) | 142x144 | 142x144 | 142x144 | 142x144 | 142x144 |
| Vial Boxes Size (mm) | 134x134 | 134x134 | 134x134 | 134x134 | 134x134 |
| Boxes Per Rack (ea) | 2 | 2 | 3 | 4 | 5 |
| 1.2; 1.8 & 2ml Vials (Internally Threaded) | 972/1134 | 972/1134 | 1458/1701 | 1944/2268 | 2430/2835 |
| Gross Weight (kg) | 60.8 | 65.9 | 69.2 | 80.1 | 89.3 |
| Shipping Size (WxDxH) (mm) | 810x810x945 | 810x810x1005 | 810x810x1065 | 810x810x1185 | 810x810x1315 |
| Optional Accessories |
|
| Lockable Lid | Standard | Standard | Standard | Standard | Standard |
| PU Bag (Protective Jacket) | / | / | / | / | / |
| Smart Cap | Standard | Standard | Standard | Standard | Standard |
| Roller Base | Standard | Standard | Standard | Standard | Standard |
Liquid nitrogen tanks are used in hospitals, cell laboratories, stem cell banks, etc. That require long-term storage of biological samples and frequent sample extraction.

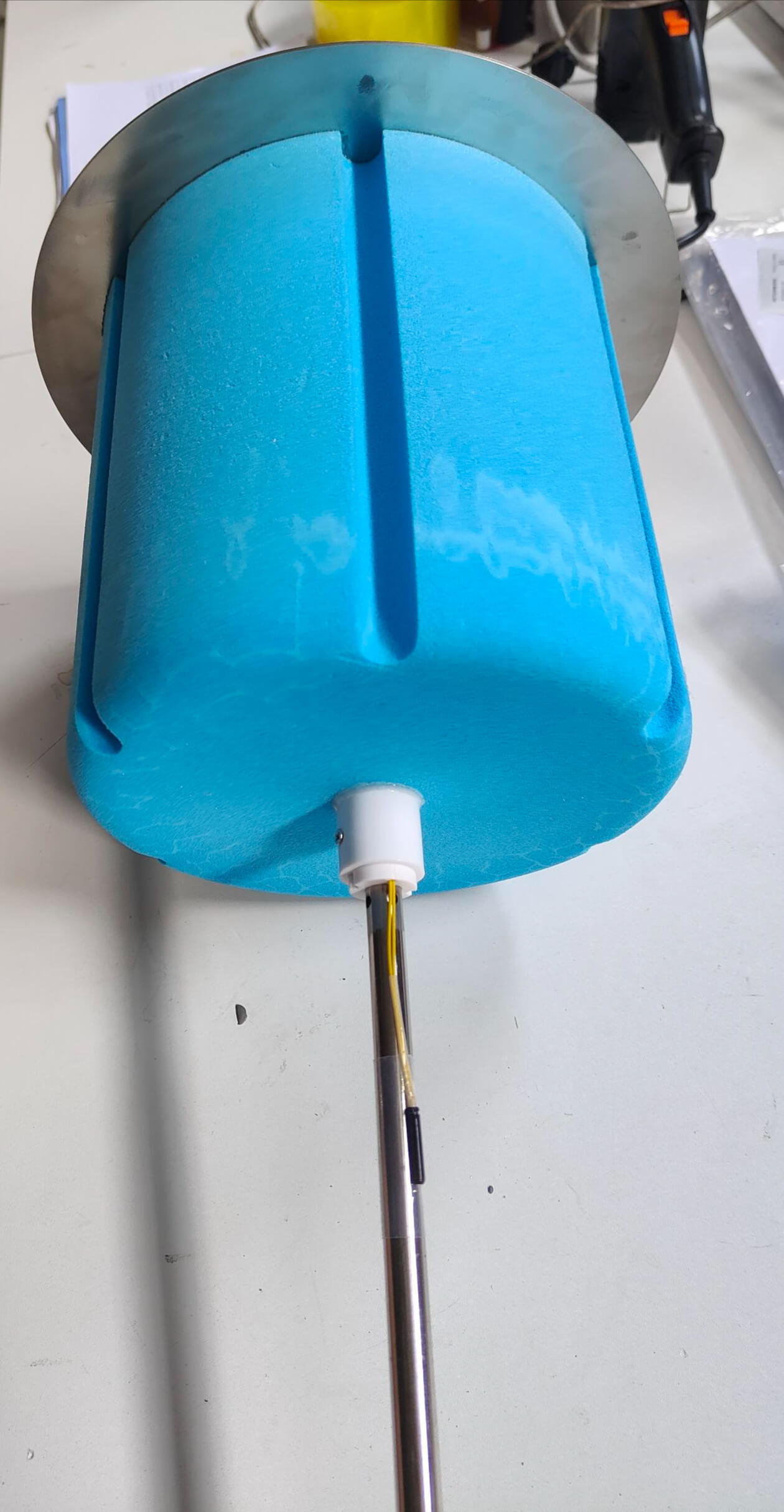

Can be equipped with liquid level monitor to monitor the liquid level height in real time and send out low level sound and light alarm.
Liquid Nitrogen Tank Features:
Durable aluminum structure.
Designed for long-term storage, it is easy to take and place samples.

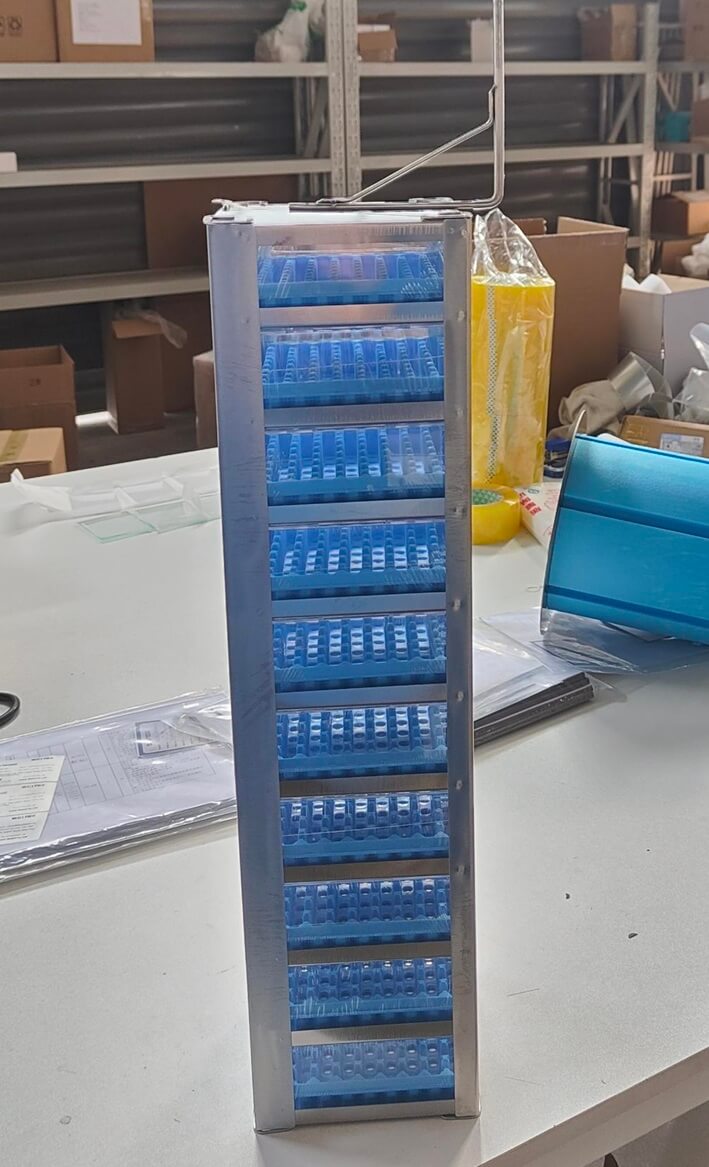

Matching freezing shelves and freezing boxes, quickly and effectively finding the required samples.
Large capacity and low liquid nitrogen consumption.
Optional transport vehicle.
Reliability
Optional safety lock cover structure to prevent others from unlocking without authorization.
Five years vacuum warranty.
Details of Liquid Nitrogen Tank(LNC-175-216L):

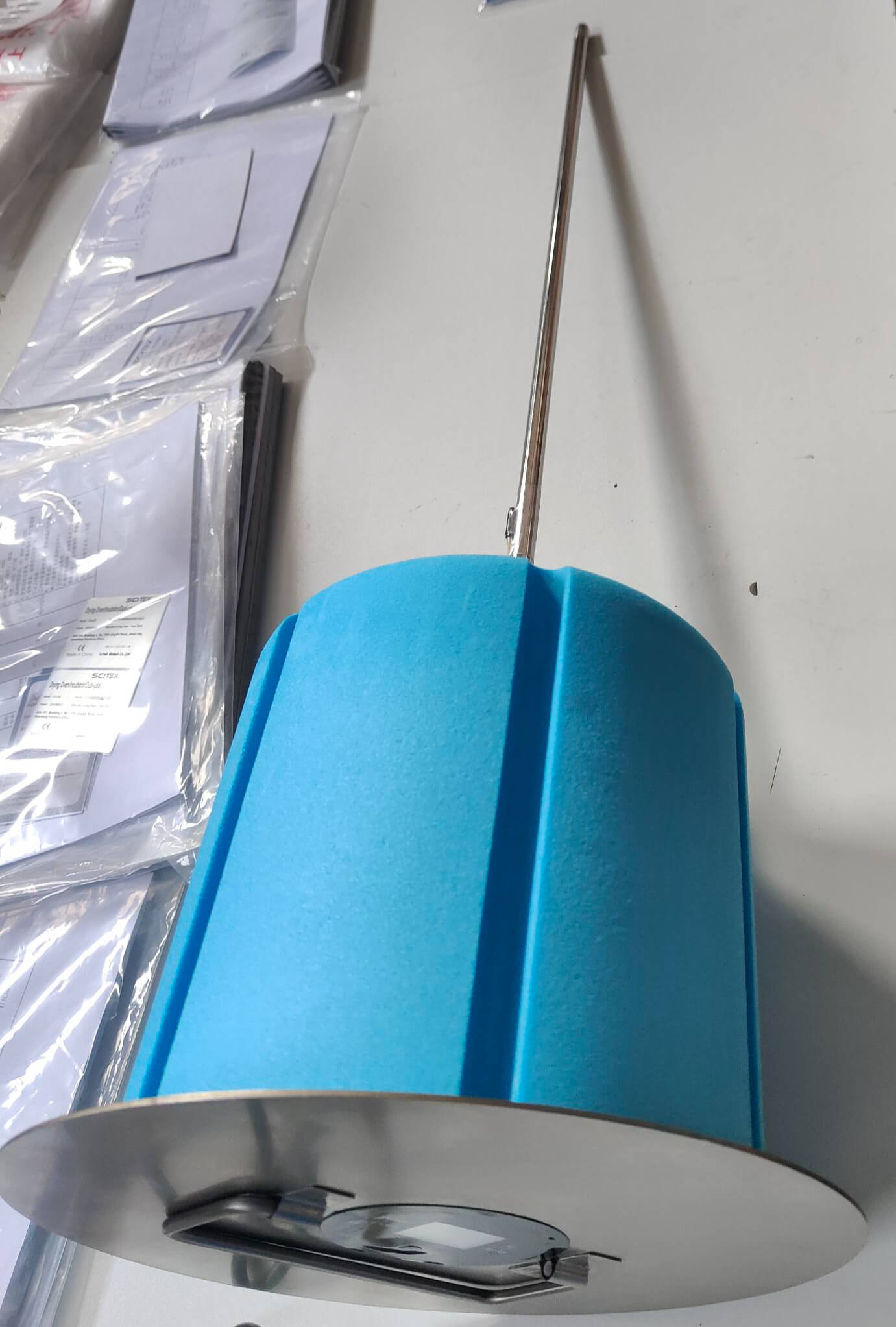

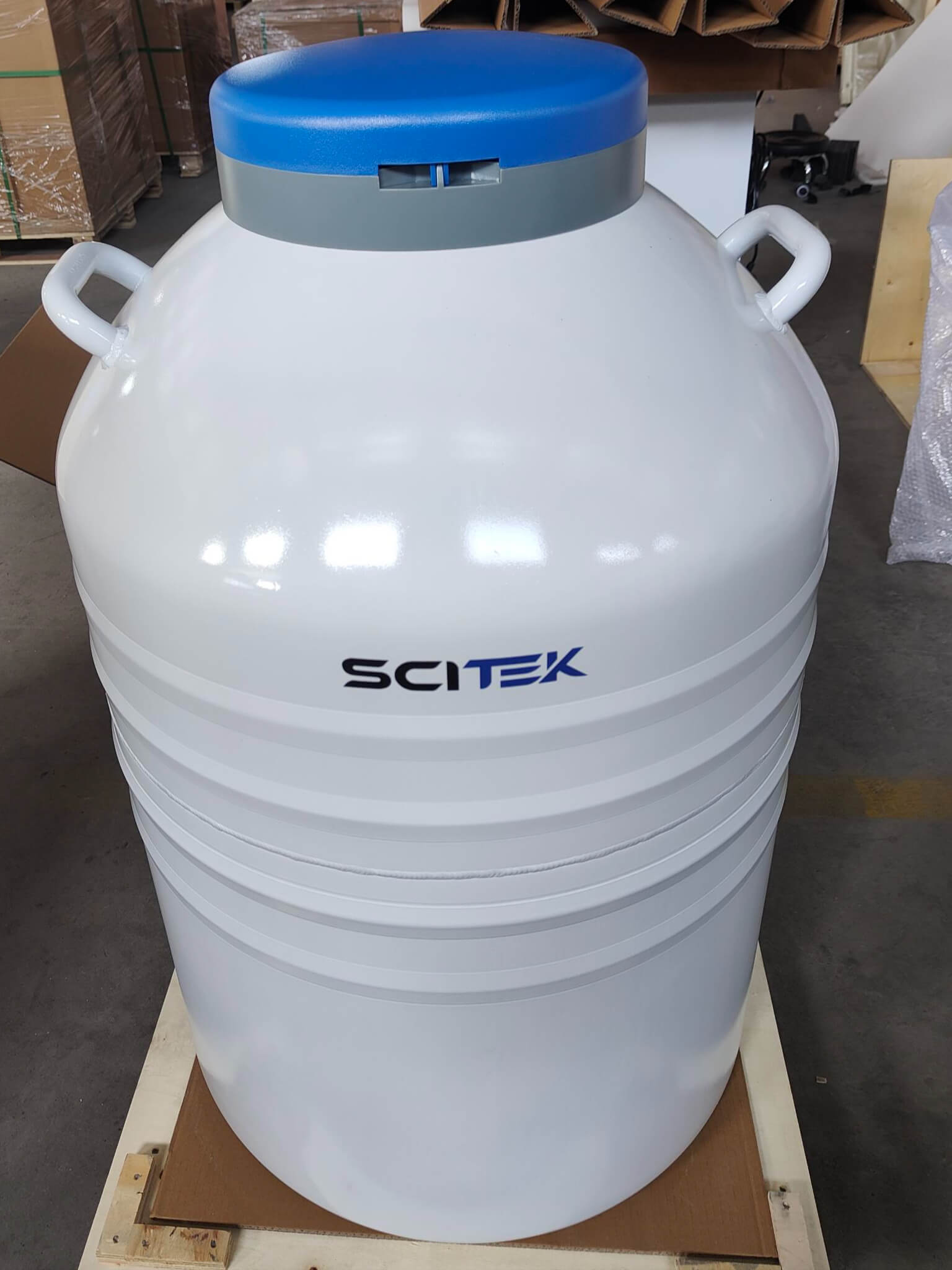

The side view of the liquid nitrogen tank showing its large, cylindrical body, designed for secure storage and transportation of liquid nitrogen. The tank features a robust, insulated exterior for optimal temperature maintenance. Highlighting the sturdy lid with a secure sealing mechanism, ensuring safe containment of liquid nitrogen. The design is meant for easy access while preventing accidental leakage.

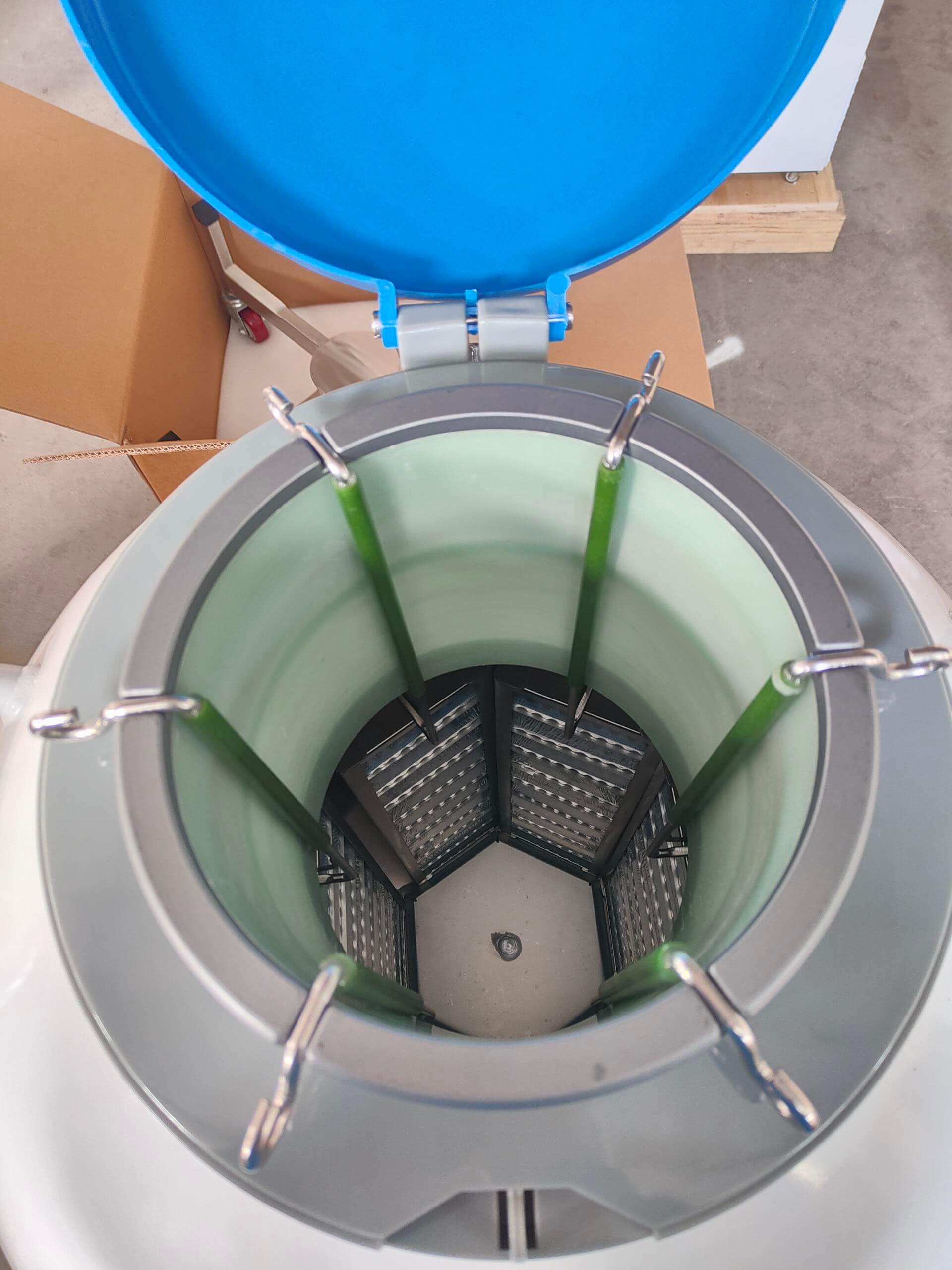

Interior view showing the inner container's design, which maintains the low temperature of the liquid nitrogen. It is built with multiple layers to ensure efficient insulation and temperature control.

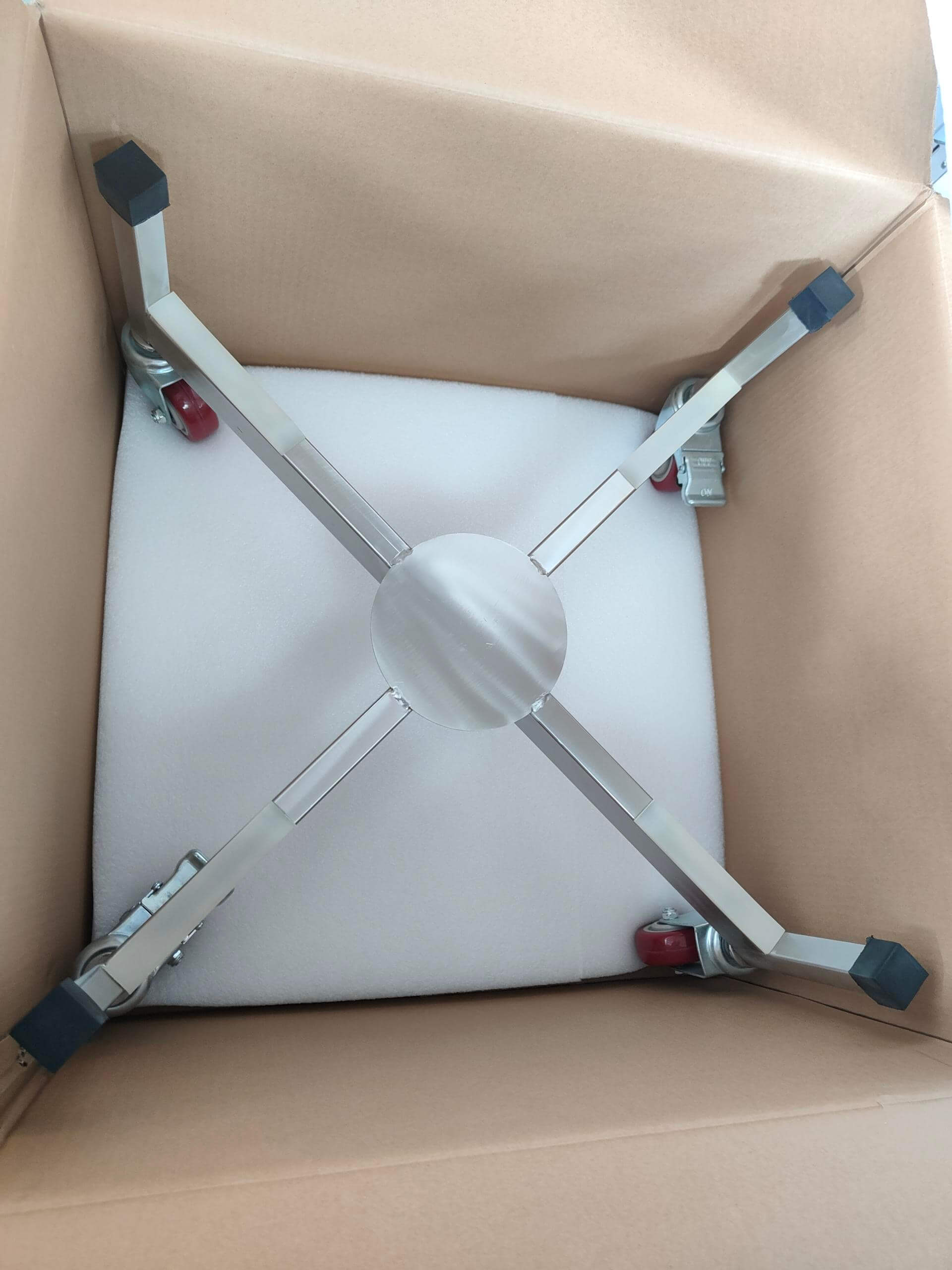

Showing it securely packed in protective material, ensuring that it arrives safely and without damage during transit. This liquid nitrogen tank is designed for safe, reliable, and efficient storage of liquid nitrogen, ensuring the preservation of temperature-sensitive materials in research and medical applications.
