The large caliber square bucket series products combine the advantages of low liquid nitrogen consumption and medium range freezing tube capacity. The larger caliber and convenient extraction freezing rack make it convenient for situations where biological samples need to be stored for a long time and samples need to be extracted frequently. This series of liquid nitrogen tanks is lightweight and occupies less space, making it the preferred product for small sample libraries or in the early stages of library construction.
Laboratory Liquid Nitrogen Tank Feature:
Performance features: Large tank caliber, large capacity, low liquid nitrogen consumption, 5-year vacuum guarantee, standard safety lock cover, high-strength, lightweight aluminum structure.
Laboratory Liquid Nitrogen Tank Specifications:

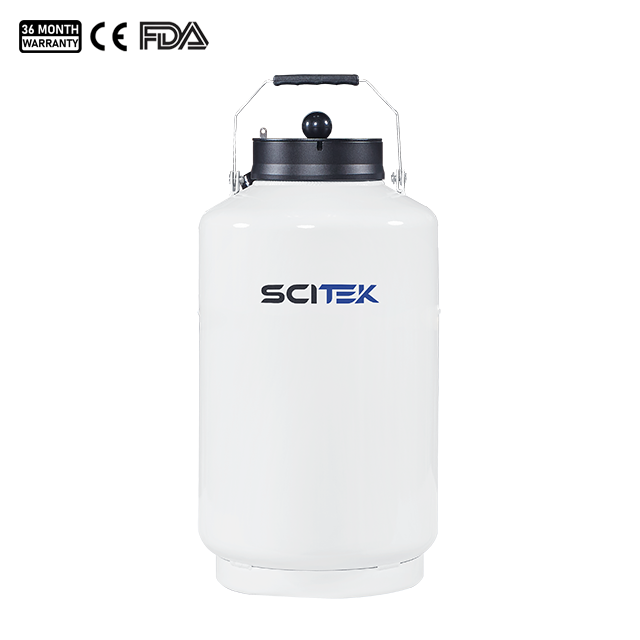

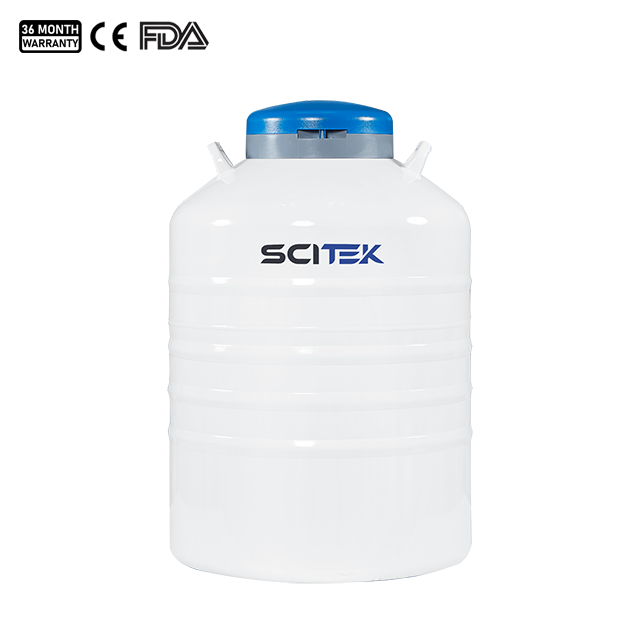

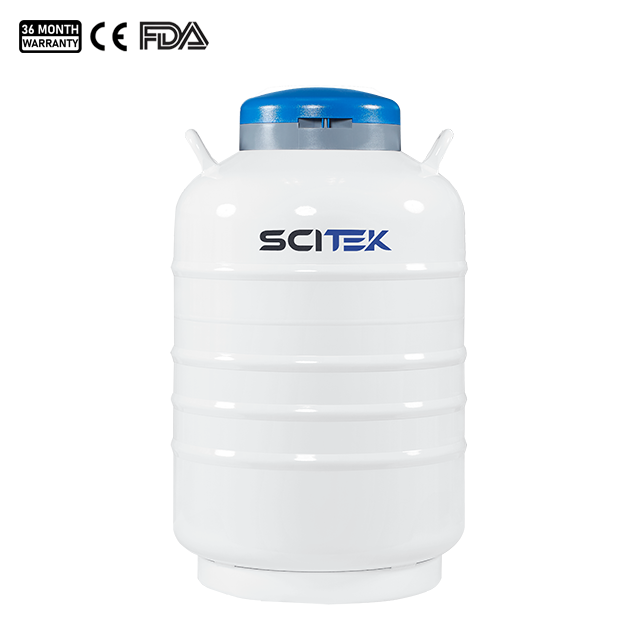

| Model | LNC-10-125BL | LNC-30-125BL | LNC-35-125BL | LNC-47-127BL | LNC-50-125BL |
|---|
| Number of rectangular handle buckets | 1 | 6 | 6 | 6 | 6 |
| Number of 2.0 ml cryovials (100-compartment rectangular handle bucket) | —— | —— | —— | —— | —— |
| Number of 2.0 ml cryovials (25-compartment rectangular handle bucket) | 100 | 600 | 750 | 750 | 900 |
| Layer numbers of cryo rack | 4 | 4 | 5 | 5 | 6 |
| Number of 5.0 ml cryovials (81-compartment rectangular handle bucket) | —— | —— | —— | —— | —— |
| Number of 5.0 ml cryovials (25-compartment rectangular handle bucket) | 50 | 300 | 300 | 300 | 450 |
| Layer numbers of cryo rack | 2 | 2 | 2 | 2 | 3 |
| Capacity L | 10 | 30 | 35.5 | 47 | 50 |
| Static evaporation rate L/day | 0.43 | 0.33 | 0.36 | 0.36 | 0.36 |
| Static liquid nitrogen storage period/d | 23 | 90 | 99 | 131 | 139 |
| Caliber (mm) | 125 | 125 | 125 | 127 | 125 |
| Overall height (mm) | 584 | 736 | 805 | 730 | 820 |
| External diameter (mm) | 300 | 451 | 451 | 508 | 508 |
| Net weight (kg) | 9.4 | 20.2 | 20.6 | 23 | 28.5 |
| Model | LNC-65-216BL/4 | LNC-65-216BL/6 | LNC-95-216BL | LNC-115-216BL | LNC-120-216BL |
|---|
| Number of rectangular handle buckets | 4 | 6 | 6 | 6 | 4 |
| Number of 2.0 ml cryovials (100-compartment rectangular handle bucket) | 2000 | 2400 | 3000 | 3600 | 4000 |
| Number of 2.0 ml cryovials (25-compartment rectangular handle bucket) | —— | —— | —— | —— | —— |
| Layer numbers of cryo rack | 5 | 4 | 5 | 6 | 10 |
| Number of 5.0 ml cryovials (81-compartment rectangular handle bucket) | 648 | 972 | 972 | 1458 | 1620 |
| Number of 5.0 ml cryovials (25-compartment rectangular handle bucket) | —— | —— | —— | —— | —— |
| Layer numbers of cryo rack | 2 | 2 | 2 | 3 | 5 |
| Capacity (L) | 65 | 65 | 95 | 120 | 121 |
| Static evaporation rate (L/day) | 0.78 | 0.78 | 0.81 | 0.85 | 0.85 |
| Static liquid nitrogen storage (period/d) | 83 | 83 | 117 | 141 | 142 |
| Caliber (mm) | 216 | 216 | 216 | 216 | 216 |
| Overall height (mm) | 760 | 785 | 840 | 905 | 1050 |
| External diameter (mm) | 575 | 678 | 678 | 678 | 575 |
| Net weight (kg) | 29 | 49.2 | 53.3 | 58.1 | 38.7 |

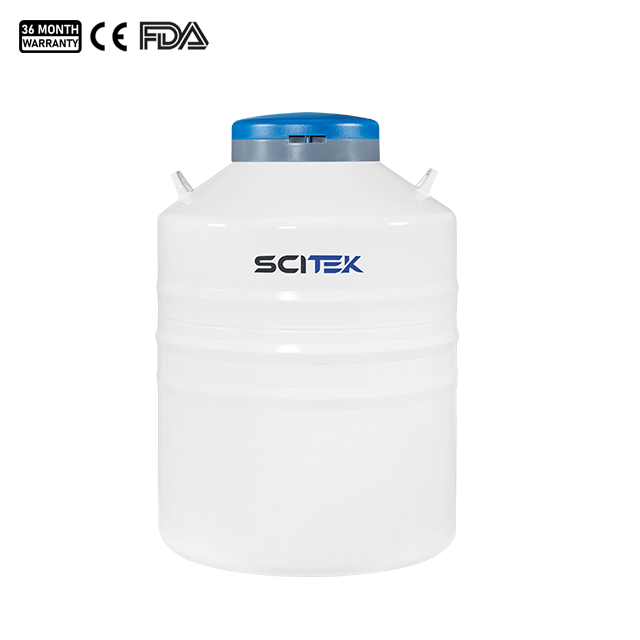

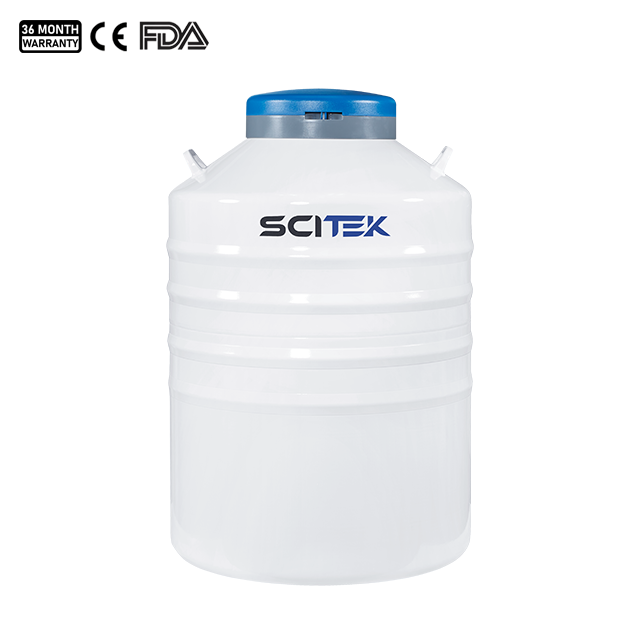

| Model | LNC-145-216BL | LNC-175-216BL |
|---|
| Number of rectangular handle buckets | 6 | 6 |
| Number of 2.0 ml cryovials (100-compartment rectangular handle bucket) | 4800 | 6000 |
| Number of 2.0 ml cryovials (25-compartment rectangular handle bucket) | —— | —— |
| Layer numbers of cryo rack | 8 | 10 |
| Number of 5.0 ml cryovials (81-compartment rectangular handle bucket) | 6 | 6 |
| Number of 5.0 ml cryovials (25-compartment rectangular handle bucket) | 1944 | 2430 |
| Layer numbers of cryo rack | —— | —— |
| Capacity (L) | 4 | 5 |
| Static evaporation rate (L/day) | 0.85 | 0.87 |
| Static liquid nitrogen storage (period/d) | 171 | 175 |
| Caliber (mm) | 171 | 202 |
| Overall height (mm) | 216 | 216 |
| External diameter (mm) | 1040 | 1090 |
| Net weight (kg) | 678 | 678 |
| Number of rectangular handle buckets | 67.1 | 72.3 |
