LN₂ Storage Tanks Specifications:

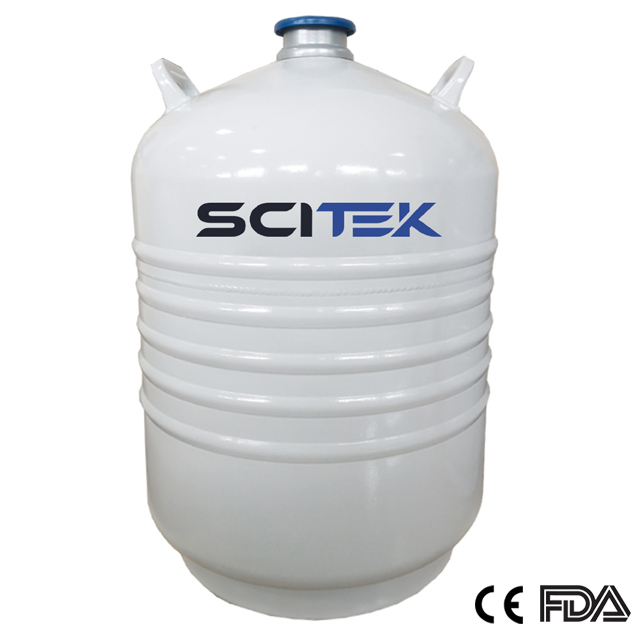

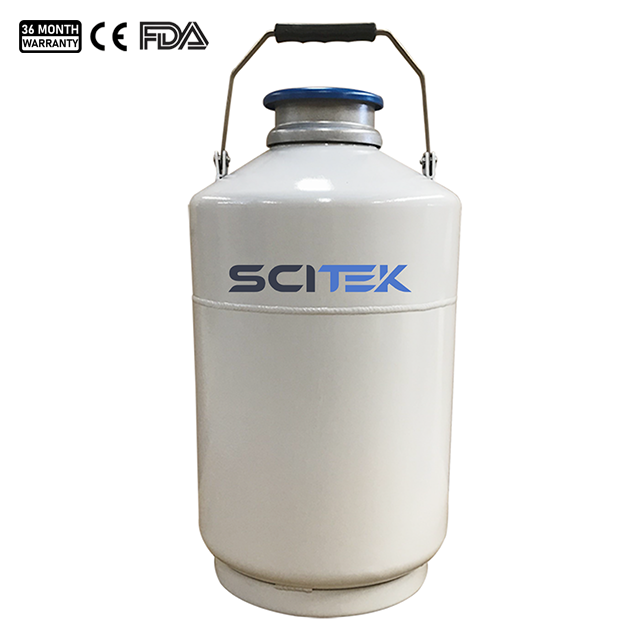

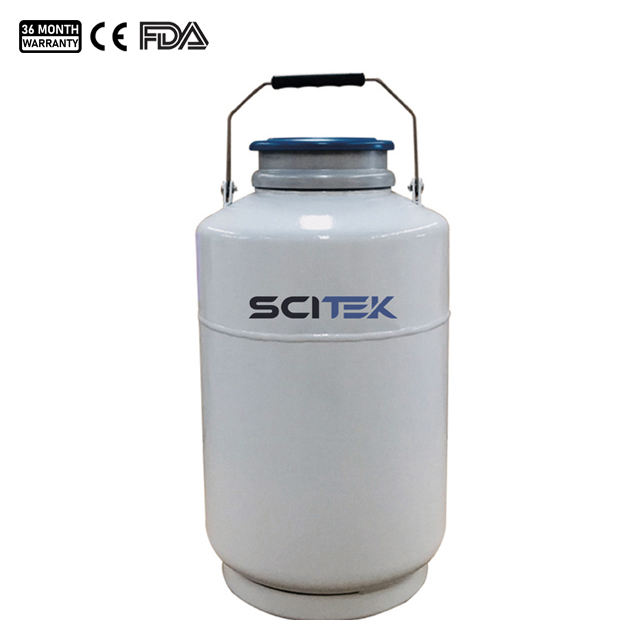

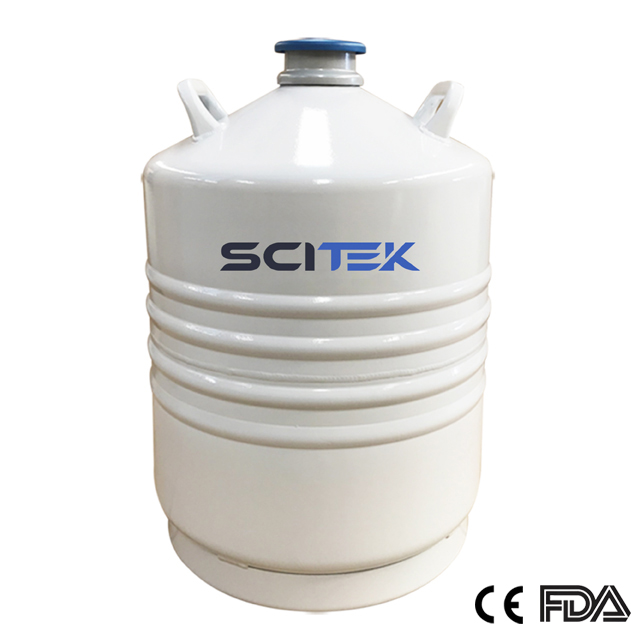

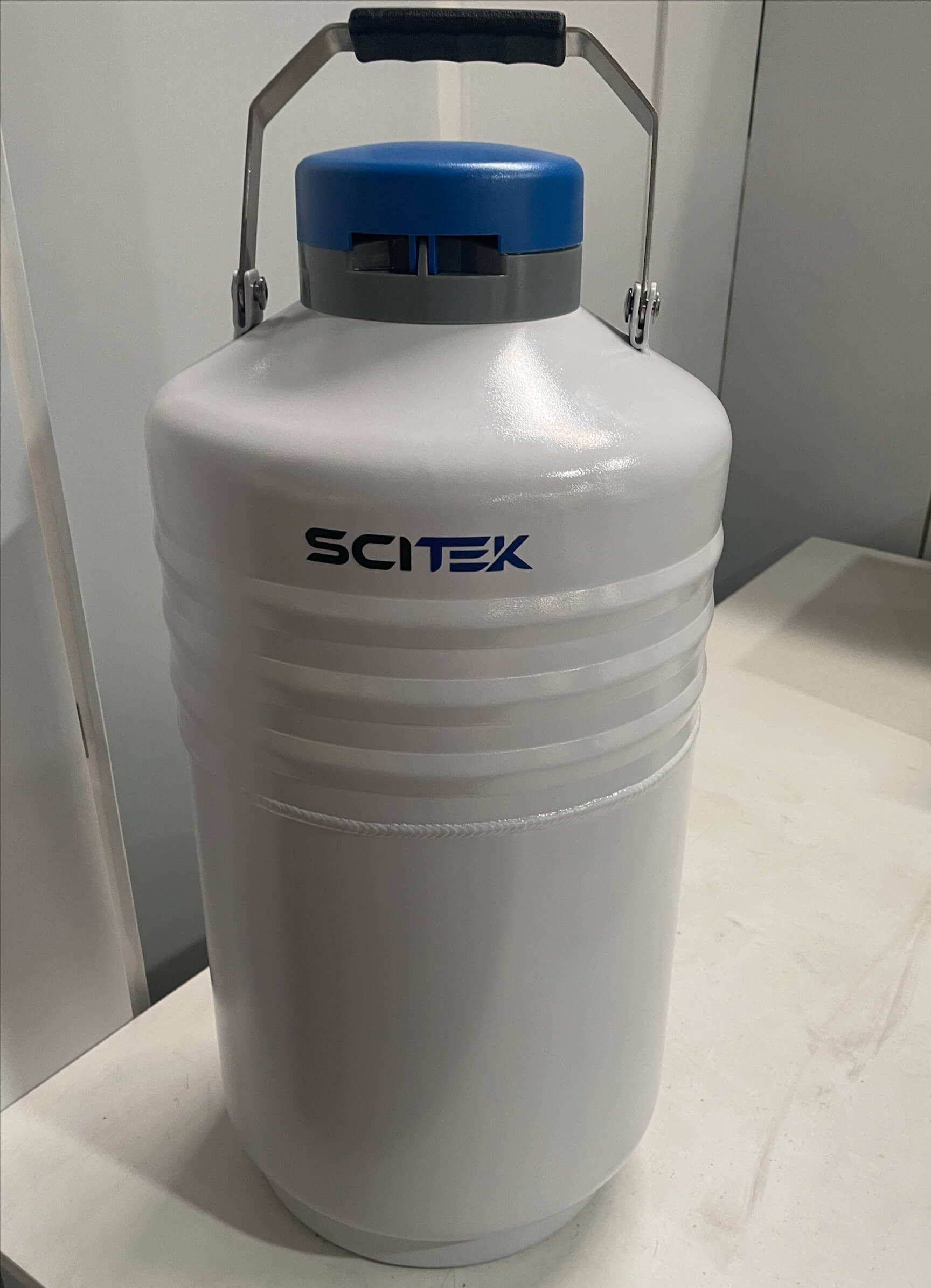

| Model | LNC-10-80S | LNC-10-125S | LNC-13-50S | LNC-15-50S | LNC-20-50S | LNC-25-50S | LNC-30-50S |
|---|
| Performance |
| LN₂ Capacity (L) | 10 | 10 | 13 | 15 | 20 | 25 | 31.5 |
| Weight Empty (kg) | 6.2 | 6.3 | 6.3 | 8.5 | 9.5 | 10.7 | 12.9 |
| Neck Opening (mm) | 80 | 125 | 50 | 50 | 50 | 50 | 50 |
| Outer Diameter (mm) | 300 | 300 | 310 | 394 | 394 | 394 | 462 |
| Overall Height (mm) | 557 | 554 | 623 | 591 | 672 | 700 | 705 |
| Static Evaporation Rate (L/day) | 0.21 | 0.43 | 0.12 | 0.11 | 0.12 | 0.14 | 0.12 |
| Static Holding Time (day) | 48 | 24 | 109 | 134 | 168 | 180 | 254 |
| Maximum Storage Capacity |
| Canister Diameter (mm) | 63 | 97 | 38 | 38 | 38 | 38 | 38 |
| Canister Height (mm) | 120 | 120 | 276 | 120 | 120/276 | 120/276 | 120/276 |
| Numbar Of Canisters (sa) | 6 | 1 | 6 | 6 | 6 | 6 | 6 |
| Straws Capacity (120 mm canister) | 0.5ml (ea) | 2244 | 854 | / | 792 | 792 | 792 | 792 |
| 0.25ml (ea) | 5022 | 1940 | / | 1788 | 1788 | 1788 | 1788 |
| Straws Capacity (276 mm Canister) | 0.5ml (ea) | / | / | 1284 | / | 1284 | 1284 | 1284 |
| 0.25ml (ea) | / | / | 2832 | / | 2832 | 2832 | 2832 |
| Gross Weight (kg) | 8.3 | 7.6 | 9.1 | 11.3 | 12.7 | 14.2 | 15.8 |
| Shipping Size (WxDxH) (mm) | 340x340 x615 | 340x340 x615 | 350x350 x690 | 425x425 x655 | 425x425 x735 | 425x425 x765 | 480x480 x900 |
| Optional Accessories |
| Lockable Lid | Standard | Standard | Standard | Standard | Standard | Standard | Standard |
| PU Bag (Protective Jacket) | Standard | / | Standard | Standard | Standard | Standard | Standard |
| Smart Cap | Standard | Standard | Standard | Standard | Standard | Standard | Standard |
| Roller Base | / | / | / | / | / | / | Standard |

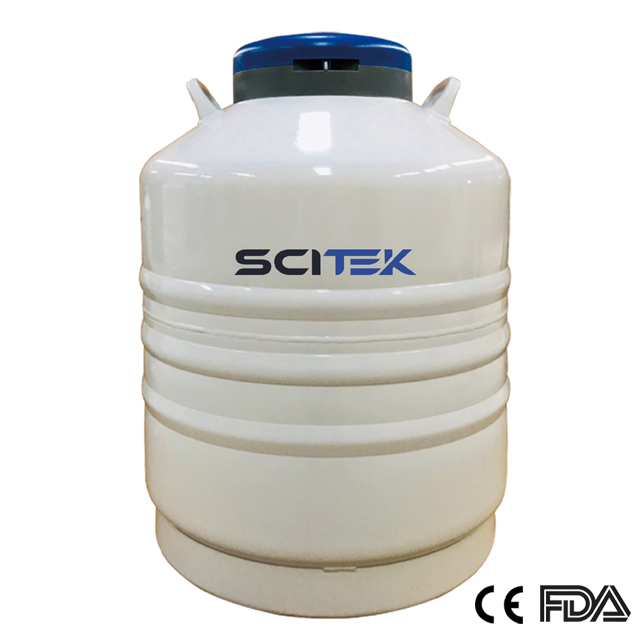

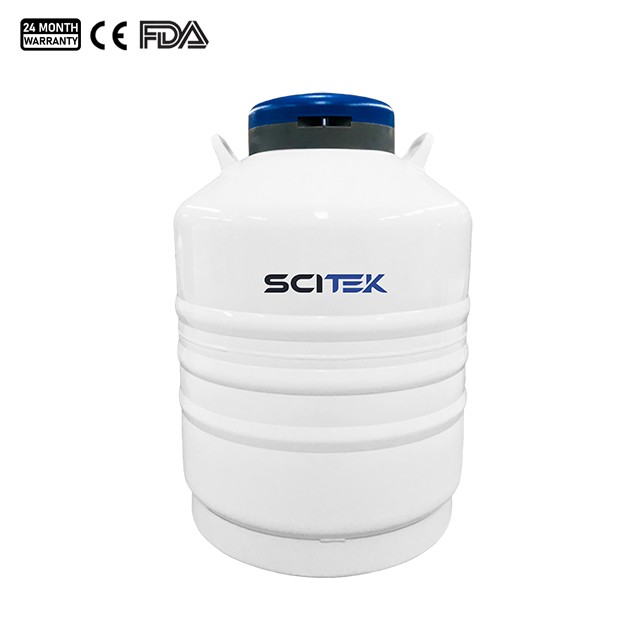

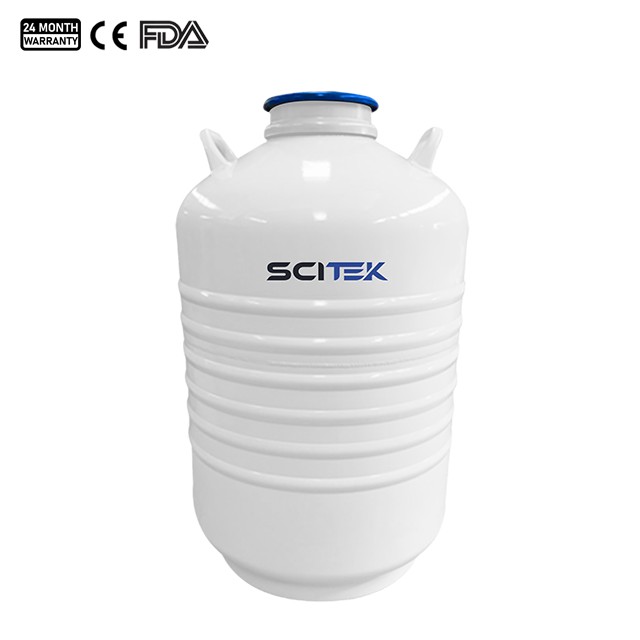

| Model | LNC-30-80S | LNC-30-125S | LNC-35-50S | LNC-35-80S | LNC-35-125S | LNC-47-127S | LNC-50-125S |
|---|
| Performance |
| LN₂ Capacity (L) | 31.5 | 31.5 | 35.5 | 35.5 | 35.5 | 47 | 50 |
| Weight Empty (kg) | 13 | 13 | 14.2 | 14.5 | 14.6 | 18.2 | 17.3 |
| Neck Opening (mm) | 80 | 125 | 50 | 80 | 125 | 127 | 125 |
| Outer Diameter (mm) | 462 | 462 | 462 | 462 | 462 | 508 | 462 |
| Overall Height (mm) | 709 | 704 | 749 | 753 | 748 | 718 | 818 |
| Static Evaporation Rate (L/day) | 0.21 | 0.35 | 0.12 | 0.22 | 0.37 | 0.36 | 0.45 |
| Static Holding Time (day) | 147 | 90 | 286 | 159 | 97 | 130 | 110 |
| Maximum Storage Capacity |
| Canister Diameter (mm) | 63 | 97 | 38 | 63 | 97 | 104 | 97 |
| Canister Height (mm) | 120/276 | 120 | 120/276 | 120/276 | 120/276 | 276 | 120/276 |
| Numbar of Canisters (sa) | 6 | 6 | 6 | 6 | 6 | 6 | 6 |
| Straws Capacity (120 mm Canister) | 0.5ml (ea) | 2244 | 5124 | 792 | 2244 | 5124 | / | 5124 |
| 0.25ml (ea) | 5022 | 11640 | 1788 | 5022 | 11640 | / | 11640 |
| Straws Capacity (276 mm Canister) | 0.5ml (ea) | 3624 | / | 1284 | 3624 | 9048 | 10704 | 9048 |
| 0.25ml (ea) | 8460 | / | 2832 | 8460 | 20760 | 23604 | 20760 |
| Gross Weight (kg) | 16.3 | 17.3 | 18.1 | 18.7 | 19.9 | 26.2 | 23.4 |
| Shipping Size (WxDxH)(mm) | 480x480x900 | 480x480x900 | 480x480x915 | 480x480x915 | 480x480x915 | 540x540x890 | 480x480x985 |
| Optional Accessories |
| Lockable Lid | Standard | Standard | Standard | Standard | Standard | Standard | Standard |
| PU Bag (Protective Jacket) | Standard | Standard | Standard | Standard | Standard | / | Standard |
| Smart Cap | Standard | Standard | Standard | Standard | Standard | Standard | Standard |
| Roller Base | Standard | Standard | Standard | Standard | Standard | Standard | Standard |

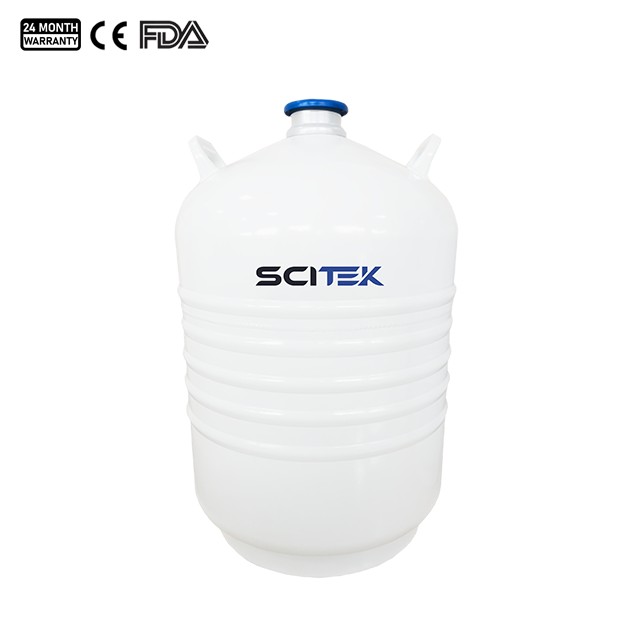

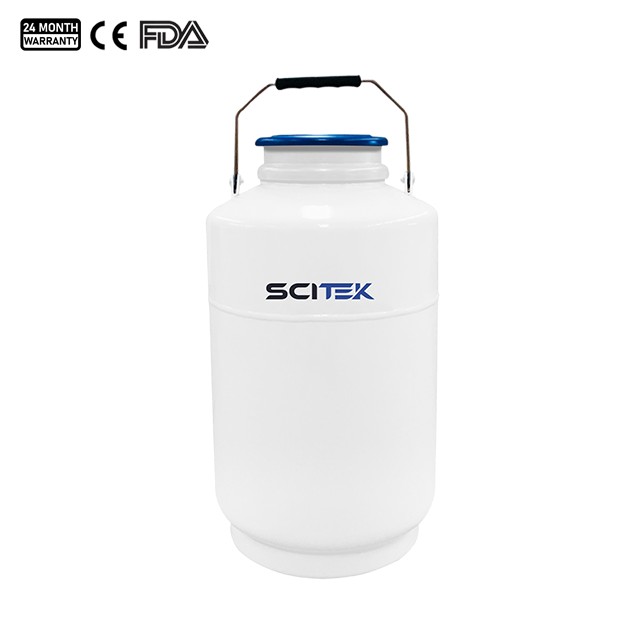

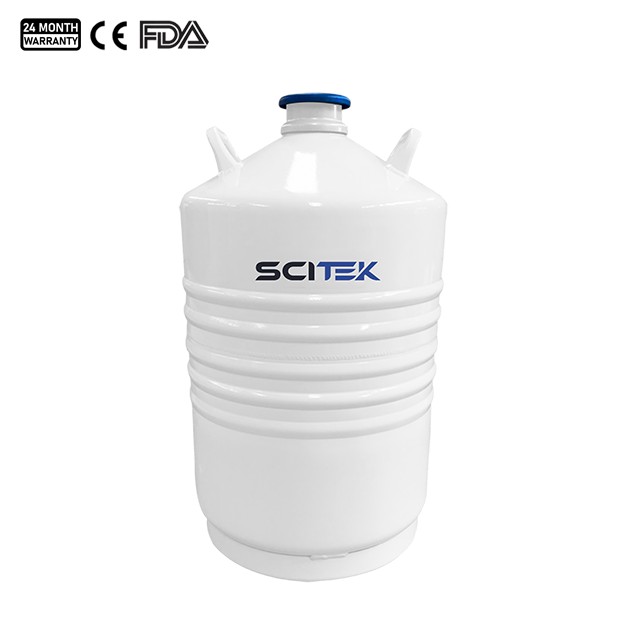

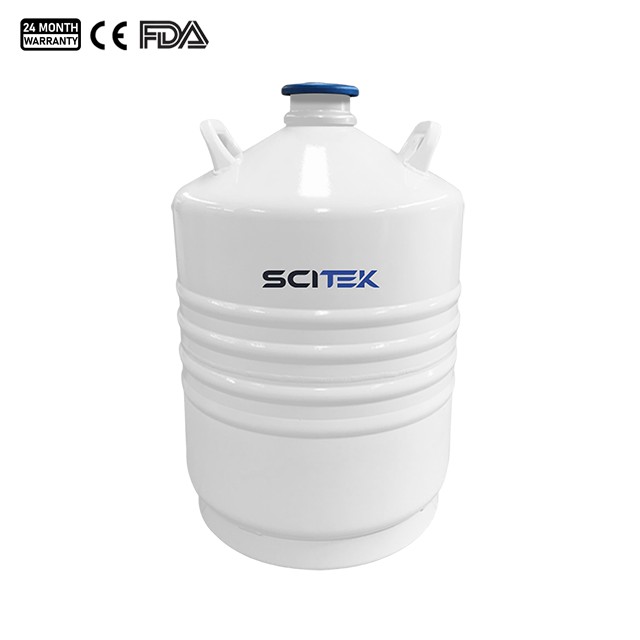

Static storage liquid nitrogen tank is made of high strength and light weight aluminium alloy with multi-layer and super-strong insulation layer. It realizes the safety, lightness and efficiency of the product. Specially designed for biological samples that need long-term static storage.
Liquid Nitrogen Tank Features:
High strength, light weight and small size aluminum structure.
Equipped with belt.
Ultra low evaporation loss.
Large straw capacity.
Vials cane is optional.
Roller base is optional.
Reliability
Lockable lid is optional to prevent unauthorized open.

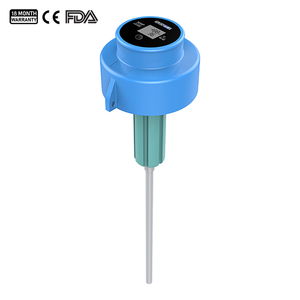

Level monitoring system is optional.
Liquid nitrogen pump is optional.
Five years vacuum warranty.
