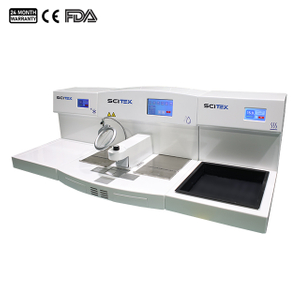

Tissue Embedding Center Specifications:
| Model | TE-V |
|---|
| Main Body |
| Temperature | RT~ 99°C |
| Temp. accuracy | ±1°C |
| Capacity | Paraffin Reservoir: 6.0 L |
| Cassette/Mold Tray: 1.6 L |
| Power Supply | 220V, 50/60Hz |
| Size(W×D×H)(mm) | 600x650x460 |
| Shipping Size(W×D×H)(mm) | 800x750x650 |
| N.W./G.W. (kg) | 45/55 |
| Cooling Center |
| Working Temperature | 0~ -20°C |
| Temp.accuracy | ±1°C |
| Operating Mode | Automatic |
| Power Supply | 220V, 50/60Hz |
| Size(W×D×H)(mm) | 410x660x450 |
| Shipping Size(W×D×H)(mm) | 830x550x660 |
| N.W./G.W. (kg) | 40/50 |
| Heating Center |
| Ambient Temperature | 0~45℃ |
| Relative Humidity | ≤ 85% |
| Heating Temperature Setting Range | 30~90℃ |
| Working Temperature | 30~70 ℃ |
| Consumption | 500W |
| Power Supply | 220V, 50/60Hz |
| Size(W×D×H)(mm) | 410x660x450 |
| Shipping Size(W×D×H)(mm) | 740X550x640 |
| N.W./G.W. (kg) | 12/38 |
Tissue Embedding Center Features:
The tissue embedding center consists of two modules, independently designed to meet different customer usage habits for left-to-right or right-to-left placement positions. The large working surface allows the user to process multiple samples at the same time. You can set the temperature and work start time via the control panel.
Main Control Panel:
Large ergonomic work surface allows multiple samples to be processed simultaneously.
Large cold point peltier designed to orientate small and large samples (jumbo cassettes).
Work start time and date can be programmed automatically.
Tissue embedding cassettes and bottom mold trays are removable and can be set to different temperatures.
Freezing Console:
It consists of a compressor-cooled work surface for rapidly cooling paraffin blocks.
The teflon-coated surface minimizes icing and is easy to clean.
You can adjust the temperature from ambient to -13 degrees celsius.
It can be used as a stand-alone unit near the slicer workstation.
