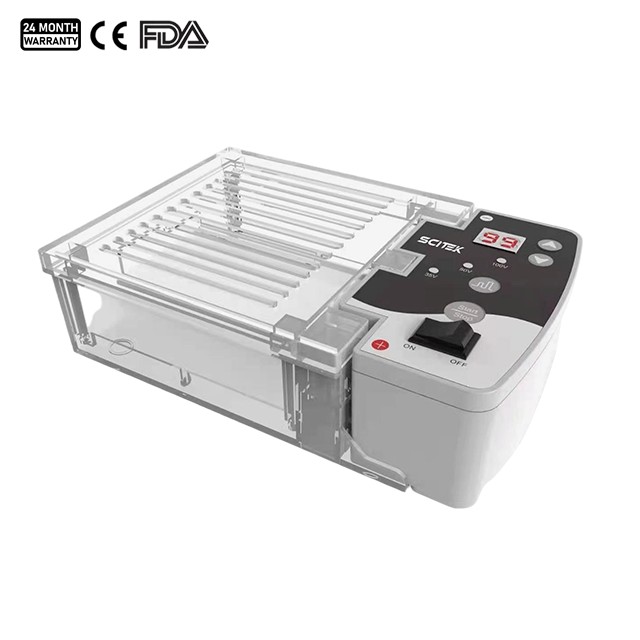

The integrated electrophoresis system combines the gel tank and power supply into a compact unit, eliminating cumbersome external wiring. It is an ideal all-in-one solution for modern life science laboratories, molecular biology research, and educational institutions.
Integrated Electrophoresis System Feature:
1.Built-in power supply and tank in one, save space and clean tank conveniently.
2.Set timing function for 1min to 99 min, press start button to start.
3.Design with wide voltage power supply AC100–240V, no need external power adapter.
4.Design with safety cover to have safe operation, power off immediately when lift the cover.
5.Two standard transfer plates (120×60 mm and 60×60 mm) are compatible
6.Three output voltages are freely switched, DC35V or DC50V or DC100V.
Integrated Electrophoresis System Specification:
Model | ET-H100 |
|---|
Gel Tray Size (W×D) | 140×140 mm (1 pc) |
Gel Size (W×D) | 60×60 mm (4 pc) |
60×120 mm (2 pc) |
Sample Comb Size (W×T) | 3×1 mm, 22/25 well |
6.7×1 mm, 12/13 well |
4.75×1 mm, 18/16 well |
15×1 mm, 6/5 well |
Buffer Volume | 230 mL |
Tank Material | High temperature resistant alloy plastics |
Time | 1–99 min |
Memory Function | Automatically saves the previous operating voltage and time. |
Safety Function | Automatically cuts off power when the lid is opened. |
Output Voltage | Fixed voltage, DC35V or DC50V or DC100V |
Power Supply | AC 100–240 V, 50–60 Hz |
Consumption | 40W |
Internal Size (W×D×H) | 120×125×44 mm |
External Size (W×D×H) | 190×130×60 mm |
Shipping Size (W×D×H) | 200×150×80 mm |
N.W/G.W. | 0.8/1 kg |
What is an electrophoresis power supply used for?
An electrophoresis power supply provides a controlled DC voltage or current to the electrophoresis tank. This drives charged molecules (such as DNA, RNA, and proteins) to migrate through the gel matrix, enabling separation based on molecular size and charge. It converts AC mains power into a stable, adjustable DC output and supports programmable settings for voltage, current, and time.
Difference between an electrophoresis power supply and an electrophoresis chamber?
The power supply generates and delivers a controlled electrical current; the electrophoresis chamber (gel tray) holds the gel and buffer and contains built-in electrodes. The electrophoresis process takes place inside the electrophoresis chamber. The two are connected via a banana plug or cable, and the power supply can be used with any compatible electrophoresis chamber.
