Vertical/Transfer Gel Electrophoresis Tank are compatible with Western blotting experiments, enabling a complete workflow from protein separation to membrane transfer. Supports rapid SDS-PAGE electrophoresis (45 min @ 200V), providing clear and reliable protein separation. Suitable for high-quality protein detection and analysis in the lab.

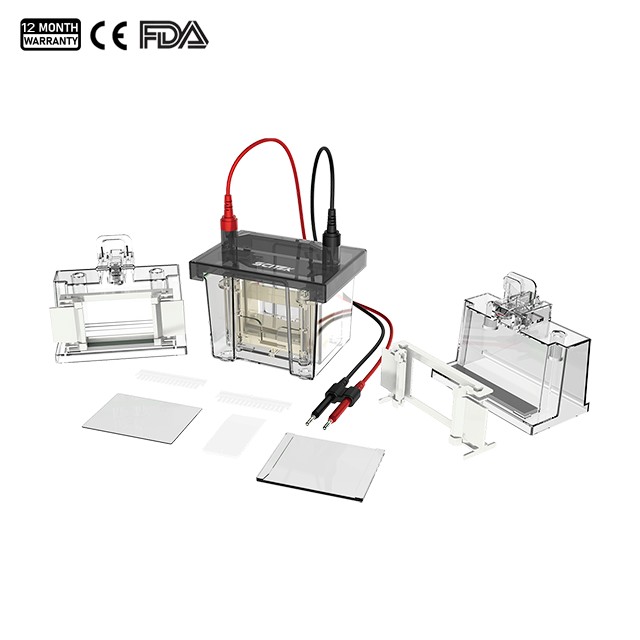

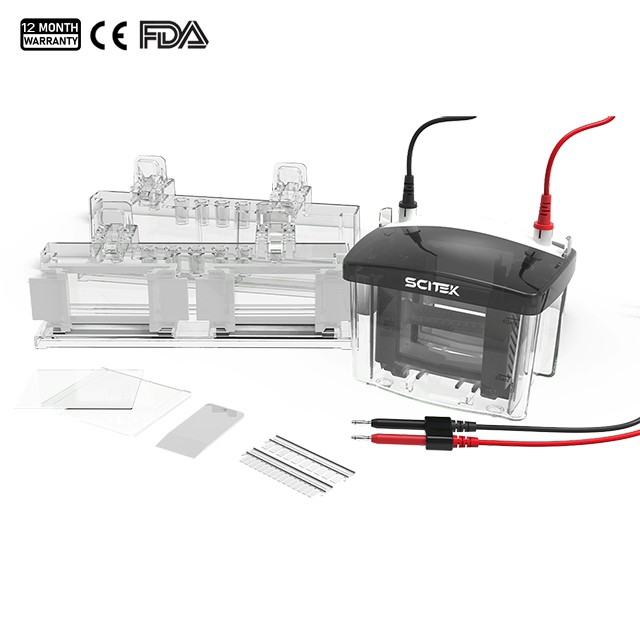

Vertical Gel Electrophoresis Tank Feature:
Supports running 2 (ET-V01A) or 4 (ET-V04A) gels, significantly increasing experimental throughput.
Equipped with rubber plates and sample combs of various thicknesses to accommodate different sample loading volumes.
Glass plate and sealing gasket are integrated, and the edge gasket is permanently fixed, providing a double leak-proof design and durable structure.
Dedicated gel-forming device combined with a cam-lock gel holder ensures precise alignment and rapid fixation, guaranteeing uniform gel polymerization.
99.99% high-purity platinum electrode, excellent conductivity, anti-aging properties, and corrosion resistance.
Automatic power cut-off upon opening the cover.
Top cover limit switch prevents reverse polarity connection
Can be used with the ET-T02A (ET-V01A) or ET-T03A (ET-V04A) Gel electrophoresis tank to meet Western Blotting needs.
SDS-PAGE electrophoresis time: 45 minutes (200V constant voltage).
Vertical Gel Electrophoresis Tank Specification:
Model | ET-V01A | ET-V04A |
|---|
Gel Area | 83×73 mm | Hand-cast gel 83×73 mm; |
Precast gel 86×68 mm; |
Gel Thickness | 0.75, 1.0 (standard); | 0.75, 1, 1.5 mm (standard) |
1.5 mm (optional); |
Option Tooth Number of Sample Comb | 10, 15 teeth |
Glass Size | Short Glass Plate | 101×73 mm |
Long Glass Plate | 101×82 mm |
Electrophoresis power supply are also available in money-saving bundles with Gel Tank:
Electrophoresis Power Supply | Gel Tank | Application |
|---|
EPS-300A | Vertical tank ET-V01A | / | / | |
EPS-300HCA | Vertical tank ET-V04A | / | / | |
EPS-300A | Horizontal tank ET-H01A | / | / | |
EPS-300HCA | Vertical tank ET-V01A | Transfer tank ET-T02A | / | Can Be Used For Western Blotting |
EPS-300HCA | Vertical tank ET-V01A | Transfer tank ET-T02A | Horizontal tank ET-H01A | Can Be Used For Western Blotting |
