Model | ET-H01 | |
---|---|---|
Gel Tray(W×L)(mm) | 75×60 | |
Gel Thickness | 1&1.5mm | |
Sample Comb | 6,11samples | |
Number of Samples | 6~22pcs | |
Buffer Capacity | 300ml | |
Sizes (W×D×H)(mm) | 180×90×70 | |
Shipping Size(W×D×H)(mm) | 310×310×220 | |
N.W./G.W. (kg) | 1/2 | |
Standard Accessories | ||
Name | Specification | Quantity |
Main Body Groove (Upper Cover) | 1 | |
Main Tank (Lower Tank) | 1 | |
Electrode | Positive pole | 1 |
Negative pole | 1 | |
Glue Maker | 1 | |
Tray | 1 | |
Sample Comb | 1.0mm 6 samples | 2 |
1.0mm 11 samples | 2 | |
1.5mm 6 samples | 2 | |
1.5mm 11 samples | 2 | |
Wireway | 1 |

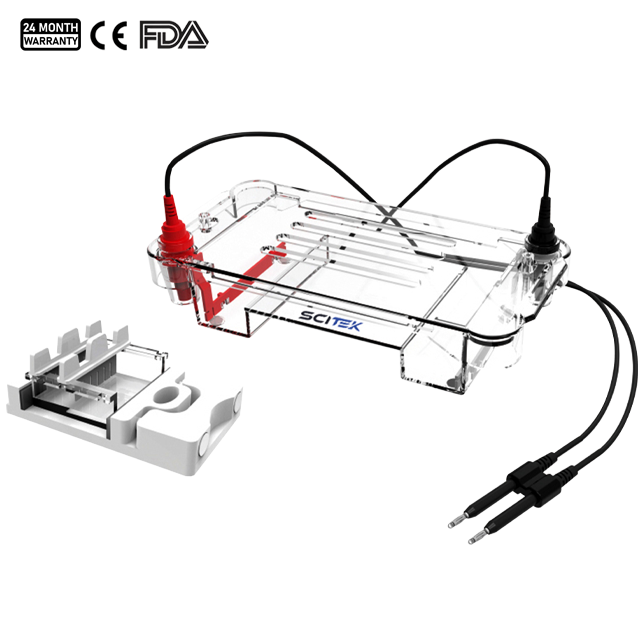

The product is made of an imported high-strength transparent material through a one-time injection molding to ensure product quality and durability.
The upper cover adopts an open-hole design, which is conducive to heat dissipation and allows users to observe the internal experimental situation.
Horizontal electrophoresis tank is equipped with a unique elastic compression-type gel maker, which prevents the gel from remaining on the tray, making the preparation process simpler, safer and faster.
The product is designed with removable electrodes, which is convenient for cleaning and maintenance and ensures the long-term stability and reliability of the equipment.
At the same time, using 99.99% high-purity platinum electrode wire greatly improved its conductivity and corrosion resistance to ensure the accuracy and durability of the experimental process. These characteristics make the product important in the laboratory, providing users with a convenient and reliable practical environment.
