The horizontal electrophoresis tank offers precise and efficient separation of DNA, RNA, or proteins through gel electrophoresis. Designed for reliable performance, it features a durable, leak-proof design with adjustable casting trays for various gel sizes. The system ensures consistent, uniform current distribution, making it ideal for molecular biology research, educational labs, and diagnostics. With easy setup and operation, it is a perfect tool for high-throughput electrophoresis applications.
Horizontal Electrophoresis Tank Specifications:
| Model | ET-H03 |
| Gel Tray(W×L)(mm) | 130×200,130×150 |
| Gel Thickness | 1&1.5mm |
| Sample Comb | 1.0mm: 14, 18, 26 samples; 1.5mm: 26 samples |
| Buffer Capacity | 800ml |
| Sizes (W×D×H)(mm) | 320×150×80 |
| Shipping Size(W×D×H)(mm) | 370×200×210 |
| N.W./G.W. (kg) | 1.5/3 |
| Standard Accessories |
| Name | Specification | Quantity |
| Main Body Groove (Upper Cover) |
| 1 |
| Main Tank (Lower Tank) |
| 1 |
| Electrode | Positive pole (red) | 1 |
| Negative electrode (black) | 1 |
| Tray | 130×150 | 1 |
| 130×200 | 1 |

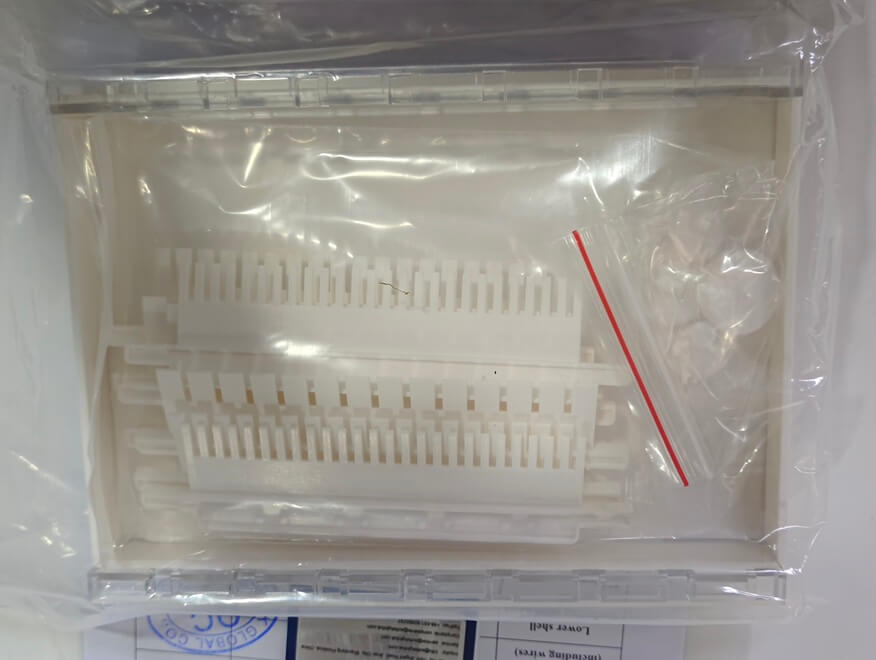

| Glue Maker Sample Comb | 1.0mm 14 samples | 2 |
| 1.0mm 18 samples | 2 |
| 1.0mm 26 samples | 2 |
| 1.5mm 18 samples | 2 |
Horizontal Electrophoresis Tank Features:
This gel electrophoresis chamber is designed for nucleic acid electrophoresis to separate, identify and determine the molecular weight of DNA and has several features:
Horizontal electrophoresis tank is made of high-strength and transparent polycarbonate plastic with one-time injection molding, which is non-leakage and impact-resistant.
Professional blue light shielding flip cover design, convenient for heat dissipation and effectively blocks the interference of blue light.
Can use with a blue light electrophoresis monitor, effectively shielding blue light and ensuring the observation of clear spectral bands.
Equipped with a bottom level adjusting knob, easy to adjust the level of the electrophoresis tank to ensure the accuracy of the experiment.
Provide two different sizes of gels, suitable for general and high throughput electrophoresis needs.
Designed with front and back gel cassettes to save space and improve experimental efficiency.
Horizontal electrophoresis tank is equipped with a background strip at the bottom of the tray, which helps to observe the sampling situation.
A 99.99% high-purity platinum electrode is used, greatly improving conductivity and corrosion resistance.
These gel electrophoresis chamber's feature make this product an indispensable tool in nucleic acid electrophoresis experiments, providing researchers with convenient, efficient and reliable experimental conditions for accurate identification and analysis of nucleic acid samples.
Details of Horizontal Electrophoresis Tank:

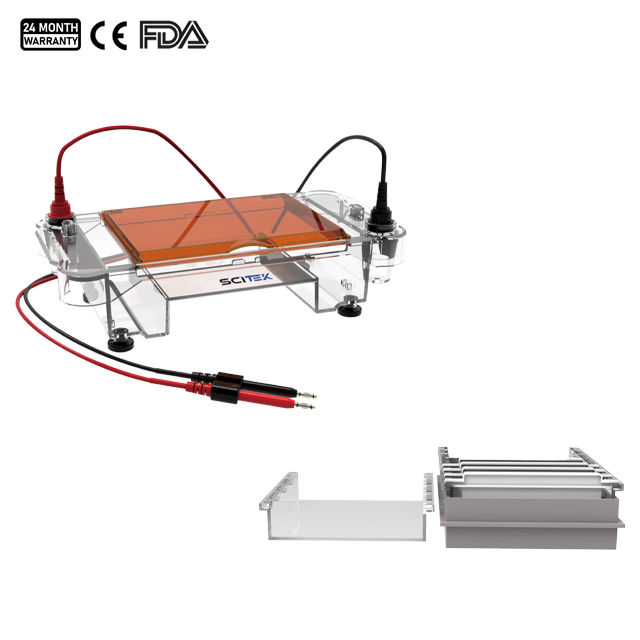

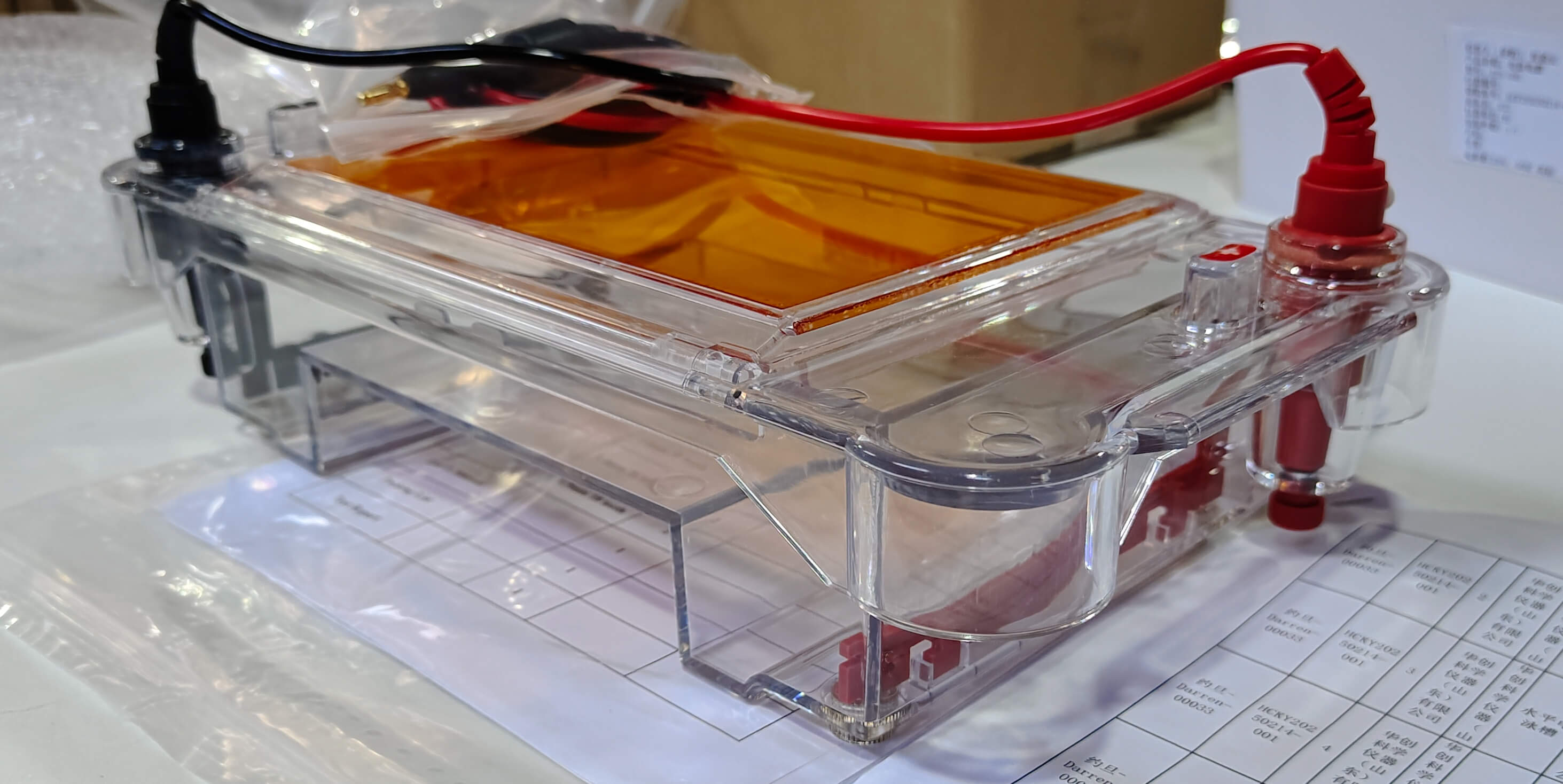

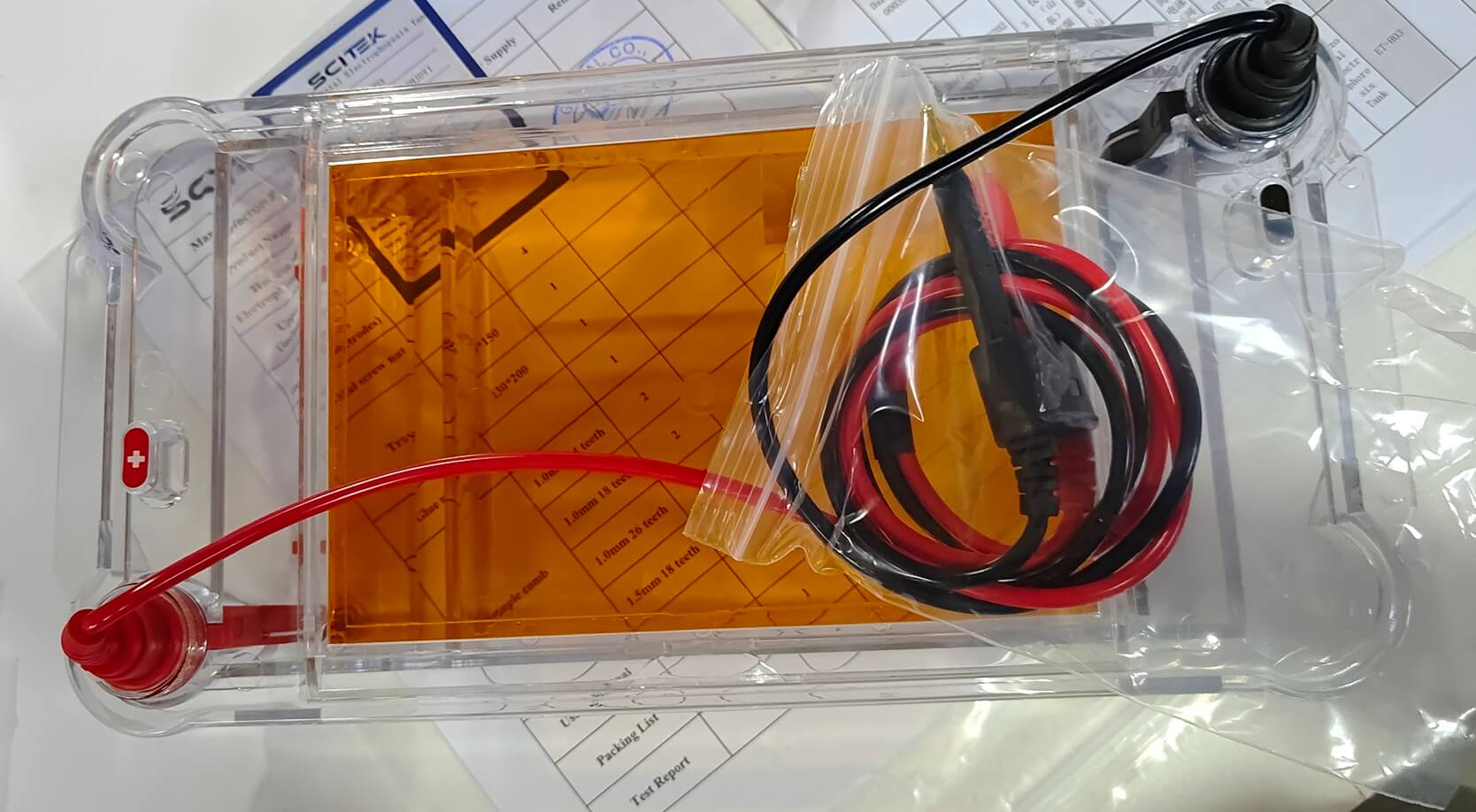

The electrophoresis tank is shown with clear, transparent construction, featuring electrode connectors and a well-defined gel tray for efficient sample separation. A closer view of the electrophoresis tank in use, with cables connected to the electrodes, demonstrating its setup for sample loading and running.

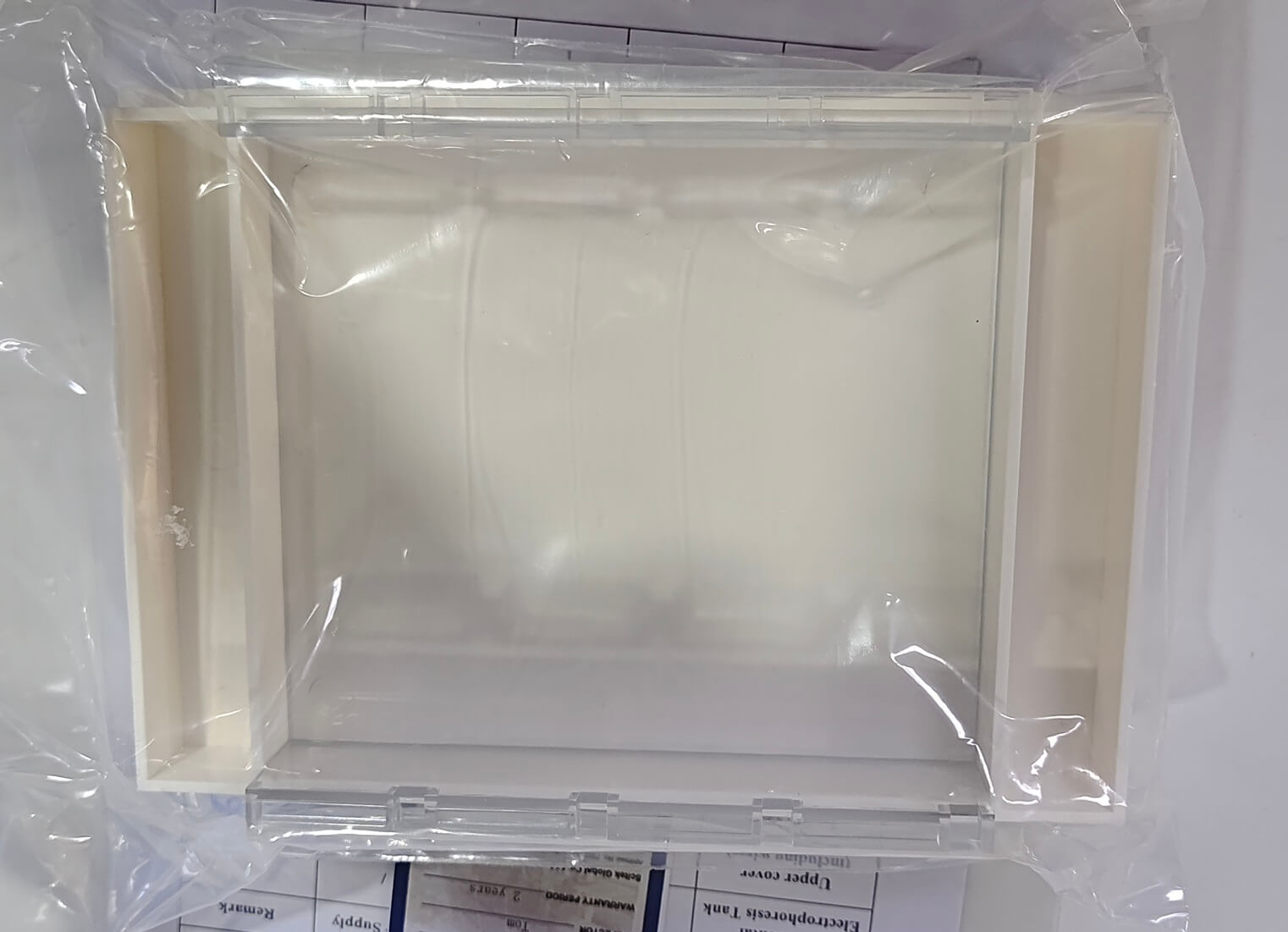

The empty gel tray inside the electrophoresis tank, designed for quick and effective gel casting and electrophoresis operations.
The product packaging, showing the horizontal electrophoresis tank securely packed in a cardboard box to ensure safe delivery.
